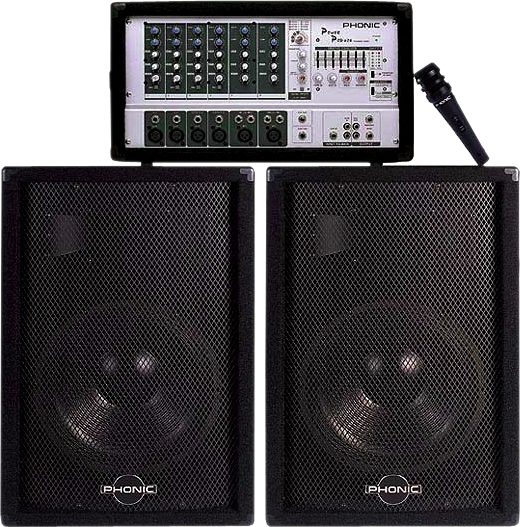

Phonic PowerPack 620 PA Package
Includes: mixer, speaker cabinets, speaker cables, mic, mic cable, and clip.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
From Our Catalog
This is another incredible value from Phonic. With 25 years of experience working with some of the biggest pro audio names in the business, they know exactly what musicians & performers are looking for. This new system includes the 6-channel Dual Power PowerPod 620 powered mixer, which features two 100-watt power sections that can be switched for Mains+Monitors or Stereo Mains operation. The PowerPod 620 also provides built-in digital effects and phantom power for condenser microphones. This package includes two SE710 10 in. speaker cabinets (100 watts, 65Hz - 20kHz), plus speaker cables, a Audio Technica ST90MKII microphone with a cable and mic clip.
Includes:
1 x Phonic PPOD620 6-channel mixer
2 x Phonic SE710 10 in. PA speakers
2 x 25 ft. CBI 14-gauge speaker cables
1 x Audio Technica ST90MKII vocal microphone
1 x 20 ft. Whirlwind MC20 XLR microphone cable
The PowerPod 620 powered mixer is similar to the popular PowerPod 740 but with less power. The PowerPod 620 comes with a 7-band graphic equalizer, two 100-watt power amplifiers, 6 balanced microphone inputs, and 8 line level inputs. Adjustable digital delay is also built-in. The PowerPod 620 is a good size mixer with power that is simple and effective!
PowerPod 620 Features:
2 x 100w power-amp
6 input channels
2-band EQ
Variable digital delay
7-band graphic EQ
Record out
+48V phantom power
POWER AMP, output power (@THD<0.5%, 1KHz)
Number of Power channels: 2
8 ohms per channel: 70 watts
4 ohms per channel: 100 watts
Inputs
Lo-Z/Hi-Z channels: 6
Balanced Mic/ST Line channels: 2
2T input: RCA
Aux in: TRS, unbalanced
Outputs
Main Mono: 1/4 in. TS Phone jack, unbalanced
Monitor: 1/4 in. TS Phone jack, unbalanced
Effect out: 1/4 in. TS Phone jack, unbalanced
Rec out: RCA
Channel Strips
Aux controls: Monitor, Effect
Pad In/Out: Ch1~4
Volume Controls: Rotary
Master Section
Aux Send Masters: Effect, Monitor
Effects Return to Monitor: Yes
Rotary Fader: Monitor, Main
Phantom Power Supply: +48VDC
Switches: Global
Built-in Digital Effect Processor: Variable digital delay
Noise (20Hz to 20KHz bandwidth, IHF-A weighted, line inputs to main output)
Master output, all channel level at min: Less than -78dBu
Power amp output, all channel level at minimum: Less than -63dBu
CMRR: 1 KHz @ -60dBu, Gain at maximum: 80 dB
THD+N
Power output, 20Hz to 20KHz: Less than 0.12% @100 watts, 4 ohms
Any output, 20Hz-20KHz@ 4dBu output: Less than 0.06%
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main output)
Channel level @ minimum, other channels at unity: Less than -63dB
Frequency Response (Mic input to output)
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 ohms: +1/-3dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 ohms: +1/-3dB
Maximum Levels
Mic preamp input: +10dBu
All other inputs: +22 dBu
Unbalanced Outputs: +22dBu
Impedances
Lo-Z input: 2.3kOhms
Hi-Z inputs: 5.6kOhms
All other inputs: Greater than 10kOhms
RCA 2T outputs: 1.2kOhms
All other outputs: 560 Ohms
Equalization
2-band, +/-15dB
Low EQ: 80Hz
Hi EQ: 12kHz
Microphone Preamp E.I.N (150 ohms terminated, max. gain)
Less than 122dBm
Power Consumption: 100 watts
Power Requirements: 100-120VAC, 220-240VAC 50/60Hz
Dimensions(WxHxD): 470 x 260 x 275mm (18.5 x 10.24 x 10.83 in.)
Weight: 12 kg (26.4 lbs)
Includes:
1 x Phonic PPOD620 6-channel mixer
2 x Phonic SE710 10 in. PA speakers
2 x 25 ft. CBI 14-gauge speaker cables
1 x Audio Technica ST90MKII vocal microphone
1 x 20 ft. Whirlwind MC20 XLR microphone cable
The PowerPod 620 powered mixer is similar to the popular PowerPod 740 but with less power. The PowerPod 620 comes with a 7-band graphic equalizer, two 100-watt power amplifiers, 6 balanced microphone inputs, and 8 line level inputs. Adjustable digital delay is also built-in. The PowerPod 620 is a good size mixer with power that is simple and effective!
PowerPod 620 Features:
2 x 100w power-amp
6 input channels
2-band EQ
Variable digital delay
7-band graphic EQ
Record out
+48V phantom power
Technical Info
PowerPod 620POWER AMP, output power (@THD<0.5%, 1KHz)
Number of Power channels: 2
8 ohms per channel: 70 watts
4 ohms per channel: 100 watts
Inputs
Lo-Z/Hi-Z channels: 6
Balanced Mic/ST Line channels: 2
2T input: RCA
Aux in: TRS, unbalanced
Outputs
Main Mono: 1/4 in. TS Phone jack, unbalanced
Monitor: 1/4 in. TS Phone jack, unbalanced
Effect out: 1/4 in. TS Phone jack, unbalanced
Rec out: RCA
Channel Strips
Aux controls: Monitor, Effect
Pad In/Out: Ch1~4
Volume Controls: Rotary
Master Section
Aux Send Masters: Effect, Monitor
Effects Return to Monitor: Yes
Rotary Fader: Monitor, Main
Phantom Power Supply: +48VDC
Switches: Global
Built-in Digital Effect Processor: Variable digital delay
Noise (20Hz to 20KHz bandwidth, IHF-A weighted, line inputs to main output)
Master output, all channel level at min: Less than -78dBu
Power amp output, all channel level at minimum: Less than -63dBu
CMRR: 1 KHz @ -60dBu, Gain at maximum: 80 dB
THD+N
Power output, 20Hz to 20KHz: Less than 0.12% @100 watts, 4 ohms
Any output, 20Hz-20KHz@ 4dBu output: Less than 0.06%
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main output)
Channel level @ minimum, other channels at unity: Less than -63dB
Frequency Response (Mic input to output)
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 ohms: +1/-3dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 ohms: +1/-3dB
Maximum Levels
Mic preamp input: +10dBu
All other inputs: +22 dBu
Unbalanced Outputs: +22dBu
Impedances
Lo-Z input: 2.3kOhms
Hi-Z inputs: 5.6kOhms
All other inputs: Greater than 10kOhms
RCA 2T outputs: 1.2kOhms
All other outputs: 560 Ohms
Equalization
2-band, +/-15dB
Low EQ: 80Hz
Hi EQ: 12kHz
Microphone Preamp E.I.N (150 ohms terminated, max. gain)
Less than 122dBm
Power Consumption: 100 watts
Power Requirements: 100-120VAC, 220-240VAC 50/60Hz
Dimensions(WxHxD): 470 x 260 x 275mm (18.5 x 10.24 x 10.83 in.)
Weight: 12 kg (26.4 lbs)
With 6 input channels and 200 watts of power.
What Our Customers Say About zZounds
"Super fast shipping. My son is thrilled!" - customer on November 14, 2009
Phonic PowerPack 620 PA Package Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"Great PA for a great price!"
Feature:
The 620 is packed wih very cool features you would normaly find on more expensive units. Like a 7 band EQ and 2 of the 6 channels have stereo inputs that I find very useful! The effects loop is great and I really like the switchable power amp modes! I also like being able to easily link the 620 to the house PA from the front panal!
Quality:
The 620 looks and sounds like you should have paid a lot more money for it! A great deal!
Value:
This is a great amp for a great price!
Desirability:
The 620 has a high dollar PA look to it!
Sound:
When I'm using the 620 in a normal size room then I use it as you normally would. But if I have a larger room to play I simply use my stage moniters as 2 extra speakers putting them on stands and facing them toward the crowd. This is just like having a another seperate 100 watt PA pumping out the jams. Very Cool!
Support:
My 620 works great! I've never had a need to contact them for any repairs!
Overall:
I got the 620 after looking at many other PAs. I was looking for something that would grow with me and was upgradeable. The 620 really fits the bill and I'll be using it for quite sometime!
The 620 is packed wih very cool features you would normaly find on more expensive units. Like a 7 band EQ and 2 of the 6 channels have stereo inputs that I find very useful! The effects loop is great and I really like the switchable power amp modes! I also like being able to easily link the 620 to the house PA from the front panal!
Quality:
The 620 looks and sounds like you should have paid a lot more money for it! A great deal!
Value:
This is a great amp for a great price!
Desirability:
The 620 has a high dollar PA look to it!
Sound:
When I'm using the 620 in a normal size room then I use it as you normally would. But if I have a larger room to play I simply use my stage moniters as 2 extra speakers putting them on stands and facing them toward the crowd. This is just like having a another seperate 100 watt PA pumping out the jams. Very Cool!
Support:
My 620 works great! I've never had a need to contact them for any repairs!
Overall:
I got the 620 after looking at many other PAs. I was looking for something that would grow with me and was upgradeable. The 620 really fits the bill and I'll be using it for quite sometime!
Submitted: 02/28/2004
Style of Music: Rock Pop, Electronic & Techno
10 out of 10
"Great capability in a reasonably priced package."
Feature:
Would have rather had stands than the mic, but oh well.
Quality:
Seems to be solid so far ~ 9 months.
Value:
Really a great system for the price. I've used other, borrowed and house systems and they don't compare.
Desirability:
Uh, this is a power amp-- I wouldn't describe any power amp as sexy.
Sound:
For the price, you can achieve amazing sound if you know a little about mixing.
Support:
No need so far, that's the best type of support!
Overall:
Really nothing to compplain about.
Would have rather had stands than the mic, but oh well.
Quality:
Seems to be solid so far ~ 9 months.
Value:
Really a great system for the price. I've used other, borrowed and house systems and they don't compare.
Desirability:
Uh, this is a power amp-- I wouldn't describe any power amp as sexy.
Sound:
For the price, you can achieve amazing sound if you know a little about mixing.
Support:
No need so far, that's the best type of support!
Overall:
Really nothing to compplain about.
Submitted: 02/08/2006
Style of Music: Rock
