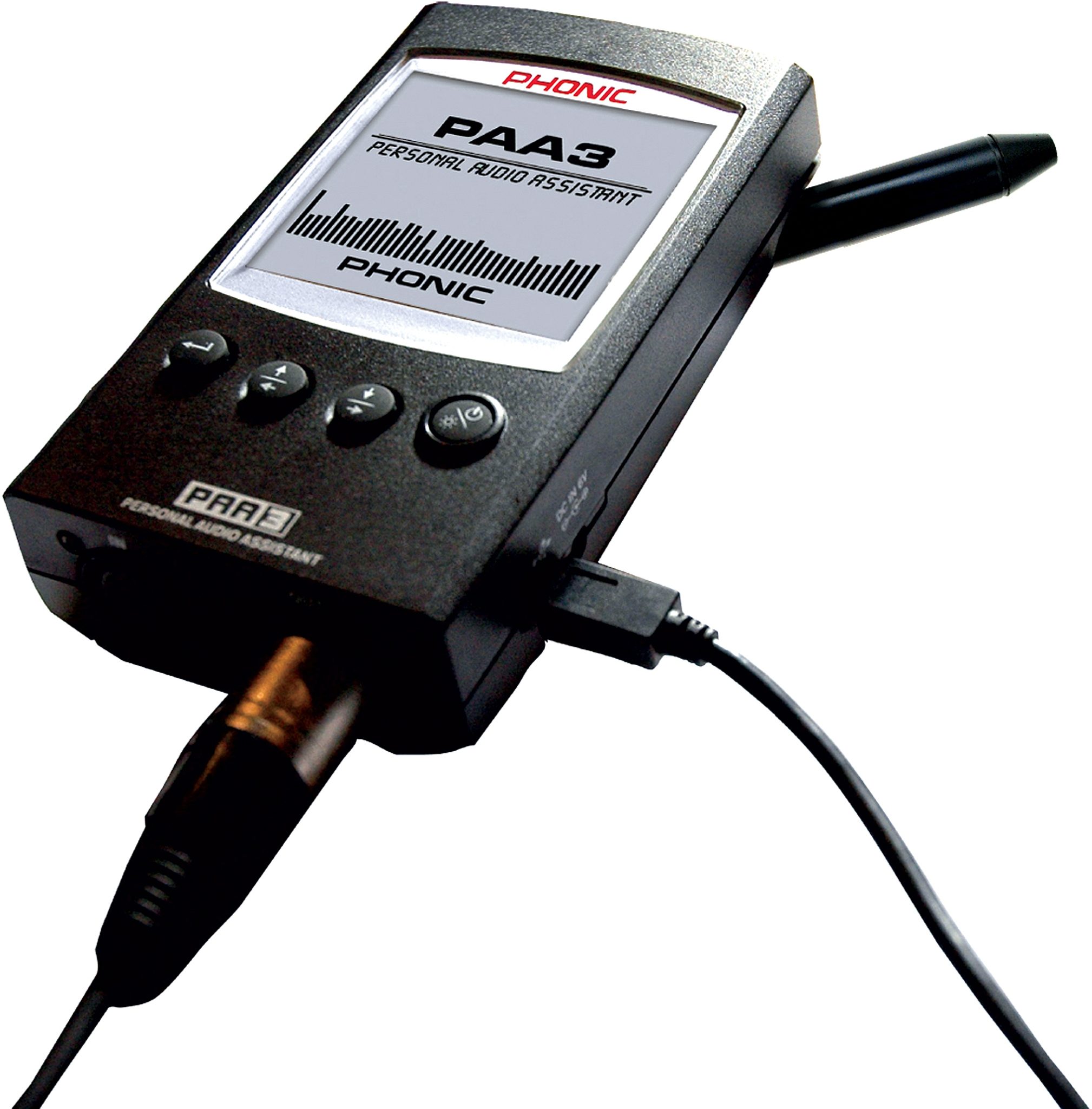

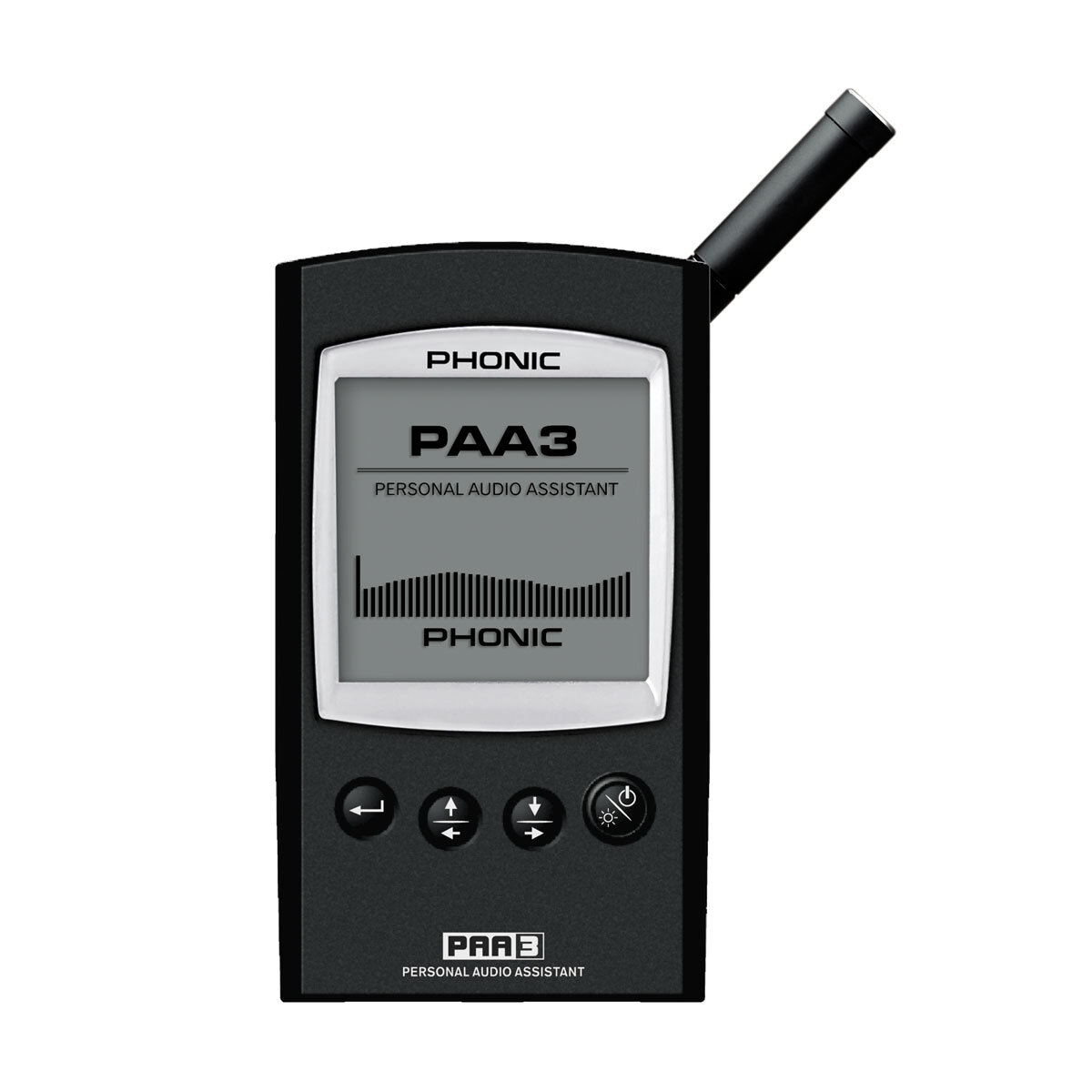

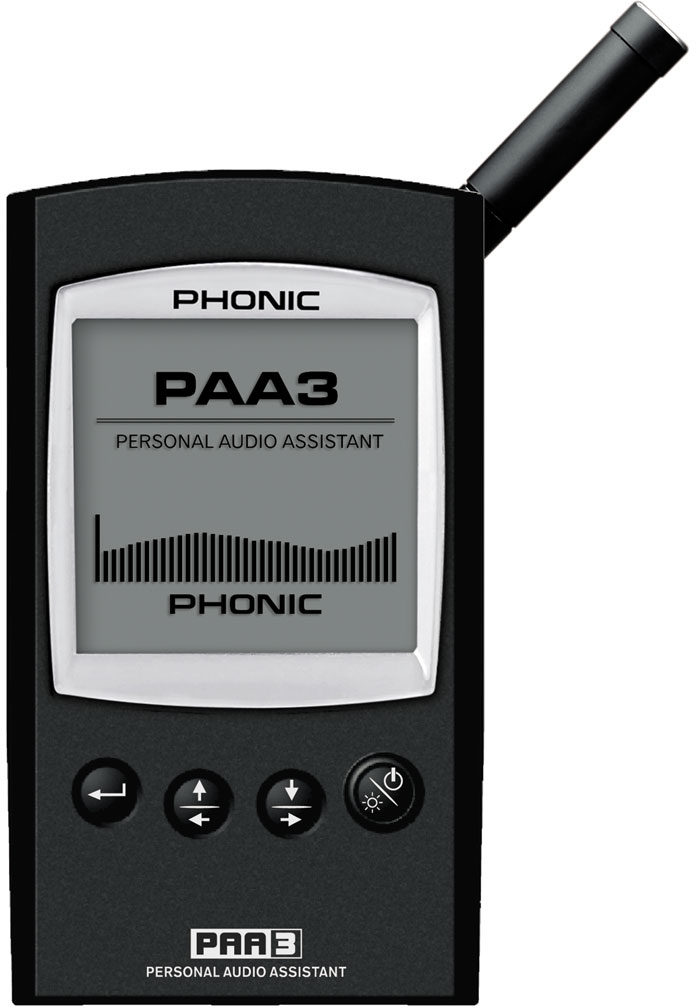

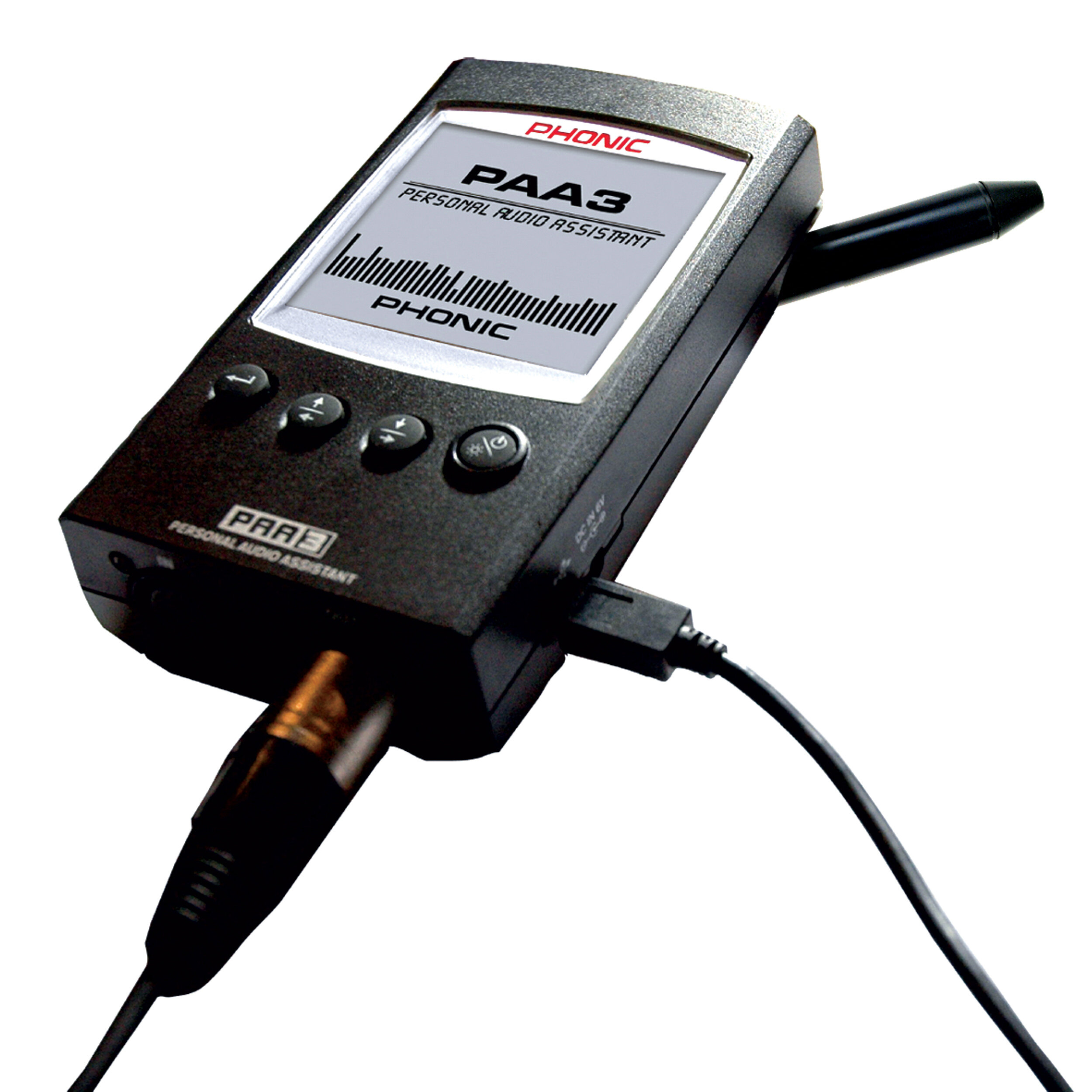

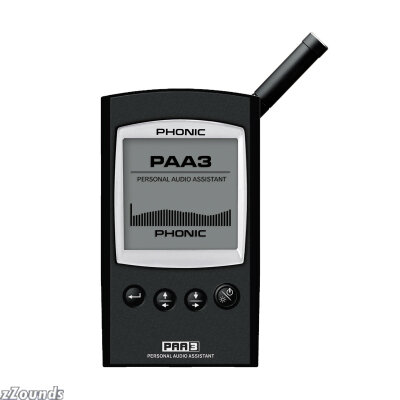

Phonic PAA3 Handheld Audio Analyzer

The PAA3 is a highly accurate handheld audio analyzer that gives sound engineers a rich array of sound analysis tools. Features include 31-band real time spectrum analysis, RT60, SPL and line meter, internal generator, EQ setting program, microphone calibration and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. Easily upload information and settings to your computer via the built-in USB interface. The large LCD screen has a visible backlight to help you see in a dark performance environment. And with a battery life of 7 hours, the PAA3 is the multifunctional tool for every serious audio engineer.


Features :
31-band Real Time Spectrum Analyzer

31-band EQ setting value display (Boost/Cut)

RT60 measurement

Built-in calibrated measurement microphone

Phase checker

Noise generator with pink noise, 1kHz and polarity test signal, balanced output

Memory and average calculation function

SPL meter calibration through sound level calibrator

Sound Pressure Level Meter from 30 dB~130 dB

Line signal measurement display in dBu, dBV, or Volts (AC)

SPL meter and level meter have three level range selections

Maximum level, Peak hold displays

XLR input and output sockets

USB interface for desktop software control

Audio test signal CD and supporting software

Three power modes: (1) Power Save (2) On (3) Off

Operates seven hours with four AA batteries

AC power adapter included

Highly accurate test lab that fits in the palm of your hand! Features a built-in measurement mic that allows 31-band realtime spectrum analysis, SPL metering, phase checking, RT60 measurement and more. Audio output for noise generator. USB computer interface.
