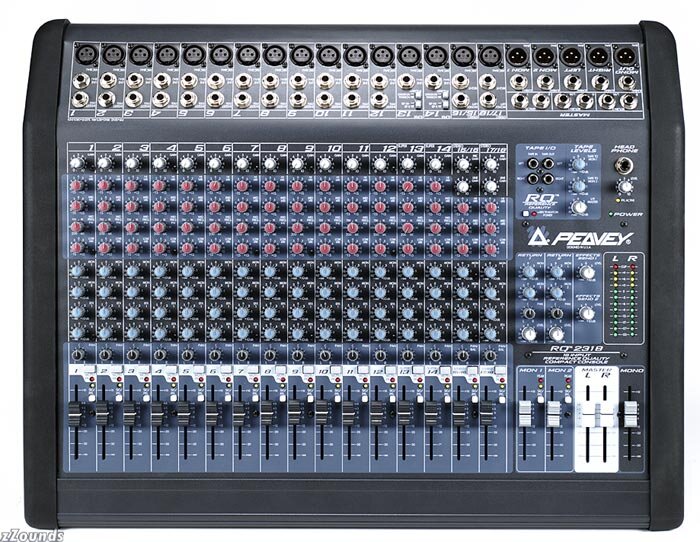

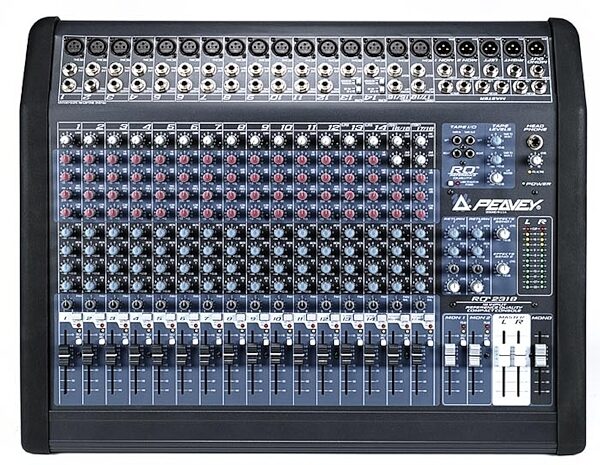

Peavey RQ2318 16-Channel Console Mixer

Great features and proven reliability. Whether for a home project studio or mixing live sound the RQ 23 Series has all the features you need plus Peavey reliability. The RQ 2310 features 8 XLR inputs each with an insert and 48 V phantom power (The RQ 2314 has 12 and the RQ 2318 has 16). The channel EQ allows for excellent control with its sweepable mid frequency. All of the RQ 23 Series mixers have 2 stereo returns with separate volume for the monitor sends and pan allowing for some really creative mixing options. The output section on these feature packed mixers has XLR balanced connectors for the left, right and mono outputs. Each of the channels has two indicators one for signal present and one for clipping, this allows you to see distortion on the channel before anybody hears it. Each input also features PFL for monitoring the channel and mute to allow you to turn off a channel without losing your fader setting. The RQ 23 Series brings home all the features you want at a price that you will like.

Features:
16 low noise (reference quality) microphone inputs

2 channels with stereo line inputs

3-band EQ with mid-sweep on channels 1-14

3-band EQ on channels 15 & 16

Inserts on channels 1-12

Pad and polarity on channels 13 & 14

Mute and PFL on each input

LED clip, signal, PFL and mute indication

2 pre-fader monitor sends with 60 mm master fader

2 post-fader effects sends

2 stereo effects returns

Precision 60 mm faders on input channels

Left, Right, Monitor 1 & 2 and Mono outputs with 1/4 in. unbalanced and XLR balanced connectors

Rugged console design

Technical Info

Dimensions:
Unpacked Weight: 19.70 lbs.

Unpacked Width: 24.25 in.

Unpacked Depth: 18.8750 in.

Unpacked Height: 4.1250 in.

Packed Weight: 24 lbs.

Packed Width: 28.6250 in.

Packed Depth: 23.25 in.

Packed Height: 7.25 in.
