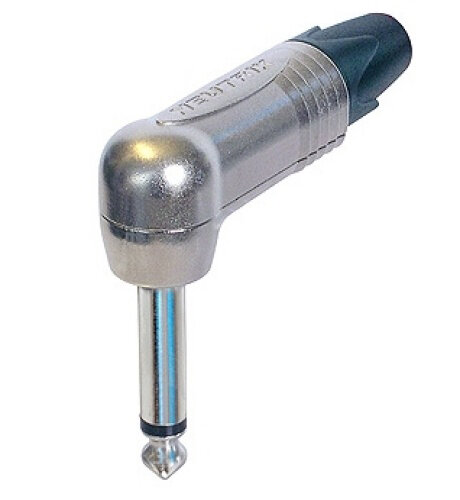

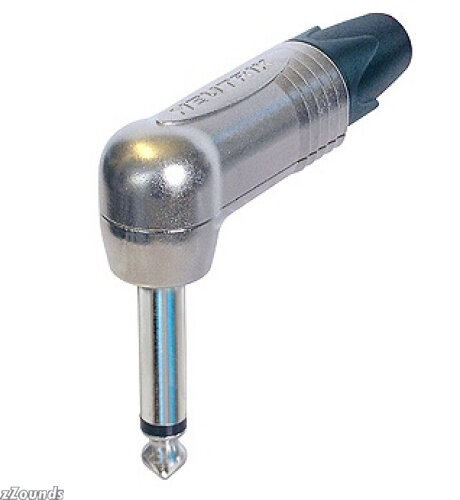

Neutrik NP2RX Male Mono Right Angle 1/4 in. Connector

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

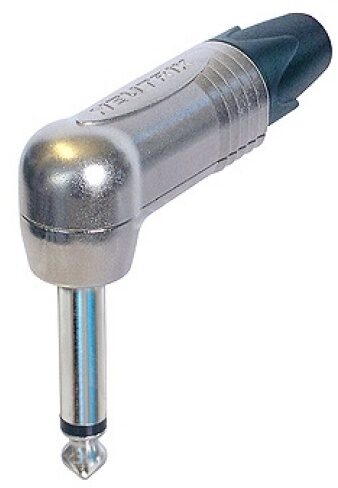

open zoom image for Neutrik NP2RX Male Mono Right Angle 1/4 in. Connector, Main
Neutrik NP2RX Male Mono Right Angle 1/4 in. Connector, Main
zZounds Gear Experts Say...
1/4-inch professional right-angle phone plug, 2 pole, nickel contacts, nickel shell.

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4-inch plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features
- All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection

- Extra slim 1/4 in. plug for highest packing density

- Robust diecast shell in stylish design

- Improved chuck type strain relief for reliable cable retention

- Sleek design for best handling convenience

- Precision machined one-piece contacts - avoid hook up of tip contact

Electrical
Contact resistance: depends on mating connector mOhm

Dielectric strength: 1 kVdc

Insulation resistance: > 2 GOhm (initial)

Insulation resistance: >= 1 GOhm (after damp heat test)

Rated current per contact: depends on mating connector A

Rated voltage: 50 V

Mechanical
Cable O.D.: 4 - 7 mm

Lifetime: > 1000 mating cycles

Wire size: 1 mm

For support or warranty questions, please contact the manufacturer:
Phone: 732-901-9488
Assembly Instructions
