Nady PEM-500 In-Ear Wireless Personal Monitor System

Manufacturer's Description for Nady PEM-500 In-Ear Wireless Personal Monitor System

The Nady PEM500 Personal Ear Monitor System offers all of the advantages of wireless in-ear monitoring such as mobility and freedom from feedback. For the first time, a wireless in-ear monitor system combines state-of-the-art advanced frequency-agile synthesized UHF technology, high-end performance, and unprecedented affordability.

Features

- Available on selected frequency bands within the UHF spectrum for interference-free, long-range performance (up to eight systems can be operated simultaneously, depending on location and frequency band)

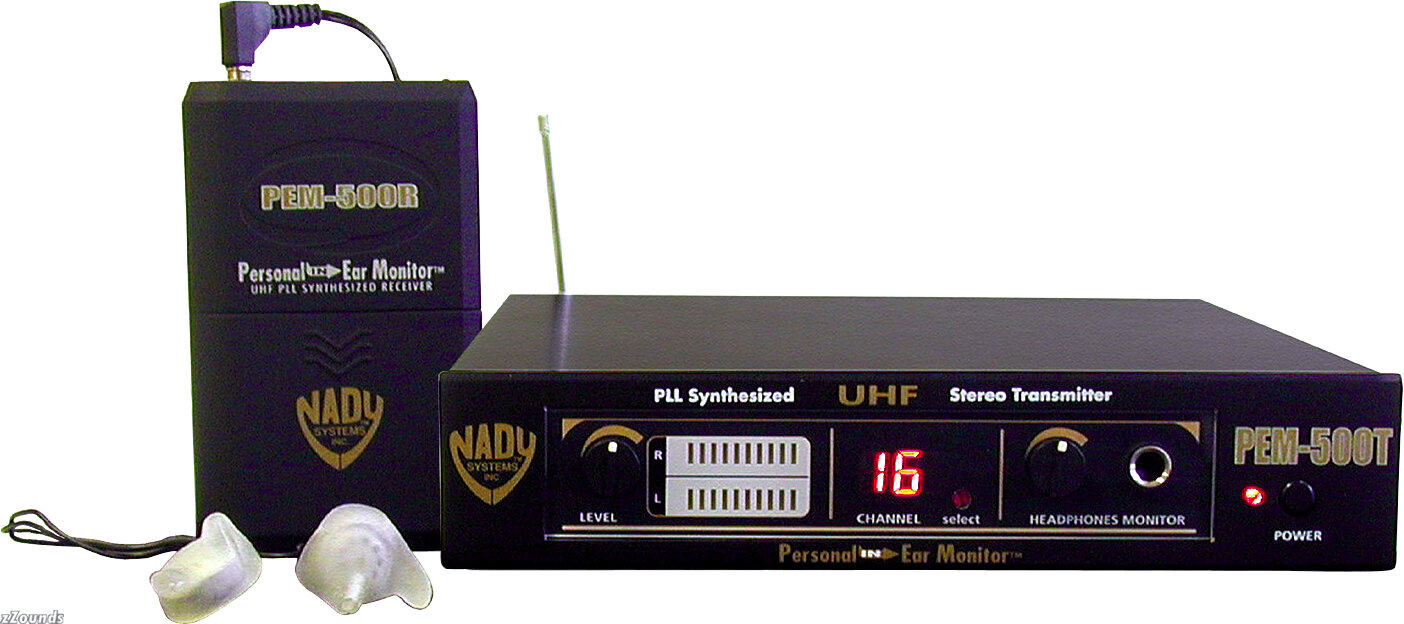

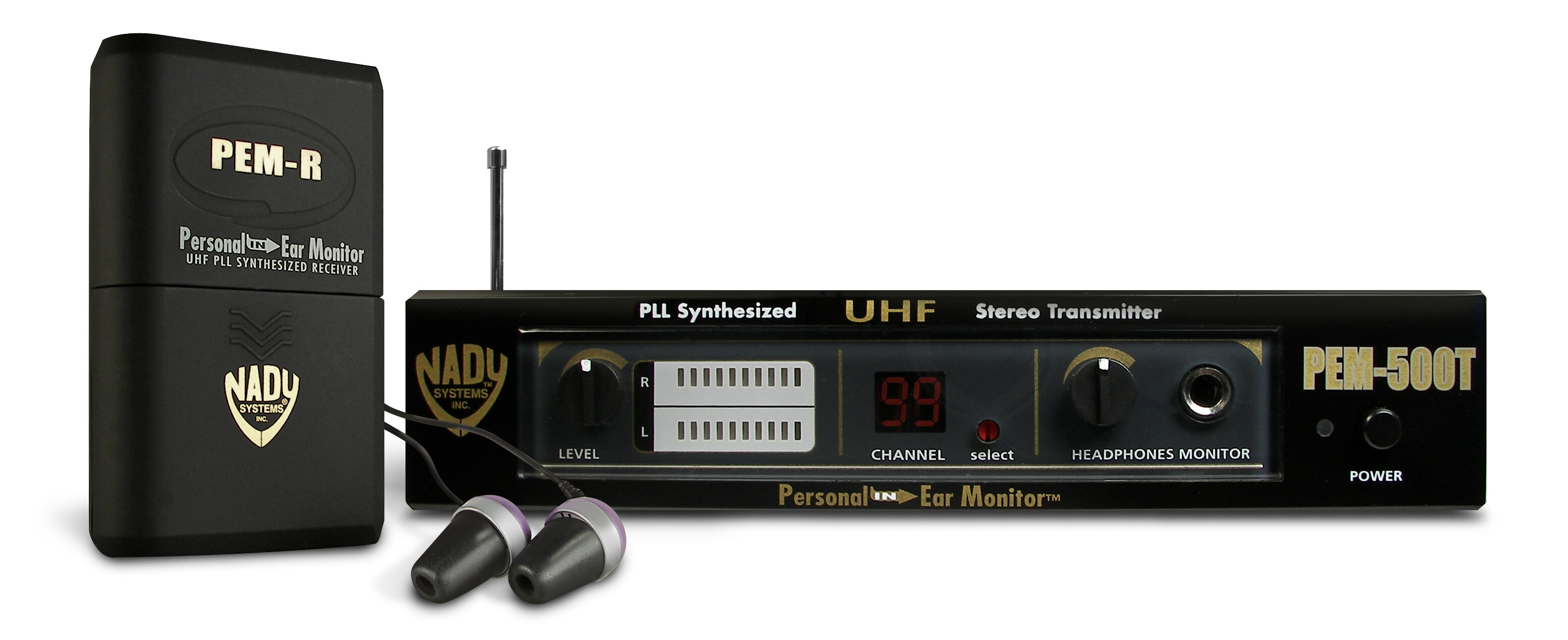

- System consists of PEM-500T stereo transmitter and one bodypack stereo PEM-R receiver (both offer 16-channel user selectability)
- Any number of additional receivers can be operated with the same transmitter if all are set to the same channel
- Proprietary companding circuitry for wide dynamic range and clear, natural sound
- Operating range: up to 300 ft. typical (depending on site conditions)
- Rugged, foam-padded traveling case provides easy, safe transport and storage

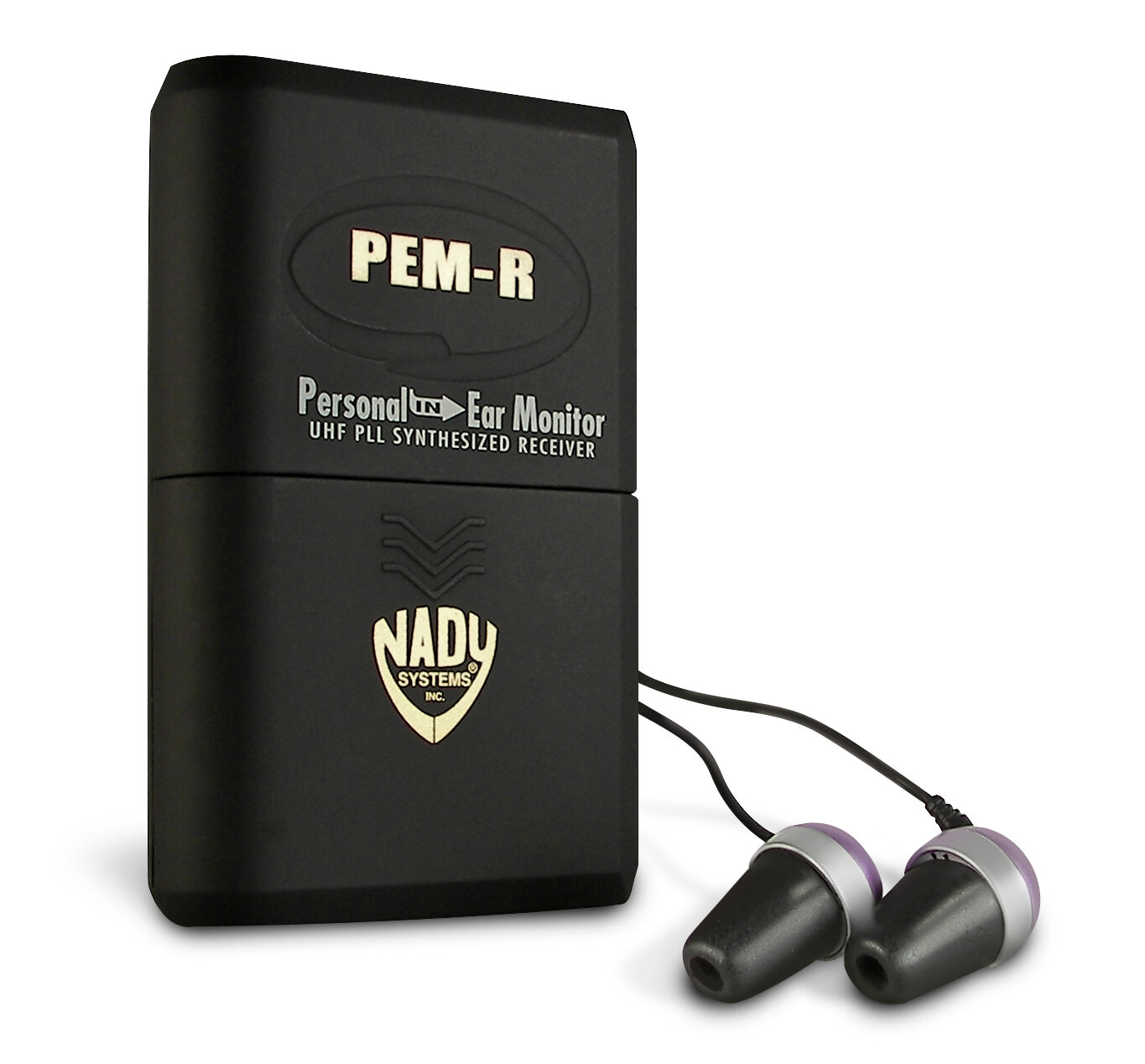

Receiver:

- Portable bodypack receiver features a power switch; switchable built-in volume limiter; Output Level control; stereo/mono select switch; two-color (red/green) 3-way Unit On/Signal/low-battery LED indicators
- Operates up to six hours (depending on volume) on a single 9V alkaline battery
- Each receiver is supplied with a pair of miniature, lightweight (yet powerful) in-ear Koss® stereophones with soft rubber foam mounts in three shapes (conical, cylindrical and hexagonal); designed for fitted comfort and optimum acoustic transfer and isolation
- Rear clip can be rotated 90° for attaching receiver either vertically or horizontally to clothing

Stereo Transmitter:

- Rugged, all-metal half-rack can be rackmounted with single rackmount kit (included), or side-by-side with optional dual rackmount kit
- Microphone Input allows wireless cueing of performers on stage
- Front panel features Input Level control; stereo headphone monitor output jack and volume control; Select button for choosing one of 16 UHF channels, LED channel display; L/R 10-segment Audio Input Level displays
- Back panel provides BNC jack for the detachable antenna; stereo/mono select switch, 1/4 TRS balanced microphone input, XLR jacks for left and right line inputs
- Externally powered by AC/DC power adapter zZounds is an authorized dealer of Nady products.

Operating Frequency Range: 696-865 MHz, country dependent

Modulation: Mono or stereo (MPX with pilot tone), FM: F3E +/- 60 KHz, nominal

Audio Frequency Response: 50 ~ 12,000 Hz

T. H. D.: 1%

Signal-to-Noise Ratio: > 80 dB, with proprietary companding noise reduction

Operating Range: Up to 300 feet typical (depending on site conditions)

PEM-500T Transmitter
RF Output Power: Max. 50 mW (country dependent)

L/R Audio Line Inputs
Input Impedance: 600 ohms
Nominal Input Level: 0 dBm
Max. Input Level: +6 dBm

Headphones Out Power: 100 mW max. @ 32
