Nady MPM4130 PA210 Deluxe PA Package with Microphone

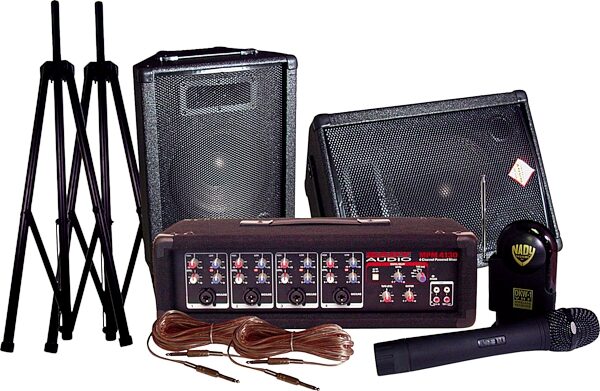

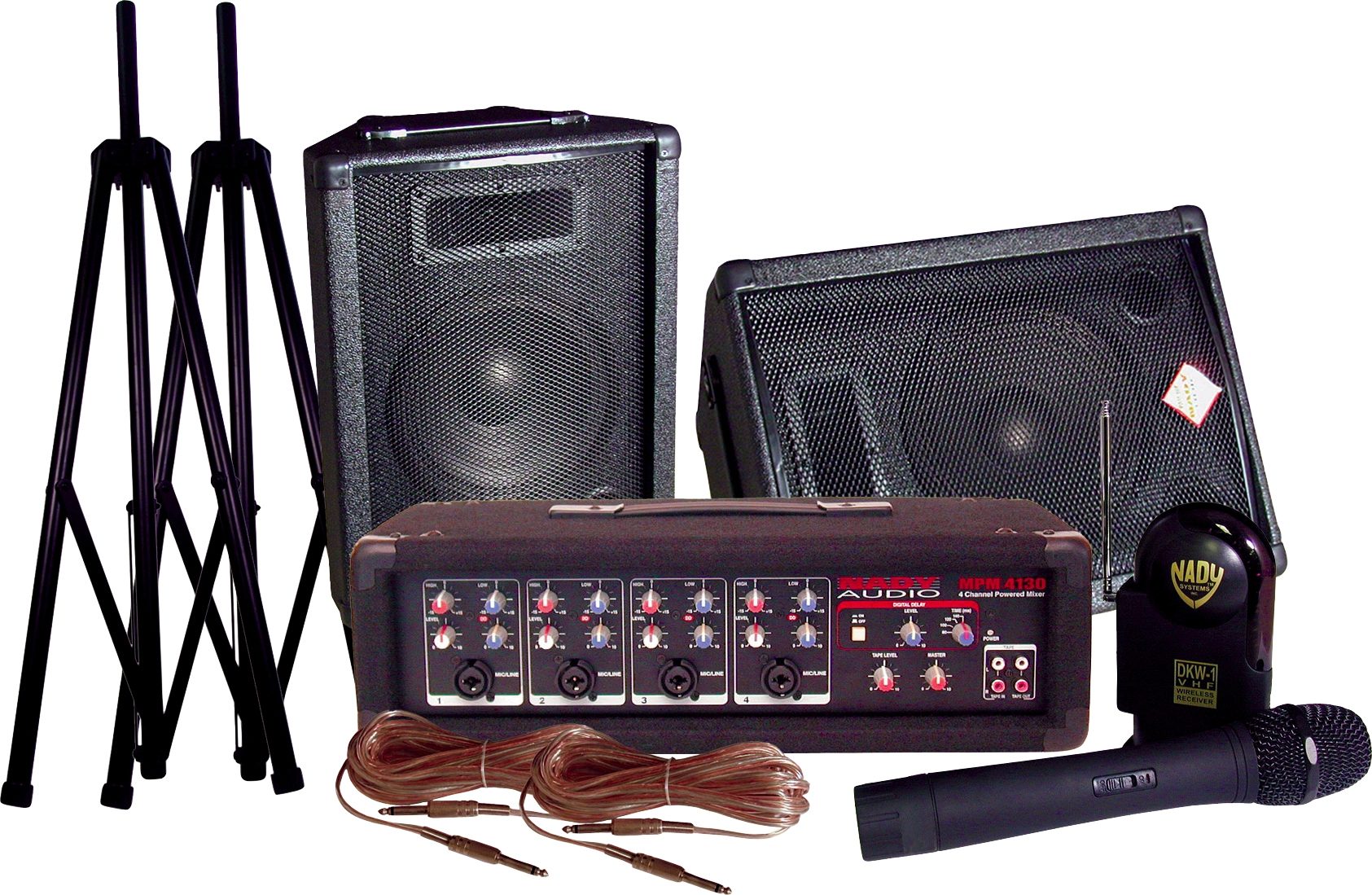

This portable system from Nady is a compact PA - complete with a wireless microphone system -- at a rock-bottom price. Perfect for all small venues, it features the Nady MPM 4130 4-channel 130-watt powered mixer with built-in digital delay, 2 Nady PAM-10F 2-way, full range speaker cabs with heavy-duty 10 in. woofers and a 7 in. wide piezo horn each, 2 rugged speaker stands, two 20 ft. speaker cables, and a Nady DKW HT handheld wireless mic system. Rugged and easy to operate, the MPM 4130 mixer offers great features and performance and is ideal for many venue applications. The MPM 4130 features combination XLR and

Technical Info

PAM10F

Power Rating: 120W program

Weight: 16.5 lbs (7.5 Kg)

Dimensions: 10 in. W x 20 in. H x 15 in. L (25.4 x 50.8 x 38.1 cm)]

MPM4130

Power Amp, Max. Output Power In Watts (RMS):
Number of Power channels: 1
Power at 8 Ohms: 100W
Power at 4 Ohms: 130W

Inputs:
Balanced mono Mic/Line channels: 4
2 Track input: 1

Outputs: TRS, unbalanced Main out

Channel Strips: Rotary Volume controls: Rotary

Master Section: Rotary Master Fader

Built-In Digital Effect: Digital Delay (80ms, 120ms, 160ms, 200ms)

Noise (20Hz to 20KHz bandwidth, line Master output):
Master output, all faders down: -82dB
Power amp output, all faders down: -55dB
THD Power output, 20Hz to 20KHz: <0.1% @100W/4 Ohms

Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz Bandwith, channel in to master output), Channel fader down: <-65dB

Frequency Response (Mic input to output):
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +/-2dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +/-2dB

Sensitivity @ Mixer Output +4dBu:
Mic/Line: -42dB/-22dB
Tape in: -10dB

Channel Equalization:
Low EQ: 80Hz (+/-15dB)
Hi EQ: 12KHz (+/-15dB)

Microphone Preamp E.I.N. (150 Ohms Terminated, max. Gain): <-102dBm

Power Consumption: 130 watts

Power Requirements: 100-120, 220-240 VAC, 50-60 Hz

Fusing: 5x20mm glass type, 4A/250V for 115VAC, and 2A/250V for 230VAC operation, fast-blow fuse

Dimensions (W x H x D): 17.52 in. x 8.62 in. x 5.87 in. (445 x 219 x 149 mm)

Weight: 18.45 lbs (8.4kg)

DKW HT Wireless

Frequency Response: 40-20,000 Hz, +/-3dB

Dynamic Range: 100dB

Total Harmonic Distortion: <0.65%

RF Carrier Frequency Range: 170-216 MHz

Frequency Stability: +/- 0.005%, crystal controlled

Modulation: FM (F3E), +/-20KHz max.

Operating Range: 250 ft. typical;up to 500+ ft. line-of-sight

Transmitter

Controls: Off/Standby/On switch

LED Indicator: Unit "On" (single flash), Low Battery Alert (steady)

RF Power Out: 50mW (Max. allowed by FCC)

Harmonic & Spurious Emissions: >-40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: 9.5 in. x 1.4 in. Dia.

Weight (w/o battery): 6.9 oz. (193 g.)

Receiver

Controls: Power On/Off

Connectors:

This system features full range 10" speakers with horns.
