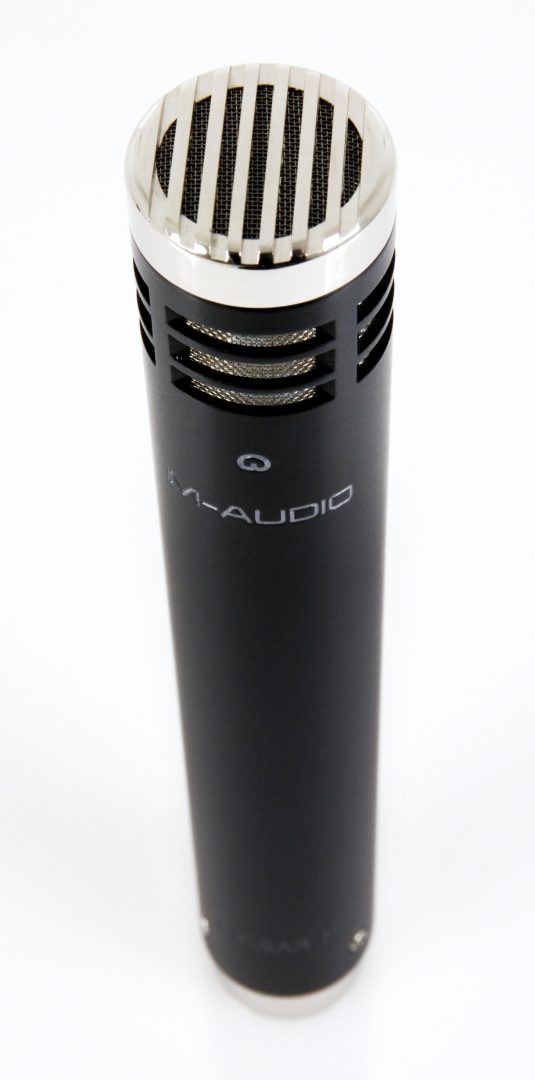

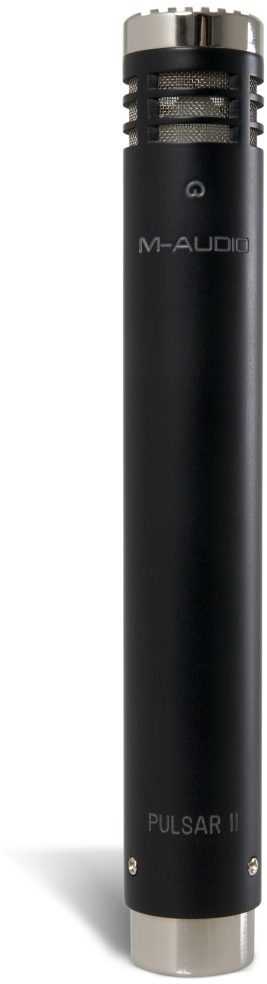

M-Audio Pulsar II Small Diaphragm Condenser Microphone

The redesigned Pulsar II small-diaphragm cardioid condenser microphone takes M-Audio's pencil condenser technology to an even higher level. Designed in the U.S.A. by veteran engineers and hand-assembled to exacting standards, this precision microphone exhibits quality comparable to that of vintage classics. New features like -10dB pad and 80Hz high-pass filter switches, higher SPL than the original and a redesigned solid-brass backplate deliver smooth, accurate sound in the studio and on stage. The Pulsar II has many applications, including drum overheads, acoustic guitar, piano, close-miking strings and woodwinds, room miking and more.

M-Audio--Professional Choice

M-Audio microphones deliver the same commitment to excellence that recording pros around the world have come to trust with our Studiophile reference monitors, Pro Tools-compatible audio interfaces and more. M-Audio microphones bring new tonal options to the sonic palette of even the most sophisticated mic lockers. Models like the M-Audio Sputnik are turning the heads of top audio engineers and press--including winning Pro Audio Review's Reviewer's Pick and Electronic Musician's prestigious Editors' Choice Award. If you're serious about your sound right from the beginning of your recording chain, then you owe it to yourself to give M-Audio microphones a listen.

Singles or Matched Sets

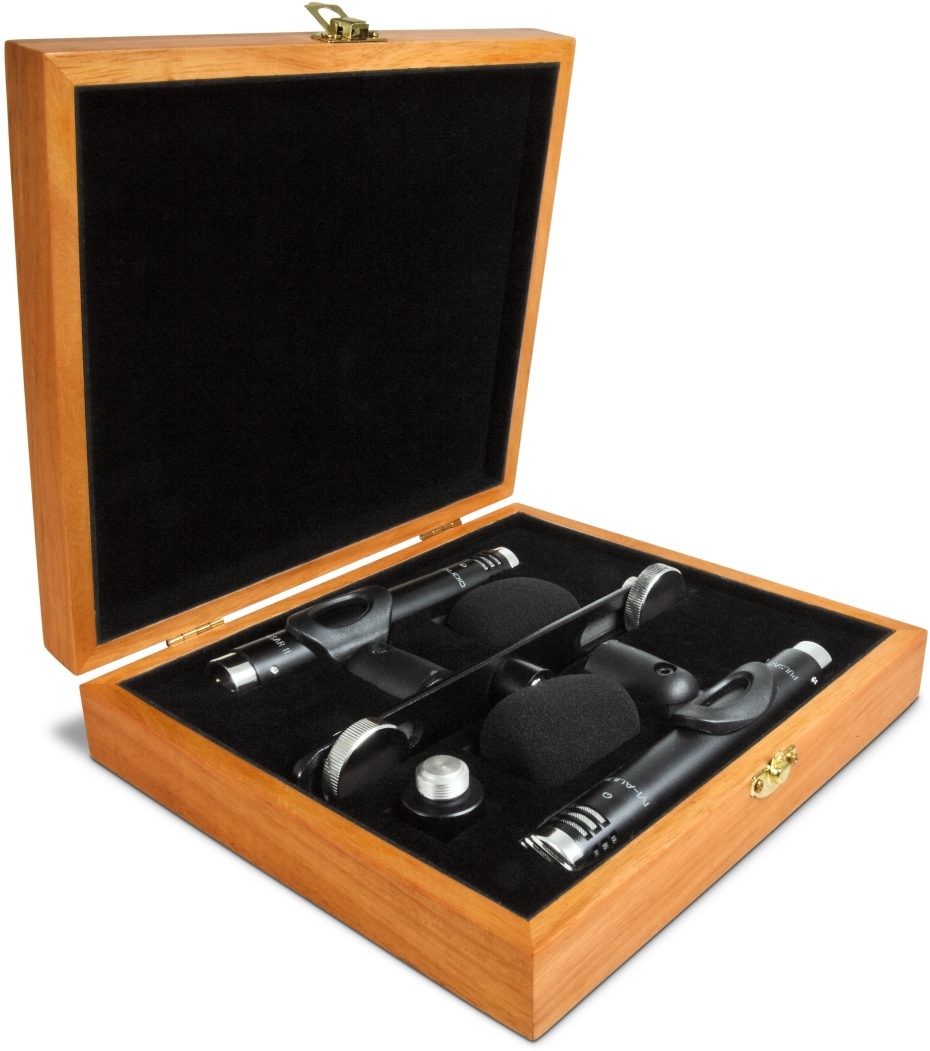

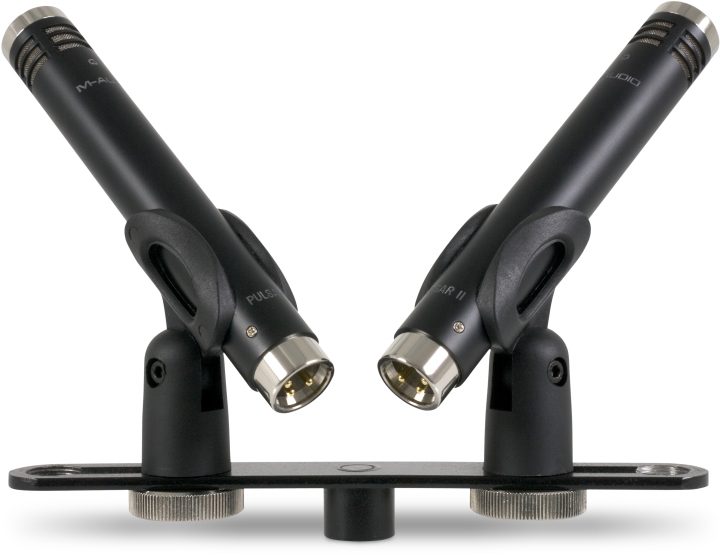

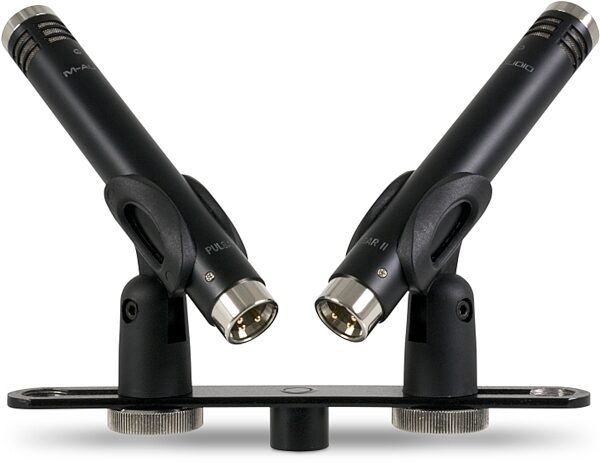

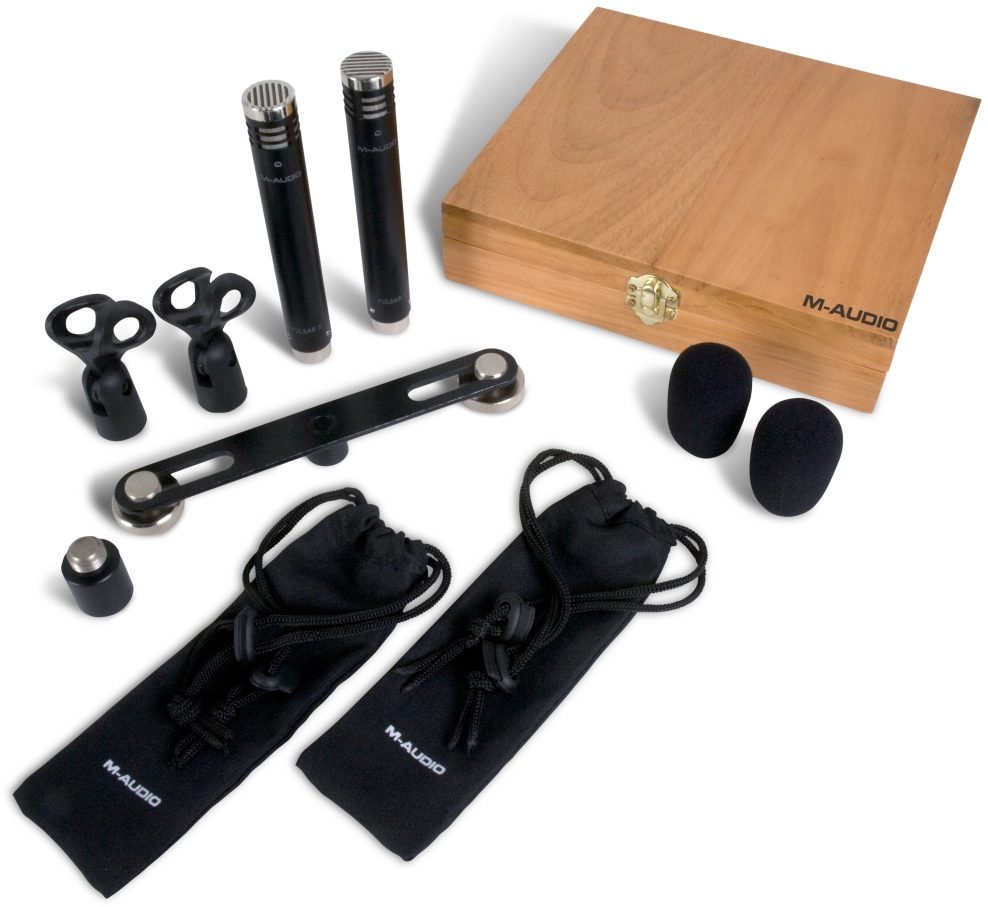

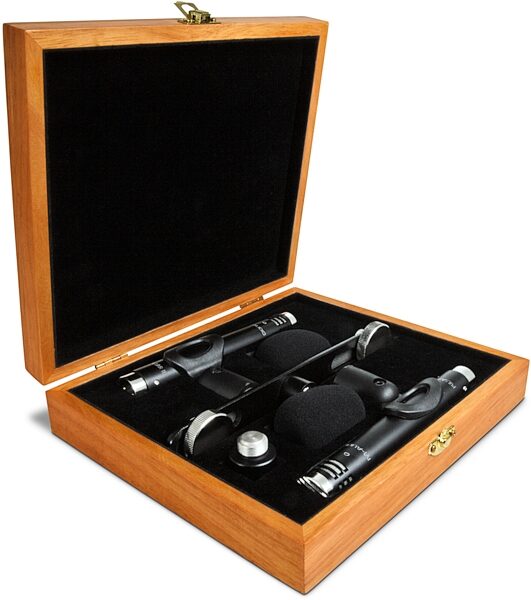

The Pulsar II is available individually or as a matched set with only +/-1dB tolerance from the excellent published frequency response curves--which extend from 20Hz to 20kHz. This makes the Pulsar II mics ideal for stereo room miking, stereo overheads and similar applications where balance and imaging is key.

Pulsar II--The New Classic
Designed in the U.S.A. by veteran engineers and hand-assembled to exacting standards, these precision instruments exhibit quality that is regularly compared to that of vintage classics. In fact, many top Los Angeles session engineers have likened the Pulsar II to the Neumann KM84--and its replacement KM184--only with more open top end similar to Schoeps.

Flexible New Features
The Pulsar II can adapt to many recording and live situations. The 12dB/octave high-pass filter reduces low-frequency rumble and the potential for overloading mic preamps with low-frequency signals. The Pulsar II also handles higher SPLs--an overall 2dB boost thanks to a new thermal diaphragm treatment, plus a new 10dB switchable attenuation pad.

Features

Professional small-capsule condenser microphone

3/4-inch diameter, 6-micron Mylar evaporated gold diaphragm

Thermal diaphragm treatment yields 2dB SPL boost over original model

Solid brass backplate

Solid brass body

Class-A FET electronics

Switchable -10dB pad

Switchable 80Hz high-pass filter (12dB/octave)

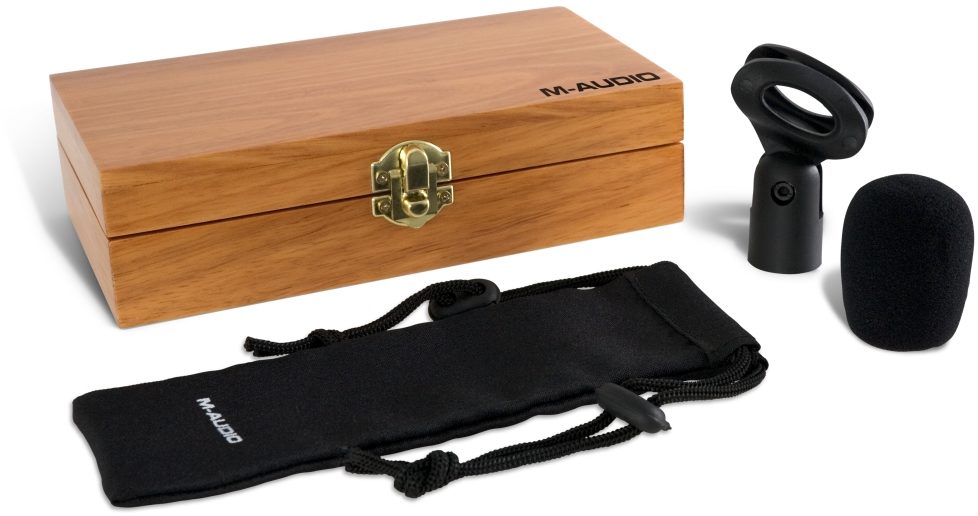

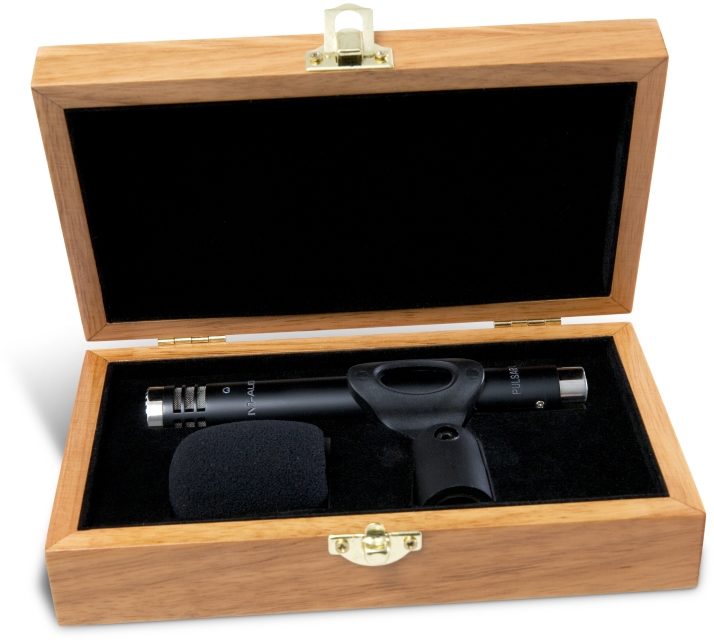

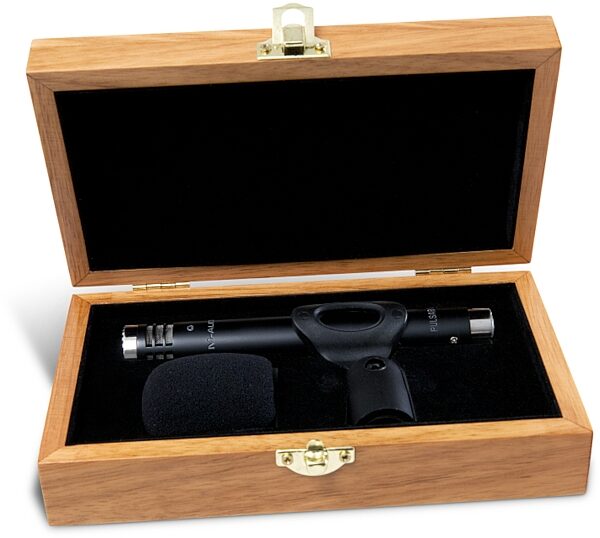

Wooden storage box houses microphone, windscreen and clip

Technical Info

Diaphragm: 3/4 in. diameter, 6-micron Mylar

Backplate: Solid brass

Electronics: Class-A FET (transformerless)

Frequency response: 20Hz-20kHz

Sensitivity: -37dB @ 1kHz, 0dB=1V/Pa (13.8 mV/Pa)

Max SPL: 134dB at 0.5% THD, 144dB with 10dB pad

Equivalent noise: 16dBA

Pattern: Cardioid
