MAudio Duo USB Audio Interface

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

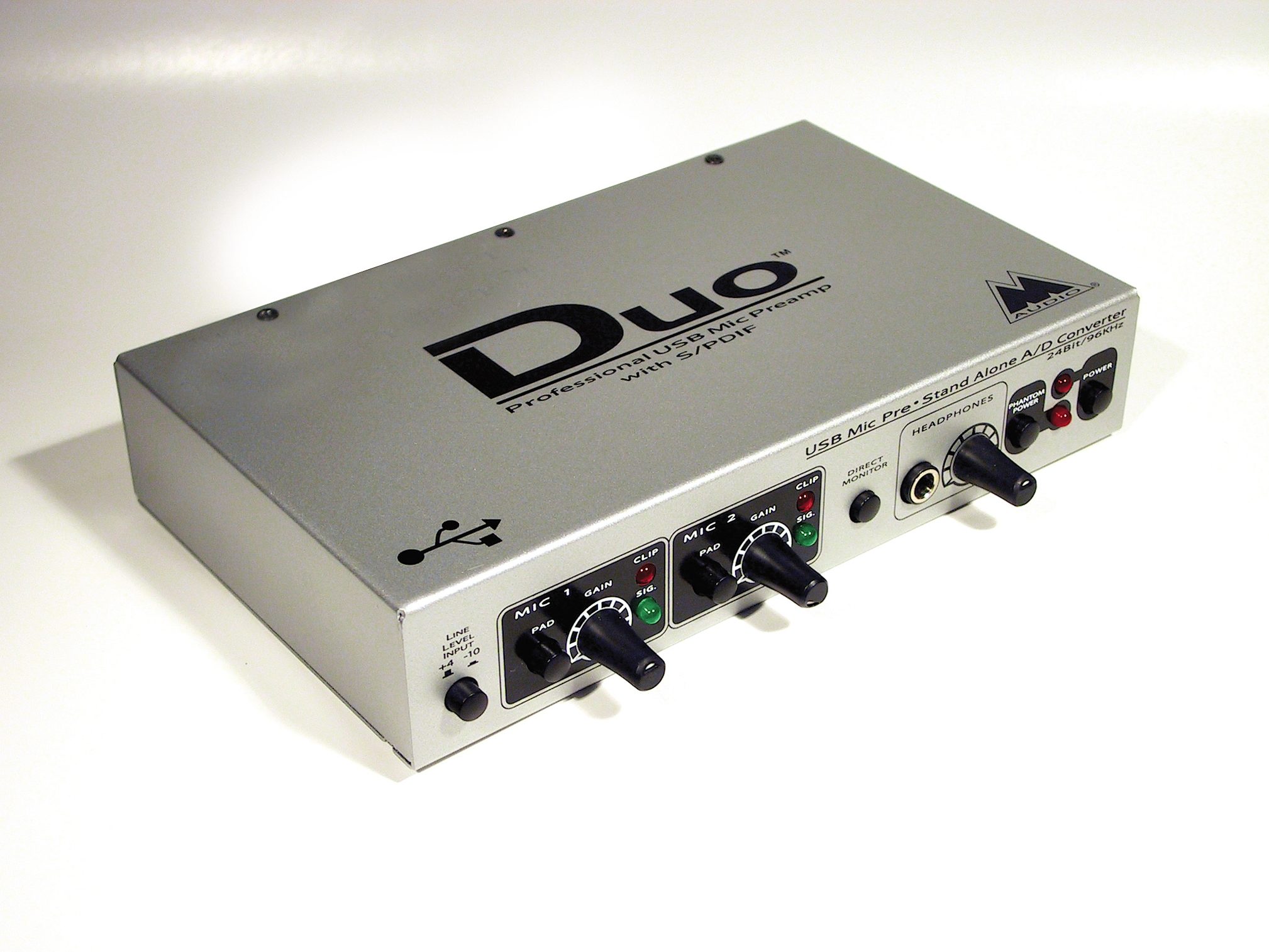

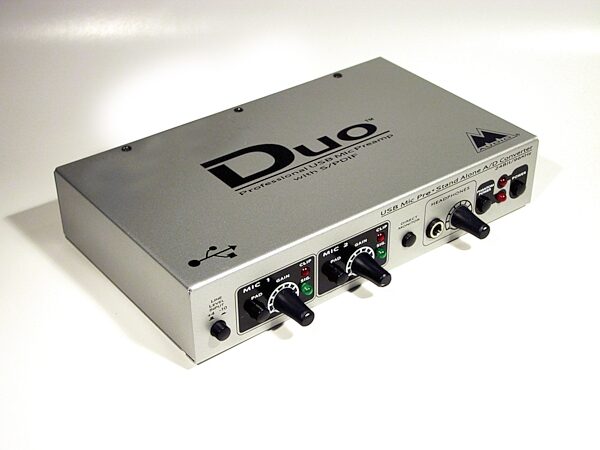

MAudio Duo USB Audio Interface, Main

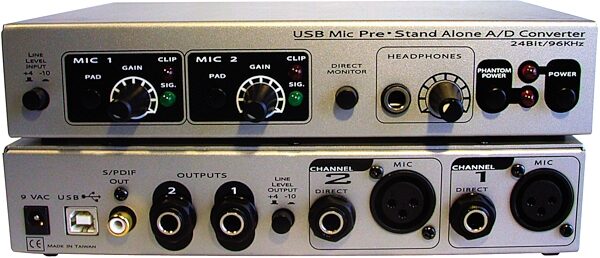

MAudio Duo USB Audio Interface, Front and Back

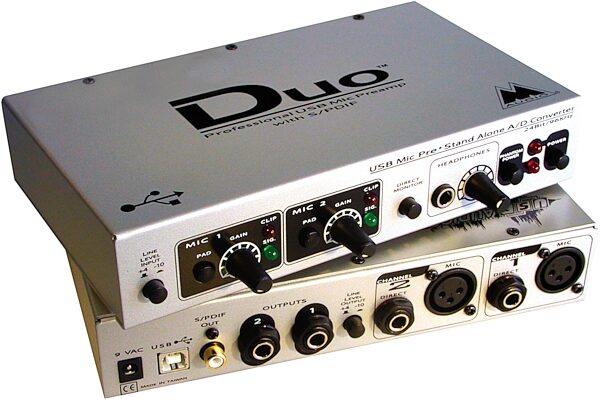

MAudio Duo USB Audio Interface, Front and Back at Angle
MAudio Duo USB Audio Interface, Main MAudio Duo USB Audio Interface, Front and Back MAudio Duo USB Audio Interface, Front and Back at Angle
For: PCs, iMacs, laptops, or any computer with native USB support. 2 in, 2 out. 2 balanced XLR Mic inputs, 2 unbalanced 1/4 in. TS inputs, and 2 balanced 1/4 TRS inputs to insure that your signal will always be clean.

The Duo is a powerful tool for recording mic and line level signals over USB in the highest quality possible. The Duo allows you to record from microphones (even large diaphragm mics that require phantom power) or any line level sources. You can optimize your levels with gain controls and pads, as well as signal and clip LEDs. Use the Direct Monitor button for zero latency monitoring (direct from the sources without going through the computer and software). You can also adjust the global output of the Duo by toggling between +4db and 10db on the rear panel. Headphones may also be connected for convenient monitoring in the field. When disconnected form the USB port, the Duo also functions as a high performance 24-bit standalone A/D converter. Select your sample rates via the DIP switches on the bottom of the unit (44.1, 48, 88.2, and 96kHz), connect the S/PDIF output to your digital device, and you're ready to record digitally anywhere, anytime. The Duo's digital output is compatible with 24-, 20-, and 16-bit devices.

Features
2 Mic inputs and 2 Balanced 1/4 TRS inputs to insure that your signal will always be clean

A stereo pair of M-Audio's critically acclaimed mic preamps

First gain stage of 40db, second gain stage of 30db

48V phantom power

-20db Pad button for each Mic input

Zero-latency direct monitoring, greatly simplifying the process of recording and overdubbing

Multi-track recording and mixing without PCI card installation

Frequency response: 22Hz-22kHz

Dynamic range: 104dB (A-weighted)

Signal-to-noise ratio: 100dB (typical, A-weighted)

THD: 0.002%

USB recording: 16-bit/44.1kHz > 4-in/4-out

24-bit/44.1kHz > 4-in/2-out or 2-in/4-out

24-bit/48kHz > 4-in/2-out or 2-in/4-out

24-bit/96kHz > 2-in or 2-out

size/weight: 1-3/4 in. x 6 in, x 5-3/4 in.; 1.7 lbs.

Compatability

ASIO 2

MME

Sound Manager

DirectX

Mac OS X Core Audio / Core MIDI

Minimum System Requirements - PC

Windows 98SE / Me / 2000 (SP4) / XP (SP1)

For 96kHz operation: Pentium III 500mHz w/ 128MB RAM

For 48kHz operation: Pentium II 400 w/ 128MB RAM

Minimum System Requirements - Mac

G3/G4 500MHz (native USB port required; G3/G4 accelerator cards not supported)

OS 9.2.2, 128MB RAM; OS X 10.1.5, 10.2.6 or greater, 256MB RAM

OMS 2.3.8 for MIDI under OS 9.2.2

***All MAudio USB products send or receive version 1.0 USB information but can be used with version 2.0, though will not take advantage of the additional 2.0 benefits.

For support or warranty questions, please contact the manufacturer:
Phone: 401-658-5765
User Manual

Reviewers gave this product an overall rating of 4 out of 5 stars. (41 ratings)
Submitted February 21, 2004 by a customer from comcast.net

"Affordable for the features"

Overall: 4 out of 5 stars
(see rating details)
Provided I don't have any further hardware issues I expect I'll use this indefinitely. It has a lot of nice features and provided acceptable sound; all for a good price.

Sound
Sounds good.

Features
I wanted a box with built in preamps. Since the mbox was out of my price range, I got this.

Quality
The product, while unattractive, seems very solidly built.

Value
The unit itself and its features are worth the price, and the software bundle is a nice plus. I only wish it were a bit more attractive, but that really wasn't a factor in the purchase decision.

Manufacturer Support
Within 2 weeks of plugging in the unit I had a problem. Support was responsive and polite, but didn't provide me with regular updates about the product's repair status, which is what I really wanted. All told, the product will have been with them about 3 weeks. According to repair department, it is advisable to turn off phantom power before and after plugging or unplugging xlr cables. Perhaps I should have known better, but you'd think the unit would be idiot proofed a little. Regardless, they're sending a new unit that should be here in a couple days. The staff was polite, and though they should have been responsive to every email I sent, rather than just a couple, I think they did an acceptable job with dealing with the repair situation.… read more

The Wow Factor
Not sexy, but that's not really the point. The knobs feel comfortable, the leds are solid and attractive, but the plain gray case with black screening feels a little too utilitarian. If it had a brushed black finish or even simply a colored faceplate they could probably sell it for a bit more, considering the features.

Musical Style:
Power pop read less
2 of 2 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
