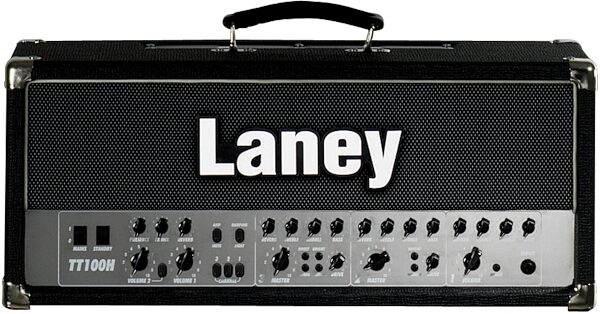

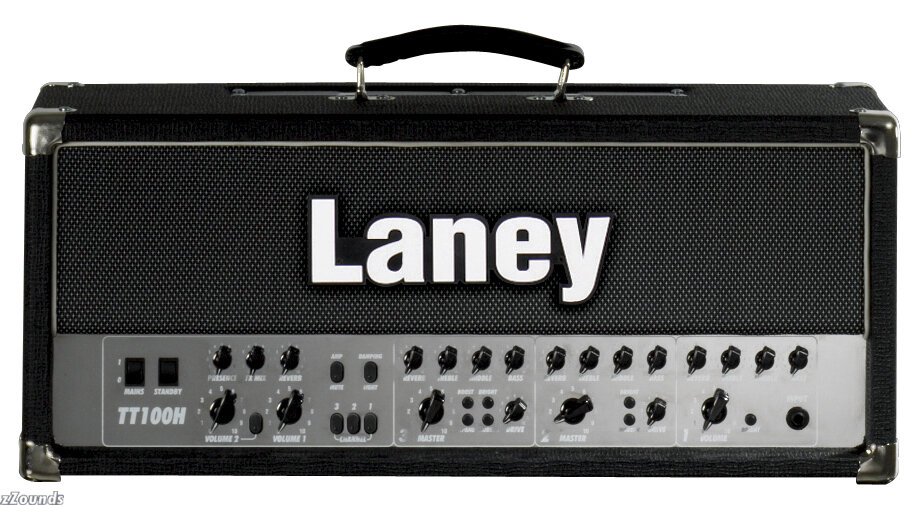

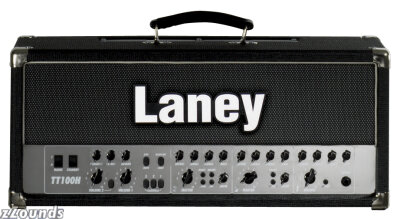

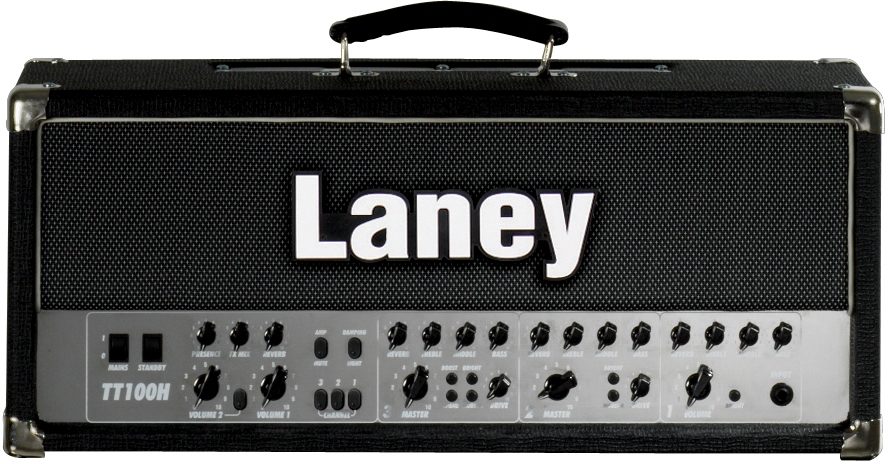

The TT100H - a 100-watt head, featuring a completely new pre-amp. Three channels Clean, Crunch & Lead each feature independent three band EQ, volume, bright switch and reverb. The two gain channels feature a Modern Switch which gives you super smooth response whilst the Lead channel features an additional Xpand and boost switch. Xpand breathes life back into your tone at high gain. The power section features two independent footswitchable master volumes, allowing you to give yourself a boost whatever channel you are on, great for the clean lead breaks.
All footswitchable features on the TT50/100 amplifiers are fully MIDI switchable and each amp is equipped with MIDI in, MIDI thru & MIDI out 7 pin connections which support phantom power. The onboard MIDI can be used to switch external MIDI devices via the dedicated FS6 footswitch.
Technical Info
Power RMS: 100 Watts
Inputs: Single Jack
Channels: 3
Equalization: Independent Bass, Middle & Treble for each channel
Master Presence Control: Yes
Bright Switch: 3: 1 per channel
Xpand Switch: Yes (on channel 3)
Boost Switch: Yes (on channel 3)
Modern Switch: Yes (on channel 3)
Switchable Damping: Yes
Twin Footswitchable Master Volumes: Yes
Preamp Valves: Premium ECC83
Output Valves: Premium EL34
Class: A/B
Reverb: Yes- With independent levels on each channel plus global master level
Line Out: Yes
Record Out: Yes
Footswitch: FS6 (Included)
Speaker connections: Connections for 1 x 16 ohm, 2 x 16 ohm, 1 x 8 Ohm, 2 x 8 ohm
FX Loop(s): Yes (with mix control- 100% Dry to 100% Wet)
MIDI IN / OUT / THRU: Yes- supports phantom power
Weight: 25 kg
Dimensions (mm): Width 654 x Height 279 x Depth 253
Master Section: Damping and Amp Mute switch, Reverb, FX and Presence Level control
Master volume: Yes - 2 (foot and MIDI switchable)
