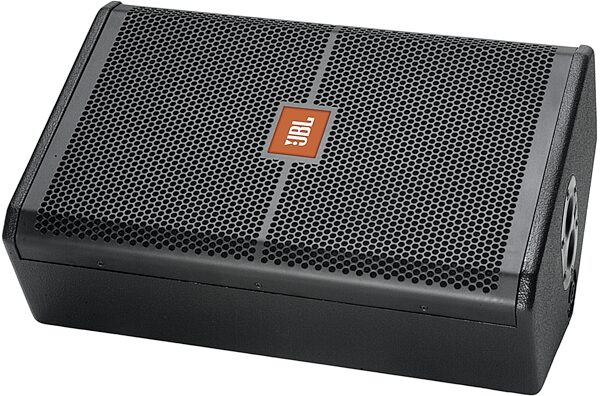

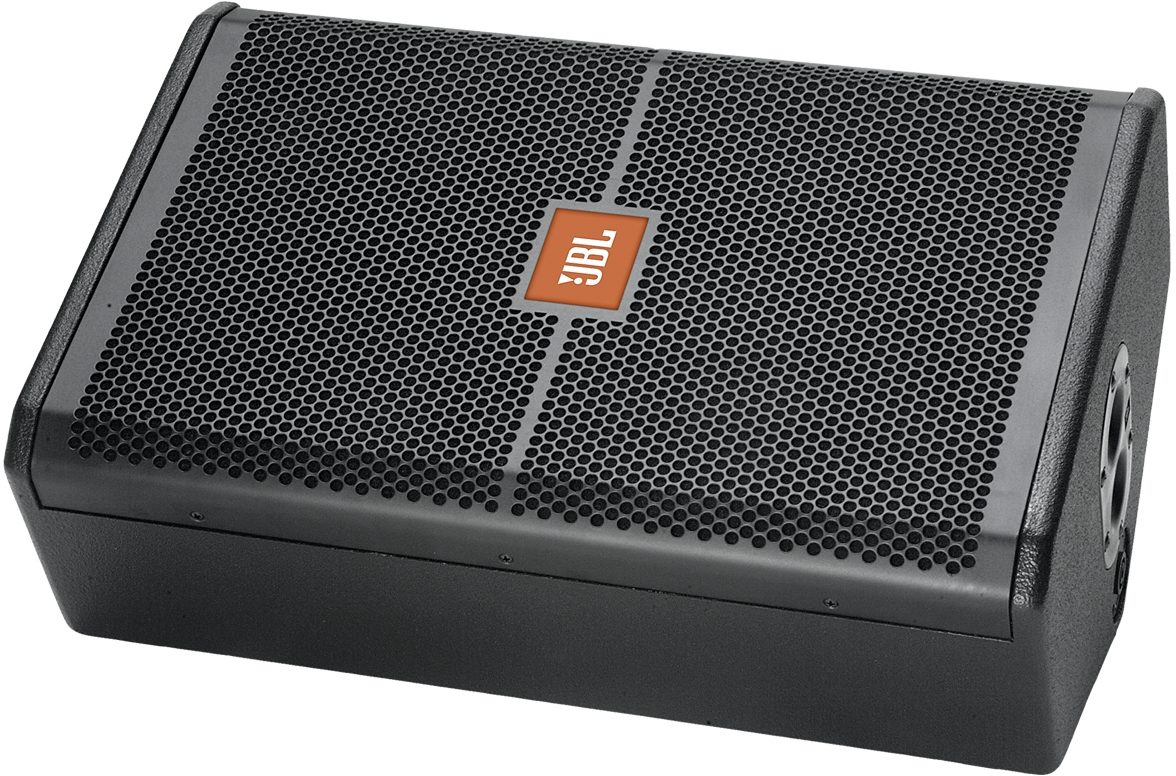

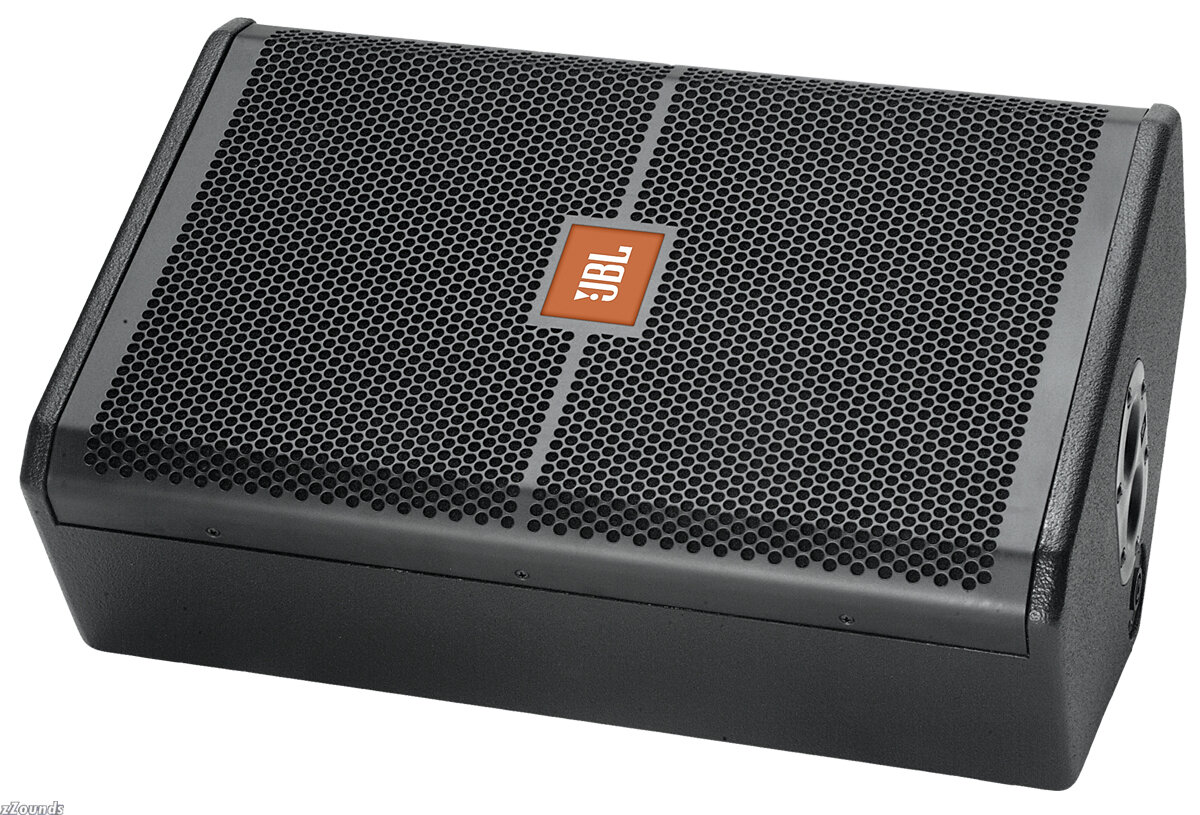

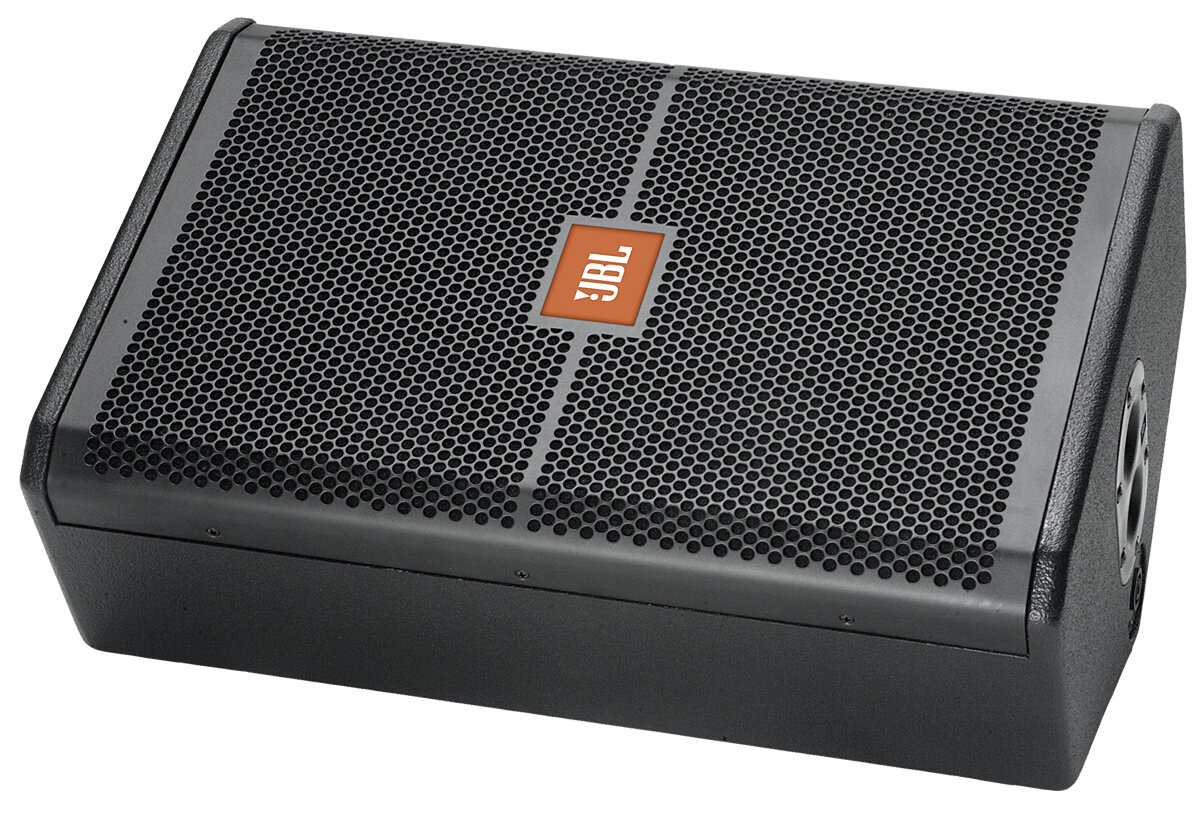

JBL SRX712M 2-Way Stage Monitor (800 Watts, 12 In.)

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

The SRX712M was designed with one goal - build the lightest, smallest, loudest, clearest stage monitor possible while delivering a strikingly professional appearance. The SRX712M uses a 12-inch Differential Drive woofer and a 3-inch (voice coil diameter) compression driver that handles 800 watts (continuous) power in a 12-inch high profile. A 90° x 50° horn provides smooth, even coverage regardless of the position of the performer.

For utility speaker applications, the SRX712M can be tripod mounted or over a subwoofer with JBL's dual angle pole mount providing 90° vertical or 10° down tilt for optimum audience coverage.

Technical Info

System Type: 12 in., two-way, bass-reflex, stage monitor/utility

Frequency Range (-10 dB): 70 Hz - 20kHz

Frequency Response (±3 dB): 83 Hz - 18 kHz

Coverage Pattern: 90º x 50º nominal

Power Rating (Continuous/Program/Peak): 800 W / 1600 W / 3200 W

Dimensions (H x W x D): 349 x 546 x 260 mm, (13.75 x 21.5 x 10.25 in)

Net Weight: 15 kg (33 lbs.)
