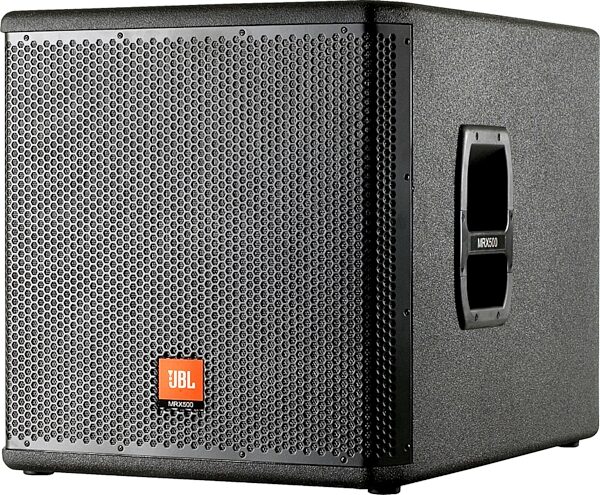

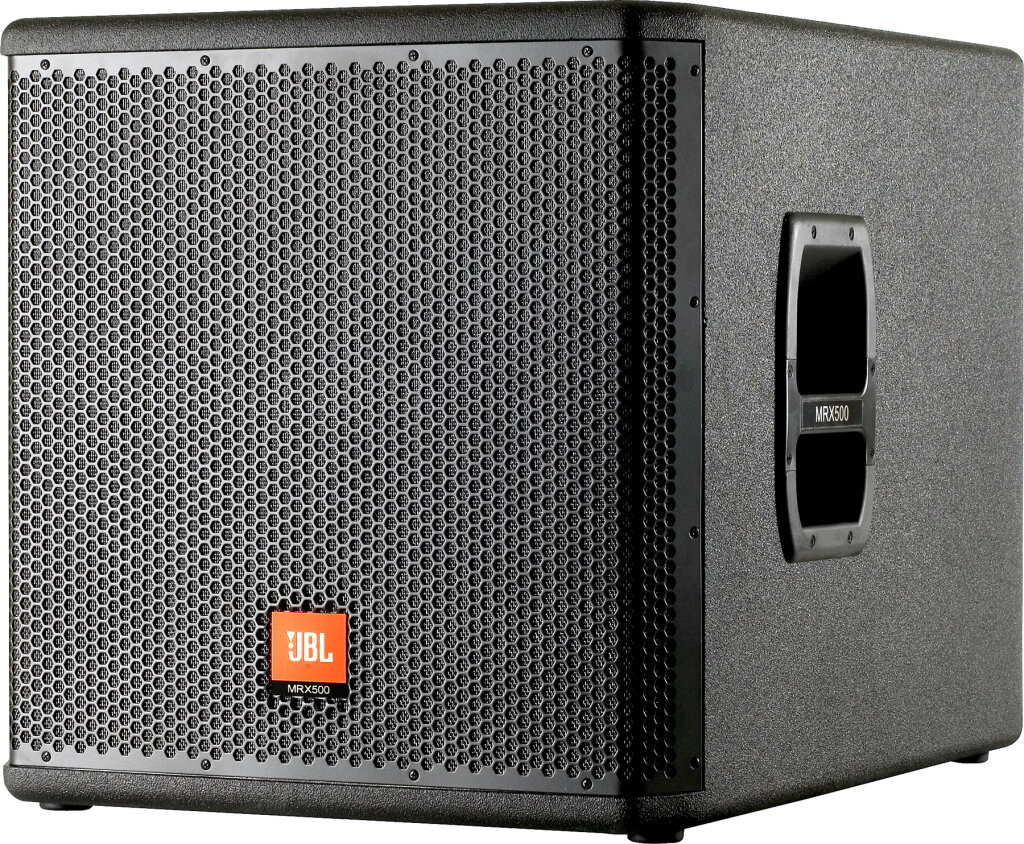

JBL MRX518S Compact Passive Subwoofer (500 Watts, 1x18 in.)

JBL MRX518S
The MRX518 is a portable, eighteen-inch, subwoofer speaker system designed specifically for live performance stage monitoring applications.

The MRX518S is a compact, high power subwoofer system containing a 2044G 457 mm (18 in.) woofer in a front-loaded, vented enclosure. The enclosure is designed to present a minimum frontal area. The system offers complete input connection flexibility for compatibility with a variety of cabling schemes. The input panel incorporates a pair of Neutrik Speakon NL-4 connectors wired in parallel. The MRX518S is supplied with pins +1/-1 connected to the woofer. This may be easily reconfigured to work with cabling systems intended to drive subwoofers on pins +2/-2. For "Subwoofer/Satellite" configurations, the MRX518S is equipped with a top-mounted, 35 mm pole mount socket that can receive the optional SS3-BK pole. This can be used to mount speakers equipped with standard 35 mm pole sockets and weighing up to 50 kg (100 lbs). The enclosure is constructed of top quality plywood, coated in JBL's rugged DuraFlex finish and is braced to maximize low-frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance.

Constantly pushing the threshold for better, more useful products for the working musician and DJ, JBL Professional once again hits the target with the all-new MRX500 Series Loudspeaker System. Compact, lightweight, truly portable, the MRX500 is the ultimate PA system for musicians and DJ's who need fully professional sound and performance within a budget.

Features
18 inch, 2044G driver for extended low-frequency output

Large vent area for reduced distortion

Low profile and compact

Tough DuraFlex finish enclosure

Applications
Live performance venues

Mobile and fixed DJ systems

Technical Info

Frequency range: 40 Hz - 200 Hz

Frequency response: 45 Hz - 200 Hz

Sensitivity: 94 dB SPL; 100 dB SPL

Nominal impedance: 4 ohms

Power Capacity (Continuous / Program / Peak) : 500 W / 1000 W / 2000 W

Rated Maximum SPL: 127 dB SPL continuous; (133 dB SPL peak)

Dimensions (H x W x D): 560 mm x 535 mm x 700 mm; (22 in x 21 in x 27.5 in)

Weight: 32.5 kg (72 lb)

Low Frequency Driver: 1 x JBL 2044G 457 mm (18 in.) woofer

Passive sub with serious low end! With 18" driver and 500 watts continuous power handling. Speakon connectors.
