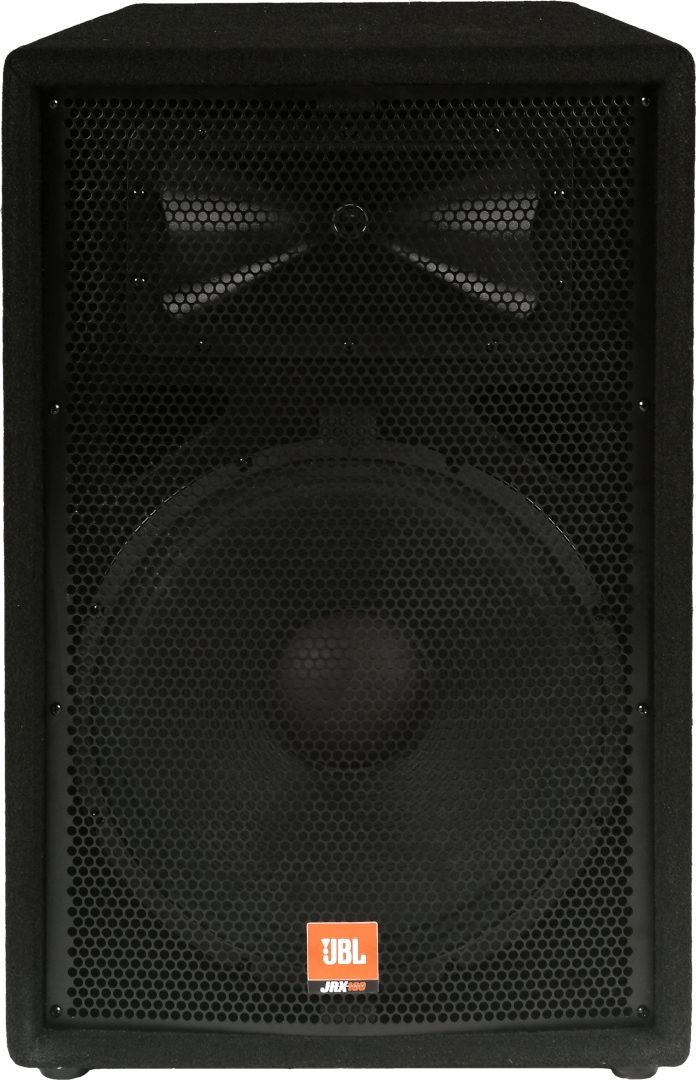

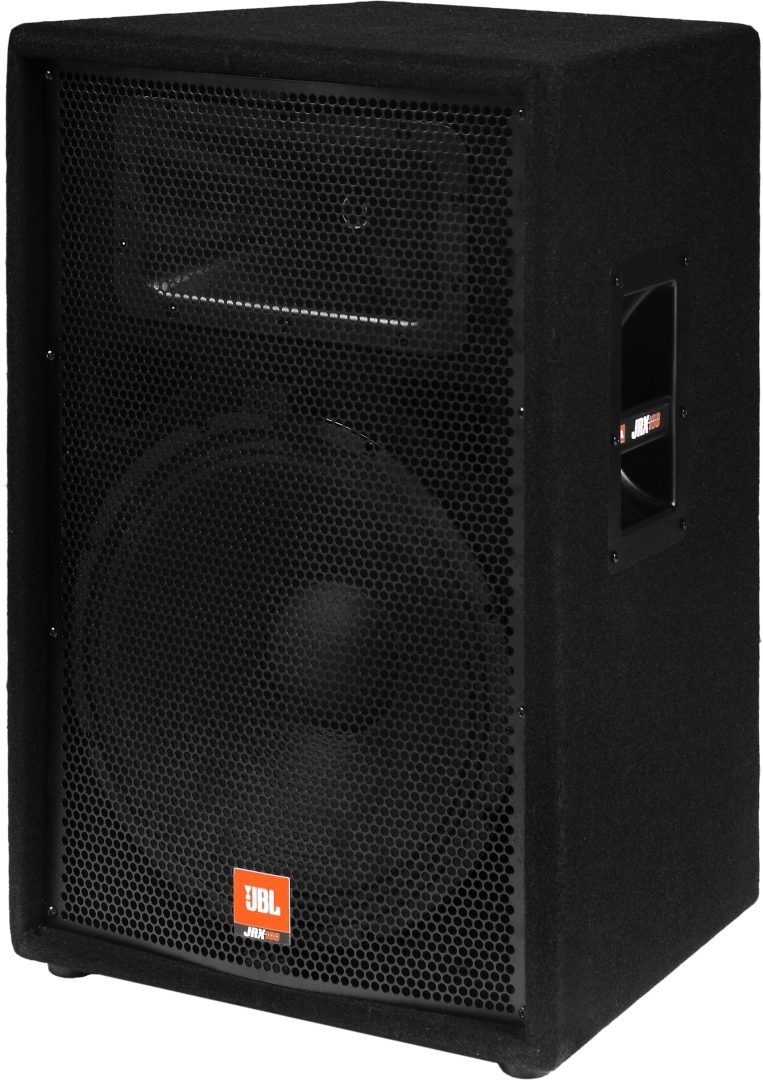

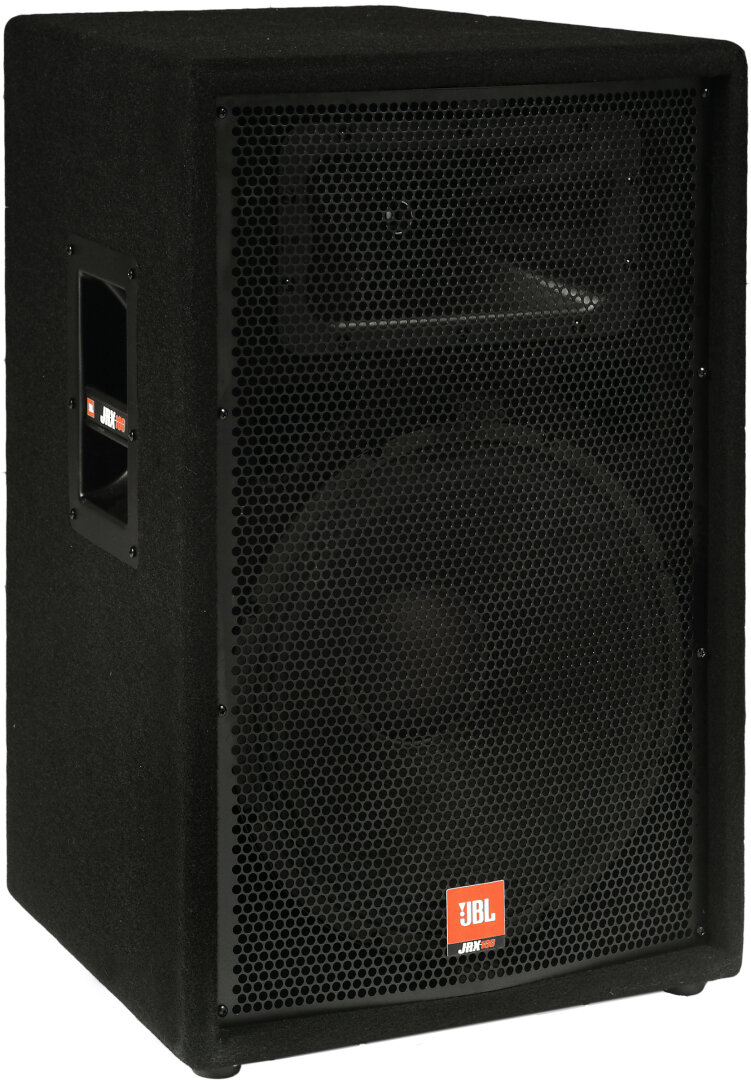

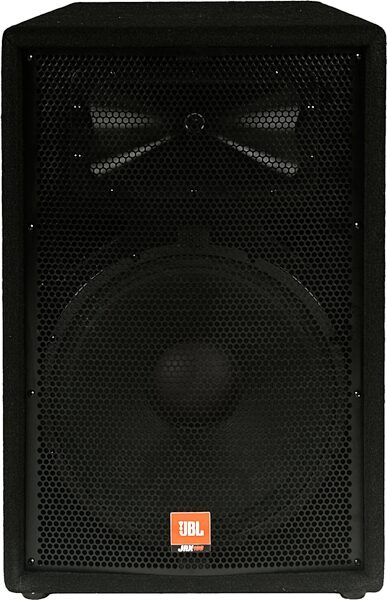

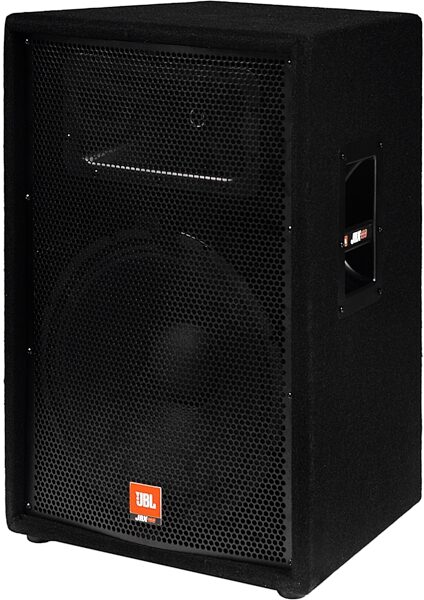

JBL JRX115 PA Speaker Cabinet (250 Watts, 1x15 in.)

zZounds' Take on JBL JRX115

You can tune up your instruments, add effects, and balance the mix to perfection, but your live sound is still only as good as your PA speakers. If they can't deliver, neither can you. You work hard on your music and you want your audience to hear all of it. JBL's JRX15 provides uncompromising sonic performance so you can be sure the crowd gets the full experience, just the way you intended.

Superior Quality Control

JBL has been creating pro-quality audio gear for more than 60 years, and the long tradition of excellence is obvious in JRX-series loudspeakers. The woofer and the tweeter are manufactured by JBL engineers in their Northridge, California facility. Close attention to quality control means your speakers will perform true to form so you always sound your best.

Drivers and Electronics

For big bass and midrange power, JBL uses a 1x15-inch woofer. The one-inch exit compression driver handles the highs with crisp, natural clarity. It is coupled with JBL's Progressive Transition Waveguide horn, which increases high-frequency coverage and improves the stereo image-field. Combined, these two speakers accurately reproduce all frequencies between 38 Hz and 16 kHz. An internal 1.6 kHz crossover helps guide each frequency to the most efficient driver, for clean tone across the entire range. Your bassist will sound punchy and deep, guitar solos will never sound tinny or thin, and vocals will cut through the mix with warmth and feeling.

Safe, Reliable Operation

To protect your investment, JRX loudspeakers include SonicGuard circuitry. Harmful energy overload from dropped microphones, amp clipping, and feedback is automatically absorbed before it can damage the drivers. Accidents happen, but your speakers shouldn't have to suffer for them. Even under normal high-stress operation, lesser cabinets can fail. The JRX115 passed JBL's strenuous 100-hour full-power torture test. You can use your speakers at their full rated capacity, night after night, with no loss of performance. With a 250-watt power capacity and 1000-watt peaks, you have plenty of headroom to play your music at high volume with no distortion. JBL recommends a 250-500 watt power amp to drive the cabinet.

Cabinet Construction

When you think JBL, quality electronics come to mind. This is true, but their cabinets are just as fantastic. Built with 3/4-inch MDF material and advanced adhesives, they are denser, more rigid, and acoustically superior to the particleboard construction used in other enclosures. The trapezoid design lets you use the JRX115 as mains or wedge monitors with equal effectiveness. Large, non-resonant steel handles help with load-in/out, and an eighteen-gauge steel mesh grille covers the entire front baffle. Both drivers are protected, so no more horror stories about poked-out cones and hefty repair bills. A strong cabinet is critical for tight, clean bass response. Combined with the power and depth of the 15-inch driver, you may discover the JRX115 gives all the low end sound you need, without a subwoofer. You just saved your wallet, and your back, a lot of pain.

Dual-Action Stand Mount

PA speakers usually perform better when mounted up high. If your mains sit on the floor, the first few rows get blasted while the rest of the crowd wonders why you sound so muddy and unfocused. Speaker stands get the mains up in the air, but unwanted reflections off the back wall can often lead to feedback problems. The JRX115 features JBL's dual-action stand mount to provide full-room coverage with no reflection issues. The mount gives you the option to position the mains up high, but with a ten-degree downtilt. This gives you all the sonic dispersion you need, but prevents the reflections from interfering with your music. Everybody in the room gets a great mix, enjoying your songs as they are meant to be heard.

Flexible Connectivity

Don't worry about having to start from scratch to take advantage of all that these speakers can bring to your music. JRX115's are designed to integrate into any PA system with ease. Back-panel connections include both 1/4 in. and Neutrik Speakon jacks to accept a variety of amplifier or powered mixer outputs. Run two cabinets for stereo mains, or daisy chain multiple JRX's for vocal or instrument monitors on the stage. The uses are varied but the professional-quality sound is always the same.

Manufacturer's Description for JBL JRX115 PA Speaker Cabinet (250 Watts, 1x15 in.)

This trapezoidal, 15 in. speaker system is at home in live sound, dance music and speech reinforcement. It's equipped with low and high-frequency drivers built in JBL's Northridge, California factory. Features include the dual-angle, 35mm pole-mount socket as well as Neutrik Speakon and 1/4 in. input connectors.

Features

- Neutrik Speakon and 1/4 in. input connectors
- Constructed of carpet-covered, 3/4 in. MDF - a material that is structurally and acoustically superior to the particleboard
- Heavy gauge wire is used for inductors
- SonicGuard high-frequency driver protection
- Dual-angle pole socket (for conventional vertical position, or with a 10 degree down angle)
- All metal handles
- 18-gauge, full metal grille
- All JRX100 models have passed the same 100-hour, full rated-power torture test that JBL high-end touring systems must survive. zZounds is an authorized dealer of JBL products.

- Frequency Range (-10 dB): 38 Hz - 16 kHz
- Frequency Response (-3 dB): 50 Hz - 12.5 kHz
- Sensitivity (1w/1m) 98 dB SPL
- Nominal Impedance: 8 ohms
- Power Capacity*: 250 watts
- Peak Power Capacity*: 1000 watts
- Recommended Amplifier Power: 250 watts to 500 watts into 8 ohms
- Maximum SPL: 128 dB
- Nominal Dispersion: 90 x 50 degrees
- Crossover Frequency: 1.6 kHz
- Dimensions (H x W x D): 27.5 in x 18.1 in x 17 in (699 mm x 460 mm x 432 mm)
- Weight: 61 lbs (27.4 kg)
- High Frequency Driver: JBL 2412 1 in. exit compression driver mounted on Progressive Transition Waveguide
- Low Frequency Driver: JBL M115-8A
- Input Connectors: Neutrik Speakon NL-4 (x1); 1/4 in. TS phone jack (x1); parallel

* "Power Capacity" and "Peak Power Capacity" ratings are based on the average and peak power capacity of product samples subjected to a 100 hour power test using random noise with a 6 dB crest factor, in accordance with IEC standards.

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 66 lbs

Shipping Dimensions: 30 x 20 x 19 in

with Free On-Stage Speaker Stand and Roadie Lights

Shipping Weight: 148 lbs
