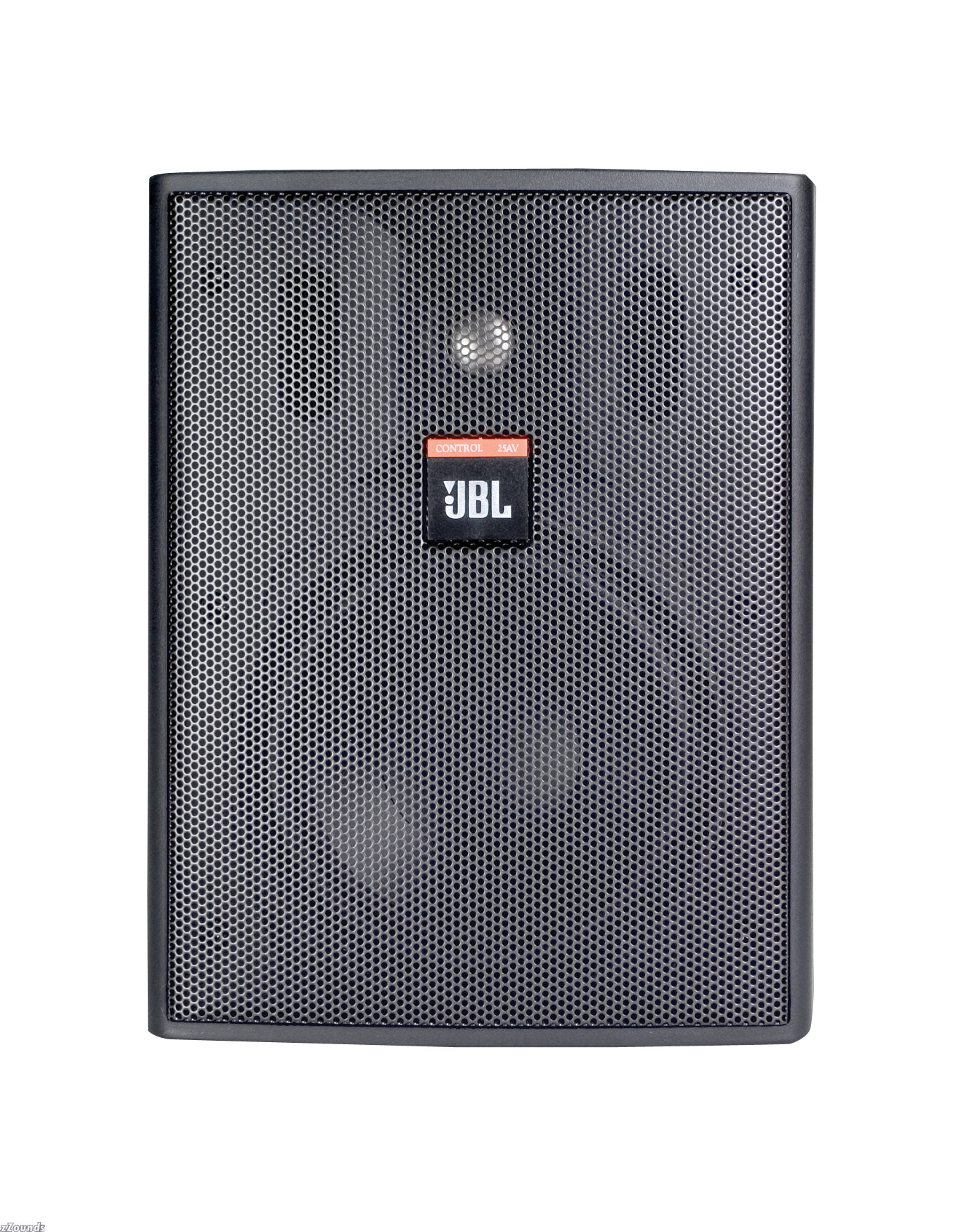

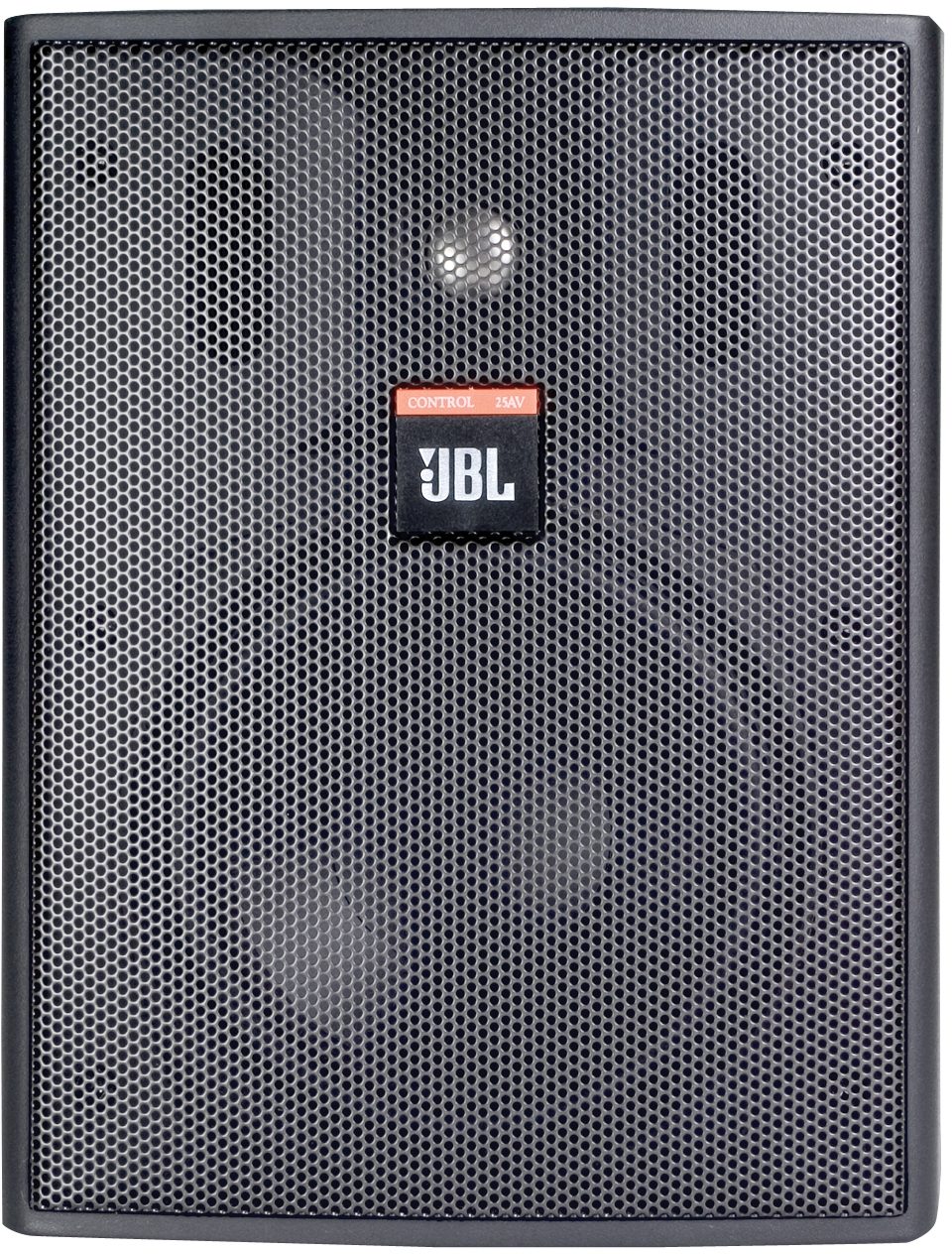

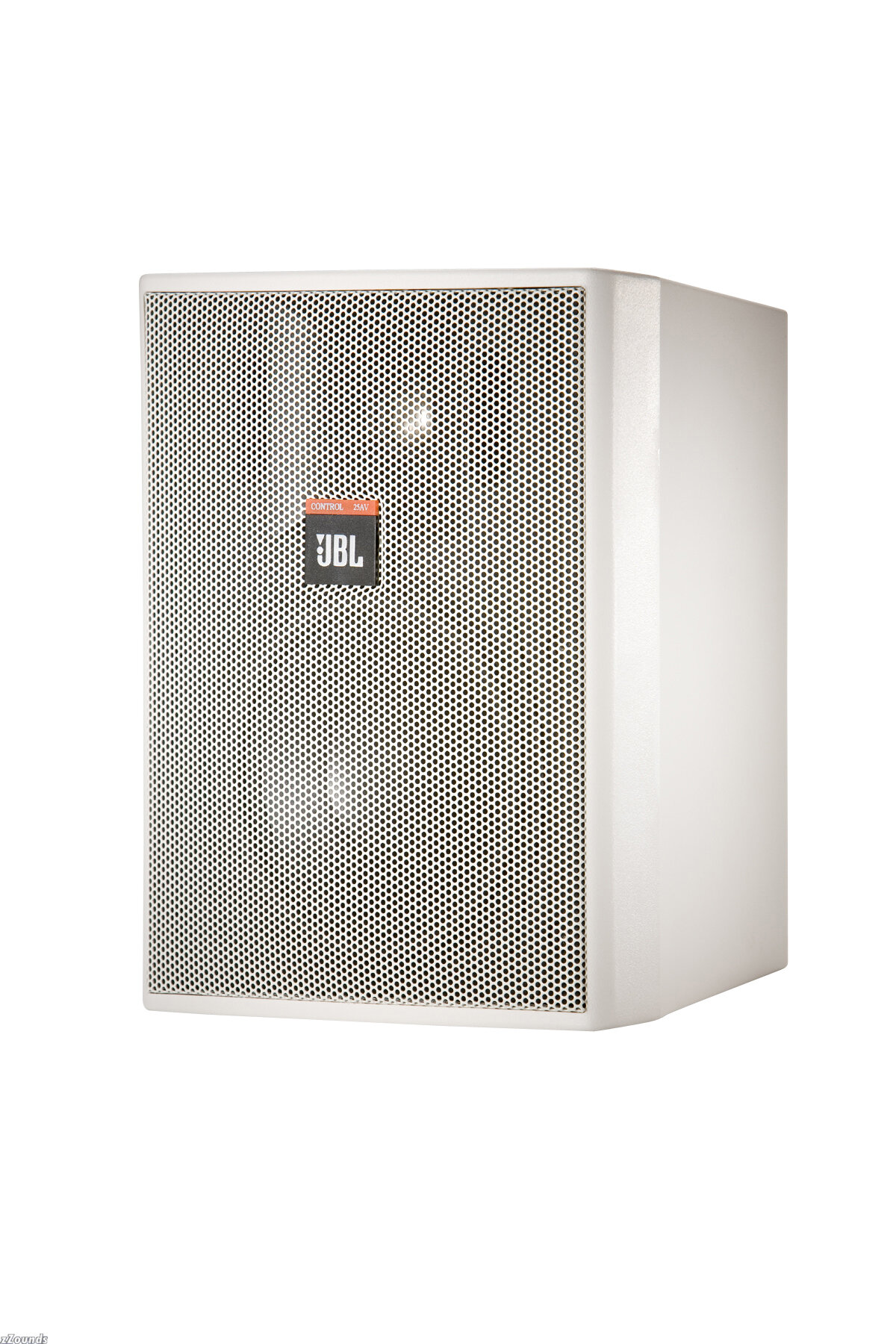

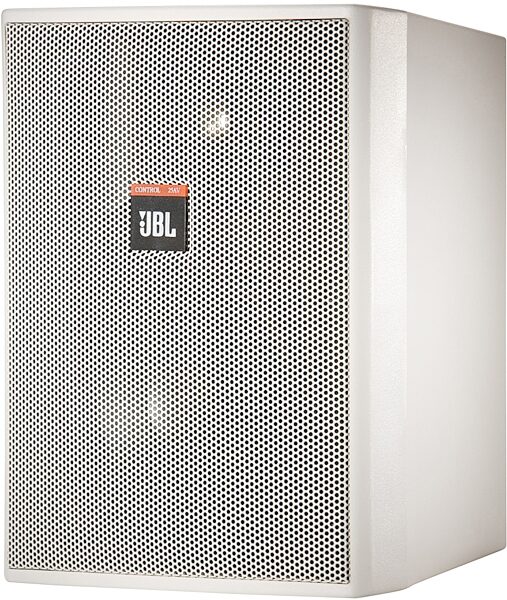

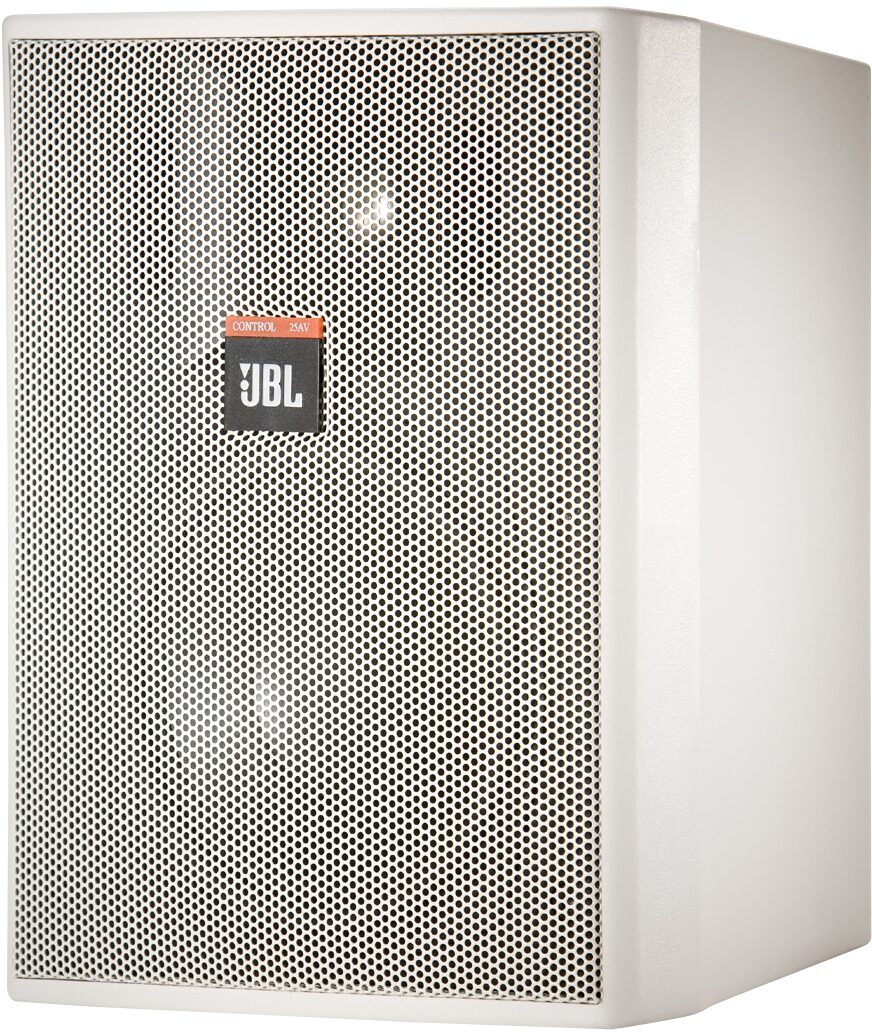

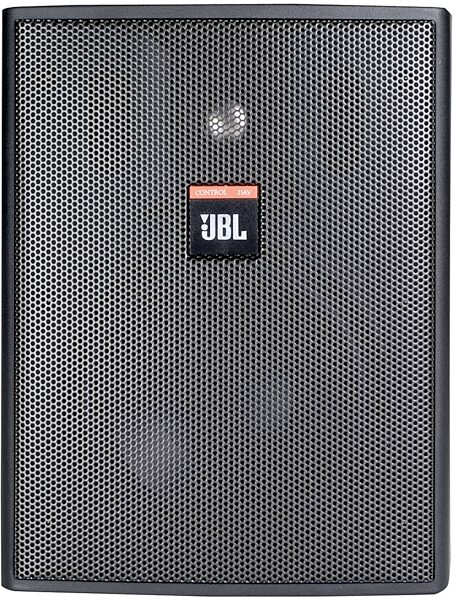

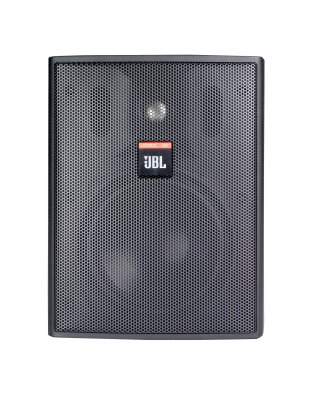

JBL Control 25AV Shielded Monitor Speaker

The Control 25AV utilizes a deep cabinet, high power components and complex network to achieve extremely smooth high fidelity performance from a compact 2-way loudspeaker. Perfect compact indoor, outdoor background, and foreground loudspeaker.

Features
Video shielded for use near video monitors.

Extremely smooth frequency response.

Stainless steel grill for harsh environments.

60 W transformer for 70 V or 100 V lines, with 8 ohms thru.

SonicGuard(TM) overload protection.

130 mm (5.25 in) polypropylene coated woofer,

10 mm (.75 in) titanium coated horn-loaded tweeter.

Includes InvisiBall(R) mounting hardware and sealed input panel cover.

Screw-down input terminals.

100 x 100 degree high frequency horn.

Control Series
Spanning a complete range of surface-mount (on-wall), in-ceiling and in-wall models, the variety of solutions offered by the Control Contractor Series give you complete mastery of any architectural, aesthetic or system performance requirement. JBL engineers have made the art of science of loudspeaker specification and installation easy to manage. Simply select the JBL Control Contractor loudspeaker appropriate for the architectural, form factor and sonic requirements. The resulting sound system will always deliver on its promise of Performance, Reliability and Value.

Technical Info

Frequency Range: 70 Hz - 23 kHz (-10 dB)70 Hz - 23 kHz (-10 dB)

Power Capacity: 200 W Continuous Program Power 100 W Continuous Pink Noise

Transformer Taps: 170V: 60 W, 30 W, 15 W, 7.5 W taps (Taps #4,#3, #2 & #1) 100V: 60 W, 30 W, 15 W taps (Taps #3, #2, & #1)

Nominal Sensitivity: 87 dB SPL, 1 W @ 1 m (3.3 ft)

Midrange (+/-1.5 dB, typical): 130 Hz - 14 kHz

Nominal Coverage: 100 x 100 degrees

Maximum SPL @ 1m: 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech

Directivity Factor (Q): 4.9 dB, averaged 500 Hz to 4 kHz

Directivity Index (DI): 6.9 dB, averaged 500 Hz to 4 kHz

Nominal Impedance: 8 ohms

Minimum Impedance: 6.7 ohms at 230 Hz

Crossover Network: Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response

Low Frequency: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former

High-Frequency: 20 mm (.75 in) titanium coated PEI

Enclosure Material: High Impact polystyrene

Grille: Painted stainless steel, black or white to match cabinet, paintable

Overload Protection: Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition

Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating

Terminations: Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)

Safety Agency Rating: Transformer is listed per UL1876

Colors: Black or white (-WH)

Rotation: Against wall on InvisiBall Base: 37* vertical 44* horizontal On bracket: 44* all directions

Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)

Net Weight (ea): 4.0 kg (9 lb)

Shipping Weight (ea): 9.0 kg (20 lb) per pair

Included Accessories: 1 Pair MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench

Optional Accessories:
- MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360* array.
- MTC-28/25CM: Ceiling-mount adapter. MThe Control 25AV can be used full range or low frequencies can be further
