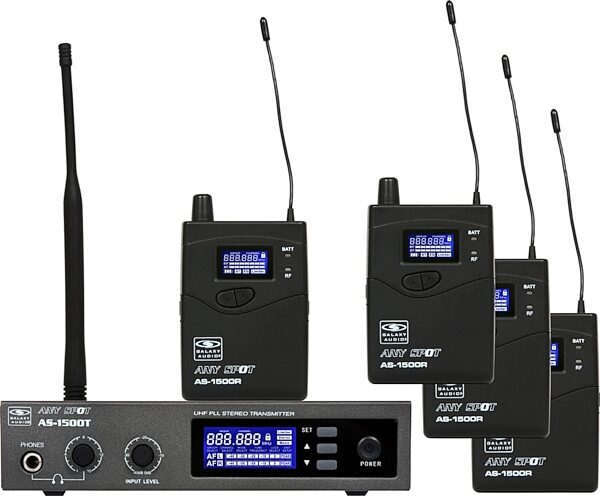

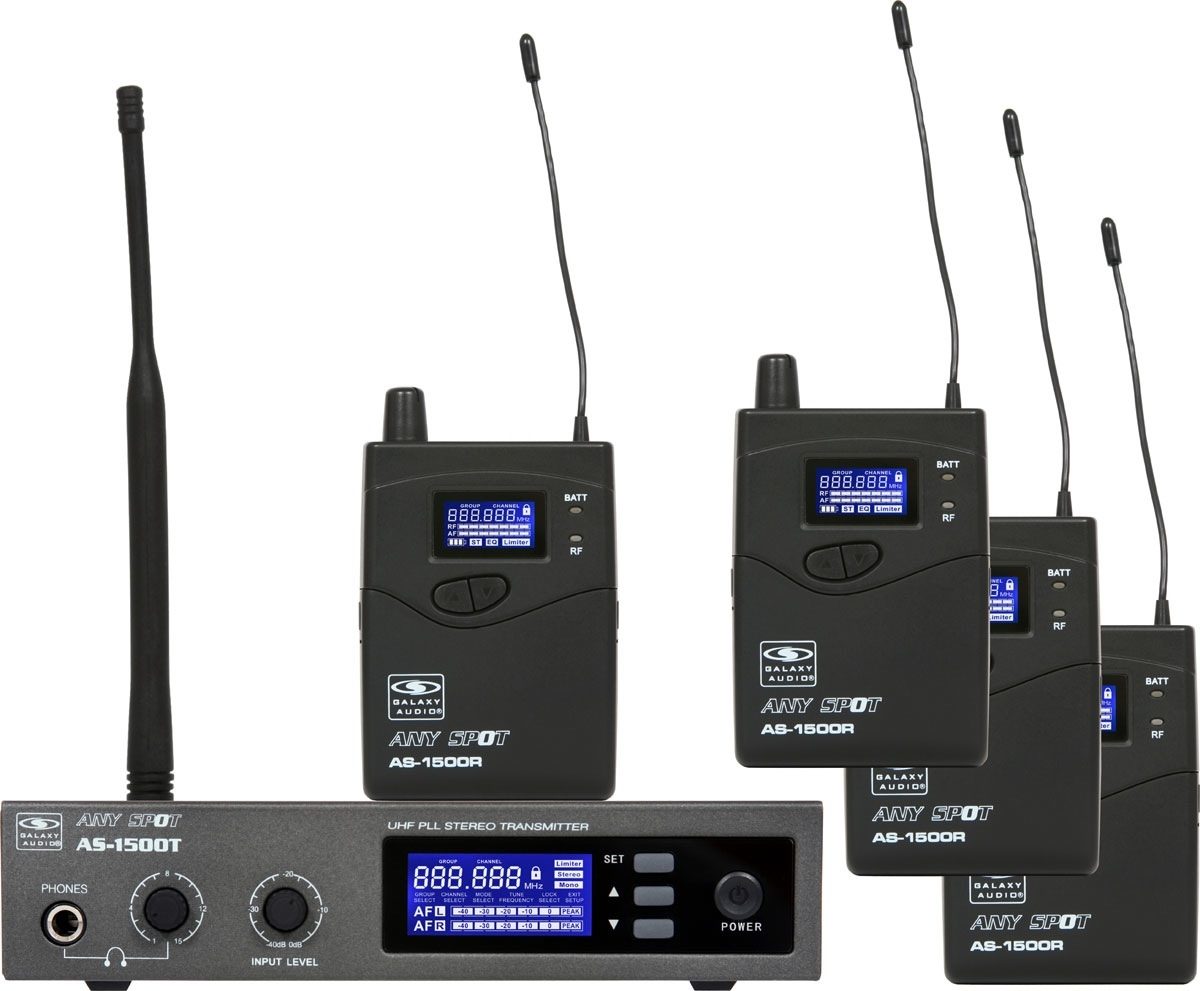

Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main
open zoom image for Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main
open zoom image for Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main
open zoom image for Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main
Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main Galaxy Audio AS-1500-4 Wireless Personal Monitor Band Pack System, Main
zZounds Gear Experts Say...
Send a stereo mix, two separate mono mixes, or dual mono stems to four performers. This wireless in-ear monitoring system makes it easy for the whole band.

The Galaxy Audio AS-1500-4 Band Pack System makes it easy for any band to get personal. The system Includes four receivers and one transmitter. It is designed to get the whole band wireless in one package. The AS-1500-4 will allow a band to send one stereo mix to 4 individuals (additional receivers may be purchased). Additional transmitters may be purchased at a later date to add mix.

The Galaxy Audio AS-1500 is designed with features for the professional. The body pack receiver is set up for a king. With 100mW of output to the ear buds, the AS-1500R is sure to be plenty loud for any environment. The receiver has a built in EQ boost, an option to turn the limiter On/Off, LCD display, button lock, and L/R balance control.

Transmitter:
- Max Audio input level: +6dBV
- Gain Adjustment Range: 40dB
- Input Impedance: 6.8K Ohms
- Dimensions: 1.7" x 7.9" x 3.7" (44mm H x 200mm W x 96mm D)
- Weight: 21oz. (600 g)
- Power Requirements: 12-18V dc at 300mA supplied by external power supply
- XLR input: Impedance balanced
- Pin1: Ground (cable shield)
- Pin 2: Audio
- Pin 3: No Audio

Receiver:
- Audio Output Level: 100mW
- Sensitivity: -94dBm for 30dB
- Image Rejection: >65dB
- Dimensions: 3.5" x 2.5" x .9" (90mm H x 64mm W x 23mm D)
- Weight: 3.2oz (90 g) without batteries
- Power Requirements: 2 (AA)size alkaline or rechargeable batteries Battery Life: About 5 hours
- The Mixed Mono feature allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack.

- With Mixed Mono;
- - the performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
- - you can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
