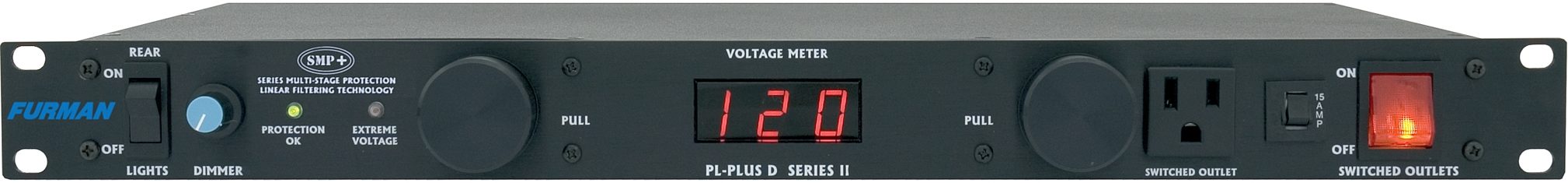

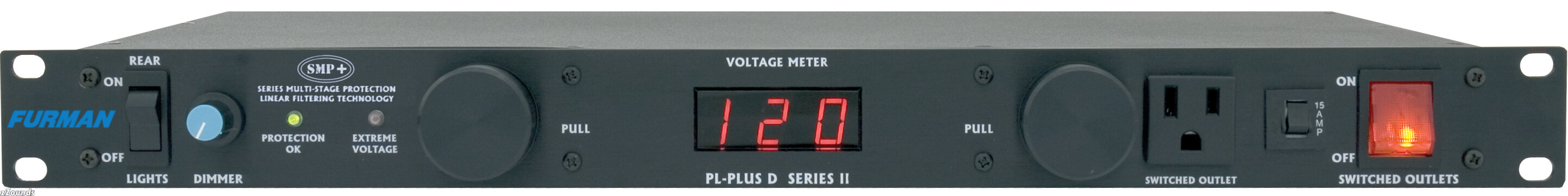

Furman PLPLUSDII Power Conditioner with Digital Readouts

The most widely recognized and trusted name in AC power conditioning, is proud to introduce the PL-Plus D II Power conditioners, featuring Furman's revolutionary SMP technology. Furman's Series Multi-Stage Protection (SMP) circuit also features our exclusive Linear Filter Technology (LiFT). Together; these technologies comprise, what is without question, the worlds most advanced and comprehensive transient voltage surge suppressor.

SMP (Series Multi-Stage Protection)
Furman's maintenance-free SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits 'sacrifice' themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system, and repair of your surge suppressor. Not so with SMP. With Furman's SMP, damaging transient voltages are safely absorbed, clamped and dissipated. No sacrificed parts, no service calls, no down time.

Unique to Furman's SMP is its unparalleled clamping voltage (even when tested beyond the grueling specifications of - USA/CIDA's A-1-1 test). Unlike some Series Mode Suppressors, Furman's maintenance free feature is NOT at the expense of safety! While other designs offer clamping voltages that are well above 300VAC peak, (far beyond long accepted professional standards), Furman's SMP clamps at 188VAC peak, 133 VAC RMS even when tested with multiple 6000VAC - 3000 Amp surges! This unprecedented level of protection is only available with Furman's SMP technology. Additionally, Furman's trusted over-voltage circuitry protects against all too frequent accidental connections to 208 or 240VAC, by shutting off the incoming power until the over voltage condition is corrected.

LiFT (Linear Filtering Technology)
Unfortunately, traditional AC filter - Conditioners have been designed for unrealistic laboratory conditions. Prior technologies whether multiple pole filter or conventional series mode, could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to re-boot digital pre-sets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman's SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.

Features
SMP with extreme voltage shutdown

LiFT (Linear Filtering Technology) with zero ground contamination

Front panel digital LED meter displays incoming AC line voltage with laboratory accuracy (+/- 1.5 VAC)

Two retractable, long-life, low-heat LED light fixtures with dimmer switch for rack illumination

BNC connector on the rear panel allows you to attach any standard goose neck lamp to illuminate the rear of your rack

Eight rear panel outlets and one front panel outlet

15 amp rating, with circuit breaker

Three year limited warranty

The PL-Plus D II features LED rack lights which produce virtually no heat and provide an extremely long life span. A dimmer control for the rack lights allows the user to adjust the level of illumination or
simply switch the lights off.

Additionally, the PL-Plus D II includes a rear mounted BNC jack which accepts any standard (12VAC, 0.5A) gooseneck lamp for rear rack illumination, as well as a front panel switch which controls the gooseneck's operation.

A front panel mounted master switch controls operation of the rear outlets, and glows red when the power is on. The front-panel circuit breaker can be quickly and easily reset should the unit be overloaded. The Series II also features a 10 foot, 14 gauge heavy-duty power cable.

Technical Info

Current Rating: 15 amps

Operating Voltage: 90 to 140 VAC

Over Voltage Shutdown: 140 VAC typically

Spike Protection Modes: Line to neutral, zero ground leakage

Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps, 133 VAC RMS (tested to UL-1449 and USA / CIDA A-1-1, 6,000 VAC @ 3,000 Amps)

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10 MHz
Linear attenuation curve from 0.05 - 100 Ohms line impedance

Dimensions (H x W x D): 1.75 x 19 x 10.5 in.

Weight: 11 lbs (5 kg).

Construction: Steel chassis, .125 in. brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

Power Consumption: 12 watts

Safety Agency Listings: CE, NRTL-C
