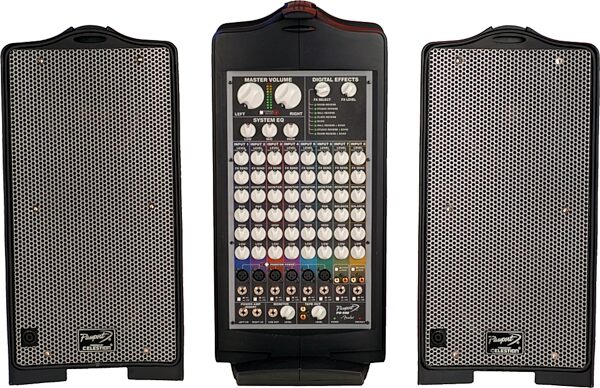

Fender PD500 Passport Deluxe Portable PA System

What do you want to be? The singer-songwriter, breaking hearts at the local coffee house? The fitness instructor that's always got the perfect mix CD for a high-energy class? The Business professional that makes a name for themself with the perfect presentation? Whatever you end up doing, you're going to need to be heard, and the Fender Passport Portable PA systems are the easiest, most convenient, and best-sounding way to amplify your voice, your music, and your ideas. While Fender has many Passport models, from light and compact to big and powerful, the Fender PD500 is the top-of-the line model, with plenty of wattage for large gatherings, and an impressive mixing section that can handle anything from a multi-media presentation to a small band.

Everything You Need
The one thing no one wants is to be the A/V club president, hunched over that loaded-down equipment cart, keeping track of all the necessary components and connectors, fumbling to get everything connected in time for the big event. With the Passport PD500, setup couldn't be easier. Absolutely everything you'll need is included with the Passport, and everything folds up into a single-piece that can be easily carried with one hand. The Passport combines the main PA system components, a mixer and a power amplifier, into one core unit. The other most important part of a PA is the speakers--those are included, too, and they attach firmly to the center mixing unit for transport. Not only does this all-in-one concept save on setup time and make portage easy, but Fender has made sure that every piece of the PD500 system is perfectly matched and calibrated to one another. No worrying about whether your speaker enclosures are the correct impedance and power handling for your amplifier, or trying to figure out Ohm's law to make sure you're not going to blow your system. The Passport has everything figured out for you--it's a truly plug-and-play PA. And when we say "everything you need," we mean everything. All necessary power and speaker wires are included and fit neatly into the back of the mixer for storage. . . it even comes with a pair of high-quality, handheld dynamic microphones that are perfectly suited for both singing and spoken word. The PD500 is ready to rumble right out of the box.

Power And Clarity
Ease-of-setup is nice, but the main goal here is to be heard. The powerful PD500 boasts 500 watts of power. It's enough wattage to address or entertain groups of up to 1000 people, all without having to contend with distorted music or indistinct vocals. The Passport achieves an unrivaled sonic fidelity thanks to its perfectly matched power amp and speaker system, but also because of the design of the speaker enclosures themselves. Each of the two cabinets features two 8-inch woofers for low- and mid-range frequencies and titanium compression driver horns for higher frequency reproduction. The dual-woofers provide power and punch for music, while the horns keep vocals crisp and articulate. The design also provides wide sound coverage, so that no matter where your audience is, you can be sure they'll hear you.

Flexibility For Any Situation
The mixer layout on the Passport 500 is simple, but effective. The first six mono channels are suitable for microphones or instrument inputs, and the 7th and 8th channels are both stereo channels that can each accept stereo instruments such as keyboards, samplers, and electronic drums. Those channels are also where you can plug in an auxiliary audio source like a CD player, computer, or MP3 player. Each channel has its own equalization controls to sweeten the sound of individual instruments or voices, and there's a master EQ that makes it easy to find and eliminate feedback in any space. The PD500 even sports a digital effects section; if you're feeling adventurous, why not experiment with the on-board reverb? It's amazing how such a simple effect can add professional sheen to sung melodies and acoustic guitar. Not only that, but the Passport 500 has a mono monitor line out so that musicians and singers on stage can hear themselves, making the system perfect for use in smaller acoustic music venues or houses of worship! All the controls are clearly labeled and intuitively arranged, so even if you're a live-sound novice, you'll be sculpting your mix with the confidence of a seasoned pro.

Every aspect of the Fender Passport was designed to make your amplified life easier. From transport to setup to operation, the PD500 nearly operates itself! With plenty of power, crystal audio clarity and self-explanatory controls, the only challenge in owning your Fender Passport will be deciding what you want to use it for!

Built to rock! Designed for musicians, the PD-500 is the next evolutionary leap in portable PA solutions. The PD-500 features an 8-channel mixer, patented Feedback Killer, 48-volt phantom power, selectable digital effects and a 500-watt class 'D' stereo power amp.

The PD-500 speaker cabinets feature Neo-Precision neodymium speakers designed by Celestion for superior musical performance and decreased weight. The Neo-Precision speaker design features 2 x 8 in. woofers, with 1 titanium compression driver and one horn per cabinet. Weighing in at a mere 52 lbs., the PD-500 is the top contender in portable PA solutions.

Features:
Docking Connector for Passport Wireless Receiver

8 Channel Mixer

Microphone Channels 1-6 Controls; Level, FX send, Monitor, Pan, Treble, Bass, 20dB Pad

48 Volt Phantom Power on Microphone Channels 1-6

Line Channels 7-8 Controls; Level, FX send, Monitor, Balance, Treble, Bass, Mono

Monitor Out (1/4 in.) with level control

Tape Out (Dual RCA jacks) with level control

Selectable digital effects with master level control

Patent Pending one button Feedback Killer eliminates feedback on all channels

500 Watt Stereo Class D power amp for reduced weight

Neo-Precision speaker design for high output and musical sound featuring in each speaker cabinet:

Two Celestion 8 in. Neodymium woofers

One Celestion titanium compression driver

35mm (1 3/8 in.) Stand Adapters are built into speaker cabinets

Two P51 Mic Kits featuring:
Professional Cardioid Low Impedance Dynamic Microphone
18 ft. Microphone Cable

Two 6.9 meter NL4 Speaker Cables

Detachable IEC Power Cable

Switchable voltage power supply

Technical Info

Model Name: Passport Deluxe PD-500

Description: Complete Self Contained Portable Sound System

Series: Passport Systems

Dimensions
Height: 24.2 in. (615mm)
Width: 33.7 in. (840)
Depth: 11.8 in. (300mm)
Weight: 53 Lbs. (24 kg)

Covering: Black Luggage Style Molded Case

Power Output: 500 Watts Stereo, (2 X 250 Watts) 8 Ohms per speaker cabinet

Input Power: N/A

Introduced: 1/2006

Notice: Product Prices, Features And Specifications Are Subject To Change Without Notice

Top-of-the-line Passport system with 8 channels, phantom power, feedback elimination, and digital effects; 500 watts.
