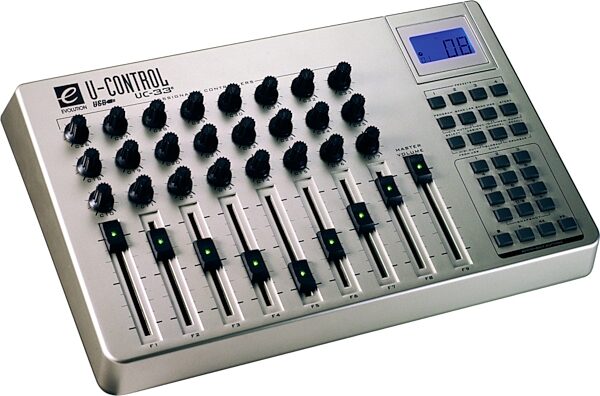

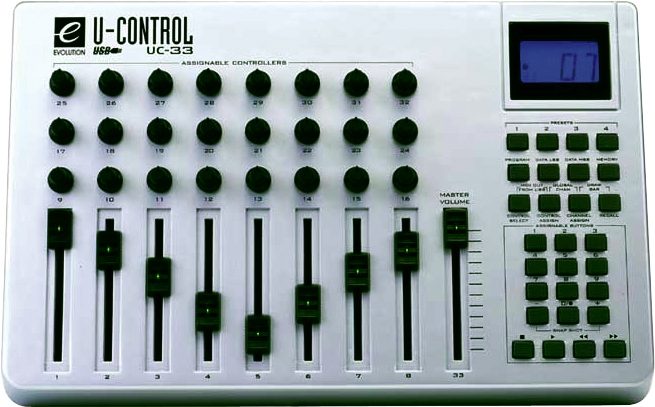

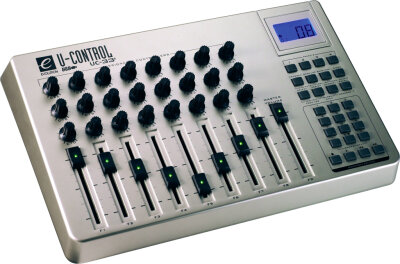

The Evolution UC-33 is the affordable hardware controller, designed to be used with any computer music / MIDI setup. In fact, the UC-33 allows instant and simultaneous control of up to 47 different parameters, and with 33 memory locations, changing its setup is fast and easy. With its compact and intuitive design, the UC-33 fits into any studio, regardless of size.
Features
24 fully assignable rotary knobs
Selector buttons provide one button access to the 4 most frequently used program setups
Multi-purpose LCD display shows Controller assignments
9 full-size assignable faders with light indicators
4 assignable buttons provide fingertip control over
Transport and other sequencer functions
Drawbar mode reverses the polarity of the 9 assignable faders. Great for realistic control of those classic organ sounds
Select any of the 33 memory locations, reassign a controller to a different parameter or simply check how the existing setup is configured via the programming keypad
10 button numeric keypad which is also fully assignable
Snap Shot sends out current controller position data and sets your synths controls to the current UC-33 setting
The UC-33 puts the power of music software in your hands. Connecting the UC-33 couldn't be easier. The included USB cable not only connects the unit to your Mac or PC, it also provides the power so you don't have to worry about a power adaptor. Also, to keep cable runs to an absolute minimum, the built-in MIDI interface allows you to connect your MIDI keyboard straight to the UC-33. So, forget that old MIDI interface, you don't need it anymore!
Using controllers should be easy but it often isn't. Even just setting up patches that actually work can be complicated and frustrating, not to mention the headache of having to remember which knob controls which parameter. These problems experienced with many controllers can actually defeat the whole purpose of using one in the first place! In an ideal world, using a controller should require zero effort. With the UC-33, it really is that simple. The UC-33 comes with 33 pre-configured presets allowing instant control of the most popular virtual instruments and host applications, ranging from Cubase SX to Propellerhead Reason to Native Instruments B4. Overlay templates are included allowing you to quickly transform the UC-33 from a synth controller to a mixer.
All Evolution controllers are Class compliant, so there's no need to waste time installing drivers when using Windows XP or Mac OS X. Simply plug and play. It's also possible to gain real-time access to parameters beyond immediate reach on XG and GM/GS compatible soundcards due to the UC-33's pre-programmed Sys-Ex and RPN/NRPN messages. Try one of the factory patches and experience how the UC-33 breathes new life into your soundcard.
Creating your own Setups
All assignable real-time controllers are easily programmed with the numerical keypad. Select a controller, type in a MIDI CC number and the job is done. Each of the UC-33's 47 controllers can also be programmed to transmit on individual MIDI channels and even transmit pre-programmed Sys-Ex messages. Once completed, your setup can of course be stored in any of the 33 memory locations for recall whenever you need it.
1. Factory Presets Cubase - multi-channel mixing (1-8)
2. Native Instruments B4
3. Native Instruments Pro-53
4. Reason Mixer
5. Reason Malstrom
6. Reason Subtractor
7. Reason NN-19
8. Reason Dr. Rex
9. Reason ReDrum
10. Cubase - multi-channel mixing (9-16)
11. Cubase - Channel strip
12. Sound Studio Pro II 1-8 mixer
13. Sound Studio Pro II 9-16 mixer
14. Sonar preset
15. Steinberg Model-E
16. Steinberg Halion
17. Waldorf Attack
18. Waldorf PPG Wave2V
19. Native Instruments FM7
20. Rebirth - Master controls and Synths
21. Rebirth drum Modules
22. AAS Lounge Lizard
23. CM DS-404
24. CM SR-202
25. CM 101
26. TC-Works Mercury-1
27. Big Tick Audio Rainbow Synth
28. GS/XG/GM2 Synth control
29. GS/XG drum mixer
30. SoundBlaster cards synth control
31. User preset1 Channel mixer (1-8)
32. User Preset2 Channel Mixer (9-16)
33. User Preset3 Undefined controllers to global channel
The UC-33 Live
The UC-33 can of course also be used with a conventional MIDI setup, for live performances or as a remote controller for your existing studio rack. The MIDI Out not only acts as an output for data from your computer system, but used stand-alone the UC-33 sends MIDI controller data straight from the MIDI Out to your MIDI rack. Even complex live setups are easy to control from a single unit due to the UC-33's powerful programming features.
USB and MIDI Interfacing
The UC-33 can also be used as a USB MIDI interface. The MIDI input and output interfaces directly with your host application adding an extra MIDI interface to your setup. For live applications, simply connect the MIDI Out directly to the device you want to control and power the UC-33 with an optional power supply.
Multiple U-Controls
In some cases, it makes sense to use multiple UC-33's. For instance, you can have one unit controlling your mixer environment and one controlling your instruments. The UC-33 has been designed to operate perfectly alongside itself or any other Evolution controller.Audio software package on CD-ROM
Technical Info
Specifications

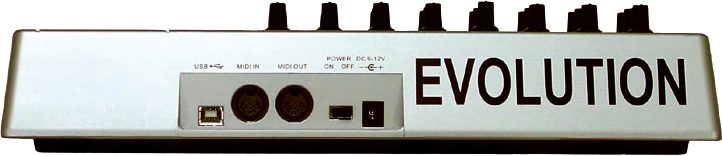

Connections USB
MIDI IN, 5-pin DIN type
MIDI OUT, 5-pin DIN type
D.C. Power socket
Control Interface 24 x Rotary Dials
9 x 60mm Faders
4 x buttons
12-key data entry key pad(number keys double as assignable buttons)
Back lit LCD display with
7-segment digital display
Power on/off switch
4 x fast-access preset buttons
Memory 33 User assignable Memory locations
Non-volatile memory for storing settings even when switched off
Accessories User Manual
USB cable
Power supply DC 9V, 250-300mA Centre positive (not included)
Dimensions 32 x 21 x 7 (cm) (approx. 12.61 x 8.3 x 2.76 in.)
