The SB122PI subwoofer includes stainless steel hardware and a multilayer stainless steel grille that protects against rain, sprayed water, and dust to IEC 529 IP 44 Mil Spec 810 humidity, salt spray, and UV specifications. External components and fasteners are aluminum and stainless steel.

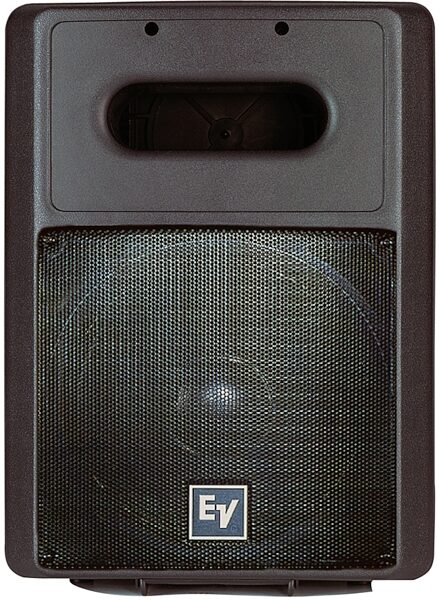

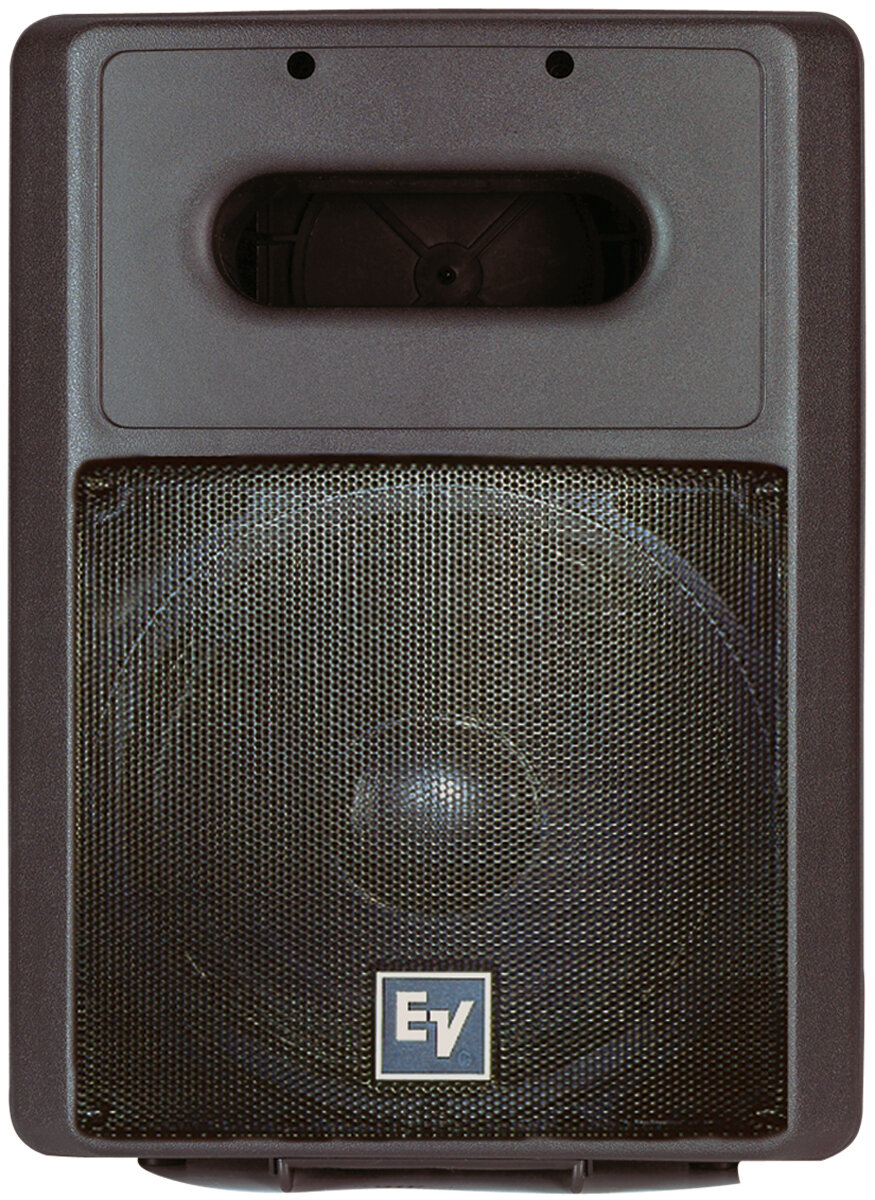

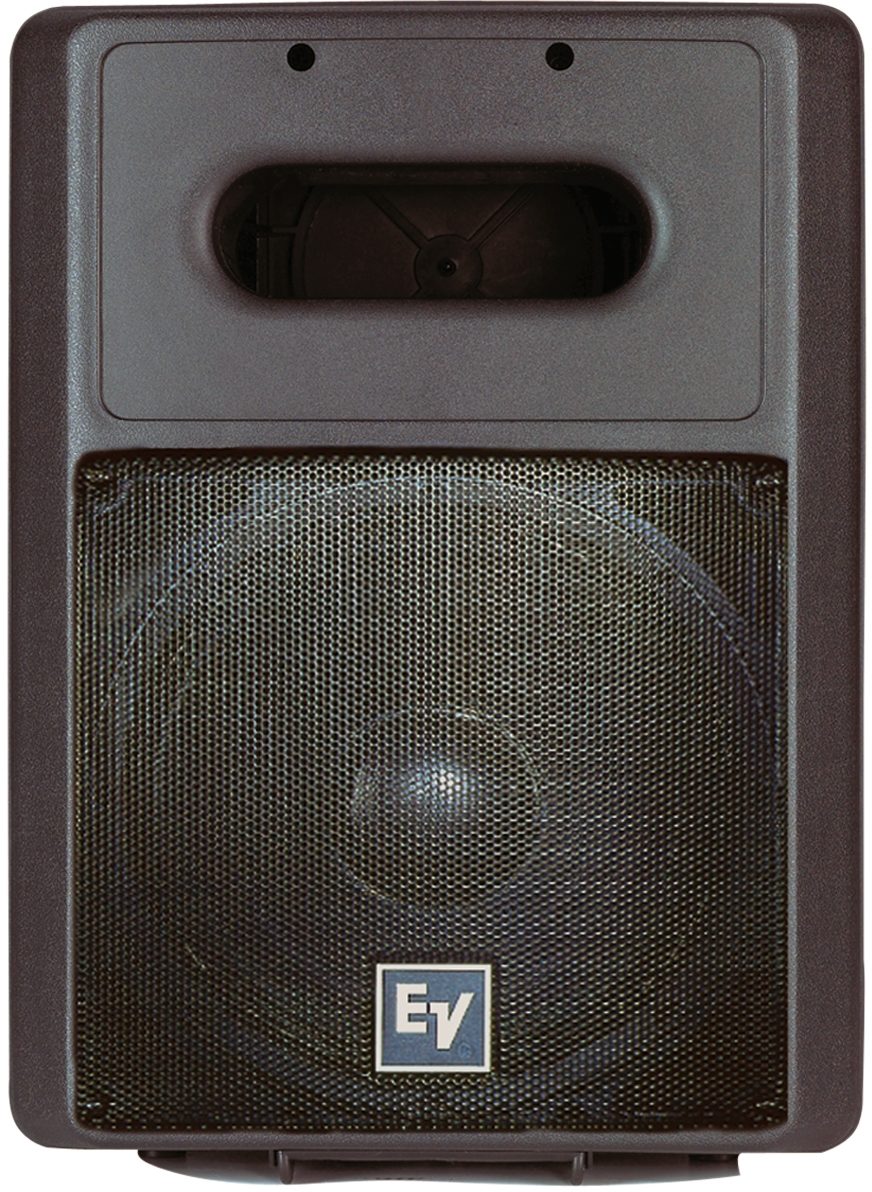

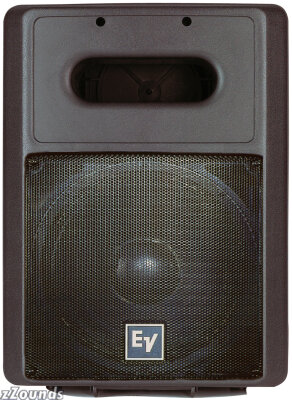

The quest for an affordable subwoofer that is compact, lightweight AND powerful is finally over. Introducing the Electro Voice SB122, quite possibly the smallest, most powerful subwoofer on the planet. Don't let your eyes fool you into thinking this little sub can't pound. Packing 400 watts continuous (1600 watt peak) in a diminutive 15kg (33lbs) package, the SB122 employs the new EVS12SB 12-inch long-excursion woofer for outstanding low frequency response.
Aesthetically, the SB122 sports a half-face grille with grille cloth, and a newly stylized EV logo. The rich feature set includes a top mounted pole cup, ergonomic carrying handle, large port, and a built-in low-pass filter that eliminates the need for external processing. Of course, external processing is still an option for professionals seeking greater overall system performance gains. And, with a price that makes it all seem too good to be true, SB122 is sure to make you rethink what a compact sub can be.
Features
Very Compact and Lightweight, Only 33 lbs/15.0 kg
Integral handle
400 Watt continuous, 1600 Watts peak power handling
Parallel Neutrik Speakon high current input connectors
Cast frame EVS12SB 12-inch high excursion subwoofer driver
Integral low-pass filter -- No additional amplifier or processor needed
The SB122 complements a wide variety of Electro Voice products including, but not limited to, ZX, SX, and even the EVID installation series.
Technical Info
Frequency Response (-3 dB): 52 Hz - 145 Hz
Frequency Response (-10 dB): 43 Hz - 200 Hz
Recommended High-Pass Frequency: 40 Hz
Sensitivity (SPL 1W/1m): 99 dB
Maximum Calculated SPL: 131 dB
Power Handling (Continuous): 400 Watts
Power Handling (Peak): 1,600 Watts
LF Transducer: EVS12SB, 12 inch (305mm)
Recommended Crossover Frequency Range: 80 Hz - 160 Hz
Impedance: 8 Ohms
Connectors: (2) Neutrik Speakon NL4
Dimensions (H x W x D): 23.1 x 16.9 x 12.3 in. (586 x 429 x 312mm)
Weight: 33 lbs. (15.0 kg)
