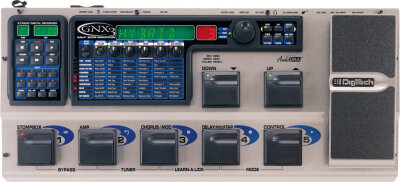

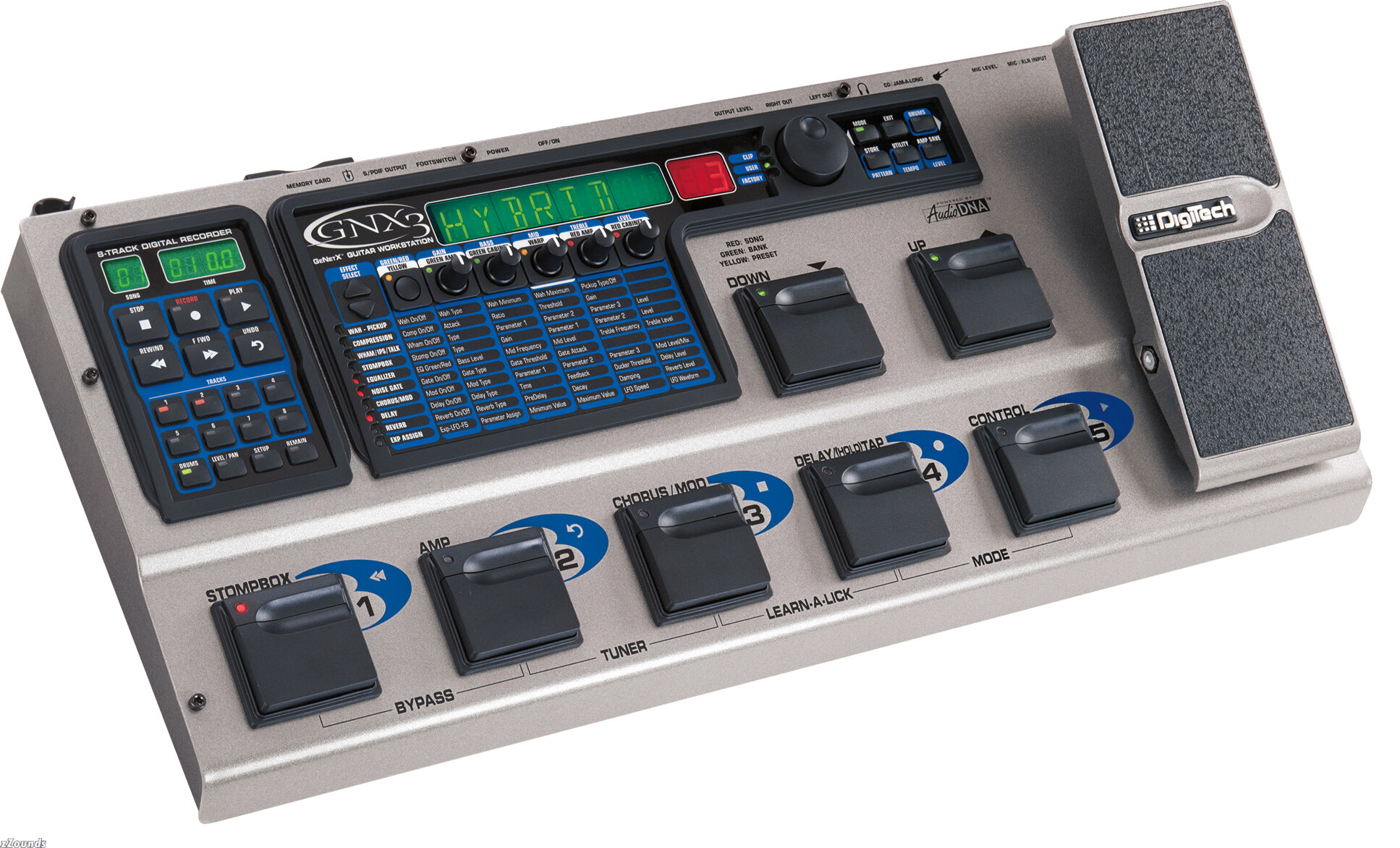

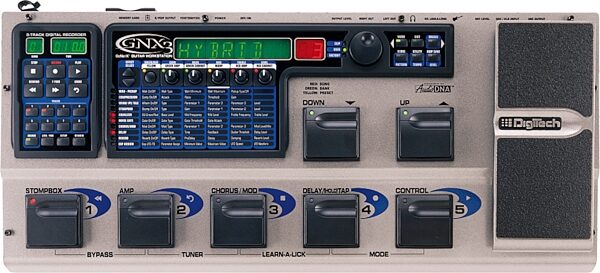

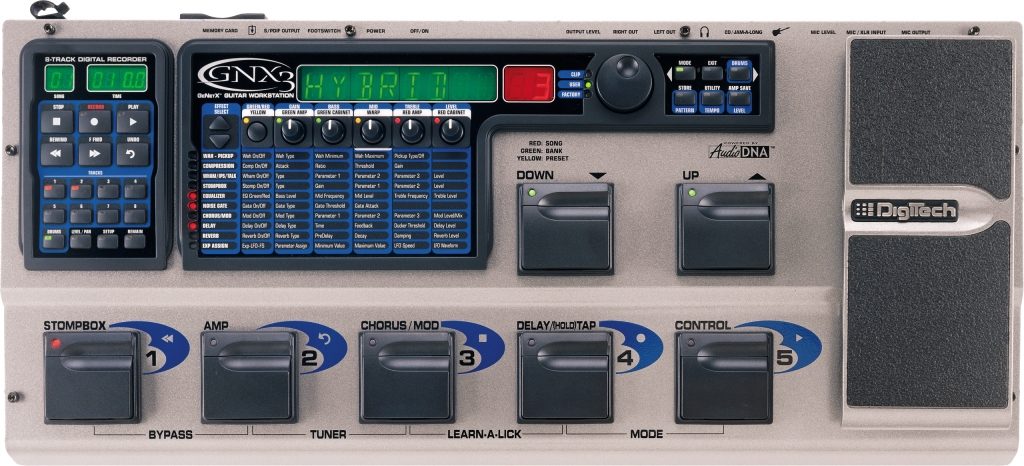

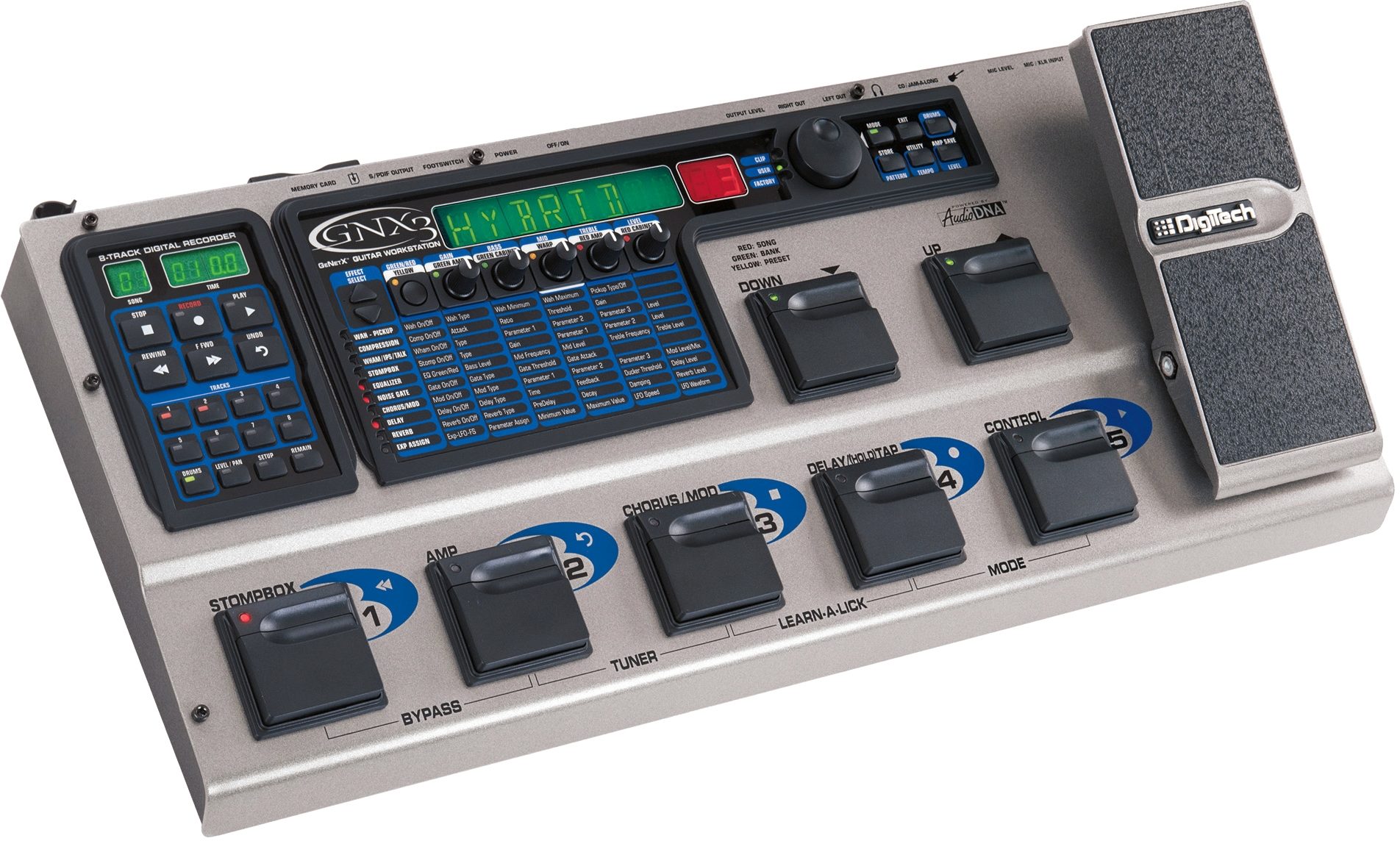

DigiTech GNX3 Guitar Multi-Effects Pedal

Floor Guitar Effects Processor and 8-Track Recorder in one Unit. 436 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents multimedia

Manufacturer's Description for DigiTech GNX3 Guitar Multi-Effects Pedal

Why someone hasn't done this before is anybody's guess, but the DigiTech team has jumped way ahead of the pack with their new GNX3 Guitar Workstation. For the first time, guitarists now have a complete, full-featured floor processor, plus an 8-track recorder combined into one unit, giving them a whole new level in creative power at a very affordable price.

Now, when a guitarist is practicing at home or is at a band rehearsal or jam session, those inspired solo moments won't be lost forever. And those magic riffs that come out of nowhere or are carefully worked out can be captured so you can get them down later. Just start the built-in 8-track recorder and all those "Wow, that was cool!" licks will be instantly recorded. And you can operate the recorder hands free.

But, the GNX3's power to unleash a guitarist's creative potential is fully realized in song writing. By utilizing the built-in drum machine and bass amp modeler, a guitarist can first lay down rhythm tracks on the built-in 8-track recorder (***Note: recording space is quite small without the use SmartMedia). Then selecting from the GNX3's unlimited library of amp models, DigiTech's exclusive and powerful CIT (Cabinet Imaging Technology) feature, and a complete set of on-board effects, the guitarist can then lay down the guitar tracks. When that's finished, vocals can then be recorded on the remaining tracks using the balanced XLR mic input on the rear of the GNX3. Even keyboards and DJ scratching can be added through the rear-panel instrument input. There's no limit! Plus, recording time can be greatly increased utilizing the SmartMedia card slot on the rear panel.

Effects and Features:

Pickup Simulation
Wah
Compressor
Whammy
Intelligent Pitch Shifting
Pitch Shift I
Detune I
Amp Models
Cabinet Models
Acoustic Guitar Simulator
3-band Semi-Parametric EQ
Noise Gate
Pluck Gate
Auto Swell
Chorus
Flanger
Phaser
Tremolo
Panner
Triggered Flanger
Triggered Phaser
YaYa
AutoYa
SynthTalk
Envelope Filter
Vibrato
Pitch Shift II
Detune II
Rotary Speaker
Delay (4 types)
Reverb (10 types)
8-Track Recorder
Control Footswitch zZounds is an authorized dealer of DigiTech products.

General
A/D Converter: 24 bit

D/A Converter: 24 bit

Sampling Frequency: 44.1 kHz

DSP Section: 3 - Audio DNA DSP Processors

Preset Memory: 65 Factory Presets, 65 User Presets

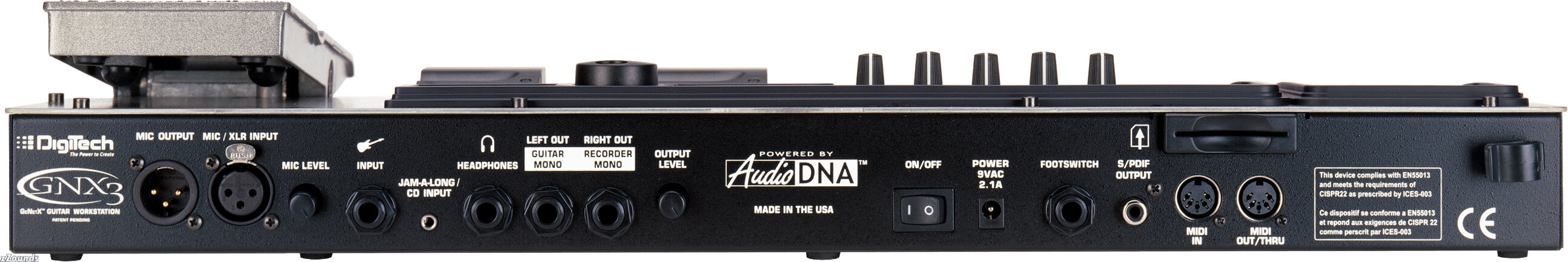

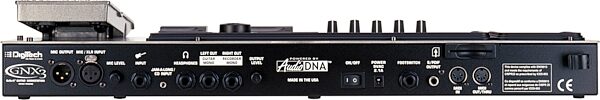

Connections
Guitar Input and Outputs: 1/4 inch TS

Jam-A-Long/CD Input: 1/8 inch Stereo TRS

Mic Input and Output: Balanced XLR

Headphone: 1/4 inch Stereo TRS

MIDI: In and Out/Thru

S/PDIF Output: RCA connector

Memory Card: SmartMedia Memory (3.3 Volt cards only, 16 MB or greater)

Footswitch: Optional GNXFC

Guitar Input
Frequency Response: 20 Hz - 17 kHz +0 dB, - 3 dB

S/N ratio (Analog Outputs): > 100 dB A-weighted; ref = max signal, 22kHz measurement bandwidth.

Total Harmonic Distortion: Less than 0.05% (1kHz).

Microphone Input (Recorder Input set to G+MICDRY)

Frequency Response: 20 Hz - 20 kHz +0 dB, - 1 dB

S/N ratio(Analog Outputs): > 99 dB A-weighted; ref = max signal, 22kHz measurement bandwidth.

Total Harmonic Distortion: Less than 0.022% (1kHz).

8 Track Digital Recorder (Record Quality set to CD mode)

Resolution: 16 bit

Guitar Input
Frequency Response: 20 Hz - 17 kHz +0 dB, - 3 dB

S/N ratio: > 95 dB A-weighted; ref = max signal, 22kHz measurement bandwidth.

Microphone Input
Frequency Response: 20 Hz - 20 kHz +0 dB, - 1 dB

S/N ratio: > 95 dB A-weighted; ref = max signal, 22kHz measurement bandwidth.

Power Requirements
US and Canada: 120 VAC, 60 Hz Adapter: PSS3-120 (included)

Power Consumption: 18.5 Watts

Size & Weight
Dimensions (LxWxD): 20.75 x 9 x 3 inches

Unit Weight: 8.9 lbs.

Owner's Manual

DigiTech Warranty

Digitech Warranty

If you have additional warranty questions, please call the manufacturer at 801-566-8800

zZounds is an
authorized DigiTech dealer

Sound Samples

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "The incredible staff at zZounds took the time to walk me through my purchase, making sure I didn't have to spend a lot of extra money on gear that had features I wouldn't need." - customer on February 2nd, 2012

Customer Reviews

4.5 out of 5 (436 ratings) Rate and Review This Product

Read all 8 DigiTech GNX3 Guitar Multi-Effects Pedal Reviews

zZounds has verified that this customer bought this product from us. "you havent played on the best until u have tryed this out!"

Sound: i found some of the most awesome effex i have ever heard...any effect you r looking for is defo included! so many posibilities! Feature: i like the recorder and the fact that u can download like almost any effect you are looking for. Quality: very nice...i think digi tech has come a far way with their pedals... i have at least 6 of them and i find this one to be the best one of all of them Value: quality at a good price. Manufacturer Support: they are always willing to help... even if ur a dumb ass and dont know what the thing is used for! The Wow Factor: it is awesome... i think it would be kooler if they would change up the colors alittle bit.... the silver and blue is ancient Overall: BUY THIS PRODUCT... YOU WILL NOT REGRET A THING!!!!!

Style of Music: Emo,Screamo ,Acoustic , hard rock, Speed metal

1 of 1 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

"It is a great piece of equipment for your guitar arsenal, the price and features are simply up beatable and I do not work for th"

Sound: The sound is absolutely wonderful. I play mostly heavy metal, however you could play any type of music with because of all of the amazing effects it has loaded in it. The recorder is a wonderful tool, however the drums could be better, if they added some fills and editing capability. I still give it a 10 because nothing else even comes close to this product, it simply blows them all out of the water without mentioning the excellent price. When I brought mine I sent &600.00 for it and I would easily do it again. This product is noise free, I love that, if you have regular pedals sell them and buy this. Feature: The memory card could be bigger, however nothing else has one, so I cannot really complain about that too much. I bought the extension foot switch for it also, I think it makes things simpler when recording and playback. Punch in and out is a wonderful feature, very easy to use and make a perfect recording as long as all of your chops are up. It you mess up, simply keep playing until the end of the song that you have created, then go back and punch in and out. Ease of Use: It is very easy to use, however a little lag when switching from pedal to pedal. Usually for me this is no problem because I created my settings and do not switch back in forth to much in the context of a song as much as I had in the past. I still give it a 10. Quality: The quality is absolutely great, it is a very strong piece of equipment, with a product like this, no worries. I only wish they still make rack mounted versions with a updated version of some of things I said earlier that could be better. I like a rack mount because I like everything organized and off of the floor with quick access to the knobs for adjustments instead of bending over, it simply makes more sense. Value: You simply cannot beat it at this price. If you are thinking about it, Stop! Manufacturer Support: I haven't had to ever use the support for this product, however I have in the past, I also own a Valve Effects processor that had a problem. I sent it in, it was inexpensive and came back quickly and you speak with Americans who speak English. The Wow Factor: It is so easy to use a child could easily figure it out. Overall: It is a great piece of equipment for your guitar arsenal, the price and features are simply up beatable and I do not work for the company. www.myspace.com/godsholyjustice

Style of Music: Rock, Hard Rock, Heavy Metal, Thrash

6 of 7 people (85.71%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read all 8 DigiTech GNX3 Guitar Multi-Effects Pedal Reviews
