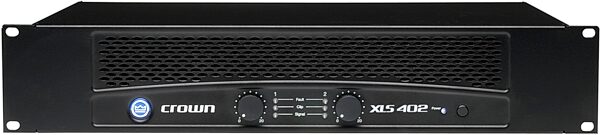

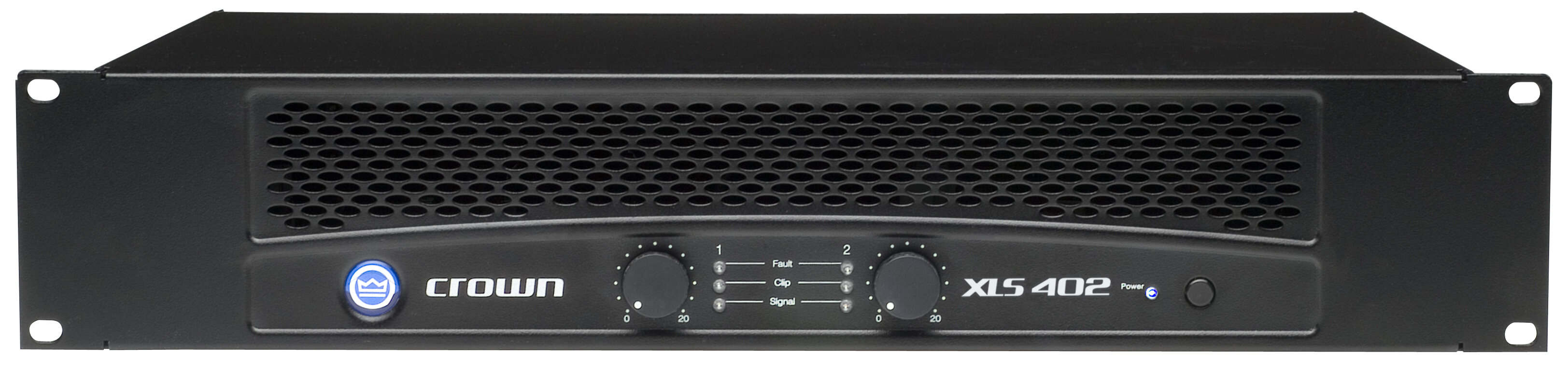

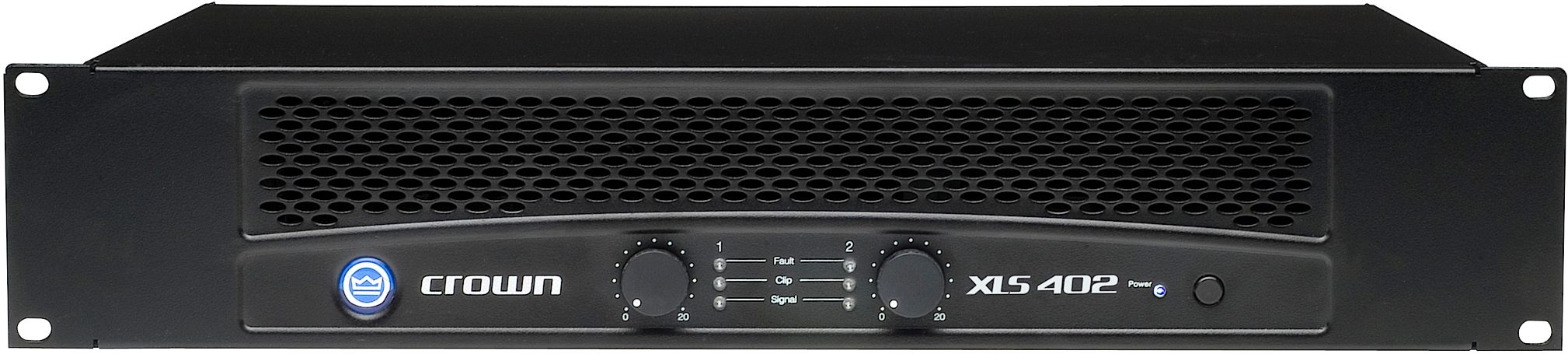

Crown XLS402D Amplifier (900 Watts)

570W/2 Ohms; 400W/4 Ohms; 260W/8 Ohms.

(22) Read 2 reviews for this product | Rate and Review This Product

Click to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Crown dealer

The XLS 202, 402, and 602 all combine first-class reliability with a number of significant features. A selectable high-pass filter (30Hz/15Hz/Off) on each channel enables the amplifier to work more efficiently when not being used with full-range cabinets or subwoofers, while a pair of linear opto-coupler clip limiters helps protect loudspeakers from being overdriven.

Housed in rugged, all-steel 3U chassis, the 3 XLS models employ an efficient forced air fan to prevent excessive thermal buildup. Front panels sport dual, precision detented level controls, a power switch and 4 LEDs, which indicate clip for each channel, power, and fault conditions. Rear panel connections include 2 electronically balanced XLR inputs and touch-proof binding post outputs.

"XLS Series amplifiers are great for DJs and bands that need a rugged and dependable workhorse," says Bob Lichty, Crown Audio music industry marketing director. "Despite their extremely economical price tags, these amplifiers don't cut any corners with regard to features or performance."

Like all of Crown's amplifiers, XLS products are backed by the manufacturer's industry-exclusive 3-year, No-fault, Fully Transferable Warranty. zZounds is an authorized dealer of Crown products.

The following applies to units in Stereo mode with 8-ohm loads and rated input sensitivity unless otherwise specified.

Sensitivity (volts RMS) for full rated power at 4 ohms: 1.025

Frequency Response (at 1 watt) 20 Hz to 20 kHz: Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25

Frequency Response (at 1 watt, 22 Hz - 20 kHz): +0 dB, -1 dB

Signal to Noise Ratio below rated power (20 Hz to 20 kHz, inputs terminated)

A-weighted, below rated power: > 100 dB

No weighting, below rated power: > 95 dB

Total Harmonic Distortion (THD) at 1 full bandwidth power, from 20 Hz to 1 kHz:
< 0.5%

Intermodulation Distortion (IMD) 60 Hz and 7 kHz at 4:1, from full rated output to -30 dB: < 0.3%

Damping Factor (8 ohm): 10 Hz to 400 Hz: > 200
Crosstalk (below rated power):
- at 1 kHz: -75 dB
- at 20 kHz: -50 dB

Input Impedance (nominal) (balanced, unbalanced): 20 kilohms, 10 kilohms

Load impedance
- Stereo: 4-8 ohms
- Bridge mono: 8 ohms

AC Line Voltage and Frequency Configurations Available (+/- 10%):
- 120 VAC 60 Hz
- 100 VAC 50/60 Hz
- 220 VAC 50 Hz
- 230-240 VAC 50 Hz

Ventilation: Flow-through ventilation from front to back

Cooling: Internal heat sinks with forced-air cooling

Air Volume Requirements (per minute per unit): 80.15 ft3 (2.27 m3)

Dimensions: Width, Height, Depth
- XLS 202, 402, 602, 802: EIA Standard 19"W (EIA RS-310-B) x 3.5" (8.9 cm) H x15.2" (38.6cm) D.
- XLS 5000: EIA Standard 19"W (EIA RS-310-B), 5.25" ( 13.3 cm) H x 15.5" (39.5 cm) D.

Net Weight, Shipping Weight:
- XLS 202: 23.0 lb (10.4 kg)
- XLS 402: 25.7 lb (11.7 kg)
- XLS 602: 29.0 lb (13.2 kg)
- XLS 802: 35.5 lb (16.1 kg)
- XLS 5000: 62.0 lb (27.7 kg)
