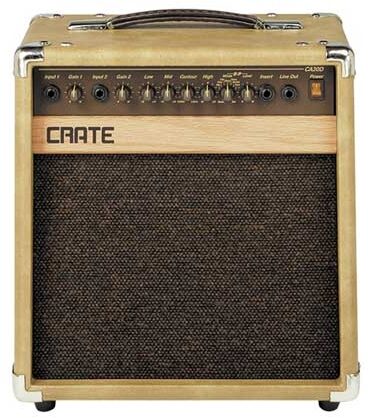

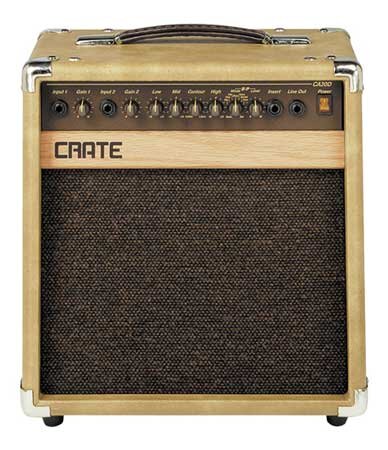

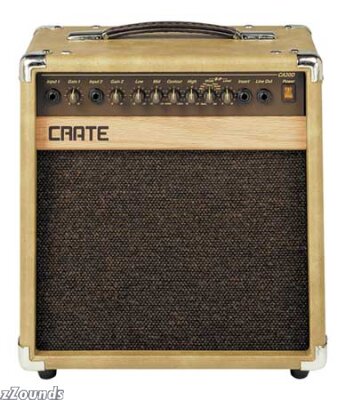

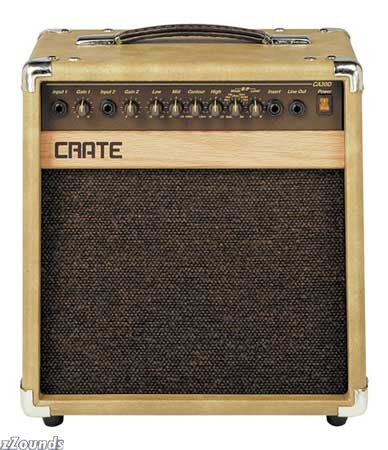

Crate CA30D Acoustic Guitar Amp

The CA30D features 30 watts RMS, a Crate 8" high fidelity speaker, and Crate special design tweeter. Two channels allow for instrument input and your option of vocals or an auxiliary source like a CD player or another instrument. The CA30D also includes 3 band EQ, 1/4" line out, slant front cabinet, spring reverb, and an effects loop for mixing in outside effects. The CA30D features Crate's award winning Onboard Digital Signal Processing which includes a variety of reverbs, delays, chorus, and multiple effects settings.

Featuring Crate's award-winning onboard DSP, this amp allows users more tone opportunities, while providing the same natural acoustic reproduction chosen by professional musicians. This amp would be great for home studios, practice, smaller jams, or a coffee house sized live performance.

Technical Info

Output Power Rating: 30 watts RMS @ 1% distortion

Equalization: Low +/-15dB @ 80Hz;  Mid +/-15dB @ 400&Mac220; 1.2kHz; High +/-15dB @ 10kHz

Internal Impedance: 1.5M ohm

Internal Sensitivity: 20mV RMS

Sens. to Line Out: 20mV

Max Input Signal: 10v RMS (28v peak to peak)

Insert Jack: .7v RMS, Line In .7v RMS

Insert Jack Input Impedance: 44k ohm

Insert Jack Output Impedance: 2.2k ohm

Line Out Output Impedance: 2.2k ohm

Internal Speaker: 8" Poly cone coaxial with dome tweeter; -4 ohms; -50 watts; 1" voice coil

Power Requirements: 120VAC, 60Hz, 60VA; 100/115VAC, 50/60Hz, 60VA; 230VAC, 50/60Hz, 60VA

Dimensions (H x W x D): 13.5 x 21.18 x 10.25 in.

Weight: 38 lbs.
