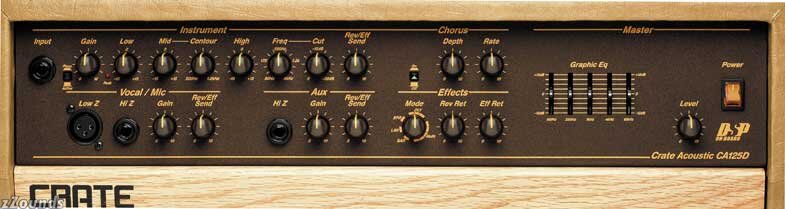

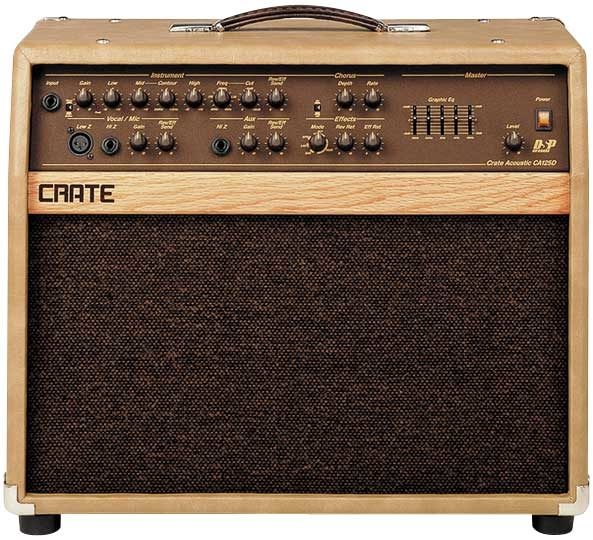

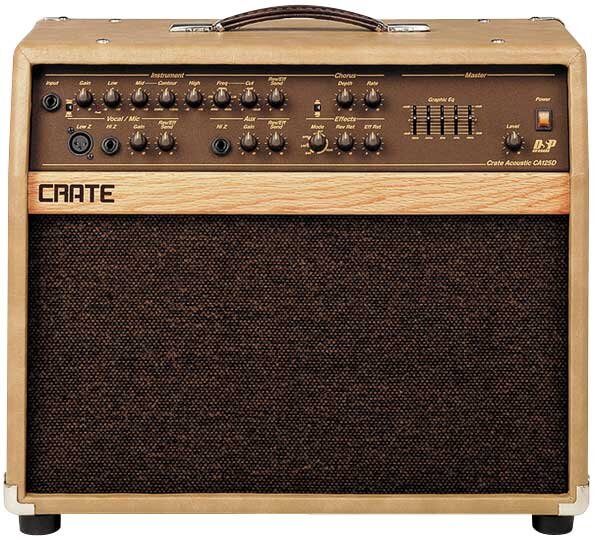

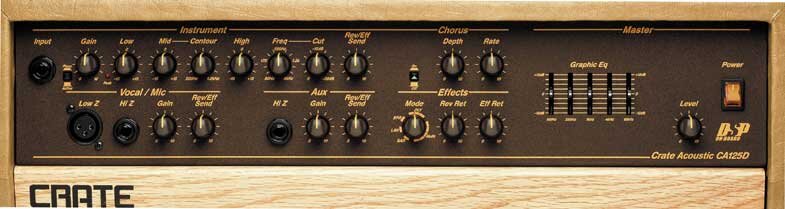

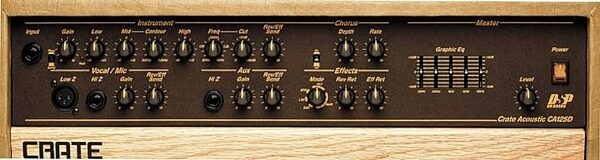

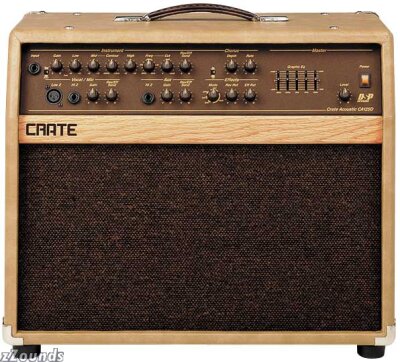

Crate CA125D Tri-Amped Acoustic Amplifier

The Crate Acoustic Series has evolved into an entire line of products devoted to making the acoustic player heard...and sound better. Whether you play folk, country, rock, or blues, you will be amazed at how your acoustic will sound through a Crate Acoustic.

Multi-channel operation, multiple inputs and patented feedback elimination circuit are just a few of the features found on our Acoustic Series amps. It's no wonder the list of professionals playing these amps grows by the day. If you have ever thought about amplifying your acoustic guitar, you really owe it to yourself to Crate Your Own Sound.

Features
2 Crate 8 in. Speakers.

Crate Special Design Tweeter

2 x 50 Watts RMS + 25 Watts (tweeter)

3 Channels

Feedback Elimination Circuit

Stereo Chorus

XLR and 1/4 in. Line Out with Level

Tilt Back Cabinet

Digital Effects onboard (CA125D)

16.75 x 21 x 10.5 in.

Technical Info

Output Power Rating 125 watts RMS @ 4 ohms x 2 with Channel One and Two
Low +/-15dB @ 80Hz;
Mid +10/-22dB @ 100-2.2kHz (Contour);
High +/-15dB @ 10kHz
Input Impedance: 15k ohm (Active), 1M ohm (Piezo)
Input Sensitivity: 17mV RMS (Active), 12mV RMS (Piezo)
Sens. to Eff Send/Line Out 12mV RMS
Sens. to Ch.1/Ch.2 Direct Out 12mV RMS
Max Input Signal: 5.25v RMS (Active), 3.25v RMS (Piezo)
Feedback Elimination Freq: variable from 80Hz to 4kHz; Cut variable from -0 to -30dB
Channel Three, Four
Low +/-15dB @ 80Hz;
Mid +/-15dB @ 600Hz;
High +/-15dB @ 10kHz
Input Impedance: 20k ohm (Hi-Z), 1.8M ohm (Low-Z)
Input Sensitivity: 27mV RMS (Hi-Z), 5mV RMS (Low-Z)
Sens. to Eff Send/Line Out 20mV RMS
Sens. to Ch.3/Ch.4 Direct Out 20mV RMS
Max Input Signal 10v RMS (Hi-Z); 2v RMS (Low-Z)
Effects Loop .775v RMS (Send); .775v RMS (Return)
Effects Return to Line Out Sens. 30mV RMS
Effects Return Input Impedance 20k ohm
Effects Send Output Impedance 2.2k ohm
Line Out Output Impedance 2.2k ohm (Hi-Z); 220 ohm (Low-Z)
Internal Coaxial Speakers:
Low Frequency: Four 82 polypropylene cone woofers with rubber surrounds, 30 oz magnets, 12 voice coils, 8 ohms, 100W RMS, 95dB 1W/1m;
High Frequency: Four phase-corrected polycarbonite tweeterw with 12 cone dome, 10W RMS, 95dB 1W/1m

Power Requirements: 120VAC, 60Hz, 300VA; 100/115VAC, 50/60Hz, 300VA; 230VAC, 50/60Hz, 300VA

Size (H x W x D): 16.752 x 212 x 10.52
