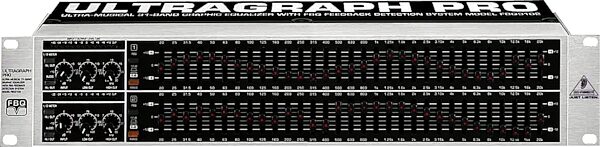

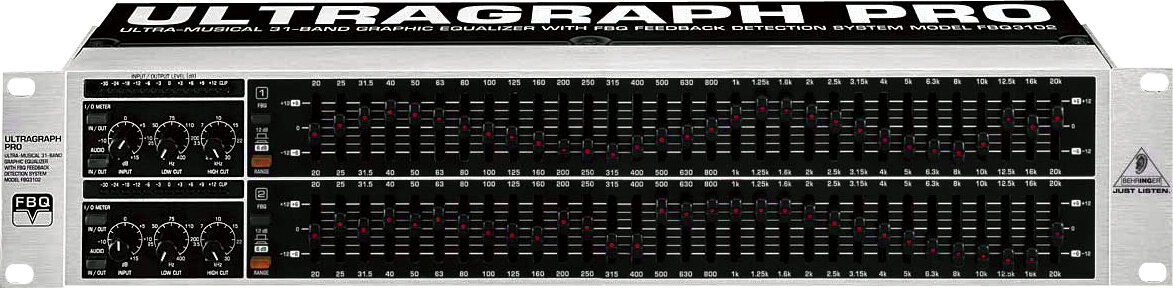

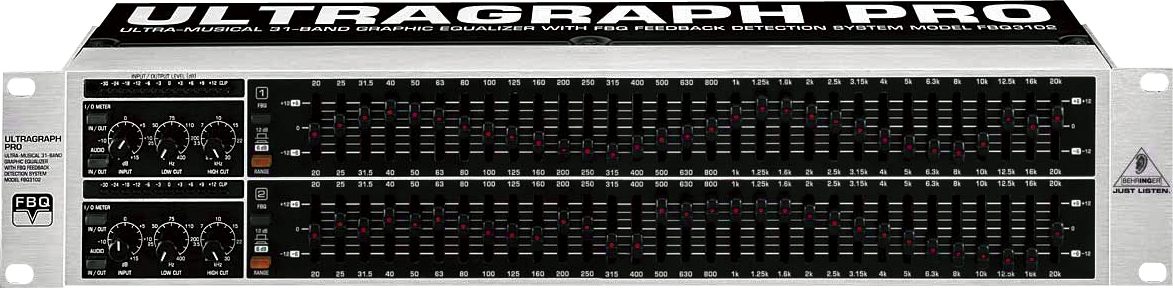

Behringer FBQ3102 Ultragraph Dual 31-Band Equalizer with FBQ
For live and studio applications. XLR and 1/4 in. TRS connectors.
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
News
Ultragraph Pro EQs are professional, ultra-musical, and equally at home in both live and studio applications. They feature the amazing, patent-pending FBQ Feedback Detection System that instantly detects feedback frequencies and can also be used as an audio analyzer. Their dedicated mono subwoofer output with adjustable crossover frequency lets you add some extra punch to your music. Other features include ultra low-noise audio op-amps, servo balanced XLR and TRS I/Os, high-quality illuminated faders, detent ALPS(R) potentiometers and illuminated switches.
Features:
Professional 31-band stereo Graphic Equalizer for both live and studio applications
Revolutionary, patent-pending FBQ Feedback Detection System instantly reveals critical frequencies and can also be used as Audio Analyzer
Dedicated mono subwoofer output with adjustable crossover frequency
Additional sweepable high and low cut filters for each channel remove unwanted frequencies e.g. floor rumble, tape hiss, etc.
Highly accurate 12-digit LED input/output metering and input gain control for easy level setting
Ultra low-noise audio operational amplifiers offer outstanding sound performance
Relay-controlled hard-bypass with an auto-bypass function during power failure (failsafe relay)

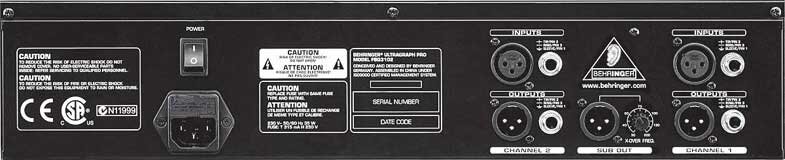

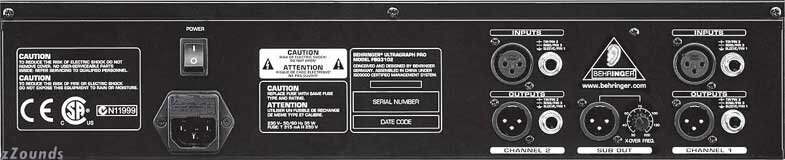

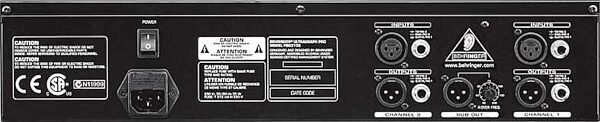

Servo-balanced inputs and outputs with 1/4 in. TRS and gold plated XLR connectors
High-quality illuminated faders, detent ALPS potentiometers and illuminated switches for long-term reliability
Shielded toroidal power transformer for ultra low-noise performance
Extremely rugged all-metal chassis ensures long life even under the most demanding conditions
Designed in Germany. Manufactured under ISO9000 certified management system.
- Type: RF-filtered, servo balanced XLR and 1/4 in. TRS connectors
- Impedance: 40k ohms balanced and unbalanced
- Maximum Input Level: +21 dBu balanced and unbalanced
Audio Outputs:
- Type: Servo-balanced XLR and 1/4 in. TRS connectors
- Subwoofer Out: Balanced XLR connector
- Crossover Frequency: variable, 30-200Hz
System Specifications:
- Frequency Response: 10Hz to 30kHz, +/- 3 dB
- Signal to Noise Ratio: 22 Hz to 22 kHz > 94 dB @+4 dBu
- THD: Typical 0.006% @ +4 dBu, 1 kHz, Gain 1
- Crosstalk: Typical 65 dB @ 1 kHz
Roll-Off Filtersection:
- Type: 12 dB/octave, Butterworth
- Input: variable (-15 dB to +15 dB)
- Low Cut: variable (10 Hz to 400 Hz)
- High Cut: variable (2.5 kHz to 30 kHz)
Graphic Equalizer:
- Type: Analog 31-band equalizer
- Frequency Range: 20 Hz to 20 kHz in 31 1/3-octave bands (ISO frequencies)
- Bandwidth: 1/3 octave
- Control Range: +/-6 dB or +/-12 dB (switchable)
Dimensions (H x W x D): 3-1/2 x 19 x 5-7/8 in.
Weight: 5.51 lbs
Features:
Professional 31-band stereo Graphic Equalizer for both live and studio applications
Revolutionary, patent-pending FBQ Feedback Detection System instantly reveals critical frequencies and can also be used as Audio Analyzer
Dedicated mono subwoofer output with adjustable crossover frequency
Additional sweepable high and low cut filters for each channel remove unwanted frequencies e.g. floor rumble, tape hiss, etc.
Highly accurate 12-digit LED input/output metering and input gain control for easy level setting
Ultra low-noise audio operational amplifiers offer outstanding sound performance
Relay-controlled hard-bypass with an auto-bypass function during power failure (failsafe relay)
Servo-balanced inputs and outputs with 1/4 in. TRS and gold plated XLR connectors
High-quality illuminated faders, detent ALPS potentiometers and illuminated switches for long-term reliability
Shielded toroidal power transformer for ultra low-noise performance
Extremely rugged all-metal chassis ensures long life even under the most demanding conditions
Designed in Germany. Manufactured under ISO9000 certified management system.
Technical Info
Audio Inputs:- Type: RF-filtered, servo balanced XLR and 1/4 in. TRS connectors
- Impedance: 40k ohms balanced and unbalanced
- Maximum Input Level: +21 dBu balanced and unbalanced
Audio Outputs:
- Type: Servo-balanced XLR and 1/4 in. TRS connectors
- Subwoofer Out: Balanced XLR connector
- Crossover Frequency: variable, 30-200Hz
System Specifications:
- Frequency Response: 10Hz to 30kHz, +/- 3 dB
- Signal to Noise Ratio: 22 Hz to 22 kHz > 94 dB @+4 dBu
- THD: Typical 0.006% @ +4 dBu, 1 kHz, Gain 1
- Crosstalk: Typical 65 dB @ 1 kHz
Roll-Off Filtersection:
- Type: 12 dB/octave, Butterworth
- Input: variable (-15 dB to +15 dB)
- Low Cut: variable (10 Hz to 400 Hz)
- High Cut: variable (2.5 kHz to 30 kHz)
Graphic Equalizer:
- Type: Analog 31-band equalizer
- Frequency Range: 20 Hz to 20 kHz in 31 1/3-octave bands (ISO frequencies)
- Bandwidth: 1/3 octave
- Control Range: +/-6 dB or +/-12 dB (switchable)
Dimensions (H x W x D): 3-1/2 x 19 x 5-7/8 in.
Weight: 5.51 lbs
Dual 31-band graphic EQ with a trick up its sleeve: a feedback detection circuit lights up the slider of the offending frequency so you know what to cut. It also features balanced I/O with 12-segment level metering.
10/16
New stock arrives in zZounds' warehouse, Warehouse Select, order now!
What Our Customers Say About zZounds
"I love how zZounds notifies me of great deals when they come in." - customer on November 4, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 79N5CCM
Item: BEHFBQ3102
Choose a model below and select "Add to Cart"
related accessories
from $3.95
from $119.95
from $9.95
from $14.95
Behringer FBQ3102 Ultragraph Dual 31-Band Equalizer with FBQ Reviews
9 out of 10
zZounds has verified that this customer bought this product from us.
"Great Sound"
Feature:
I'm knocking it down 2 notches because of the fbq feature. As an EQ, it does everything it should. Hi and lo pass filters are convenient if not redundant. Sub x-over is fine. The FBQ is handy, but not complete. Intensity of glowing sliders shows sound levels per frequency, but that's it. You can visually identify strong/weak spots, but you still need your ears. What it does do is make tuning quicker, but it does not do it for you. Feedback will show up as one bright slider, so you can quickly nab it/tune it if you ring the room, but folks who know the "I don't have a RTA-capable EQ" methods will find this only a convenience. Folks that don't know how to tune a room by ear will not benefit from this feauture. A noise insert & a measurement mic insert would make it work...
Quality:
I think it's built well. Sliders feel precise and smooth, but strike me as delicate. House installs = fine. The controls don't feel up to the occassional woopsie that gigging encounters. I'm knocking it 3 points because, like alot of Berhinger gear, there's a really nasty power-off pop. I mean, I hate to even expose powered-off gear to the surge.
Value:
Outstanding sound at minimal cost.
Desirability:
turn on fbq and the lights go nuts...if you're into that sort of thing.
Sound:
Sound is outstanding. My older furman eq was clean, but very muddy in comparison. Bass is tight but full, no slop. Highs are crystal. I don't mean to go overboard, but the sound quality rivals eqs 3 times as costly.
Ease of Use:
It's an EQ...
Support:
No experience.
Overall:
Its a static install. I'll use it indefinently.
I'm knocking it down 2 notches because of the fbq feature. As an EQ, it does everything it should. Hi and lo pass filters are convenient if not redundant. Sub x-over is fine. The FBQ is handy, but not complete. Intensity of glowing sliders shows sound levels per frequency, but that's it. You can visually identify strong/weak spots, but you still need your ears. What it does do is make tuning quicker, but it does not do it for you. Feedback will show up as one bright slider, so you can quickly nab it/tune it if you ring the room, but folks who know the "I don't have a RTA-capable EQ" methods will find this only a convenience. Folks that don't know how to tune a room by ear will not benefit from this feauture. A noise insert & a measurement mic insert would make it work...
Quality:
I think it's built well. Sliders feel precise and smooth, but strike me as delicate. House installs = fine. The controls don't feel up to the occassional woopsie that gigging encounters. I'm knocking it 3 points because, like alot of Berhinger gear, there's a really nasty power-off pop. I mean, I hate to even expose powered-off gear to the surge.
Value:
Outstanding sound at minimal cost.
Desirability:
turn on fbq and the lights go nuts...if you're into that sort of thing.
Sound:
Sound is outstanding. My older furman eq was clean, but very muddy in comparison. Bass is tight but full, no slop. Highs are crystal. I don't mean to go overboard, but the sound quality rivals eqs 3 times as costly.
Ease of Use:
It's an EQ...
Support:
No experience.
Overall:
Its a static install. I'll use it indefinently.
Submitted: 08/28/2006
Style of Music: rock, jazz, R&B, Dance, CCM
10 out of 10
"An amazing product for a cheap price"
Feature:
FBQ, when you press this button the lights look cool
Quality:
It has great sound quality
Value:
It is very cheap compared top the quality
Desirability:
It has a very modern yet rugged design
Sound:
It has a crisp clear sound, It sounds like an Equalizer that is at least double the price
Ease of Use:
Very Simple and straight forward
Support:
Haven't needed it
Overall:
I will definitely use this for every thing that I can
FBQ, when you press this button the lights look cool
Quality:
It has great sound quality
Value:
It is very cheap compared top the quality
Desirability:
It has a very modern yet rugged design
Sound:
It has a crisp clear sound, It sounds like an Equalizer that is at least double the price
Ease of Use:
Very Simple and straight forward
Support:
Haven't needed it
Overall:
I will definitely use this for every thing that I can
Submitted: 09/03/2009
