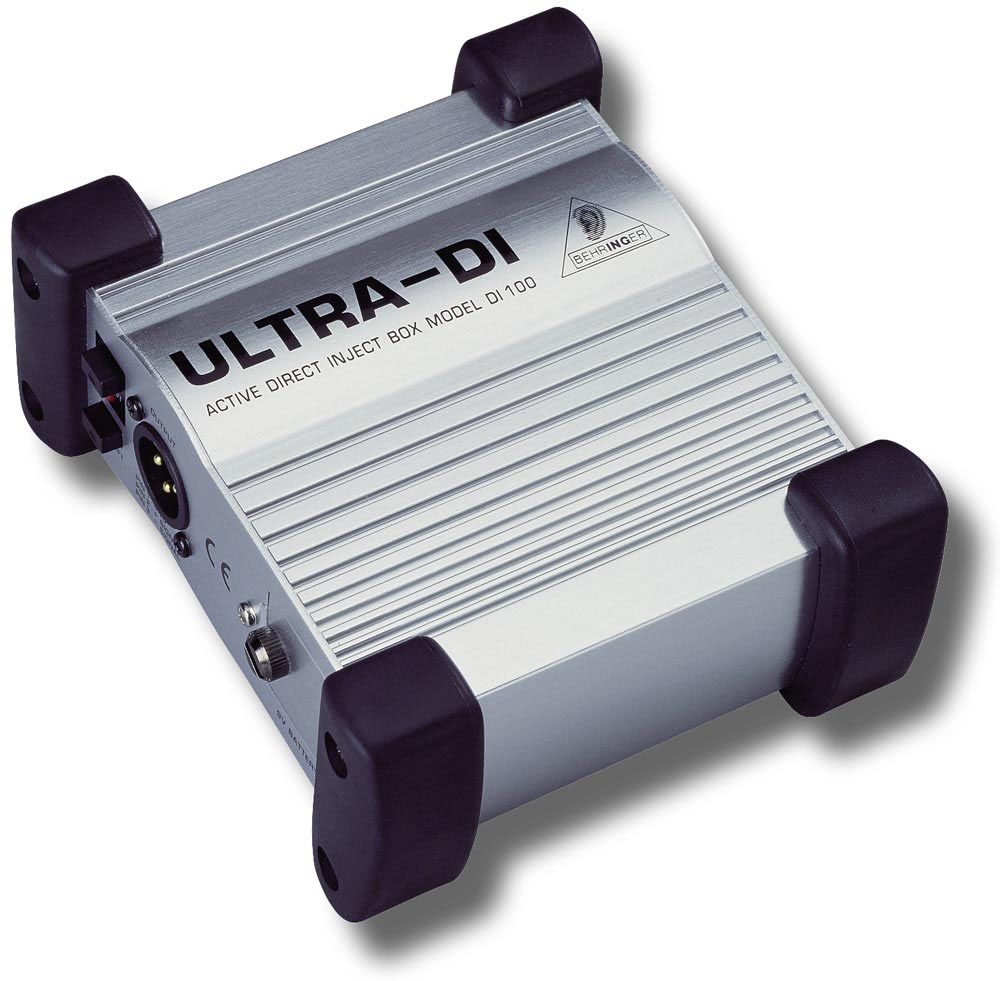

Behringer DI100 Active Direct Box
Professional, multi-functional active DI box for all studio and stage applications. Super-rugged metal encasing with sturdy oversized rubber corners for increased reliability.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
From Our Catalog
Active Power Without Limits
Contrary to passive DI boxes, the active Ultra-DI DI100 sets no limits regarding varying or mismatched impedance. How The signal is buffered by a high-quality amplifier. What does this mean to you? You get a clean, pure, powerful signal, which is immune to interference and therefore free of noise and hum - even with extremely long cables. The renowned Behringer OT-1 transformer ensures absolutely linear frequency response and ultra-low distortion, especially in the low end. The audio specifications speak for themselves: linear frequency response from 10 Hz to 50 kHz, S/N ratio of -102 dBu, and THD <0.005% at 1 kHz.
Your Ideas and Behringer's Energy: An Unbeatable Team
The Ultra-DI can be powered by your console's phantom power or an internal 9-V battery - the DI100 automatically switches between the two. The massive metal encasing and four rugged, oversized rubber corners keep it safe and reliable even under the toughest touring conditions. The rubber corners also allow you to stack several DI100's or place them on top of other gear without running the risk of ground loops. As you can see, Behringer has thought of everything.
Ultra-Di Di100: The Ultimate, Active Solution to All Your Di Problems!
Features
Professional, multi-functional active DI box for all studio and stage applications
Behringer OT-1 transformer for ultra-linear frequency response
Super-rugged metal encasing with sturdy oversized rubber corners for increased reliability
Internal battery automatically shut off when phantom power is connected
Ultra-low noise operational amplifier for outstanding audio quality
Gold-plated XLR and 1/4" input/output jacks (XLR balanced)
Direct connection of amplifier outputs with up to 3,000 Watts
Switchable input attenuation allows input levels of up to +50 dBu
Ground Lift switch isolates grounding circuit for hum elimination
Manufactured under ISO9000 certified management system
Noise Level: -110 dBu
THD+N @ 1 kHz / 0 dBu: < 0,005 %
Input Impedance: >250 kOhm
Load Impedance: >600 Ohm
Inputs: 1/4" jack unbal. In/ Link Out
XLR unbalanced In
Output: XLR balanced Out
Maximum Input Level: +10/+30/+50 dBu
Phantom Power: 18 V DC to 48 V DC
Battery: 9 V blockcell 6LR91
Dimensions: 5.91 x 5.12 x 2.36 (150 x 130 x 60mm)
Weight: approximately 650 g
Contrary to passive DI boxes, the active Ultra-DI DI100 sets no limits regarding varying or mismatched impedance. How The signal is buffered by a high-quality amplifier. What does this mean to you? You get a clean, pure, powerful signal, which is immune to interference and therefore free of noise and hum - even with extremely long cables. The renowned Behringer OT-1 transformer ensures absolutely linear frequency response and ultra-low distortion, especially in the low end. The audio specifications speak for themselves: linear frequency response from 10 Hz to 50 kHz, S/N ratio of -102 dBu, and THD <0.005% at 1 kHz.
Your Ideas and Behringer's Energy: An Unbeatable Team
The Ultra-DI can be powered by your console's phantom power or an internal 9-V battery - the DI100 automatically switches between the two. The massive metal encasing and four rugged, oversized rubber corners keep it safe and reliable even under the toughest touring conditions. The rubber corners also allow you to stack several DI100's or place them on top of other gear without running the risk of ground loops. As you can see, Behringer has thought of everything.
Ultra-Di Di100: The Ultimate, Active Solution to All Your Di Problems!
Features
Professional, multi-functional active DI box for all studio and stage applications
Behringer OT-1 transformer for ultra-linear frequency response
Super-rugged metal encasing with sturdy oversized rubber corners for increased reliability
Internal battery automatically shut off when phantom power is connected
Ultra-low noise operational amplifier for outstanding audio quality
Gold-plated XLR and 1/4" input/output jacks (XLR balanced)
Direct connection of amplifier outputs with up to 3,000 Watts
Switchable input attenuation allows input levels of up to +50 dBu
Ground Lift switch isolates grounding circuit for hum elimination
Manufactured under ISO9000 certified management system
Technical Info
Frequency Response: 10 Hz to 93 kHzNoise Level: -110 dBu
THD+N @ 1 kHz / 0 dBu: < 0,005 %
Input Impedance: >250 kOhm
Load Impedance: >600 Ohm
Inputs: 1/4" jack unbal. In/ Link Out
XLR unbalanced In
Output: XLR balanced Out
Maximum Input Level: +10/+30/+50 dBu
Phantom Power: 18 V DC to 48 V DC
Battery: 9 V blockcell 6LR91
Dimensions: 5.91 x 5.12 x 2.36 (150 x 130 x 60mm)
Weight: approximately 650 g
Active direct box at an amazing price! The rubber corners protect against ground loop problems. It can be phantom-powered or run off of a 9V battery.
What Our Customers Say About zZounds
"I like zZounds. It's easy to use, and they have the best prices online. Period." - customer on October 24, 2009
Call
866.ZZOUNDS (996.8637)
and mention priority code: 79N5CCM
Item: BEHDI100
related accessories
from $119.95
from $9.95
from $9.95
Behringer DI100 Active Direct Box Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"This is a great little tool!"
Feature:
I was looking for a DI and I got a much more versatile device than I expected. Two -20dB pads, balanced or unbalanced input, balanced out. Ground lift button to separate the internal grounds in case of noise. It runs on phantom power, too, so you don't have to keep changing batteries.
Quality:
I suspect you could drive over this thing. I've dropped cases on it and it still works great. Very well made.
Value:
You could get a passive DI for less, but the amp in this is very good and the control it gives you is amazing. I'll never buy another passive DI.
Desirability:
It's got an industrial-looking ruggedness about it and it is very good at what it does. Pretty desirable, I'd say.
Sound:
Very clean. I often have to use one or both of the pad buttons if the signal is too hot, but it doesn't affect the sound quality.
Ease of Use:
The unit is VERY easy to use -- plug and play. The battery box was designed by someone with more patience than I have.
Overall:
If someone lifted this from a gig, I'd waste no time replacing it. It's great! I can't imagine it failing because it's built so well, so I imagine I'll have it for a long time. I might have to give it a name ;o)
I was looking for a DI and I got a much more versatile device than I expected. Two -20dB pads, balanced or unbalanced input, balanced out. Ground lift button to separate the internal grounds in case of noise. It runs on phantom power, too, so you don't have to keep changing batteries.
Quality:
I suspect you could drive over this thing. I've dropped cases on it and it still works great. Very well made.
Value:
You could get a passive DI for less, but the amp in this is very good and the control it gives you is amazing. I'll never buy another passive DI.
Desirability:
It's got an industrial-looking ruggedness about it and it is very good at what it does. Pretty desirable, I'd say.
Sound:
Very clean. I often have to use one or both of the pad buttons if the signal is too hot, but it doesn't affect the sound quality.
Ease of Use:
The unit is VERY easy to use -- plug and play. The battery box was designed by someone with more patience than I have.
Overall:
If someone lifted this from a gig, I'd waste no time replacing it. It's great! I can't imagine it failing because it's built so well, so I imagine I'll have it for a long time. I might have to give it a name ;o)
Submitted: 02/02/2007
Style of Music: Acoustic folk-rock-Americana
10 out of 10
"Best all-around direct box I've seen"
Haven't used the pads, since I use in the recording input signal chain, but all the other features, such as option for battery or phantom power, light indicator, link connections for both 1/4 and XLR, it's great!
Submitted: 04/05/2002
Style of Music: Christian of all kinds
