Features
Ideal for woodwinds, brass, strings, piano, snare, and toms
Handles high-intensity sound without distortion
Perfect for active stage performances
UniMount clip permits accurate positioning while protecting element
5.9 in. (1.8 m) cable permanently attached to mic, screw terminals at power module
No power module
55 in. (1.4 m) cable terminated with 4-pin HRS connector for A-T UniPak wireless systems
Technical Info
Element: Condenser
Dynamic Range (Typical): 115 dB, 1 kHz at Max. SPL
Polar Pattern: Cardioid
Phantom Power Requirements: 9 - 52V, 2 mA typical

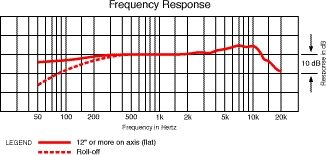

Frequency Response: 50 - 17,000 Hz
Switch: Flat/low-roll-off
Open Circuit Sensitivity: -54 dB (1.9 mV) re 1V at 1 Pa
Low Frequency Roll-off: 150 Hz, 6 dB per octave
Impedance: 200 ohms
Weight: 0.25 oz. (7 g)
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
Power Module: In-line
Signal to Noise Ratio: 60 dB, 1 kHz at 1 Pa
Output Connector: A-T UniPak 4-pin HRS connector for AT wireless systems
Accessories Furnished: AT8418 UniMount instrument mount
