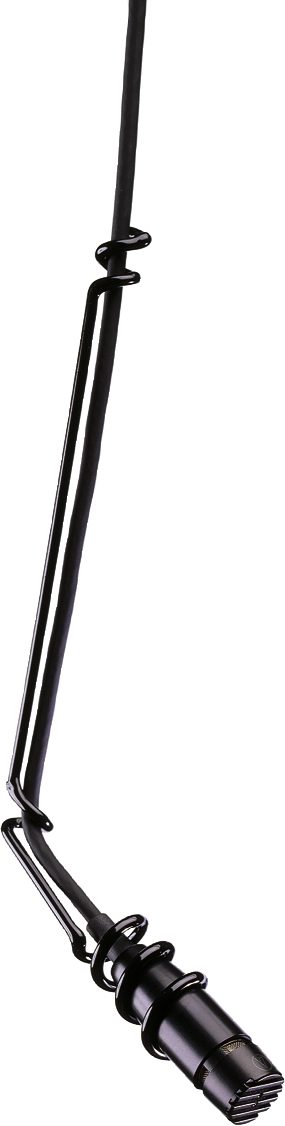

The AT8533x in-line power module of this microphone plugs into any XLRF-type input.
Features
Designed for high-quality sound reinforcement, broadcasting, and recording applications
Perfect for suspension over choirs, instrumental groups, and theater stages
Accepts interchangeable elements to permit angle of acceptance from 100ç to 360ç
25' (7.6 m) cable permanently attached to mic, screw terminals at power module
Also available in White as AT853RWx
Technical Info
Element: Condenser
Dynamic Range (Typical): 111 dB, 1 kHz at Max. SPL
Polar Pattern: Cardioid
Phantom Power Requirements: 9 - 52V, 2 mA typical
Frequency Response: 30 - 20,000 Hz
Switch: Flat/low-roll-off
Open Circuit Sensitivity: -43 dB (7.0 mV) re 1V at 1 Pa
Low-frequency Roll-off: 150 Hz, 6 dB per octave
Impedance: 200 ohms
Weight: 0.4 oz (10 g)
Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
Power Module: In-line
Signal To Noise Ratio: 67 dB, 1 kHz at 1 Pa
Output Connector: XLRM-type (power module)
Accessories Furnished: AT8102 foam windscreen; AT8451 steel hanger; AT8533x power module
