Audio Technica AT4047SV Cardioid Capacitor Microphone with Shockmount

The rich, warm sound of the AT4047SV takes you back to the classic F.E.T. studio microphones. But there’s nothing remotely old-fashioned about the technology behind that vintage sound. The AT4047SV studio condenser’s dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.

Audio Technica's AT4047SV is designed for professional recording and critical applications in broadcast and live sound. The transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs.

The AT4047SV features exceptionally low self-noise, wide dynamic range, and high SPL capability. In addition, it comes equipped with gold-plated, specially-contoured and aged dual-diaphragms, a switchable 80 Hz hi-pass filter, and 10 dB pad. Included with the microphone is the AT8449SV shock mount. Both the microphone and the shock mount have a Vintage Silver matte finish.

Features

Designed for critical studio, live sound and broadcast applications

Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs

Exceptionally low self-noise, wide dynamic range and high SPL capability

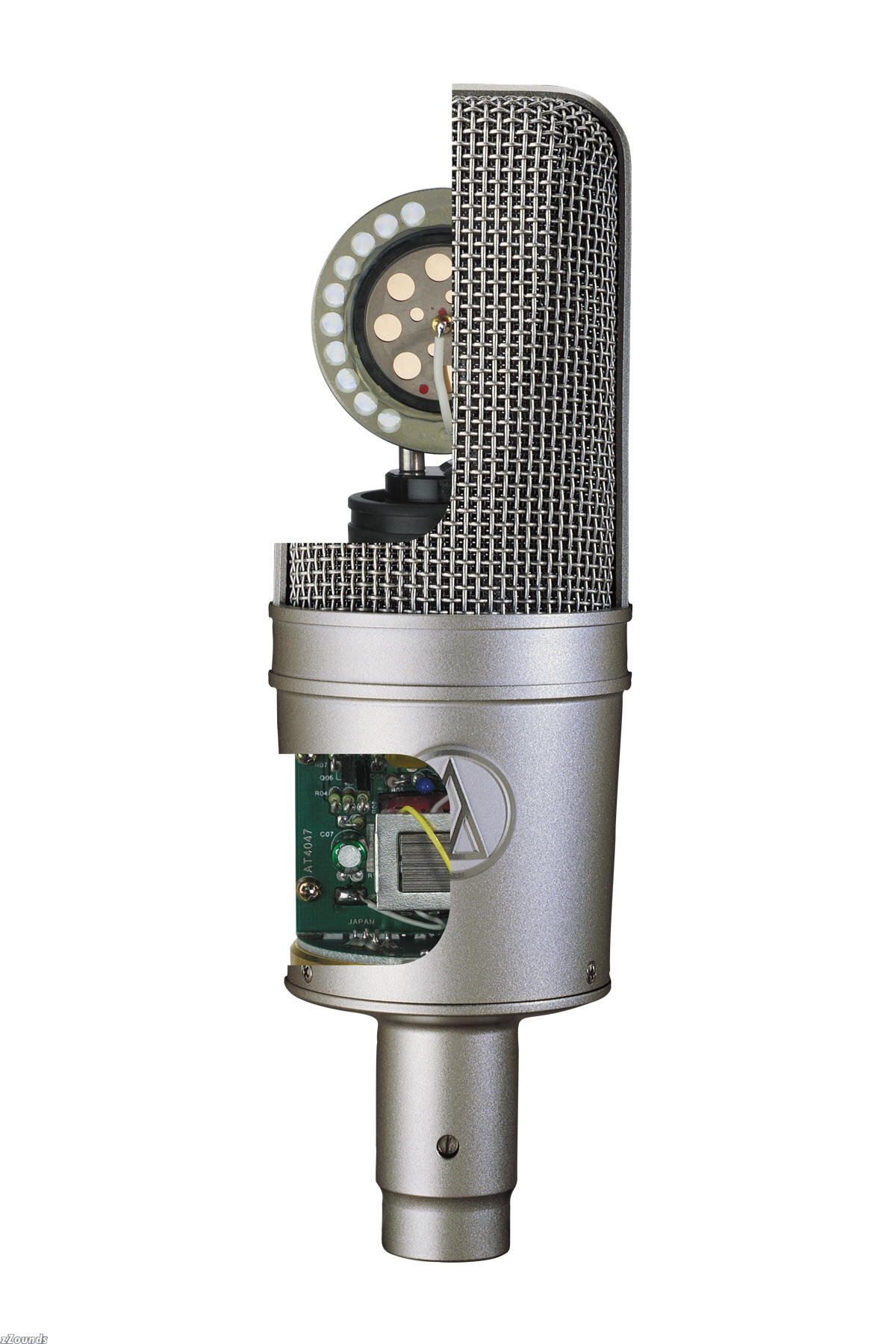

Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

Vintage silver-matte finish on microphone and shock mount

Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

Switchable 80 Hz hi-pass filter and 10 dB pad

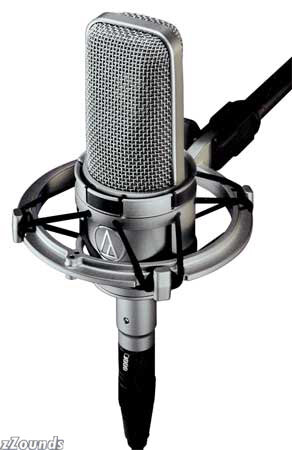

Custom shock mount provides superior isolation

Technical Info

Element: Externally-polarized (DC bias) condenser

Polar Pattern: Cardioid

Frequency Response 20-18,000 Hz

Low Frequency Roll-Off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -35 dB (17.7 mV) dB re 1V at 1 Pa

Impedance: 250 ohms

Max. Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal)

Noise: 9 dB SPL

Dynamic Range (Typical): 140 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 85 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.0 mA typical

Switches: Flat, roll-off; 10 dB pad (nominal)

Weight: 14.5 oz (410 g)

Dimensions: 6.69 in. (170.0 mm) long, 2.10 in. (53.4 mm) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

Accessories Furnished: AT8449/SV shock mount for 5/8 in. - 27 threaded stands; microphone dust cover; protective carrying case

Audio-Technica Style Case: R1
