Alesis DEQ830 Programmable Digital Graphic Equalizer

Manufacturer's Description for Alesis DEQ830 Programmable Digital Graphic Equalizer

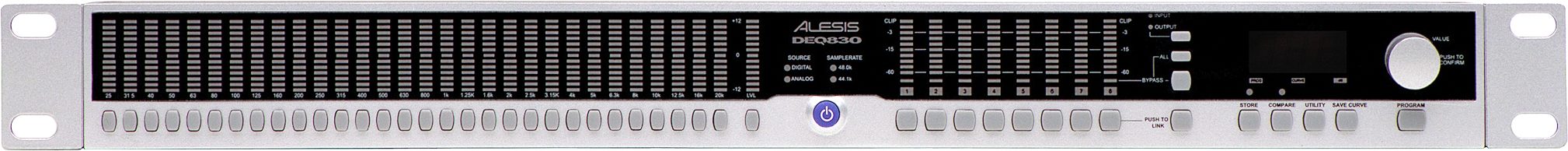

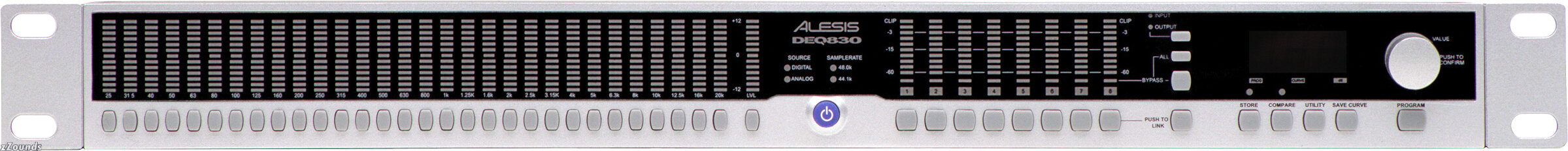

Alesis DEQ830 Programmable Digital Graphic Equalizer
Long known as a company that provides maximum bang for the buck, Alesis is proud to debut the DEQ830 Graphic Equalizer. Based on Alesis' extraordinary technology, this new programmable rackmount EQ gives recording engineers and live sound professionals an expanded feature set, enhanced 24-bit sound quality, and more flexible routing options than any other EQ in their class. The DEQ830 boasts eight independent programmable 1/3-octave graphic EQs in an amazingly compact 1U rackmount design. Its connections include eight balanced 1/4 in. TRS analog I/O and eight channels of ADAT Optical digital I/O, making the DEQ830 the perfect EQ unit for a range of modern recording applications. Other standout features include 100 user-customizable EQ programs, 50 template 'curves' for rapid setup, and +4dBu/-10dBV switchable operation - allowing a high degree of user customization. Rounded out with an ultra-intuitive user interface and MIDI I/O, the DEQ830 is everything a high-end programmable EQ should be, without the high-end price tag.

Features

Offers the best of digital technology and analog-style control: a graphic display with instant editing of any band or combination of bands, plus the ability to store programs

100 user-definable programs, each of which holds 8 channels of EQ settings

100 user-definable curves, each of which holds 30 bands of EQ settings

48 KHz sampling rate, 24-bit A/D/A, 28-bit internal processing

Eight channels of equalization, independent or linkable

30 EQ bands per channel, spanning 25 Hz-20 KHz in 1/3-octave increments

+/- 12 dB boost/cut with center detente

Constant Q technology for finer control of audio

LOCK function for 'set and forget' situations, which prevents accidental reprogramming

Retrieve Curve mode for auditioning and selecting stored EQ curves

Individual Channel Level adjustment per program

Master Level adjustment

LINK button for quick creation of matched EQ curves

Ability to bypass any or all channels

Configurable editing modes to suit the way you work

Ability to copy settings from one channel to another

Easy-to-read 7-segment Numerical LED Display

More than 350 Band Gain LEDs, making it easy to read EQ curves from a distance

Signal Level, Clip and Bypass LEDs for each channel

Balanced input/output (TRS)

Compact 1-space rackmount profile

Real-time Analyzer (RTA) mode for visual feedback of incoming and outgoing audio signals, with selectable metering modes

ADAT Optical input/output, auto-sensing of incoming digital audio

Clock selectable between 44.1k and 48k sampling rates

MIDI in/out for program changes and sys-ex storage

+4 dBu/-10 dBV operating level switch on rear panel zZounds is an authorized dealer of Alesis products.

Specifications

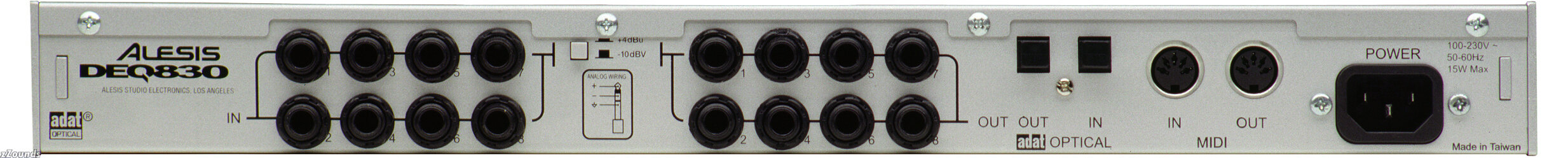

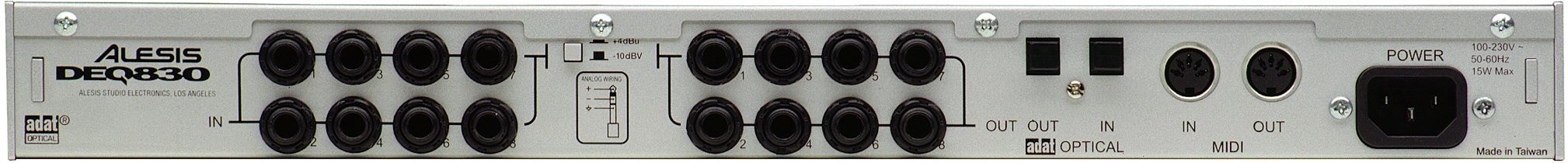

Rear Panel I/O (switchable)

Analog:
Input Connectors: 8 balanced 1/4 in. TRS jacks
Output Connectors: 8 balanced 1/4 in. TRS jacks

Digital:
Input Connector: 1 ADAT Optical
Output Connector: 1 ADAT Optical
Switch set to +4:
Nominal input level: +4dBu (-15dBFS)
Maximum input level: +19dBu (6.9 Vrms)

Nominal Output Level: +4dBu (-15dBFS)
Maximum Output Level: +19dBu (6.9 Vrms)
Switch set to -10:
Nominal input level: -10dBV (-16dBFS)
Maximum input level: +6dBV (2.0 Vrms)

Nominal Output Level: -10dBV (-16dBFS)
Maximum Output Level: +6dBV (2.0 Vrms)

Impedance:
Input impedance: 10kOhms
Output Impedance: 220Ohms
MIDI:
MIDI Input: 1 5-pin female DIN
MIDI Output: 1 5-pin female DIN

Audio Performance
Signal To Noise Ratio: >100dB A-Weighted, Analog In to Analog Out
THD+N: <0.005%, Analog In to Analog Out
Frequency Response: 22-22kHz ± 0.50dB, Analog In to Analog Out
Power Consumption: 15 Watts Max (100-240 VAC / 50-60 Hz)

Mechanical
Size: 1.75 in. H x 19.0 in. W x 5 in. D
Rack Spaces: 1 Space
Weight: 3.0 lbs. (1.4 kg)
