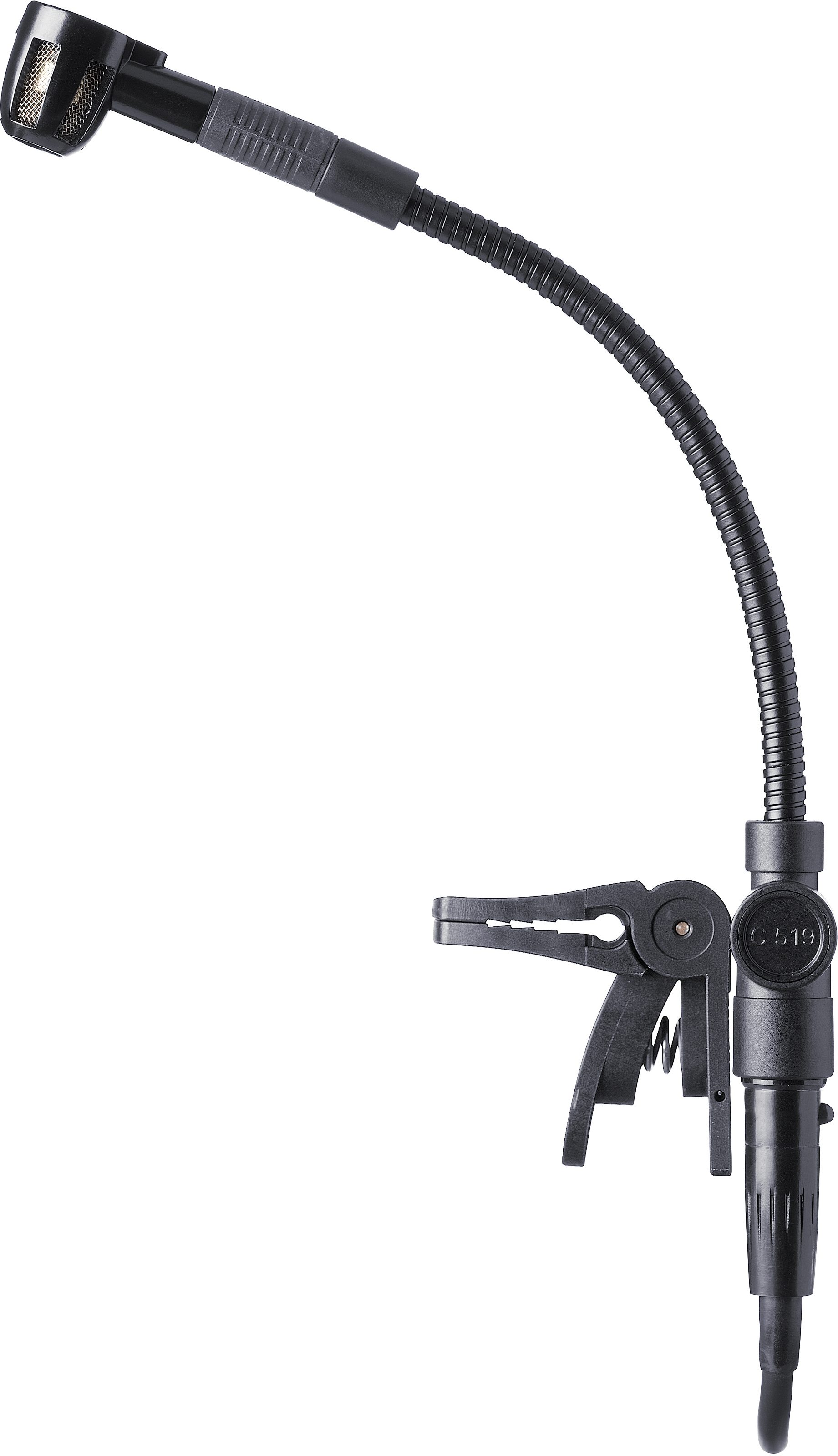

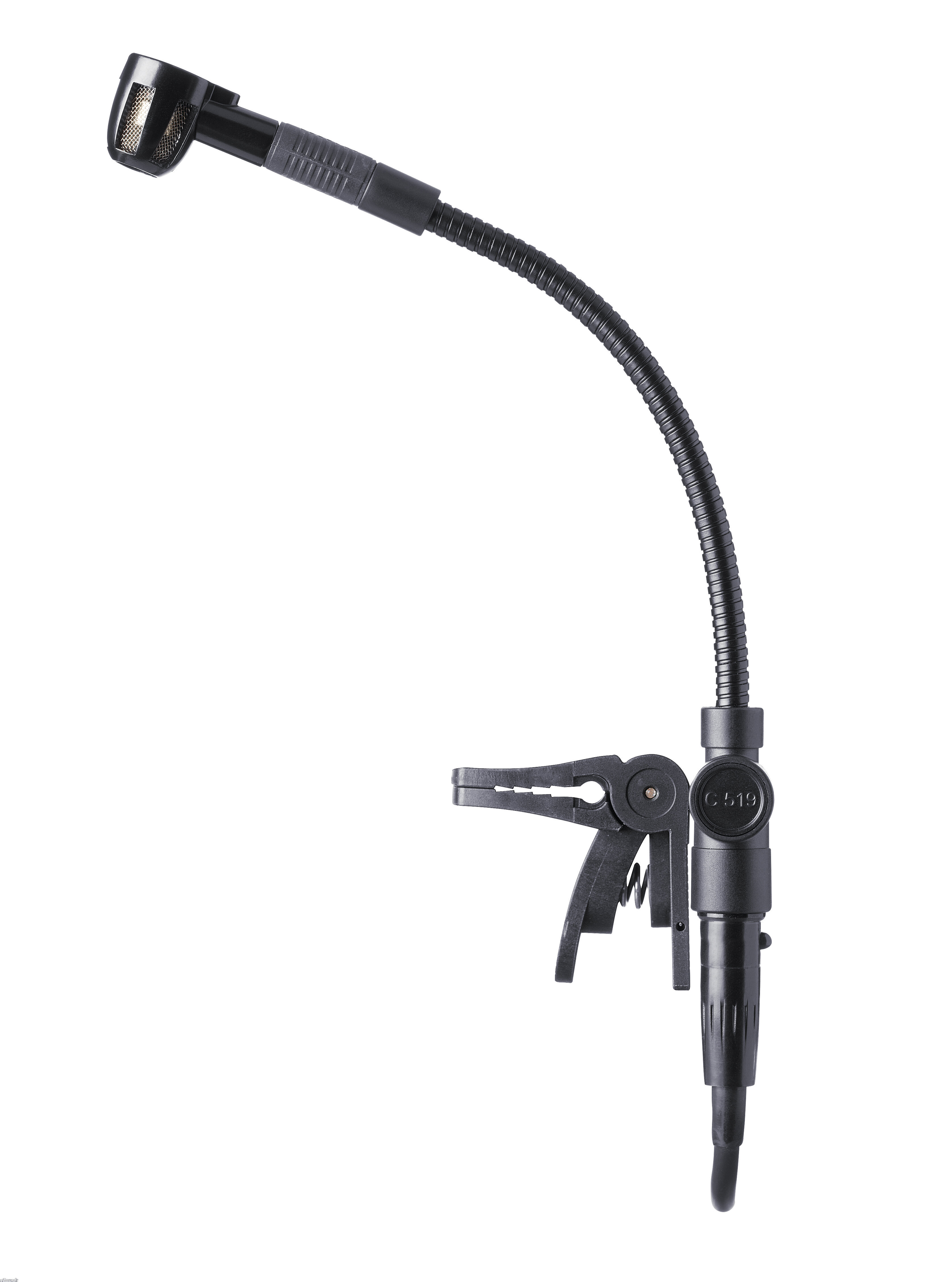

AKG C519M MicroMic Brass Microphone

The C 519 clips onto the bell of a trumpet, saxophone, trombone, tuba, or any other wind instrument (e.g. didgeridoo). Room to move for the wind section at last! Its tight cardioid polar pattern makes the C 519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful, and clear sound.

The C 519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response to your instrument's sound. The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.

Versions:

C 519 M for external phantom powering.

C 519 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.

Features

Miniature condenser clip-on microphone for wind instruments, drums, and percussions

Miniature gooseneck for accurate microphone alignment

Including wireless direct adapter for easy use with AKG pocket transmitters

Detachable microphone cable

Transducer shock mount for high mechanical-noise rejection

Technical Info

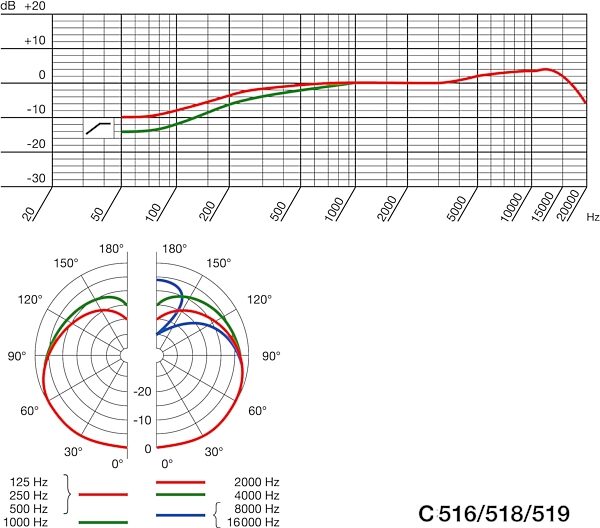

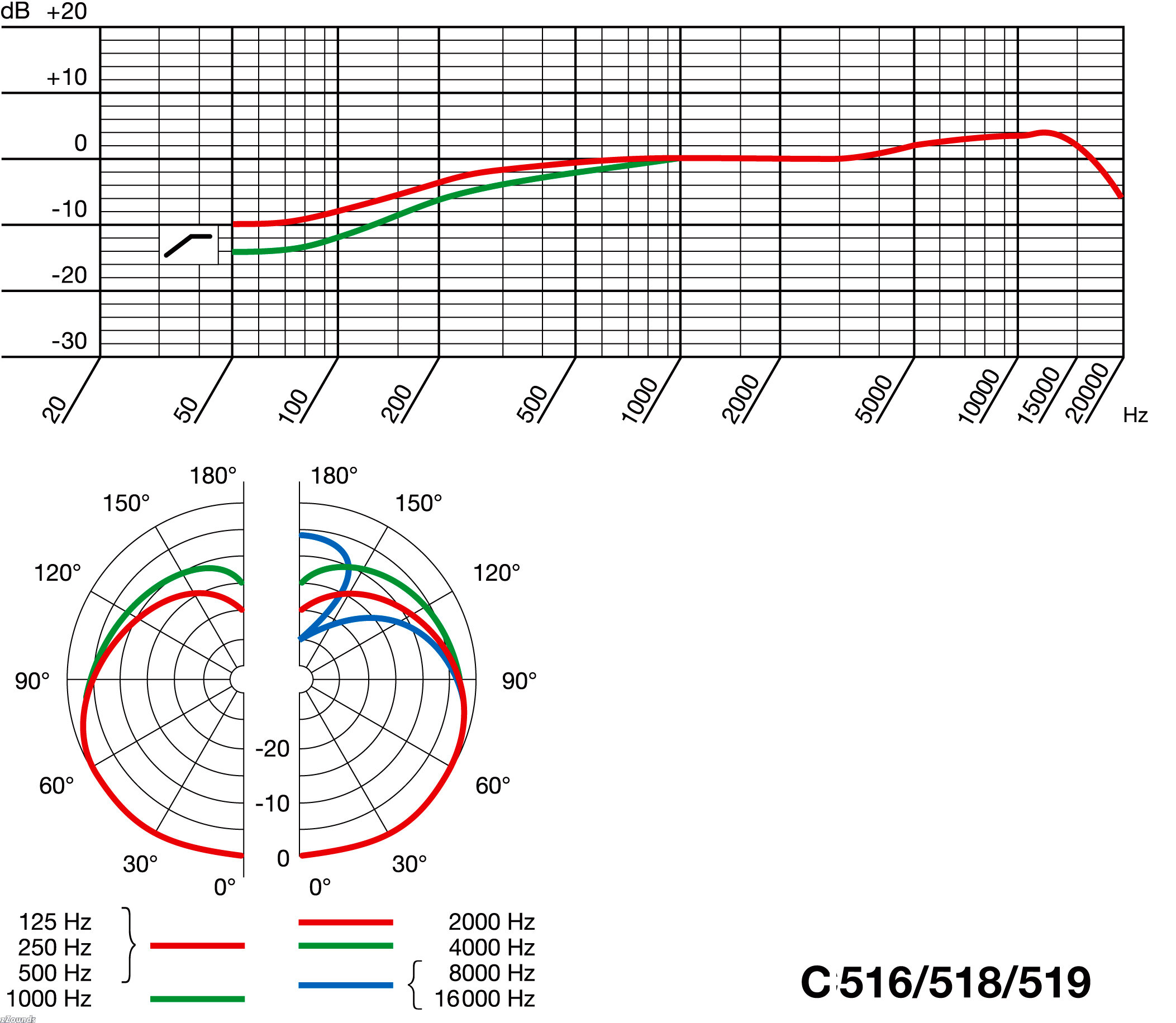

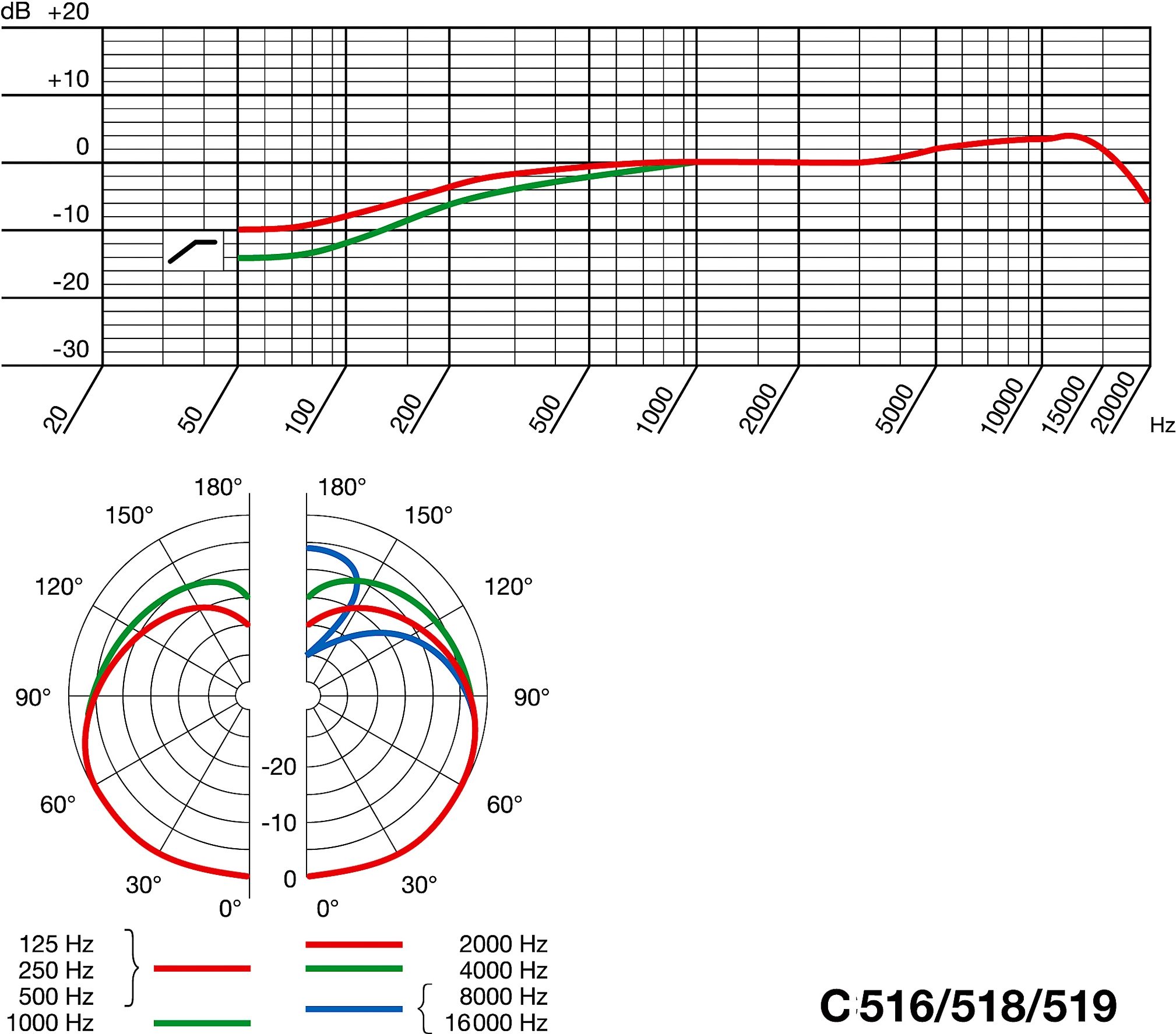

Polar pattern
cardioid

Frequency range
60 Hz to 20 kHz

Sensitivity
5 mV/Pa (-46 dBV)

Max. SPL
130/132 dB SPL (for 1 %/3 % THD)

Equivalent noise level
31 dB(A)

Signal/noise ratio (A-weighted)
63 dB

Impedance
<= 200 ohms

Recommended load impedance
>= 2000 ohms

Current consumption
<= 2 mA

Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters

Connector
3-pin mini XLR

Cable
1.5 m (5 ft.)

Finish
matte black

Dimensions
Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.)

Net weight
C 519 M: 195 g (6.9 oz.)
C 519 ML: 85 g (3 oz.)
(microphone and cable)

Shipping weight
C 519 M: 430 g (15.2 oz.)
C 519 ML: 310 g (11 oz.)
