PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

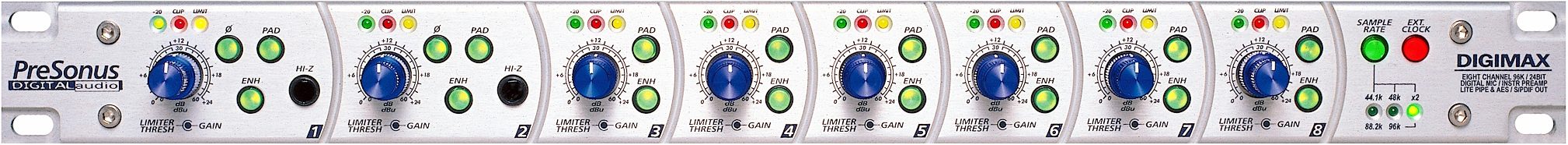

PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output, Main

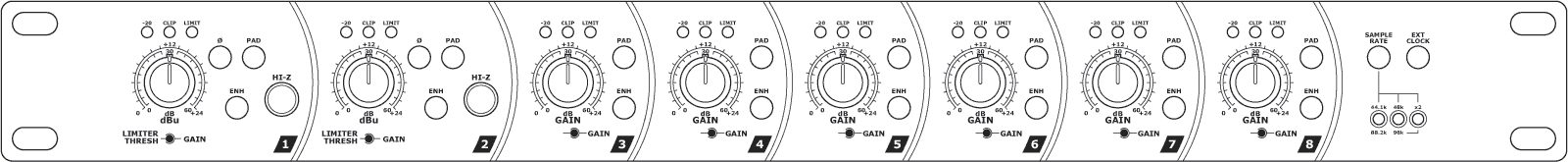

PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output, Diagram Front
PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output, Main PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output, Diagram Front
zZounds Gear Experts Say...
EQ enhance, pad, and 48V phantom power on every channel.

8-Channel Mic Preamp with Digital Output
Now with 96k sampling rate*, the DigiMAX is the newest member in the award winning family of Presonus micpre's. Combine 8 channels of pristine mic preamplification with 24 simultaneous digital and analog outputs, and the DigiMAX 96k seamlessly fits into any digital recording situation. The DigiMAX 96k is the perfect front-end for DAW's as well as adding mic pre's to digital mixers and sound cards.

* Over AES/EBU or S/PDIF digital output cables ONLY.

Features

Input
Number of Channels : Eight
Input Impedance, XLR Input : 1.3k Ohms
Input Impedance, 1/4" Instrument Input : 1M Ohms
Connectors : Eight XLR, Two 1/4" Instrument Inputs on Channel One and Two

Panel Controls
Gain : 0dB to +40dB
Limiter : 0dB to Off
Phase Reverse (Channel One and Two Only) : On/Off
EQ Enhance Button : On/Off

Meters
Signal Present LED : -20dBu
Clip LED : +22dBu
Limit LED : Limiter Active

Output
1/4" TRS Impedance Balanced : 51 Ohms
ADAT LightPipe Digital Optical : 24-bit
AES/EBU (4 Pair, Stereo) : 24-bit
S/PDIF (4 Pair, Stereo) : 24-bit

Digital
Sampling Rates : 44.1, 48, 88.2 and 96kHz

Performance
THD + Noise (Unweighted) : 0.009%
Noise Floor : -94dBu
Signal to Noise : >98dB
Analog Dynamic Range : >120dB
Power Supply Rejection : >98dB
Amplifier Type : Dual Servo

Power Supply
Type : Linear, External
Power : 80 Watts
Input : 100/120/220/240V AC (Factory Configured)

Physical
Size : 1U Rack
Dimensions : 19" W x 1.75" H x 7" D
Weight : 15 lbs.
Chassis : Steel
Panel : Aluminum

For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com
Owner's Manual
Spec Sheet

Reviewers gave this product an overall rating of 5 out of 5 stars. (31 ratings)
Submitted June 25, 2003 by a customer from hotmail.com

PreSonus DigiMax 96k Customer Review

Overall: 5 out of 5 stars
(see rating details)
This review has been selected by our experts as particularly helpful.
Sound
I am amazed how great the preamps are in this box. And the limiters are definitely worth the extra money. Great value and sounds freaking killer too!
Features
I loved the EQ button on each channel. Definitely gives you another option tonally when you are tracking.
Quality
Big and beefy feeling. Definitely smokes the Focusrite Octopre which feels a lot lighter plus its made in China whereas the Digimax is made in the USA.
Value
It's the best eight channel preamp I've heard for the money.
Manufacturer Support
Had to leave a message but they called me back promptly. I wish more companies were like this one.
2 of 2 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
