Lexicon IO42 USB 2.0 Audio Recording Interface
No longer available at zZounds
zZounds Gear Experts Say...
Get rolling with Cubase LE and Lexicon's sleek IO42 audio interface, with four XLR-1/4" mic/line preamps and pristine 96 kHz/24-bit A/D converters.
Overview
Featuring newly designed dbx 60V high-voltage, ultra-low noise mic preamps on all 4 channels, the Lexicon IO42 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/DD/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

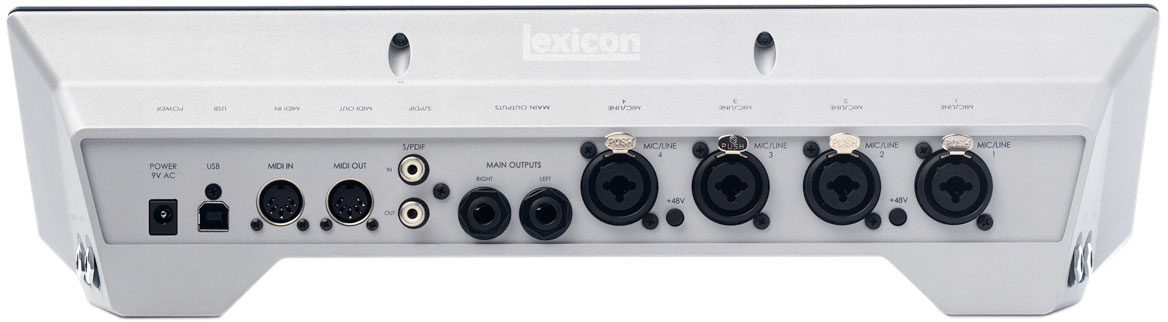

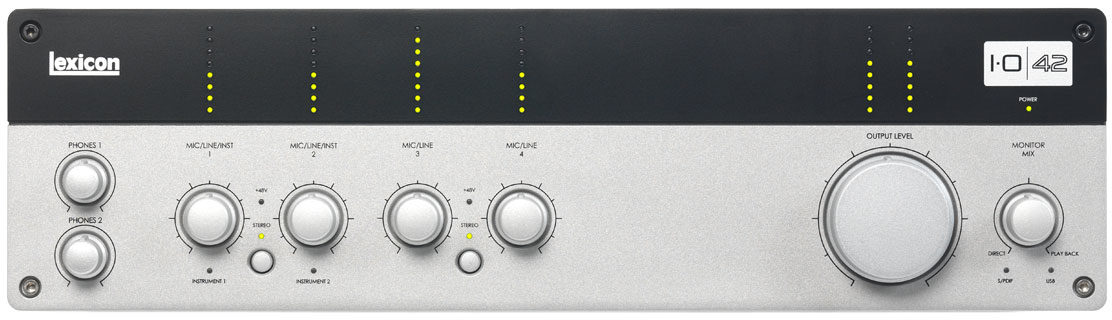

The IO42 can record four tracks at once and includes 4 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.
No artist likes to be told what to do - what tools to use and what tools you cant use. Lexicon understands your passion and it inspires innovation. Brilliantly designed, the IO Desktop Recording Series is compatible with most any DAW, including Pro Tools (version 9 or later). Now this innovative hardware design meets the software capability of any creative passion.
- Lexicon Pantheon II
- Toontrack EZ Drummer Lite
- XILS3 SE Modular Synthesizer software
- 44.1kHz to 96kHz sample rates, 24-bit resolution
- Pantheon II VST/AU reverb plug-in with… read more 6 legendary Lexicon reverbs
- dbx 60V high-voltage, ultra-low noise microphone preamps on all 4 channels
- Superior sonic performance
- 4 analog combi-jacks for mic/line inputs
- 2 analog 1/4-inch TRS balanced outputs
- Zero latency monitoring
- Low latency ASIO drivers
- Streamlined monitor form factor puts all recording controls at your fingertips
- Separate level meters and gain control per channel
- 2 side panel 1/4-inch instrument inputs
- 2 side panel headphone outputs with dedicated volume adjustment
- Stereo S/PDIF digital I/O
- MIDI in and out read less
The IO42 can record four tracks at once and includes 4 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, 2 hi-Z instrument inputs, 2 high power 1/4" headphone outputs, S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.
No artist likes to be told what to do - what tools to use and what tools you cant use. Lexicon understands your passion and it inspires innovation. Brilliantly designed, the IO Desktop Recording Series is compatible with most any DAW, including Pro Tools (version 9 or later). Now this innovative hardware design meets the software capability of any creative passion.
Included Software Suite
- Steinberg Cubase LE- Lexicon Pantheon II
- Toontrack EZ Drummer Lite
- XILS3 SE Modular Synthesizer software
Features
- USB 2.0 Desktop Recording Studio- 44.1kHz to 96kHz sample rates, 24-bit resolution
- Pantheon II VST/AU reverb plug-in with… read more 6 legendary Lexicon reverbs
- dbx 60V high-voltage, ultra-low noise microphone preamps on all 4 channels
- Superior sonic performance
- 4 analog combi-jacks for mic/line inputs
- 2 analog 1/4-inch TRS balanced outputs
- Zero latency monitoring
- Low latency ASIO drivers
- Streamlined monitor form factor puts all recording controls at your fingertips
- Separate level meters and gain control per channel
- 2 side panel 1/4-inch instrument inputs
- 2 side panel headphone outputs with dedicated volume adjustment
- Stereo S/PDIF digital I/O
- MIDI in and out read less
Specs
- Combi-jack Analog Inputs 4
- Simult. Recording Sources 6
- Microphone Preamps 4
- Hi-Z Instrument Inputs 2
- S/PDIF Yes
- MIDI Yes
- Headphone Connections 2
- 1/4" TRS Balanced Analog Outputs 2
- Microphone Inputs Female XLR Pin 2 Hot
- Input Impedance 3k Ohm balanced
- Phantom Power +48 Volts
- Maximum gain +55 dB
- E.I.N. (at max gain) -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
- Maximum Input Level +8 dBu
- Frequency Response +/-1.5 dB, 20Hz - 20kHz
- THD+N <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
- Line In puts 1/4" TRS balanced or unbalanced
- Input Impedance 20k Ohm balanced, 13k Ohm unbalanced
- Maximum Input Level: +18 dBu
- Frequency Response: +/-1.5 dB, 20Hz - 20kHz
- THD+N: <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
- Instrument Input 1/4" TS unbalanced
- Input Impedance: 1M Ohm
- Maximum Input Level +10 dBu
- Frequency Response +/-2.5 dB, 20Hz - 20kHz
- THD+N: <0.08%, 1kHz, +4 dBu
- Line Outputs 1/4" TRS balanced or unbalanced
- Level +18 dBu maximum
- Impedance 32 Ohm Balanced, 16 Ohm Unbalanced
- Headphone Output: 1/4" stereo jack 250mW per channel at 50O
- MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out
- Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
- Dynamic Range: A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
- Power Requirements Power adaptors available for 100 - 240 VAC, 50/60 Hz, 15 Watts
- Microsoft Windows(R) 7, Vista 32 and XP SP2
- 1.8 GHz CPU or faster
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation
Macintosh
- Mac(R) OS X 10.4.9 or higher
- Intel(R) Multicore system (Required)
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation
- Simult. Recording Sources 6
- Microphone Preamps 4
- Hi-Z Instrument Inputs 2
- S/PDIF Yes
- MIDI Yes
- Headphone Connections 2
- 1/4" TRS Balanced Analog Outputs 2
- Microphone Inputs Female XLR Pin 2 Hot
- Input Impedance 3k Ohm balanced
- Phantom Power +48 Volts
- Maximum gain +55 dB
- E.I.N. (at max gain) -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
- Maximum Input Level +8 dBu
- Frequency Response +/-1.5 dB, 20Hz - 20kHz
- THD+N <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
- Line In puts 1/4" TRS balanced or unbalanced
- Input Impedance 20k Ohm balanced, 13k Ohm unbalanced
- Maximum Input Level: +18 dBu
- Frequency Response: +/-1.5 dB, 20Hz - 20kHz
- THD+N: <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
- Instrument Input 1/4" TS unbalanced
- Input Impedance: 1M Ohm
- Maximum Input Level +10 dBu
- Frequency Response +/-2.5 dB, 20Hz - 20kHz
- THD+N: <0.08%, 1kHz, +4 dBu
- Line Outputs 1/4" TRS balanced or unbalanced
- Level +18 dBu maximum
- Impedance 32 Ohm Balanced, 16 Ohm Unbalanced
- Headphone Output: 1/4" stereo jack 250mW per channel at 50O
- MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out
- Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
- Dynamic Range: A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
- Dynamic Range A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
- Power Requirements Power adaptors available for 100 - 240 VAC, 50/60 Hz, 15 Watts
Computer System Recommendations
Windows- Microsoft Windows(R) 7, Vista 32 and XP SP2
- 1.8 GHz CPU or faster
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation
Macintosh
- Mac(R) OS X 10.4.9 or higher
- Intel(R) Multicore system (Required)
- 1 GB RAM
- Display resolution 1024x768 pixels
- DVD-ROM drive
- USB 2.0
- Internet access required for software license activation
Reviews
Reviewers gave this product an overall rating of 4 out of 5 stars.
(1 ratings)
Submitted April 27, 2012 by Andre Carter in Hesperia, CA
"It's the engine behind your home recording studio"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
Fantastic little box that packs a huge punch for the price.
Sound
Preamps are fantastic and 0 latency monitoring.
Features
has 2 headphone jacks each with own adjustable volume, monitor mix, instrument/mic volume and output level all on board. Has Midi input and output.
Ease of Use
Plug and play. you really have to not be thinking to get confused by this interface.
Quality
Very solid build for the price point. you will not be disappointed
Value
fantastic for the price.
Manufacturer Support
havent had to deal with them. no comment here.
The Wow Factor
2 headphone jacks with own adjustable volume was a major selling point for me since I sometimes record live acoustic sessions with another musician. we can both set our own comfortable volumes while monitoring and co producing music.
Musical Background:
Aspiring professional musician
Musical Style:
Alternative indie rockMetalcoreDubstep
3 of 3 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
