Joemeek JM27 Small Diaphragm Condenser Microphone

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

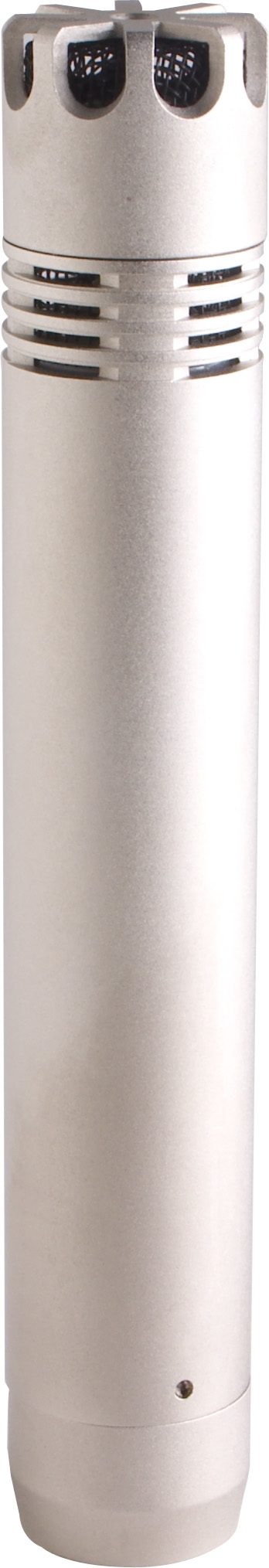

Joemeek JM27 Small Diaphragm Condenser Microphone, Main
Joemeek JM27 Small Diaphragm Condenser Microphone, Main
zZounds Gear Experts Say...
Cardioid polar pattern. Medium-sized diaphragm.

The JM27 is a microphone in the tradition of classic studio microphones. It is a medium-sized diaphragm true capacitor microphone with a cardioid head. This feeds the FET type preamplifier for low noise. The output balancing is handled by a quality audio output transformer.

The capacitor element is manufactured to the classic "concentric electrode" design which provides smooth extended frequency response. Quality is further enhanced by using dynamic feedback actually at the capacitor element. This original technique eliminates distortions which can occur when using this type of microphone for high volume levels.

The capacitor membrane is microfine Mylar with gold sputtering, voltage polarized by phantom power. The microphone body is made of machined brass; Connection is via screened balanced audio cable with 3 pin XLR connectors.

Dimensions: 137X22mm

Frequency Response: 30Hz-20KHz

Sensitivity: 10mV/Pa-40+/-2dB (0dB= 1 V/Pa 1000Hz)

Polar pattern:
Cardioid Diversity> 12dB (300-3000Hz)
b Diversity> 15dB(1000Hz)

Impedance: 200 ohms

Equivalent Noise Level: 18dB (A Weighted)

Maximum SPL for 0.5% THD@1000Hz: 130db

Weight: 135g

For support or warranty questions, please contact the manufacturer:
Phone: 877-563-6335
Owner's Manual

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
