Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10")

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

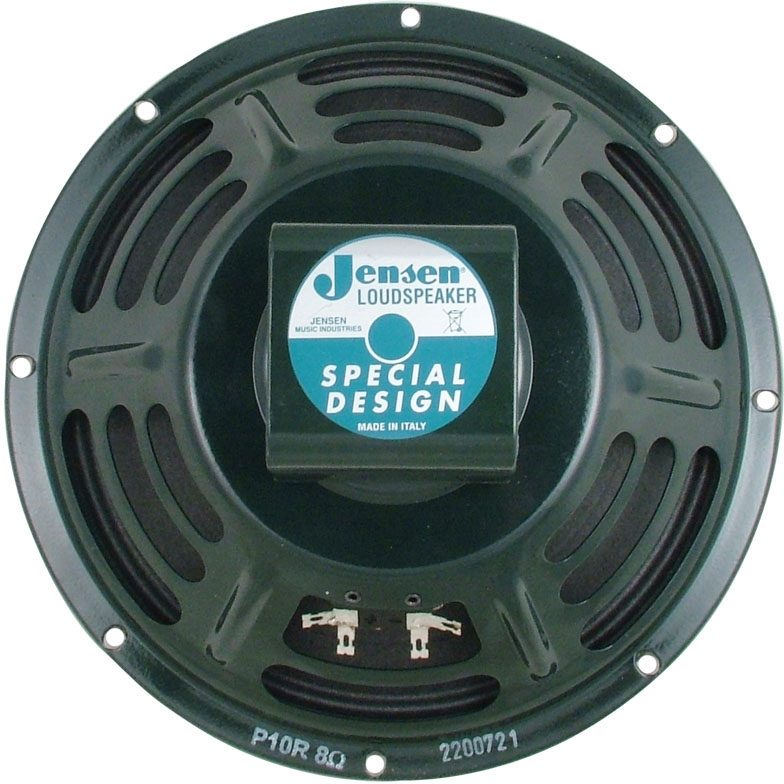

Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Main

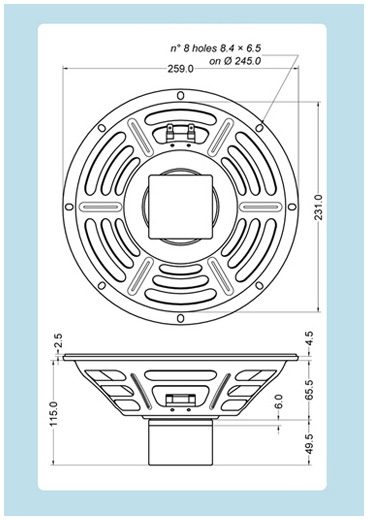

Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Construction Diagram

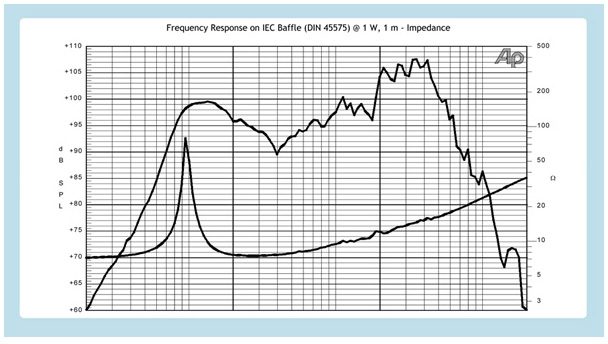

Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Frequency Chart
Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Main Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Construction Diagram Jensen P10R Vintage AlNiCo Guitar Speaker (25 Watts, 10"), Frequency Chart
zZounds Gear Experts Say...
Carry on the rock and roll tradition. The Jensen P10R creates a genuine vintage sound that is both rich and warm.

The P10R has a rich, warm tone. In addition, it accentuates the higher frequencies in sparkling detail.

General Characteristics
Nominal Overall Diameter: 259 mm, 10 in

Nominal Voice Coil Diameter: 25 mm, 1 in

Magnet Weight: 200 g, 7.0 oz

Overall Weight: 3.15 lbs

Flux Density: .96 T

Thiele-Small Parameters
Voice Coil DC Resistance RE: 6.70 Ohm

Resonance Frequency fS: 97.0 Hz

Mechanical Q Factor QMS: 23.55

Electrical Q Factor QES: 1.60

Total Q Factor QTS: 1.50

Mechanical Moving Mass MMS: 13.1 g

Mechanical Compliance CMS: 207 um/N

Force Factor BxL 5.86: Wb/m

Equivalent Acoustic Volume VAS: 31.6 lt.

Maximum Linear Displacement XMAX: 0.8 mm

Reference Efficiency nO: 1.7 %

Diaphragm Area SD: 330.0 cm2

Losses Electrical Resistance RES: 102 Ohm

Voice Coil Inductance @ 1kHz LE: 0.54 mH

Constructive Characteristics
Magnet: AlNiCo

Voice Coil: Winding Copper

Voice Coil: Former Kapton

Cone: Paper

Surround: Treated Cloth

Dust: Dome Felt

Basket: Pressed Sheet Steel

Electrical Characteristics
Nominal Impedance: 8 Ohm

Rated Power: 25 W

Musical Power 50 W

Sensitivity@1W,1m 95.0 dB

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
