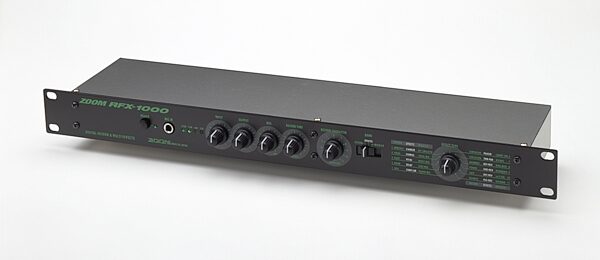

Zoom RFX1000 Rack Reverb
No longer available at zZounds


zZounds Gear Experts Say...
33 effects. 3 banks of 11 effects each.
Overview
The RFX-1000 has 33 essential time-based and modulation effects dedicated to recording, arranged in 3 banks of 11 effects each. Fully professional specs such as 44.1 kHz sampling frequency; 18-bit, 64-times oversampling (A/D converter) and 18-bit, 8-times oversampling (D/A converter) round out this unit.
Features
Reverb Bank includes Hall; Room; Plate; Vocal; Ambience; Dimension (controls spatial dimension of the sound); Percussion; Ensemble; Power (adds power and energy to sound sources); Gate and Reverse. Up to 121 settings of Reverb effects.
Effects Bank includes: Compressor+Limiter; Delay; Pitch; Chorus; Flanger; Phaser; Trem-Pan (tremolo to auto-panning); Delay+Reverb; Chorus+Reverb; Delay/Reverb and Flanger/Reverb
Mix & Special Effects Bank consists of: Power Mix (emphasizes lower frequencies for more punch); Wide Mix (enhances left/right stereo spread); Boost Mix (tightens lower end and defines high end); Vocal Mix (adds suppleness and warmth to vocals); Mic Simulator; Cabinet Simulator; Rotary; Ring Modulator; Resonance; Lo-Fi Effects and Vocoder
Mastering/mixdown effects to improve the sound vocals, instruments, drums, and final tracks
Built-mic simulator makes dynamic mics sound like condensers
Key recording features such as insert, send/return, mixdown, etc.
4 newly developed mixdown effects for professional mastering quality
Easy-access rotary effect selector and parameter edit controls
Instant fine-tuning for optimum sound quality
Built-in microphone… read more simulator effect that lets the user achieve condenser mic characteristics using dynamic mics read less
Features
Reverb Bank includes Hall; Room; Plate; Vocal; Ambience; Dimension (controls spatial dimension of the sound); Percussion; Ensemble; Power (adds power and energy to sound sources); Gate and Reverse. Up to 121 settings of Reverb effects.
Effects Bank includes: Compressor+Limiter; Delay; Pitch; Chorus; Flanger; Phaser; Trem-Pan (tremolo to auto-panning); Delay+Reverb; Chorus+Reverb; Delay/Reverb and Flanger/Reverb
Mix & Special Effects Bank consists of: Power Mix (emphasizes lower frequencies for more punch); Wide Mix (enhances left/right stereo spread); Boost Mix (tightens lower end and defines high end); Vocal Mix (adds suppleness and warmth to vocals); Mic Simulator; Cabinet Simulator; Rotary; Ring Modulator; Resonance; Lo-Fi Effects and Vocoder
Mastering/mixdown effects to improve the sound vocals, instruments, drums, and final tracks
Built-mic simulator makes dynamic mics sound like condensers
Key recording features such as insert, send/return, mixdown, etc.
4 newly developed mixdown effects for professional mastering quality
Easy-access rotary effect selector and parameter edit controls
Instant fine-tuning for optimum sound quality
Built-in microphone… read more simulator effect that lets the user achieve condenser mic characteristics using dynamic mics read less
Specs
Number of preset programs: 363 (11 effects x 3 banks x 11 variations)
Sampling Frequency: 44.1 kHz
A/D converter: 18-bit, 64x oversampling
D/A converter 18-bit, 8x oversampling
DSP: Zoom original ZFX-2 (24-bit signal processing)
L/Mono, R Inputs: Standard monaural phone jack x 2
Input Impedance: 10 kilohms (mono), 20 kilohms (stereo)
Reference Input Level: -10 dBm to +4 dBm
Microphone Input: Standard monaural phone jack x 1
Microphone Input Impedance: 20 kilohms
Microphone Reference Input Level: -56 dBm
L, R Outputs: Standard monaural phone jack x 2
Output Impedance: 100 ohms or more
Reference Output Impedance: -10 dBm to +4 dBm
Control Connector: Bypass (FS01)
Power Requirements: Applied AC adapter 12V AC (AD-0008)
Dimensions (W x H x D): 482 x 44 x 115 mm
Weight: 1.5 kg
Sampling Frequency: 44.1 kHz
A/D converter: 18-bit, 64x oversampling
D/A converter 18-bit, 8x oversampling
DSP: Zoom original ZFX-2 (24-bit signal processing)
L/Mono, R Inputs: Standard monaural phone jack x 2
Input Impedance: 10 kilohms (mono), 20 kilohms (stereo)
Reference Input Level: -10 dBm to +4 dBm
Microphone Input: Standard monaural phone jack x 1
Microphone Input Impedance: 20 kilohms
Microphone Reference Input Level: -56 dBm
L, R Outputs: Standard monaural phone jack x 2
Output Impedance: 100 ohms or more
Reference Output Impedance: -10 dBm to +4 dBm
Control Connector: Bypass (FS01)
Power Requirements: Applied AC adapter 12V AC (AD-0008)
Dimensions (W x H x D): 482 x 44 x 115 mm
Weight: 1.5 kg
