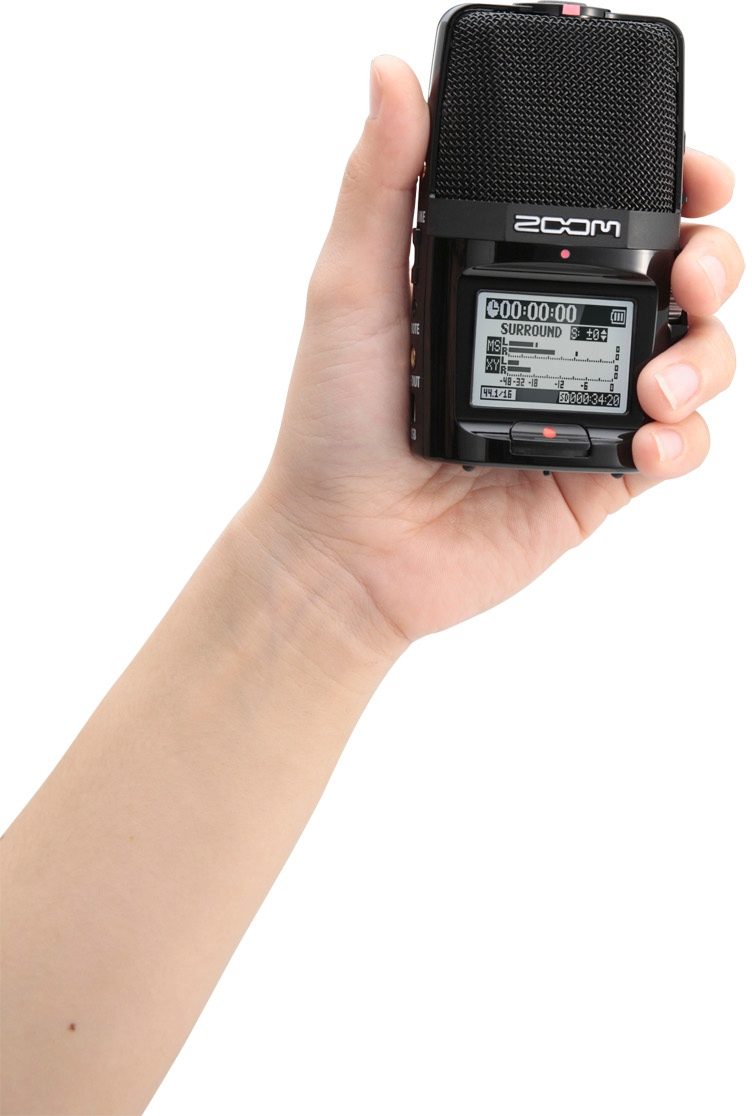

Capture True Stereo Audio in the Palm of Your Hand!In the digital age, whether you're an independent filmmaker, a struggling funk rock trip-hop group, or a singer/songwriter, you need to make high-quality audio recordings of your performances. Zoom has designed the H2n handheld recorder with blissfully intuitive controls to give you maximum control over how and where you want to work. Record in four different configurations -- mid-side stereo, 90-degree X/Y stereo, and 2-channel or 4-channel surround sound. It's simple to use -- and even easier to carry.
Middle-Side Recording: Variable Stereo FieldThe H2n is one of the first hand-held devices to let you record in a middle-side stereo pattern. In this setting, a unidirectional mic records audio directly from in front of the microphone while a bi-directional mic records audio from the left and the right, resulting in an incredibly defined stereo effect. By changing the level of the side mic, the width of the stereo field can increased or decreased in post-production.
True X/Y Stereo, Plus 4-Channel ModeWith the right and left microphones fixed on the same axis so that your source audio travels the same distance to each mic, the H2n can also record in 90-degree X/Y stereo. The resulting audio is captured with impeccably defined depth and rich, broad tonal clarity. For true surround immersion, the H2n can be set for either 2-channel or 4-channel recording. In 2-channel mode, the H2n records in Mid-Side stereo and 90-degree X/Y stereo simultaneously for a stunningly textured ambient sound. In 4-channel mode, the H2n records two separate stereo audio files, allowing for greater flexibility in the post-production editing process.
Auto-Save on Convenient SD Card MediaThe H2n secures your memory, so that you know your recording will be saved. The H2n features a memory recall function that automatically restores your data upon rebooting should you experience a sudden error or power loss. Storing and organizing your saved data is easy on SD/SDHC cards up to a maximum of 32 GB, for 50 hours of recording time in 44.1 kHz/16-bit WAV format. You can quickly transfer and edit your recorded files using the convenient USB 2.0 interface and included Steinberg's WaveLab LE 7 software or your favorite DAW program.
zZounds is an authorized dealer of Zoom products.
Built-in Mics Recording Modes:
- Middle-side (MS) stereo (use Middle only for mono cardioid mode)
- 90-degree XY stereo
- 2-channel surround
- 4-channel surroundRecording Media:
SD/SDHC card (up to 32GB)Maximum Sound Pressure Level:
120dB SPLRecording Format:
WAV PCM 44.1/48/96 kHz, 16/24-bit
MP3 44.1 kHz, 48 to 320 kbpsA/D Conversion:
24-bit, 128 times oversamplingD/A Conversion:
24-bit, 128times oversamplingSignal Processing:
Lo-cut Filter, Compressor/Limiter, Auto Gain, Pre-Rec, Auto-Rec, Tuner, Metronome, Variable Speed Playback, Key Control, A-B Repeat, File Dividing, Normalize, MP3 Post-Encode, Marker, Surround MixerDisplay:
128 x 64 pixel, backlit LCDInput Gain:
0 to +39dBMic/Line Input:
1/8" stereo phone jack (Plug-in power supported)Input impedance:
2kOhms (Input level: 0 to -39dBm)Phones / Line Output:
1/8" stereo minijackRated Output Level:
-10dBmOutput Load Impedance:
10 kOhms or morePhones Output Level:
20mW + 20mW into 32-ohm loadBuilt-in Speaker:
400mW 8 ohmUSB:
Mini-B type, Mass Storage Class operation (USB2.0 High Speed compatible)Audio Interface operation:
44.1/48 kHz, 16-bitPower Requirements:
AA (LR6) battery x 2, or optional AC adapter AD-17 (DC5V/1A/center positive)Battery Life:
20 hours (16bit/44.1kHz WAV recording)Dimensions:
67.6 (W) x 113.8 (D) x 42.7 (H) mmWeight:
130g (without batteries)
- Weight, Dimensions, and Manufacturer Part Numbers
Manufacturer Part Number (MPN):
If you have additional warranty questions, please contact the manufacturer at 631-784-2200

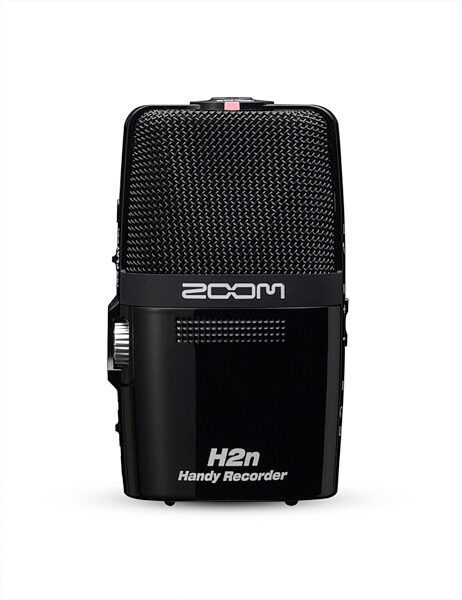

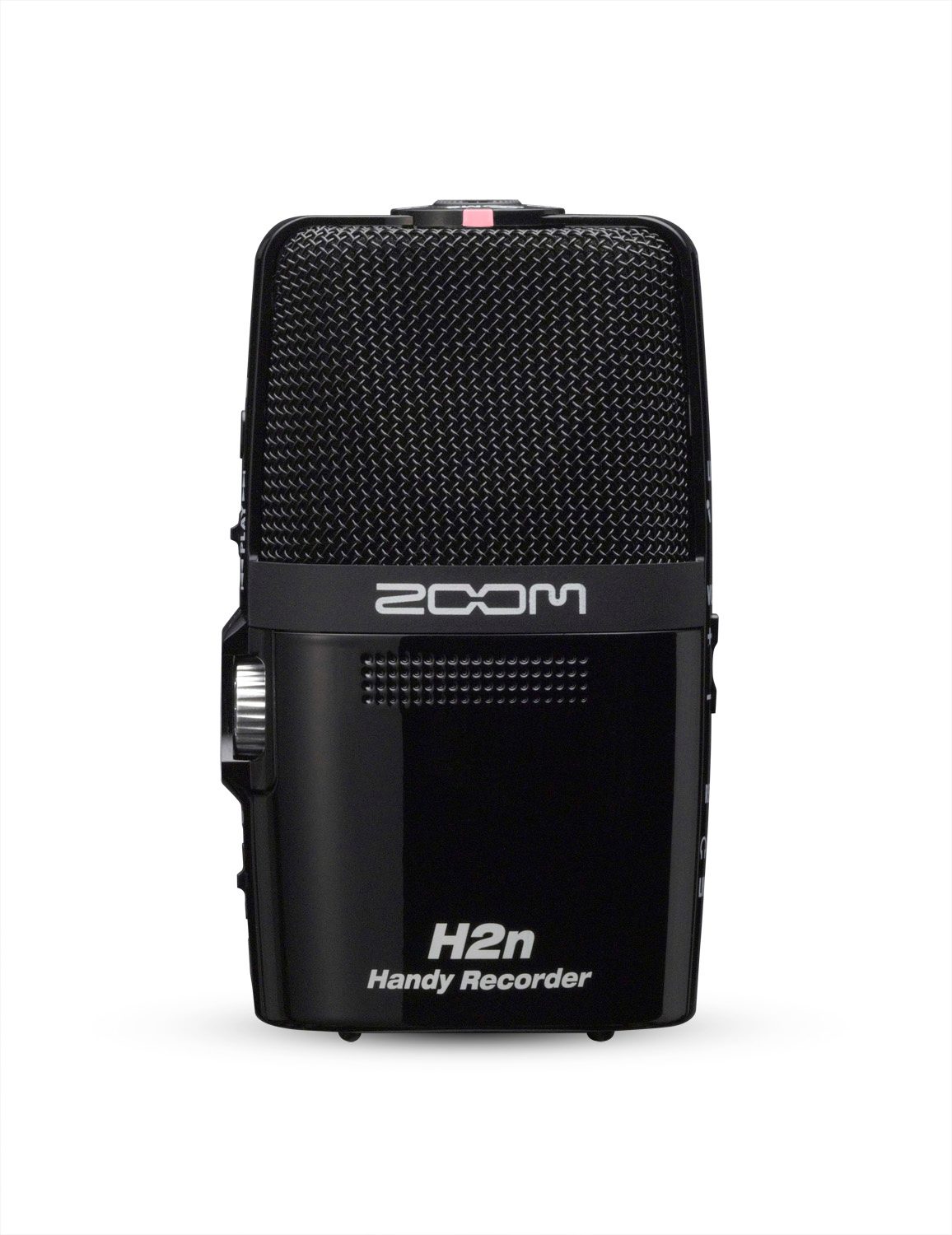

Zoom H2n Handheld Digital RecorderRepresenting a generation of portable recording, the H2n is Zoom's most innovative handheld recorder to date. They've packed groundbreaking features into an ultra-portable device that allows you to record pristine audio anywhere you go.
From film and broadcast, to journalism, podcasting, musical performance, songwriting and rehearsal, the H2n provides amazing recording quality.

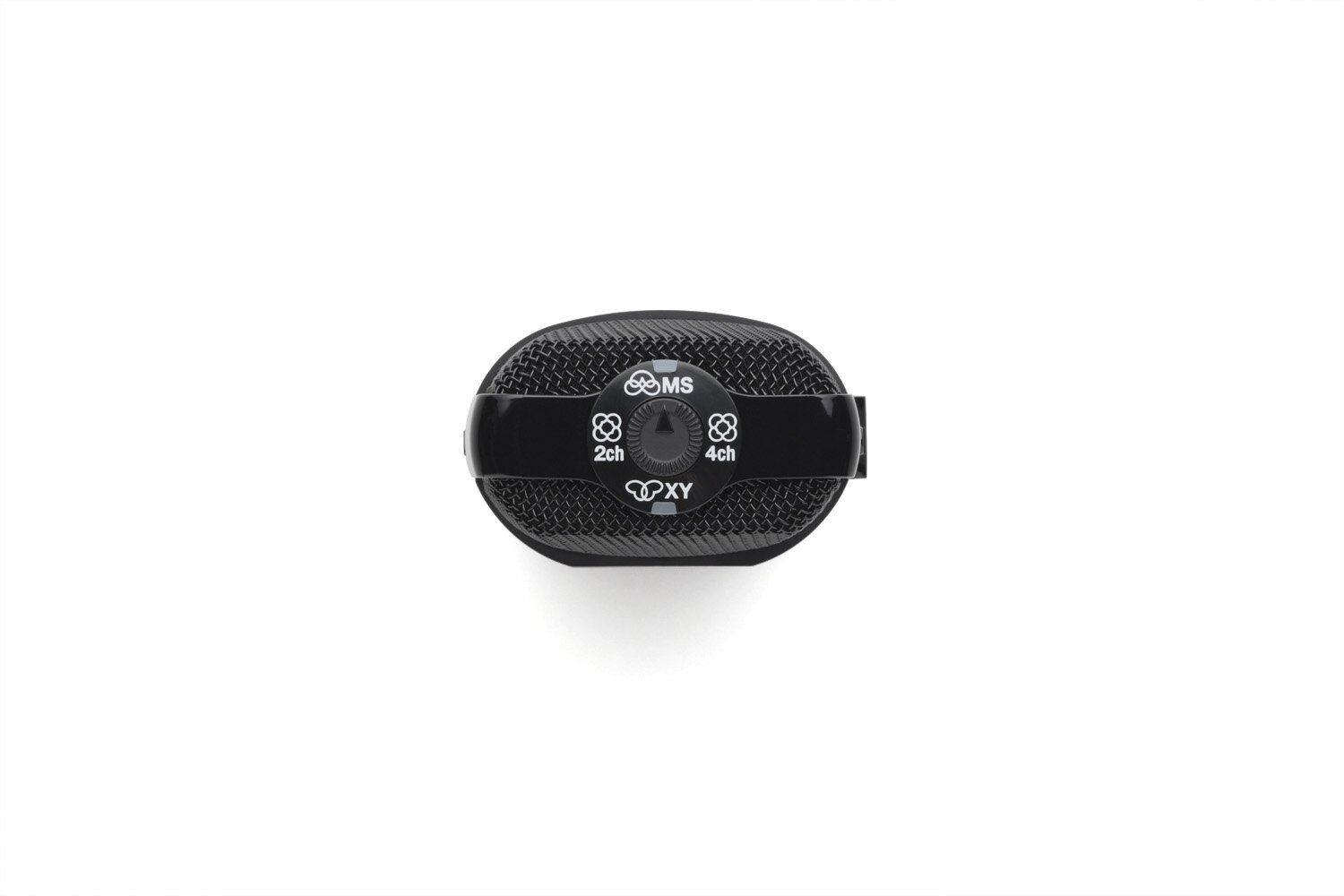

The H2n features the best microphones yet and is the only portable recorder with five mic capsules onboard. This design enables the H2n to offer four unique recording modes: Mid-Side (MS) stereo, 90* X/Y stereo, 2-channel and 4-channel surround sound.
The first portable Mid-Side recorderThe H2n is the first handheld recorder to offer Mid-Side stereo recording, a technique used for many years in film and broadcast, where ambiance and surrounding noise are crucial. Mid-Side recording combines a uni-directional Mid mic that captures sound directly in front of you and a bi-directional Side mic that captures sound from your left and right. By increasing or decreasing the level of the Side mic, you can control the width of the stereo field, which gives you incredible flexibility over your recordings. If you record in RAW mode, you can even adjust the stereo width after recording.
You still get X/Y...The H2n's onboard 90* X/Y stereo condenser mics are arranged with the right and left mics on the same axis. This design ensures that the mics are always equidistant from the sound source for perfect localization and no phase shifting. The result is brilliant stereo recording with natural depth and accurate imaging.
Completely surroundedUsing the H2n's Mid-Side and X/Y mics together, you can create stunning 360* surround sound recordings. Choose between 2-channel mode, which combines the Mid-Side and X/Y mics, and 4-channel mode, which records two separate stereo files, allowing you even more post-production capability. No matter which mode you use, you'll get perfectly balanced, surround sound recordings.

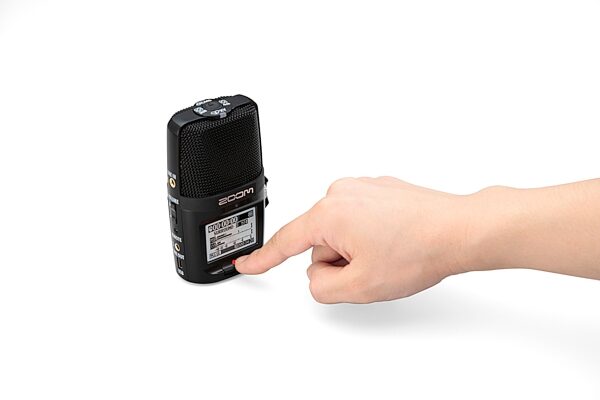

Streamline your recording experienceThe H2n is remarkably easy to use. With its recently designed user interface, critical controls are right at your fingertips and make studio-quality recording a breeze.
The H2n also houses an arsenal of comprehensive functions, including Auto-Gain, a compressor/limiter, time stamping and more.
Zoom's got you coveredNever again will you have to worry about losing recorded data to unexpected errors. The H2n has you covered with its data recovery function. Whether you experience battery loss or an accidental power-down, this feature will automatically restore your data the next time the H2n is powered on.

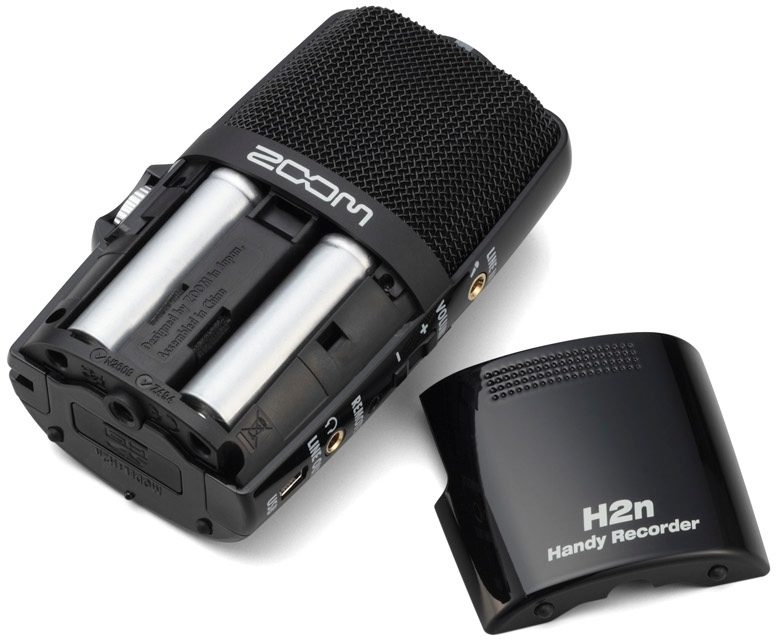

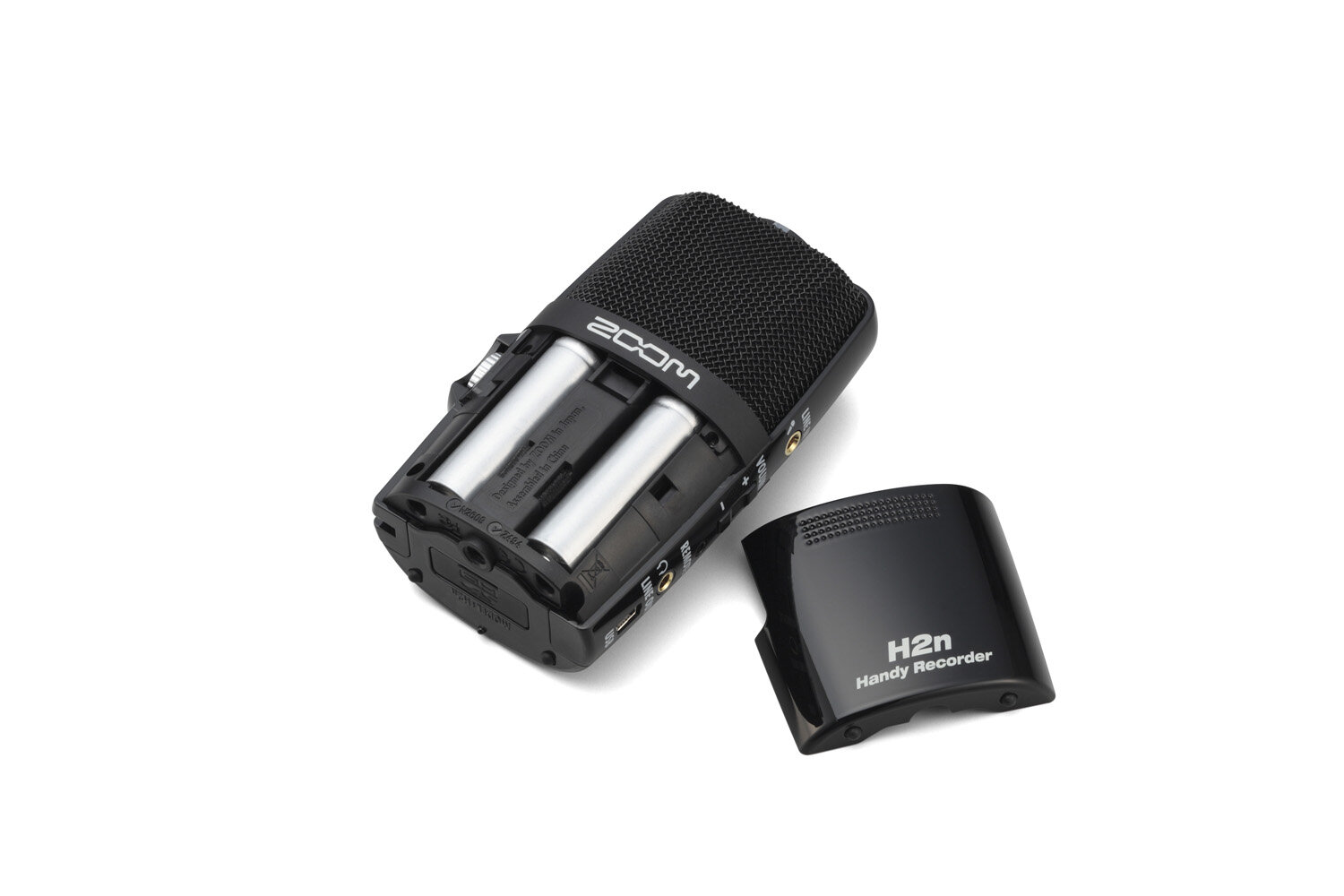

20 hours of battery lifeThe H2n provides over 20 hours of continuous operation on just two standard AA alkaline batteries! This astonishing feature enhances the H2n's flexibility and convenience. In addition, the H2n can also operate using an AC adapter, which is included in the optional APH-2n Accessory Pack.

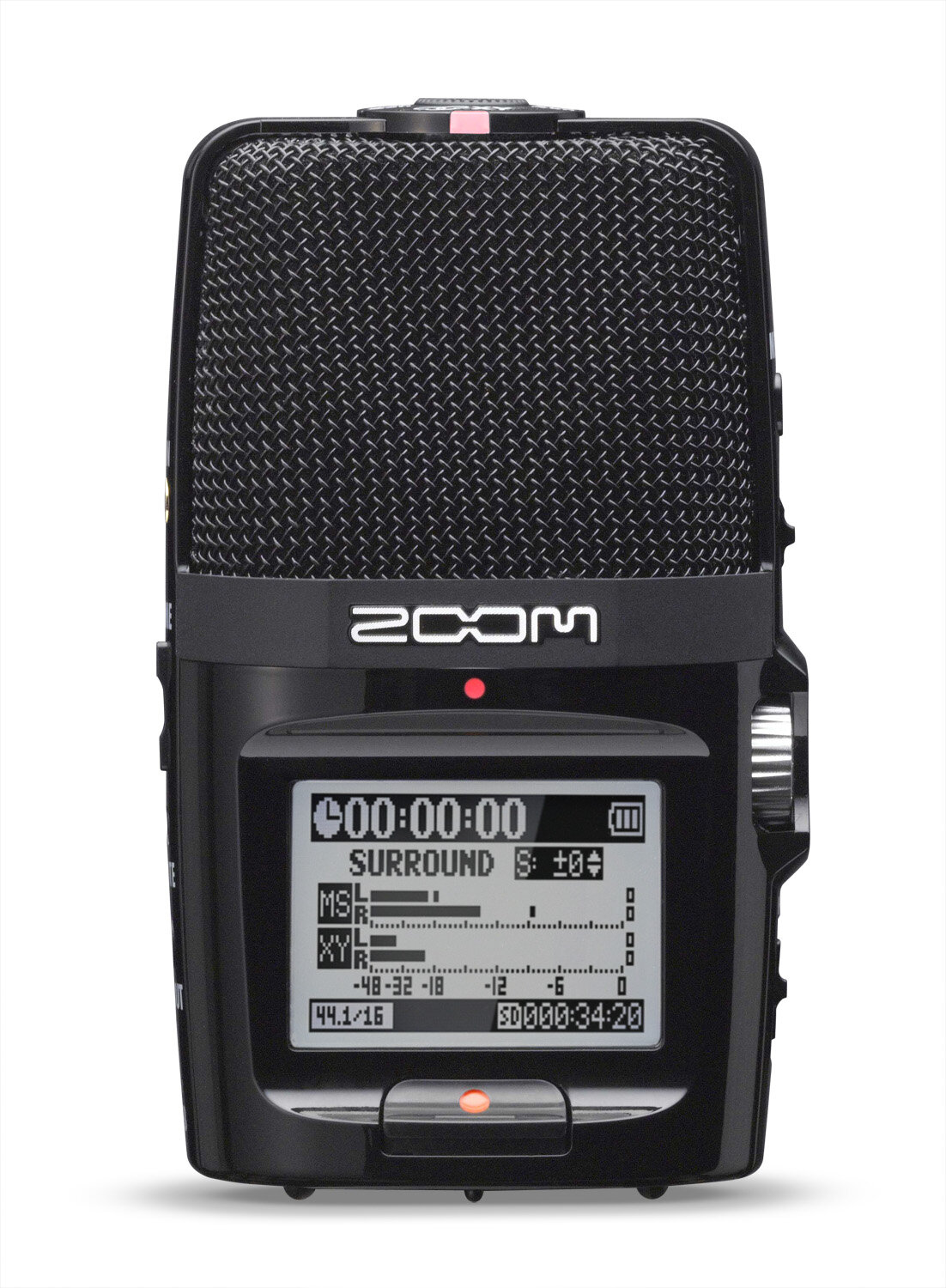

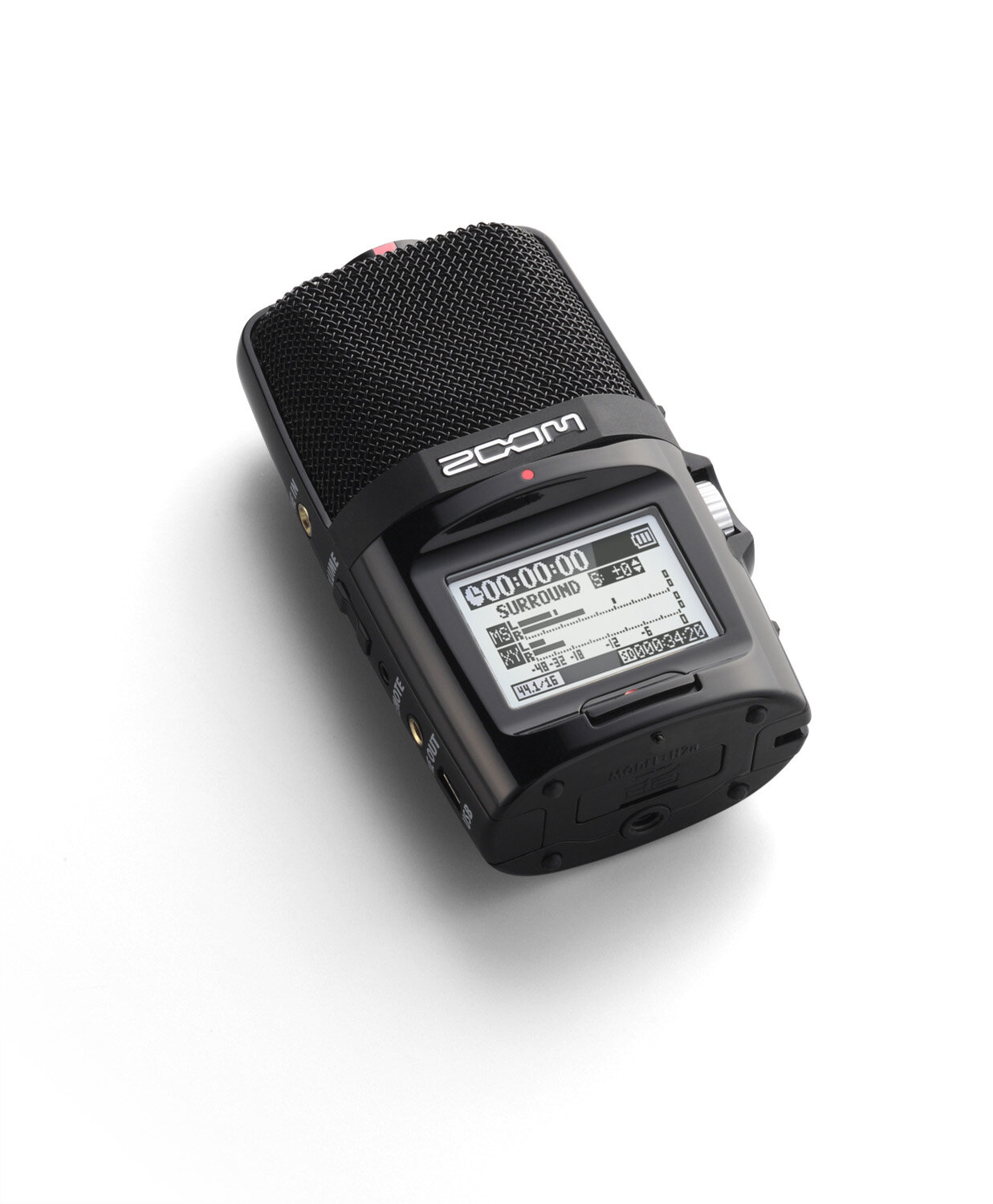

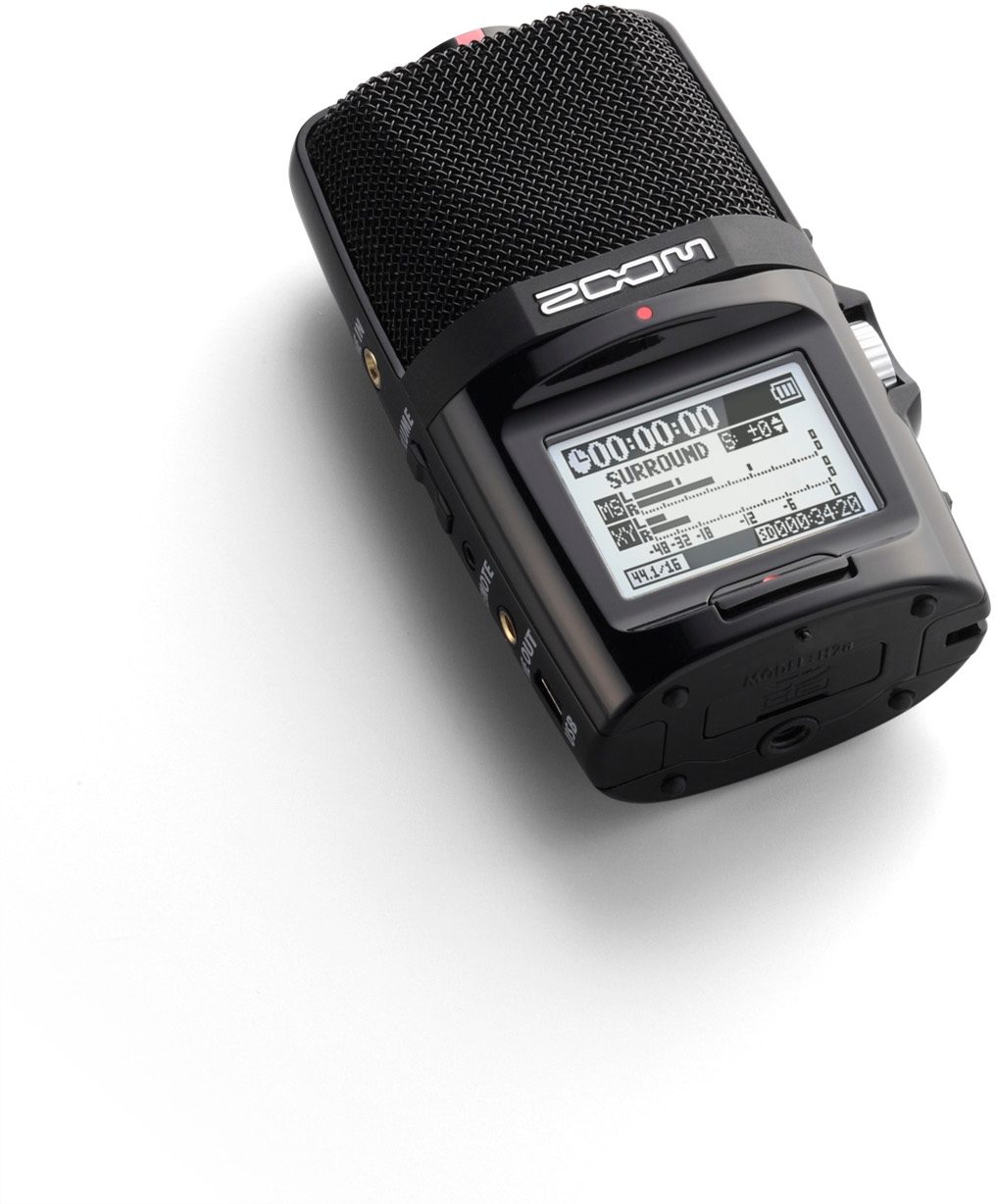

Bigger and brighterThe H2n's 1.8" backlit LCD display (128 x 64 resolution) provides crystal-clear monitoring and makes it simple to navigate all of the unit's functions.

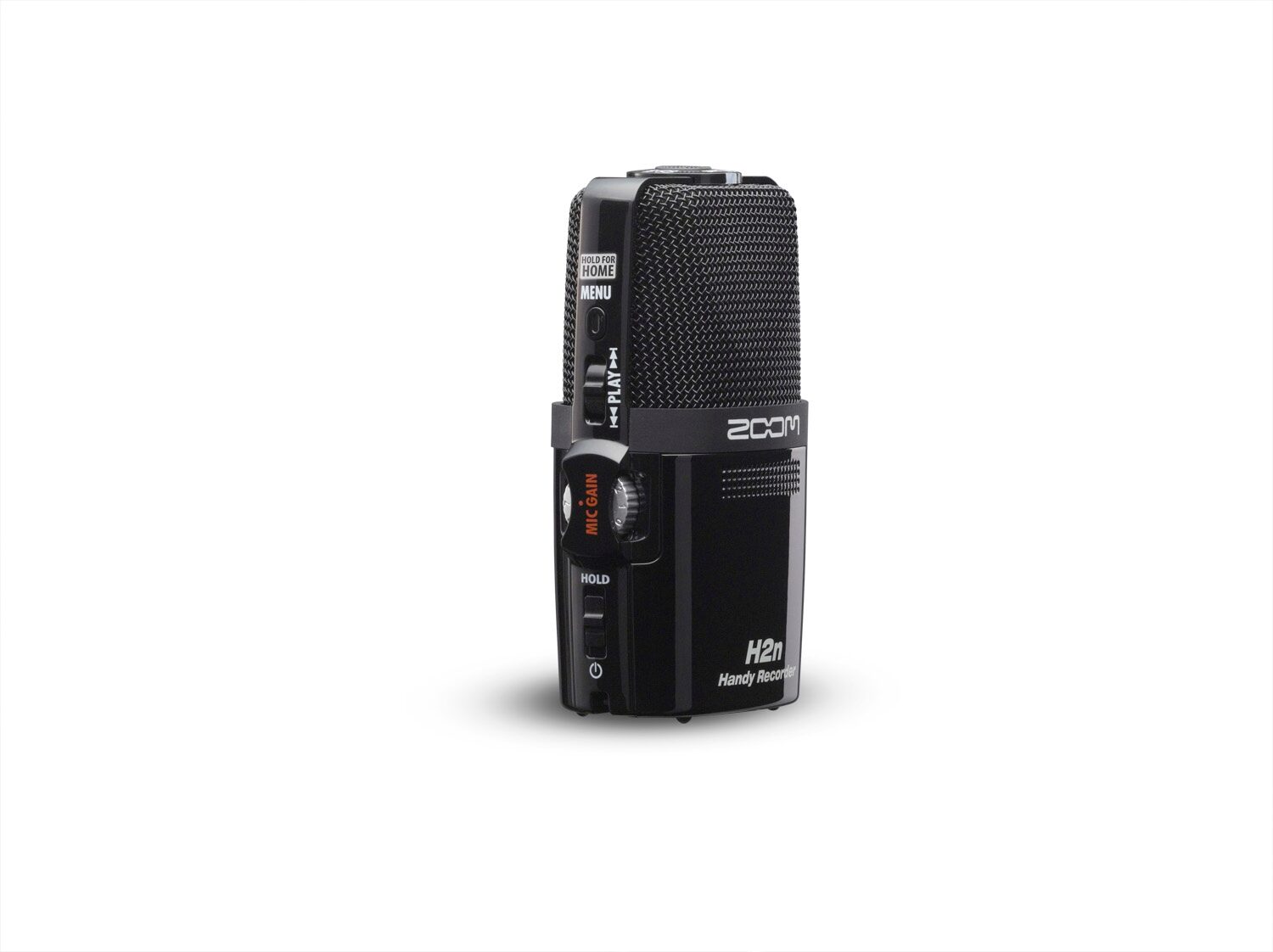

Turning to analogDigital volume controls offer too much or too little gain, with no middle ground. The H2n's Mic Gain wheel allows you to dial-in the perfect amount of gain for any given application.

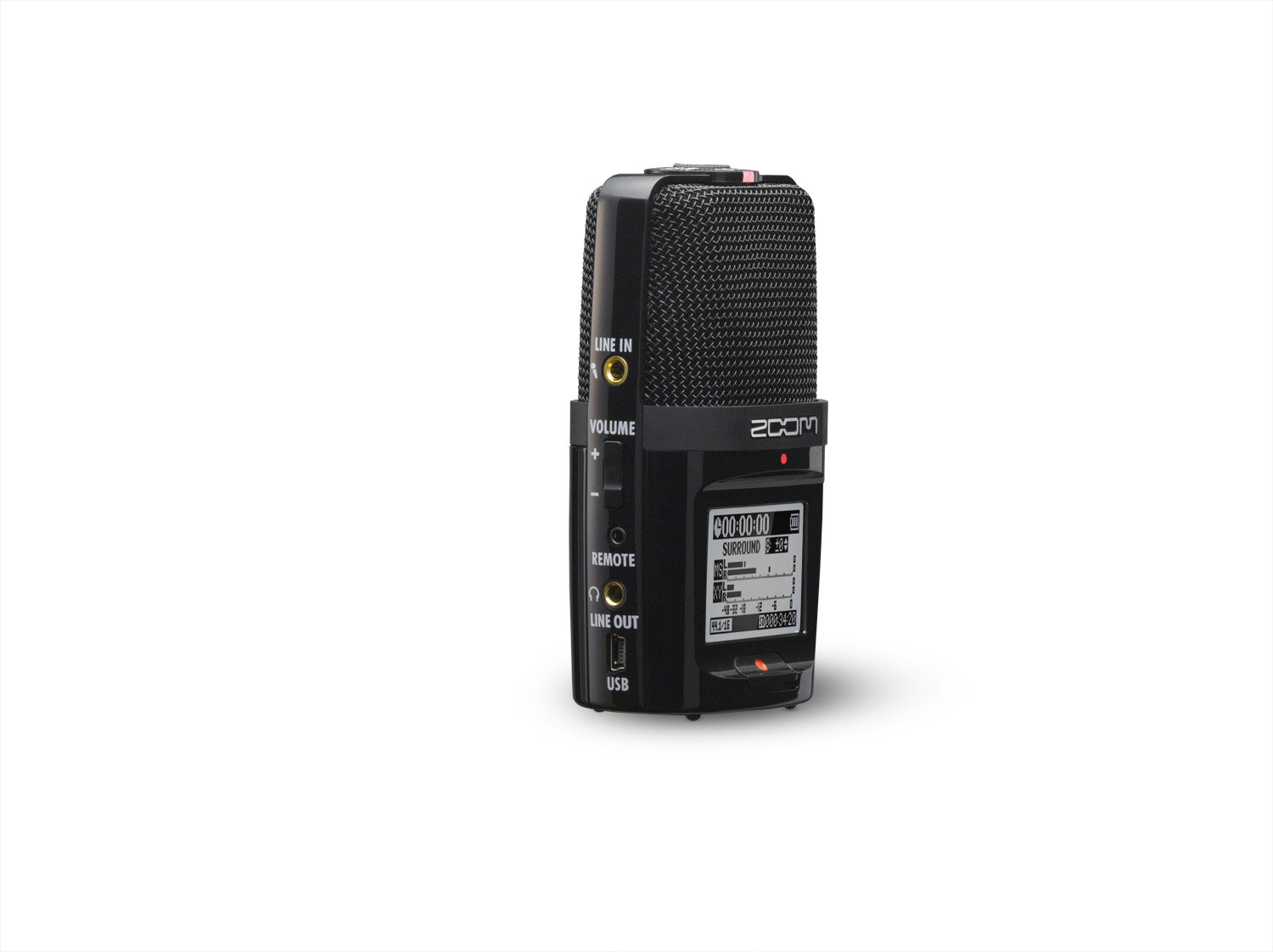

Play it back and listen...The H2n's built-in reference speaker lets you know your recordings have been captured. With its 1/8-inch stereo output, you can also playback your recordings on your home audio system or listen to your masterpiece using your favorite pair of headphones.

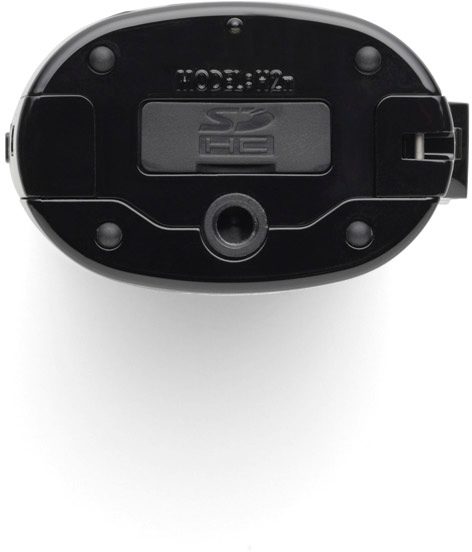

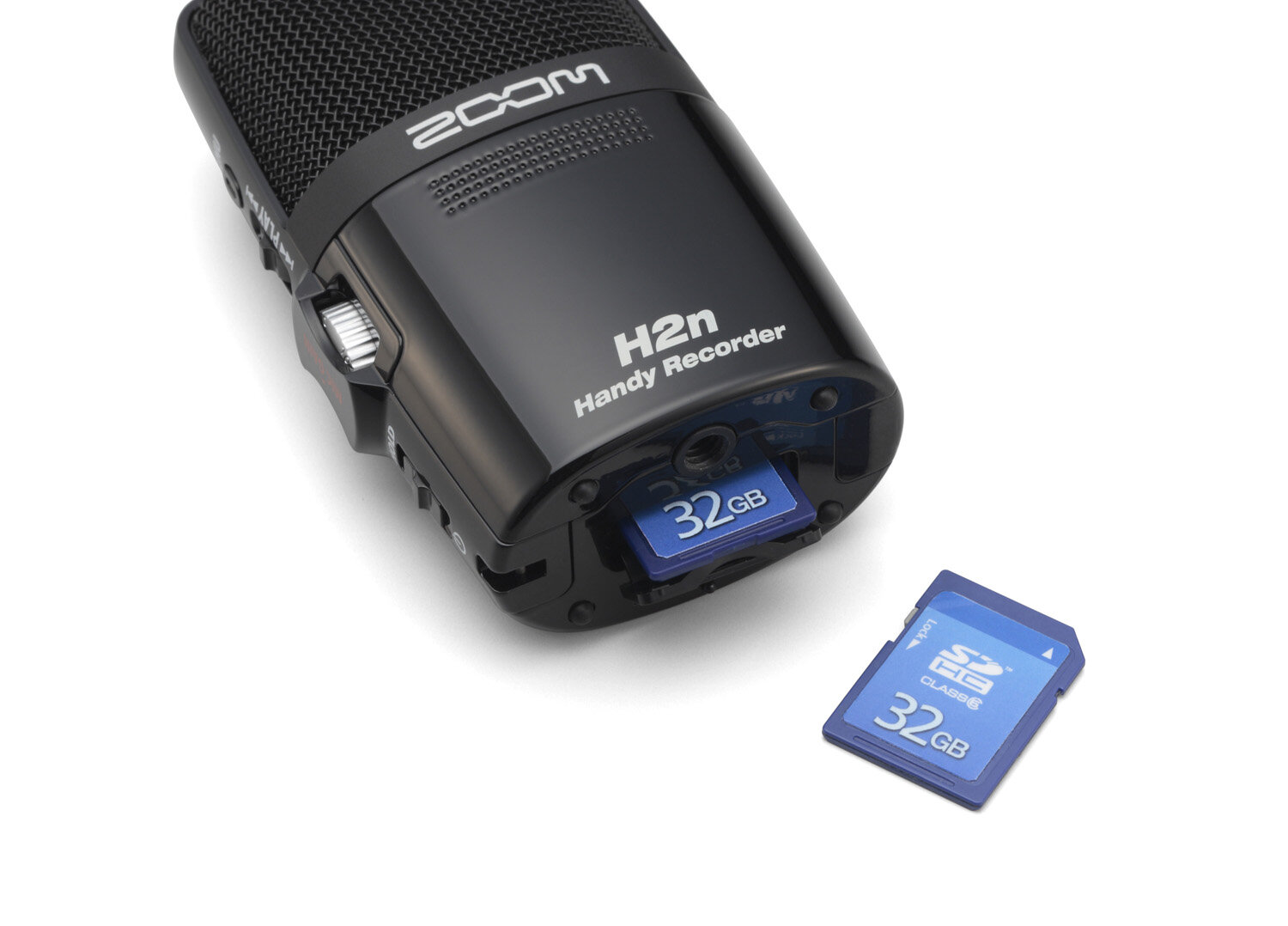

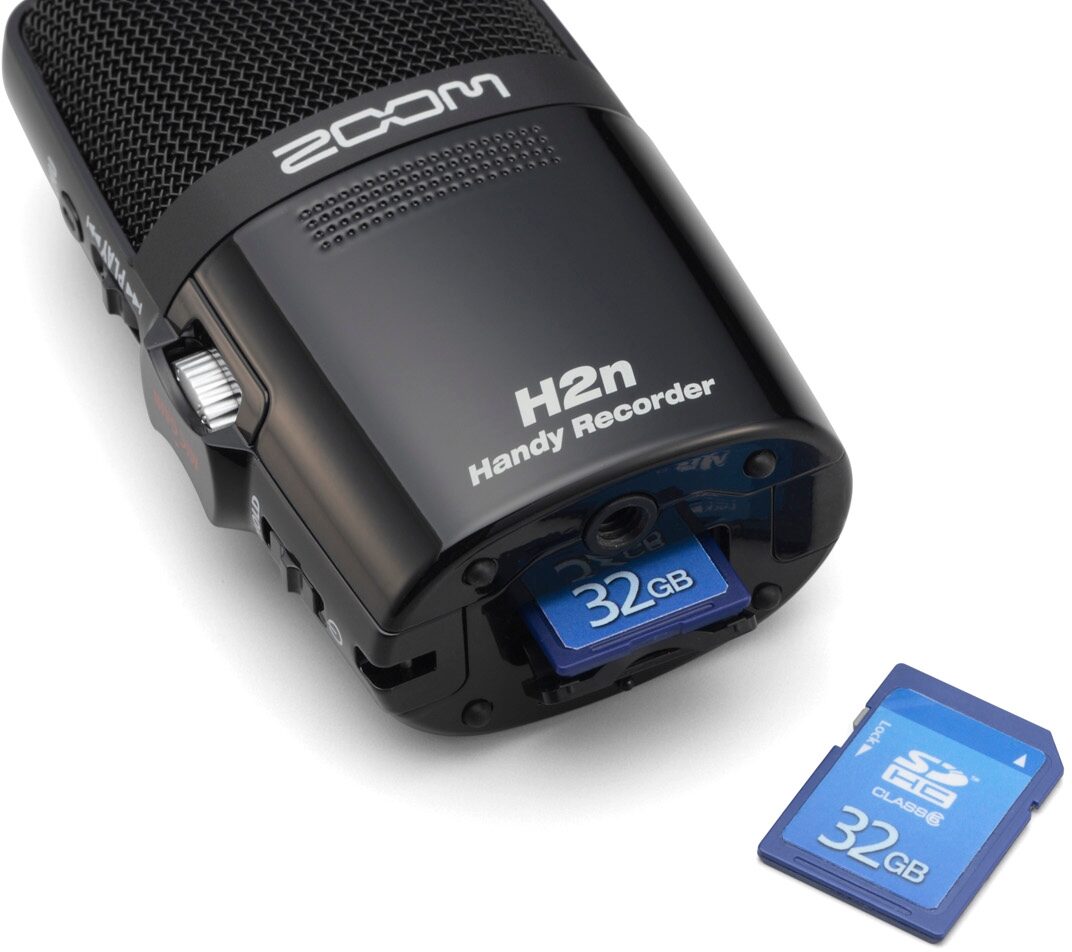

Secure your memoriesThe H2n uses SD/SDHC cards and can accommodate up to a 32GB SDHC card for over 50 hours of recording time using the 16-bit/44.1kHz WAV format. With 128kbps MP3 format, you get an incredible 555 hours of stereo recording. The H2n comes with a 2GB SD card to get you started.

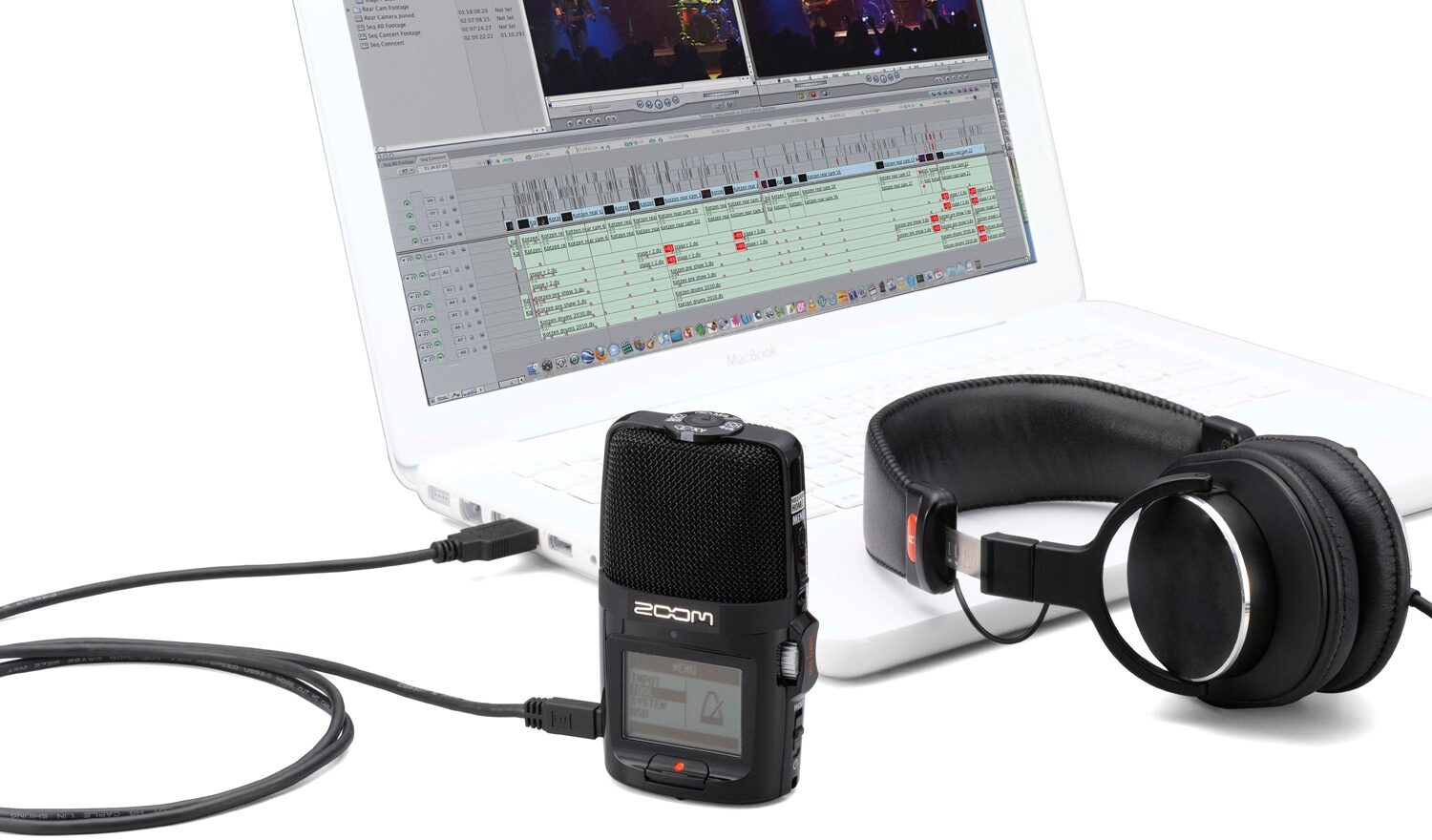

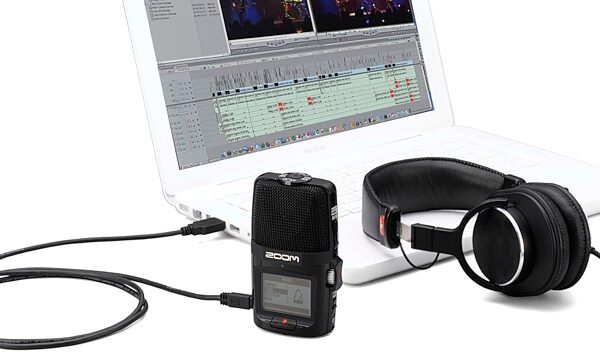

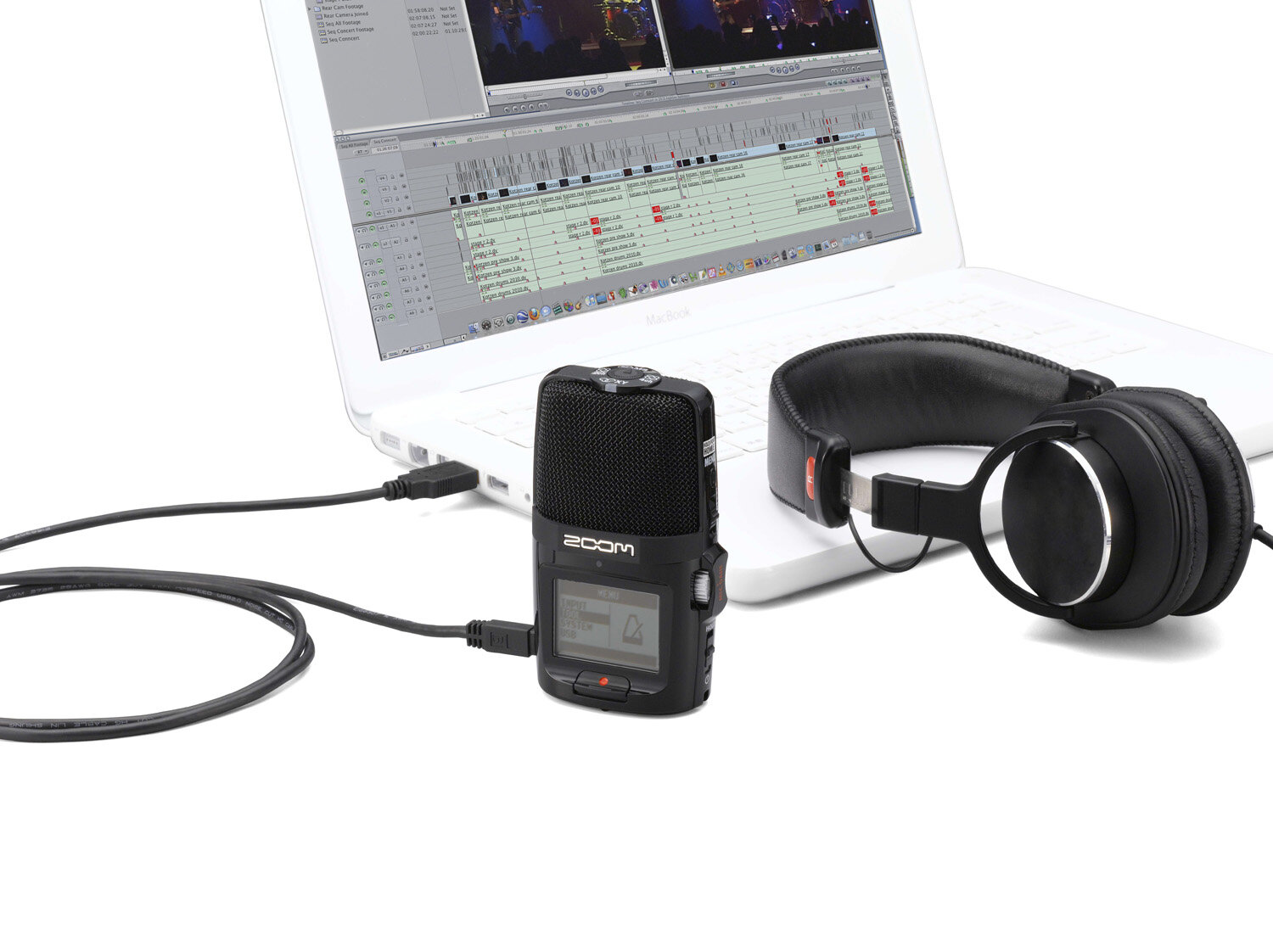

Transfer and edit at High-SpeedUse the H2n's High-Speed USB 2.0 interface to transfer files to your Mac or PC. Once your recordings are on your computer, you can easily store, edit, playback and share your favorite creations. You can even use the H2n as a USB microphone, letting you record directly to your computer.
Software includedSteinberg's WaveLab LE 7 can be used for audio editing and professional-quality mastering. By using its precise waveform editing and high-quality processing, you can refine your recordings into finished works.
Next generationNo matter the application, the H2n brings the very best in stereo recording to a convenient, user-friendly package that fits in your pocket.
Zoom H2n Handy Recorder. The standard in portable recording.
Features- Five built-in mic capsules provide Mid-Side (MS) stereo, 90* X/Y stereo, 2-channel and 4-channel recording modes
- Records in WAV up to 24-bit/96kHz and MP3 up to 320kbps
- Recently designed user interface
- Additional functions include Lo-cut Filter, Compressor/Limiter, Auto Gain, Pre-Rec, Auto-Rec, Tuner, Metronome, Variable Speed Playback, Key Control, A-B Repeat, File Dividing, Normalize, MP3 - Post-Encode, Marker and Surround Mixer
- Data recovery function protects against unexpected recording errors
- Over 20 hours of operation using two standard AA batteries
- Operates on battery, AC or USB bus power
- 1.8-inch backlit LCD display with 128 x 64 resolution
- Analog-type Mic Gain wheel
- Built-in reference speaker
- High-Speed USB 2.0 card reader function
- 1/8-inch Mic/Line Input and Phones/Line Output stereo phone jacks
- Accommodates up to 32GB SDHC memory cards
- Includes Steinberg WaveLab LE 7 editing software, 2GB SD memory card and two AA batteries

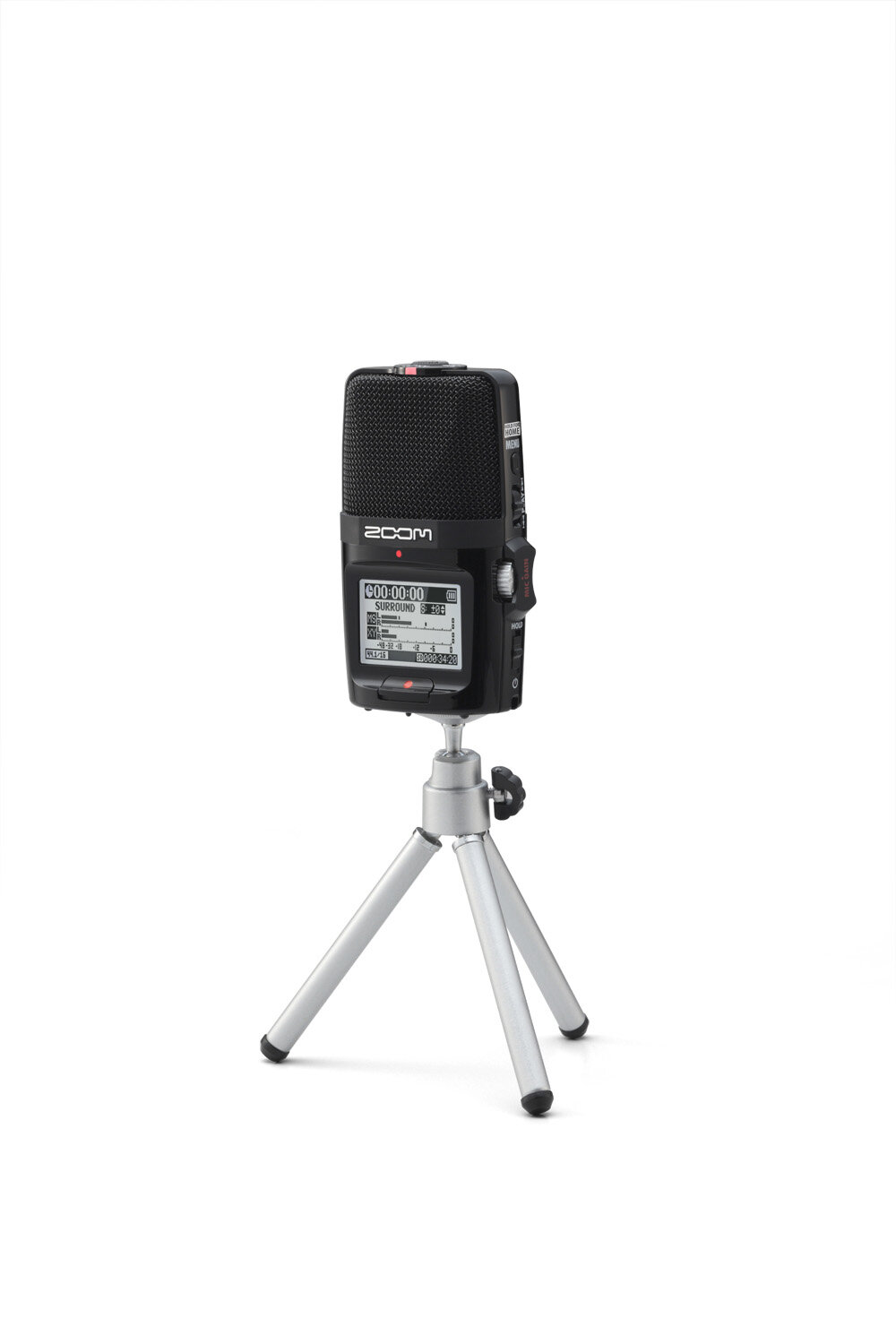

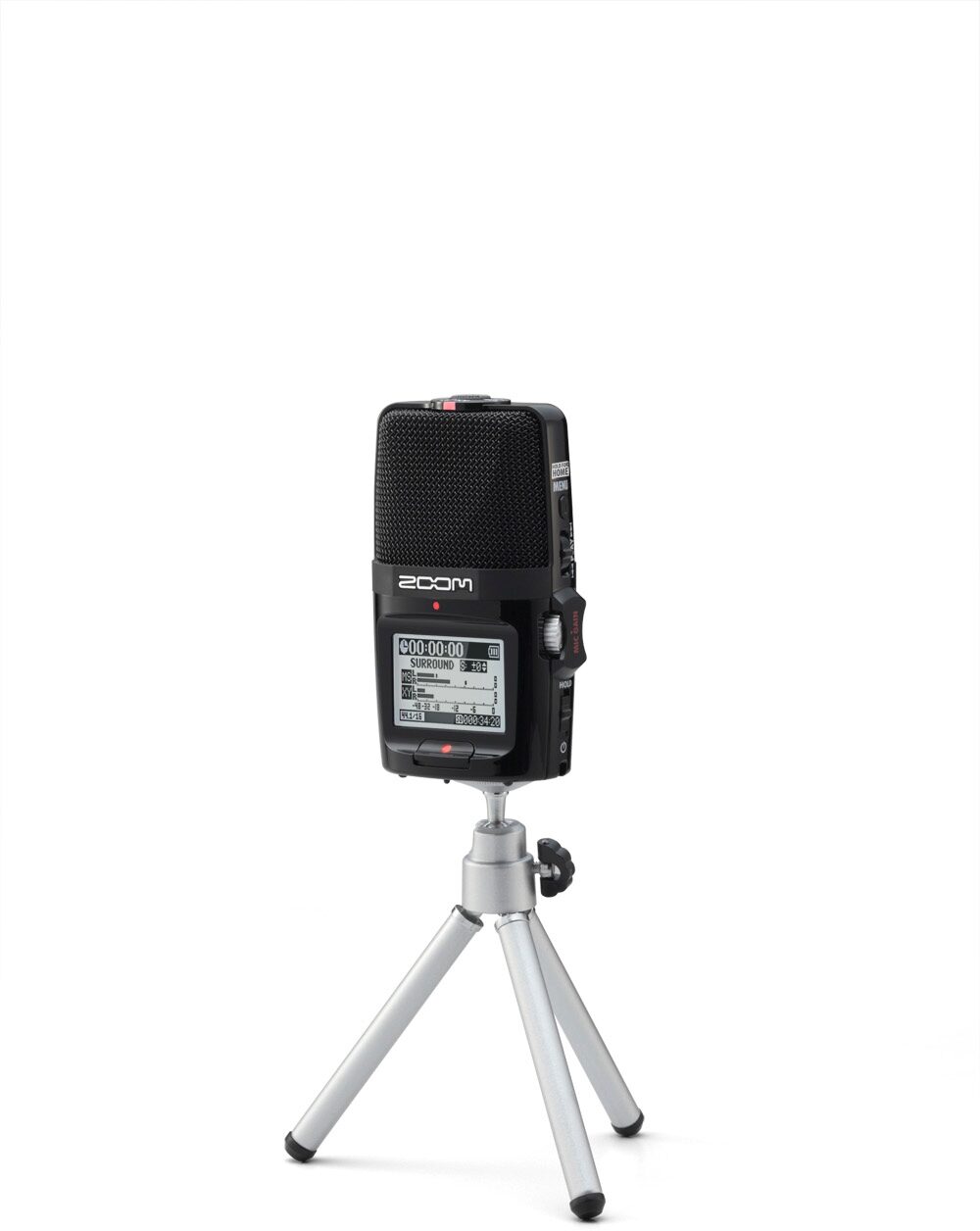

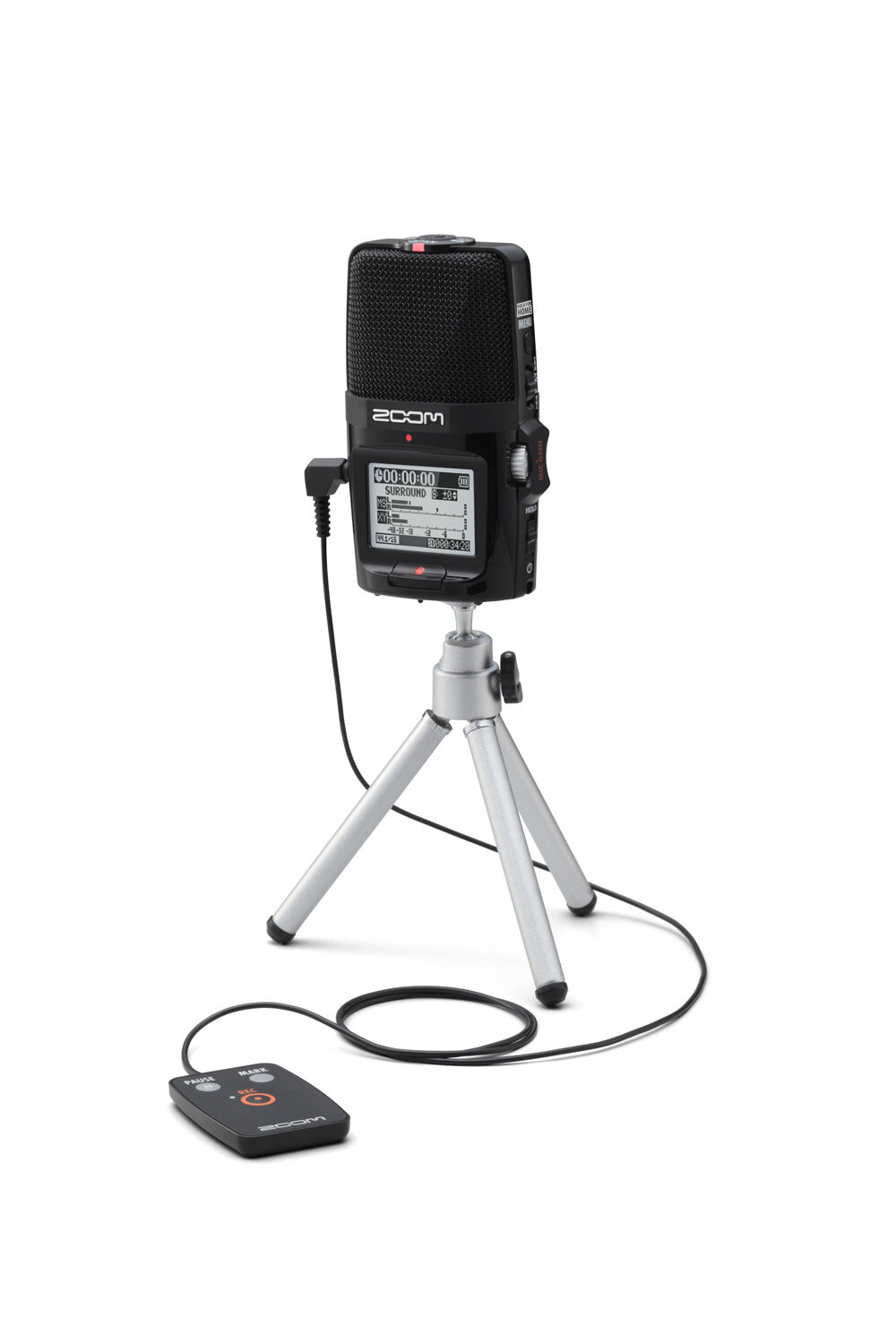

- Optional accessory package (APH-2n) includes remote control with extension cable, windscreen, AC adapter (USB type), USB cable, adjustable tripod stand, padded-shell case and a mic clip adapter.
