Yamaha TNR-O Orange Music Creation Device
No longer available at zZounds












zZounds Gear Experts Say...
Light up the room, and turn up the volume with this MIDI controller, tone generator, sampler and LED graffiti machine.
Overview
The TNR-O (Tenori-on Orange LED) features orange LEDs on a single side, allowing you to enjoy performing in the relaxed atmosphere of your own home. The frame is made of flawless lightweight white plastic. Tenori-on Orange has the same internal sounds and functions as the Tenori On White. It differs from the original by offering a white plastic casing with Orange LEDs on the front and none on the back and is powered from the AC adapter only - no batteries onboard.
What is Tenori-on?
Media artist Toshio Iwai collaborated with Yamaha to design a totally new musical instrument for the 21st century. Tenori-on combines a MIDI controller, tone generator, sampler and stunning visual user interface. Most importantly it's a unique new way for anyone from cutting edge electronic artists to non-musicians to approach playing and composing music. Music instantly becomes a wall of light graffiti as you paint the sounds across its 256 LED buttons. Currently on display at the Museum of Modern Art in New York, Tenori-on is both a musical instrument and a performance work of art.
Features
- 6 Performance Modes
- Adjustable BPM (40 -240)
- Transpose Function (-7 to +8)
- Synchronized performance with two instruments
- Recording
- Tone Generator
- 32 Note Polyphony
- 253 Preset Voices (239 normal, 14 drum kit)
- 2 Effects Processors for Chorus and Reverb
- 3 Voice Sampling: 3 (16 samples per voice)
- Built in Stereo Speakers (1-watt output power)
- MIDI and Line Out/Headphone connections… read more
- SD Memory Card compatible
- Powered by AC adapter
In collaboration with Media artist Toshio Iwai, Yamaha has designed the most visually intuitive musical instrument for the 21st century. Currently on display at the Museum of Modern Art in New York, Tenori-on is both a musical instrument and a performance work of art.
Versatility
Play Tenori-On live with the built in sounds or connect the MIDI output to trigger sounds from your computer or your favorite MIDI enabled sound source. Nearly anyone can pick up the Tenori-On and start playing right away with little to no instruction. This unit is built for hard-core enthusiasts too, mastering this instrument can take lots of practice and patience sometimes even reading through the manual time and time again.
Modes

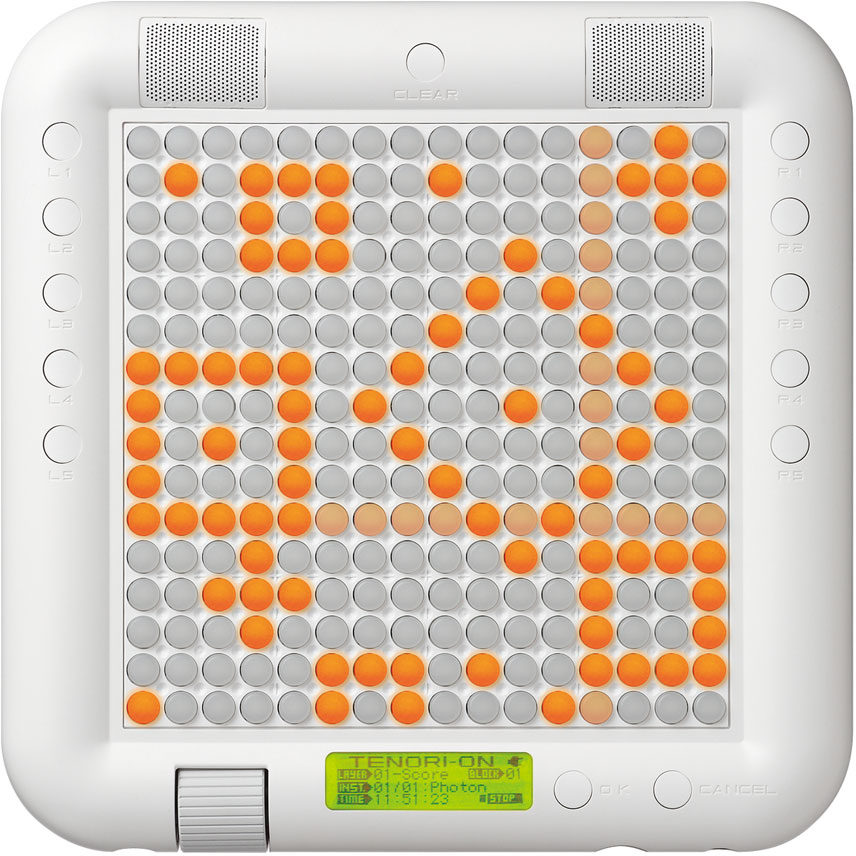

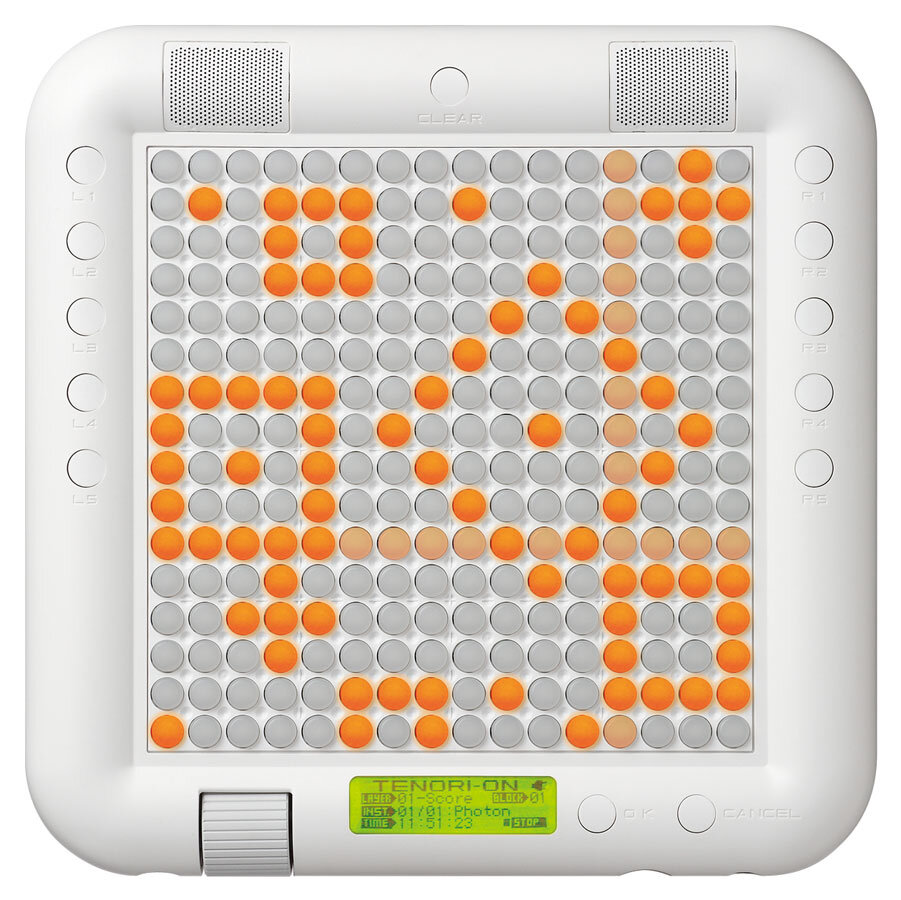

The Tenori On 16 x 16 LED button matrix is simultaneously a performance input controller and display. By operating and interacting with the LED buttons and the light they produce you gain access to the Tenori-On's numerous performance capabilities.
The Tenori-on provides six different performance and sound/light modes for broad performance versatility, and these modes can be combined and used simultaneously for rich, complex musical expression.
Layers
Tenori-on layers can be thought of as performance parts or recording tracks. The Tenori-on has a total of 16 layers. Separate notes and voices can be assigned to each layer, and all layers can be played together in synchronization.
The 16 layers are divided into six performance mode groups as shown in the illustration below. The six modes have different note entry methods and operation. Up to 16 layers created using different modes can be combined for rich, complex musical expression.
Blocks
Once complete set of 16 layers is called a block. The Tenori-on can store up to 16 programmed blocks (16-layer groups) in memory, and you can switch from block to block instantly during performance.
You could, for example, create a musical composition in one block, then copy that composition to another block and edit it to create a variation of the original composition. Or you can load a number of previously-created compositions into separate blocks from an SD Memory Card and switch between them to create variation during playback.
Power Supply:PA-3C/PA-130 or Equivalent Yamaha AC Adapter (Included) read less
What is Tenori-on?
Media artist Toshio Iwai collaborated with Yamaha to design a totally new musical instrument for the 21st century. Tenori-on combines a MIDI controller, tone generator, sampler and stunning visual user interface. Most importantly it's a unique new way for anyone from cutting edge electronic artists to non-musicians to approach playing and composing music. Music instantly becomes a wall of light graffiti as you paint the sounds across its 256 LED buttons. Currently on display at the Museum of Modern Art in New York, Tenori-on is both a musical instrument and a performance work of art.
Features
- 6 Performance Modes
- Adjustable BPM (40 -240)
- Transpose Function (-7 to +8)
- Synchronized performance with two instruments
- Recording
- Tone Generator
- 32 Note Polyphony
- 253 Preset Voices (239 normal, 14 drum kit)
- 2 Effects Processors for Chorus and Reverb
- 3 Voice Sampling: 3 (16 samples per voice)
- Built in Stereo Speakers (1-watt output power)
- MIDI and Line Out/Headphone connections… read more
- SD Memory Card compatible
- Powered by AC adapter
In collaboration with Media artist Toshio Iwai, Yamaha has designed the most visually intuitive musical instrument for the 21st century. Currently on display at the Museum of Modern Art in New York, Tenori-on is both a musical instrument and a performance work of art.
Versatility
Play Tenori-On live with the built in sounds or connect the MIDI output to trigger sounds from your computer or your favorite MIDI enabled sound source. Nearly anyone can pick up the Tenori-On and start playing right away with little to no instruction. This unit is built for hard-core enthusiasts too, mastering this instrument can take lots of practice and patience sometimes even reading through the manual time and time again.
Modes
The Tenori On 16 x 16 LED button matrix is simultaneously a performance input controller and display. By operating and interacting with the LED buttons and the light they produce you gain access to the Tenori-On's numerous performance capabilities.
The Tenori-on provides six different performance and sound/light modes for broad performance versatility, and these modes can be combined and used simultaneously for rich, complex musical expression.
Layers
Tenori-on layers can be thought of as performance parts or recording tracks. The Tenori-on has a total of 16 layers. Separate notes and voices can be assigned to each layer, and all layers can be played together in synchronization.
The 16 layers are divided into six performance mode groups as shown in the illustration below. The six modes have different note entry methods and operation. Up to 16 layers created using different modes can be combined for rich, complex musical expression.
Blocks
Once complete set of 16 layers is called a block. The Tenori-on can store up to 16 programmed blocks (16-layer groups) in memory, and you can switch from block to block instantly during performance.
You could, for example, create a musical composition in one block, then copy that composition to another block and edit it to create a variation of the original composition. Or you can load a number of previously-created compositions into separate blocks from an SD Memory Card and switch between them to create variation during playback.
Power Supply:PA-3C/PA-130 or Equivalent Yamaha AC Adapter (Included) read less
Specs
Sequencer
Note Resolution: 96 clocks
Gate Time: 10-9990 ms
Octaves: -5 to +5
Tempo (BPM): 40 -240
Scales: 9 types
Transpose: -7 to +8
Performance Modes: 6 types
- Score
- Random
- Draw
- Bounce
- Push
- Solo
Other Functions:
- Clock
- Power-save
- Synchronized performance with two instruments
- Recording
- Tenori-On song playback
Maximum Active Notes: Push Mode: 64
Random Mode: 64 points
Draw Mode: 64 points
Tone Generator
Tone Generator Type: AWM2
Maximum Polyphony: 32 notes
Preset Voices: 253 (239 normal, 14 drum kit)
Effects 2 processors:
- Reverb: 10 types
- Chorus: 5 types
Sampling: 3 voices (Raw audio up to 0.97 sec; Up to 16 samples per voice)
Controller, Display and Sound
LED Buttons: 256
Rear LED Display Points: 256
Function Buttons: 10 (L1 ~ L5, R1 ~ R5)
Other Controls:
- CLEAR
- OK
- CANCEL
- Jog Dial
Display:
- 122 x 32 dot graphic LCD device
- 20 characters x 4 lines, monochrome
Sound: Stereo Speakers (1-watt output power)
Connections
Line Out/Phones: Stereo mini phone jack x 1
Mini DIN:
- MIDI In: for synchronized performance using two Tenori-on instruments
- MIDI Out: for external device control
Card Slot: SD Memory Card compatible
DC In: Connector for PA-3C, PA-130 or equivalent Yamaha AC adaptor
Power Supply: AC Adaptor (PA-3C, PA-130 or equivalent Yamaha AC adaptor)
General Specifications
Included Accessories:
- Mini DIN cable
- CD-ROM x 1
- AC Adaptor
- Quick Guide
- Installation Guide
- Precautions
- Warranty
Dimensions: 8 x 8 x 1.3 inches (205 x 205 x 32 mm)
Weight: 1.4 lbs (650 grams)
Power Supply:PA-3C/PA-130 or Equivalent Yamaha AC Adapter (Included)
Note Resolution: 96 clocks
Gate Time: 10-9990 ms
Octaves: -5 to +5
Tempo (BPM): 40 -240
Scales: 9 types
Transpose: -7 to +8
Performance Modes: 6 types
- Score
- Random
- Draw
- Bounce
- Push
- Solo
Other Functions:
- Clock
- Power-save
- Synchronized performance with two instruments
- Recording
- Tenori-On song playback
Maximum Active Notes: Push Mode: 64
Random Mode: 64 points
Draw Mode: 64 points
Tone Generator
Tone Generator Type: AWM2
Maximum Polyphony: 32 notes
Preset Voices: 253 (239 normal, 14 drum kit)
Effects 2 processors:
- Reverb: 10 types
- Chorus: 5 types
Sampling: 3 voices (Raw audio up to 0.97 sec; Up to 16 samples per voice)
Controller, Display and Sound
LED Buttons: 256
Rear LED Display Points: 256
Function Buttons: 10 (L1 ~ L5, R1 ~ R5)
Other Controls:
- CLEAR
- OK
- CANCEL
- Jog Dial
Display:
- 122 x 32 dot graphic LCD device
- 20 characters x 4 lines, monochrome
Sound: Stereo Speakers (1-watt output power)
Connections
Line Out/Phones: Stereo mini phone jack x 1
Mini DIN:
- MIDI In: for synchronized performance using two Tenori-on instruments
- MIDI Out: for external device control
Card Slot: SD Memory Card compatible
DC In: Connector for PA-3C, PA-130 or equivalent Yamaha AC adaptor
Power Supply: AC Adaptor (PA-3C, PA-130 or equivalent Yamaha AC adaptor)
General Specifications
Included Accessories:
- Mini DIN cable
- CD-ROM x 1
- AC Adaptor
- Quick Guide
- Installation Guide
- Precautions
- Warranty
Dimensions: 8 x 8 x 1.3 inches (205 x 205 x 32 mm)
Weight: 1.4 lbs (650 grams)
Power Supply:PA-3C/PA-130 or Equivalent Yamaha AC Adapter (Included)
