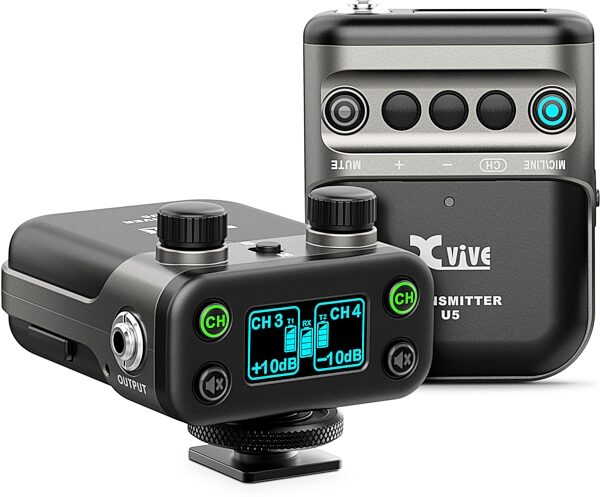

Xvive U5 Digital Wireless Lavalier Camera Microphone System

Great for video interviews, the Xvive U5 wireless system includes a lavalier mic, bodypack transmitter, and dual-channel receiver that mounts on your camera.

The U5 Wireless Audio for Video System can be used to send audio wirelessly from the included lavalier microphone (via the system’s beltpack transmitter) to the receiver, which can be connected to a DSLR camera or audio device.

This system comes with one bodypack transmitter, one lavalier microphone, and a dual-channel receiver. Add an additional U5 transmitter (U5T) and microphone to mic up multiple sources. Add an additional U5 receiver (U5R) to send your audio signal to two DSLR cameras or audio devices. The U5 receiver’s shoe mount connects to any DSLR camera.

See how easy it is to use the U5 wireless system in this video from Xvive:

Learn how to set up your U5 wireless system with your camera:

The proprietary, rechargeable Xvive U5B lithium-ion battery provides up to 5 hours of continuous power. The U5C battery charger (sold separately with three U5B batteries) allows you to charge back up batteries so you can operate the system continuously. The U5 system reliably transmits high-resolution audio on the 2.4 GHz wireless band, and can be used for video shoots, live streams, interviews, sporting events, weddings, and more.


- 2.4GHz wireless audio system for video production
- Use with a lavalier microphone or line input
- High-resolution 24-bit/48kHz audio
- TRS stereo 3.5mm output
- Dual-channel receiver for DSLR video recording and live broadcast
- Xvive U5B rechargeable lithium battery provides up to 5 hours of continuous use
- Less than 6ms latency
- Simultaneous broadcast on up to read more 6 channels
- Mic mode dynamic range is 99dB; line mode dynamic range is 107dB
- Mic mode signal-to-noise ratio is 95dB; line mode signal-to-noise ratio is107dB
- Broad 20Hz-20kHz frequency response; mic mode with100Hz high-pass filter
- Solid RF connection over a 100-foot range (actual range depends on RF signal absorption, reflection, and interference)
- Stereo and mono output modes
read less

Frequencies: 2400-2483.5 MHz
Wireless Range: Up to 100ft; depends on RF signal absorption, reflection and interference
Dynamic Range: MIC: 99dB; LINE: 107dB
Signal-To-Noise Ratio: MIC: 95dB; LINE: 107dB
Battery Life: 5 Hours (Xvive U5B battery)
RF Sensitivity: -86dBm
Total Harmonic Distortion: 0.2%
RF Output Power: 10 mW E.I.R.P. max
Operating Temperature Range: -18° to 57° (battery characteristics may limit this range)
Channel Count: Up to 6
Latency: 6ms
- High-Resolution Audio: 24-bit/48kHz
Transmitter Specifications
Dimensions: 51 x 34 x 65mm
Weight: 55.2g without battery
Transmitter Type: Beltpack
Housing: Molded plastic and cast metal
Charging Voltage & Current: 5V 2A
Impedance: Input 4.7kO (1KHz)
Audio Input Connector: 3.5 mm mono TRS jack
Frequency: Broad 20Hz-20KHz frequency response; Mic mode with 100Hz high-pass filter
Rms: Input max RMS (Gain=0dB) = Mic: 460mV RMS; Line: 2V RMS
Phantom Power: Mic mode: 5V; Line mode:none
Battery: Xvive U5B battery: 3.7V Rechargeable Li-ion, 860mAh (Included, Replaceable)
Battery Life: Up to 5 Hours
Antenna Impedance: 50O
Antenna Type: 1/4 wave sleeve dipole, non-removable
Number Of Antennas: 1
Display: OLED
Input Gain Control Range: Mic: -6 to +12dB; Line: 0 to +12dB
RF Output Level: 10 mW
Audio Output Max Level: Mic input: -20dBV; Line input: +6dBV
Reciever Specifications
Receiver Type: Beltpack
Dimensions: 54 x 44 x 65mm
Weight: 53g without battery
Housing: Molded plastic and cast metal
Charging Voltage & Current: 5V 2A
Battery: Xvive U5B battery: 3.7V rechargeable Li-ion, 860mAh (Included, Replaceable)
Impedance: Output 470O (1KHz)
Output Connector: 3.5 mm stereo TRS jack
Max Output Level: 2V RMS
Battery Life: Up To 5 Hours
Antenna Impedance: 50O
Antenna Type: 1/4 Wave Sleeve Dipole, Non-Removable
Number Of Antennas: 4
Display: OLED
Audio Output Max Level: 0 Dbv
Frequency Response: 20 Hz To 20 Khz
Output Gain Control Range: -54db to +24dB
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1 lbs
Shipping Dimensions: 7 x 6 x 3 in
Manufacturer Part Number (MPN): U5 SET

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
