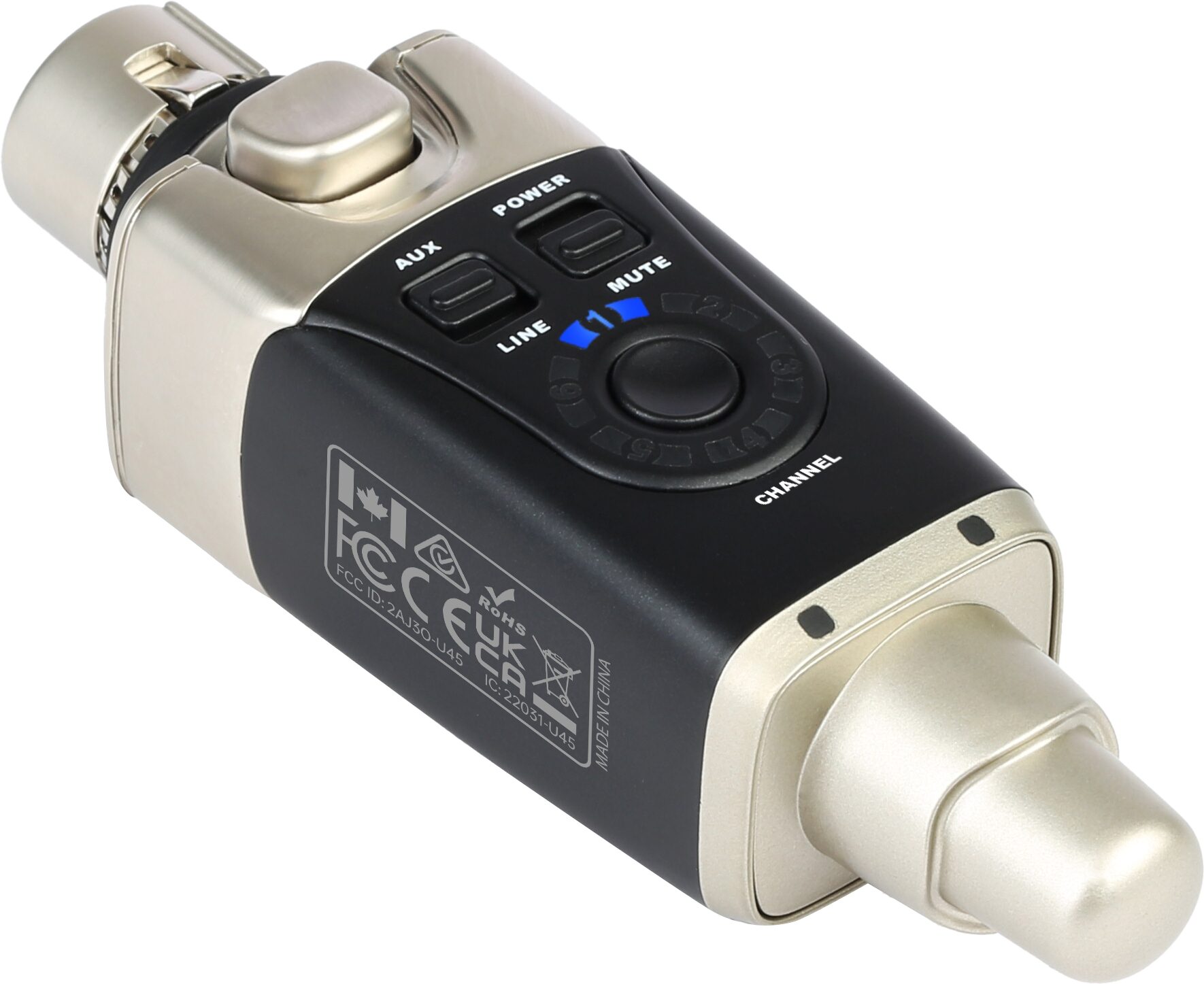

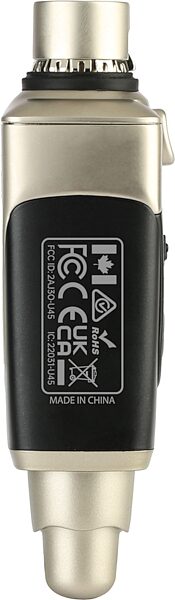

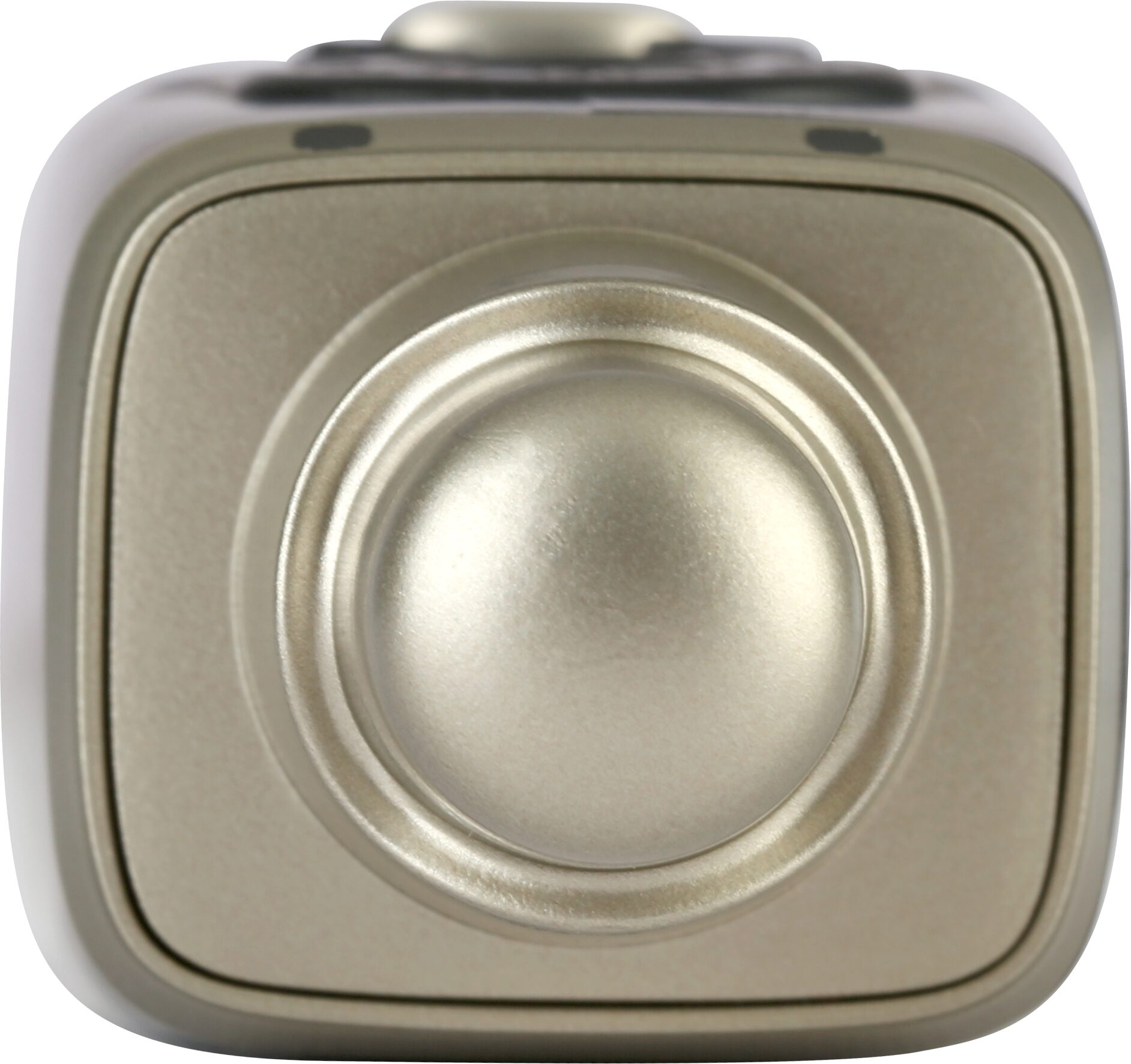

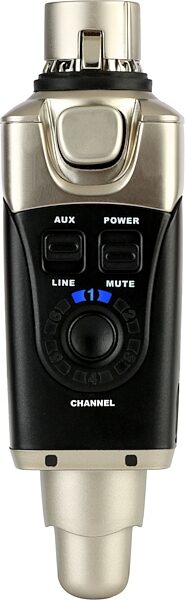

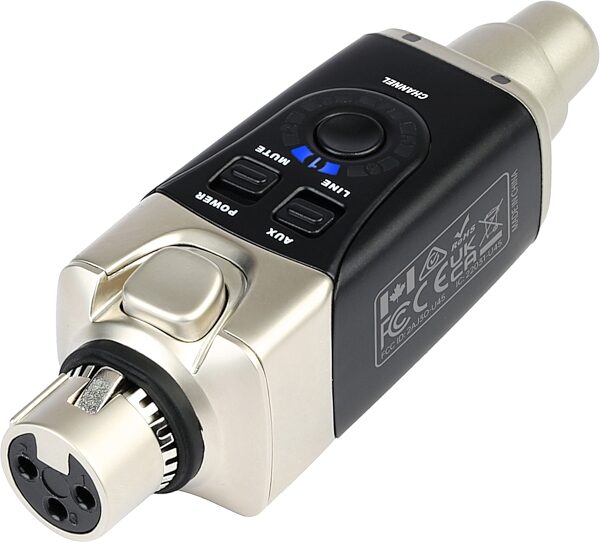

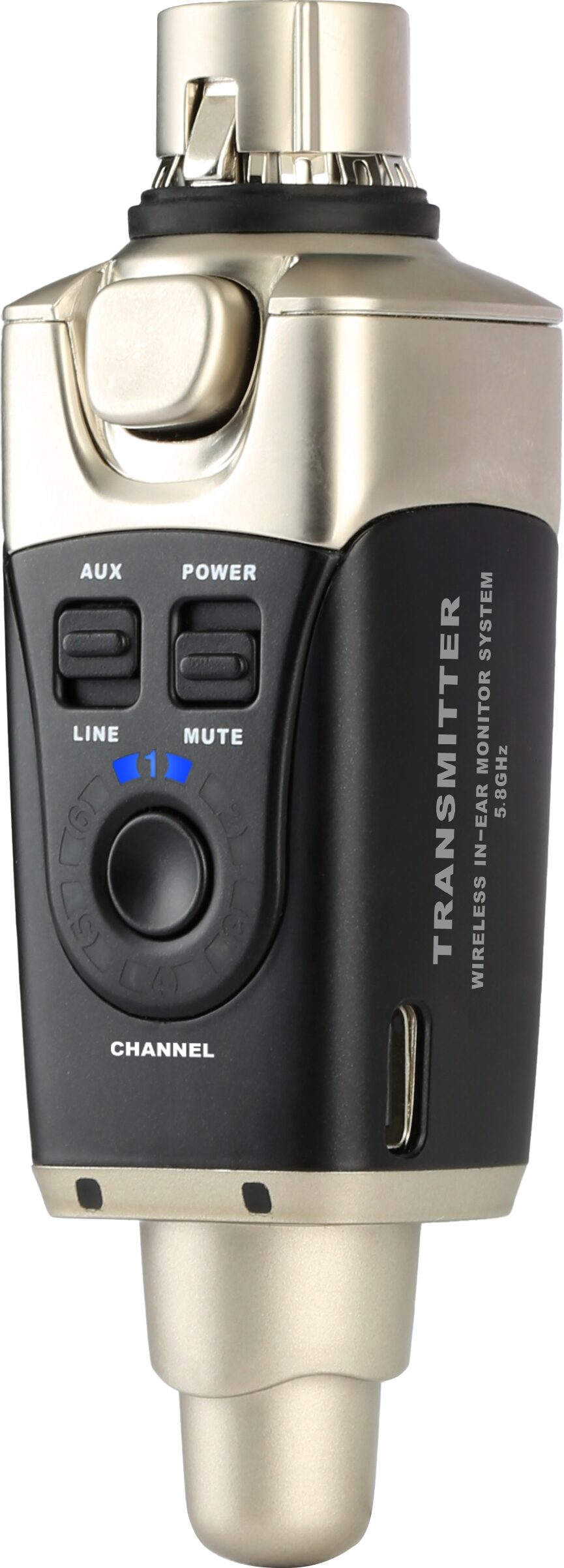

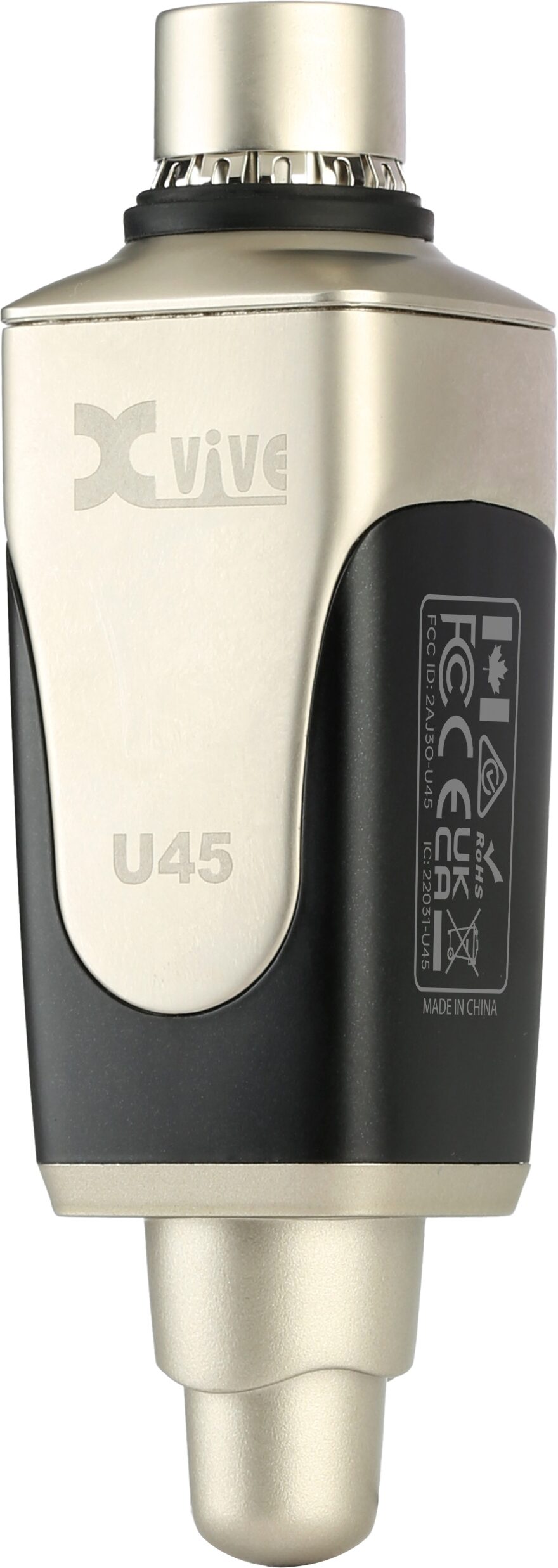

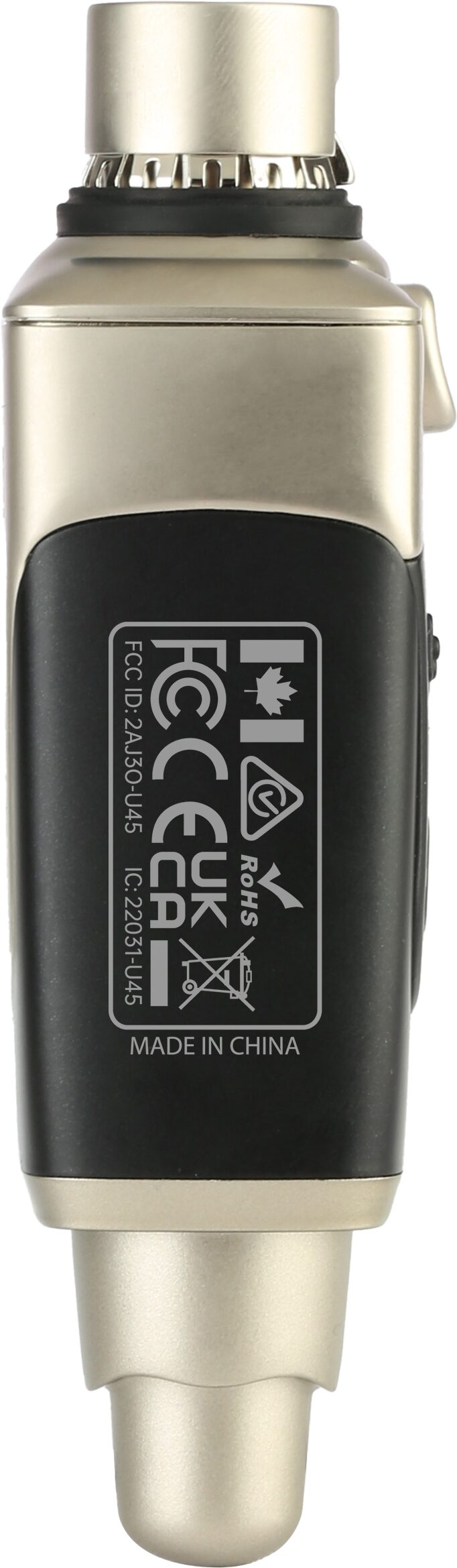

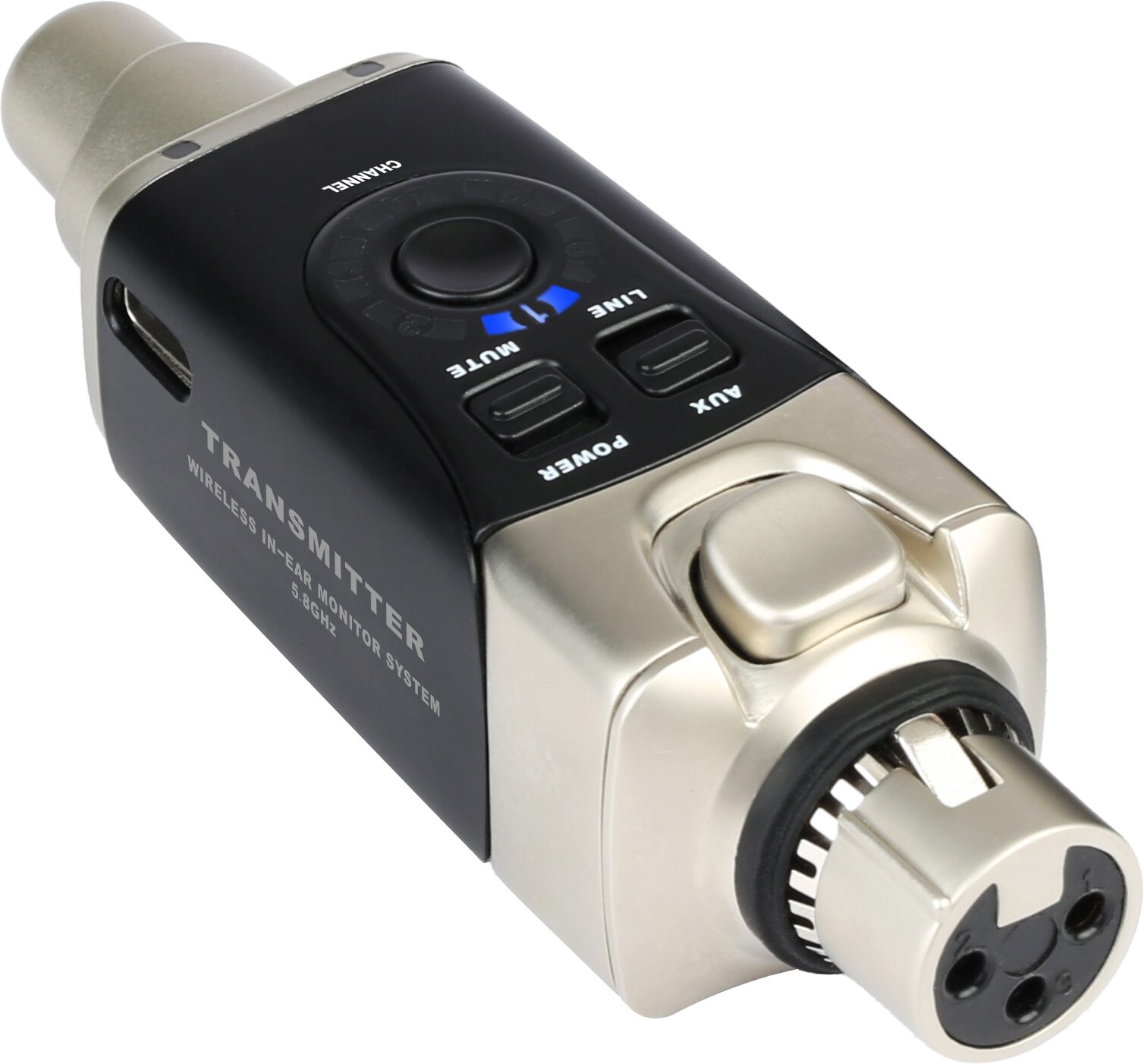

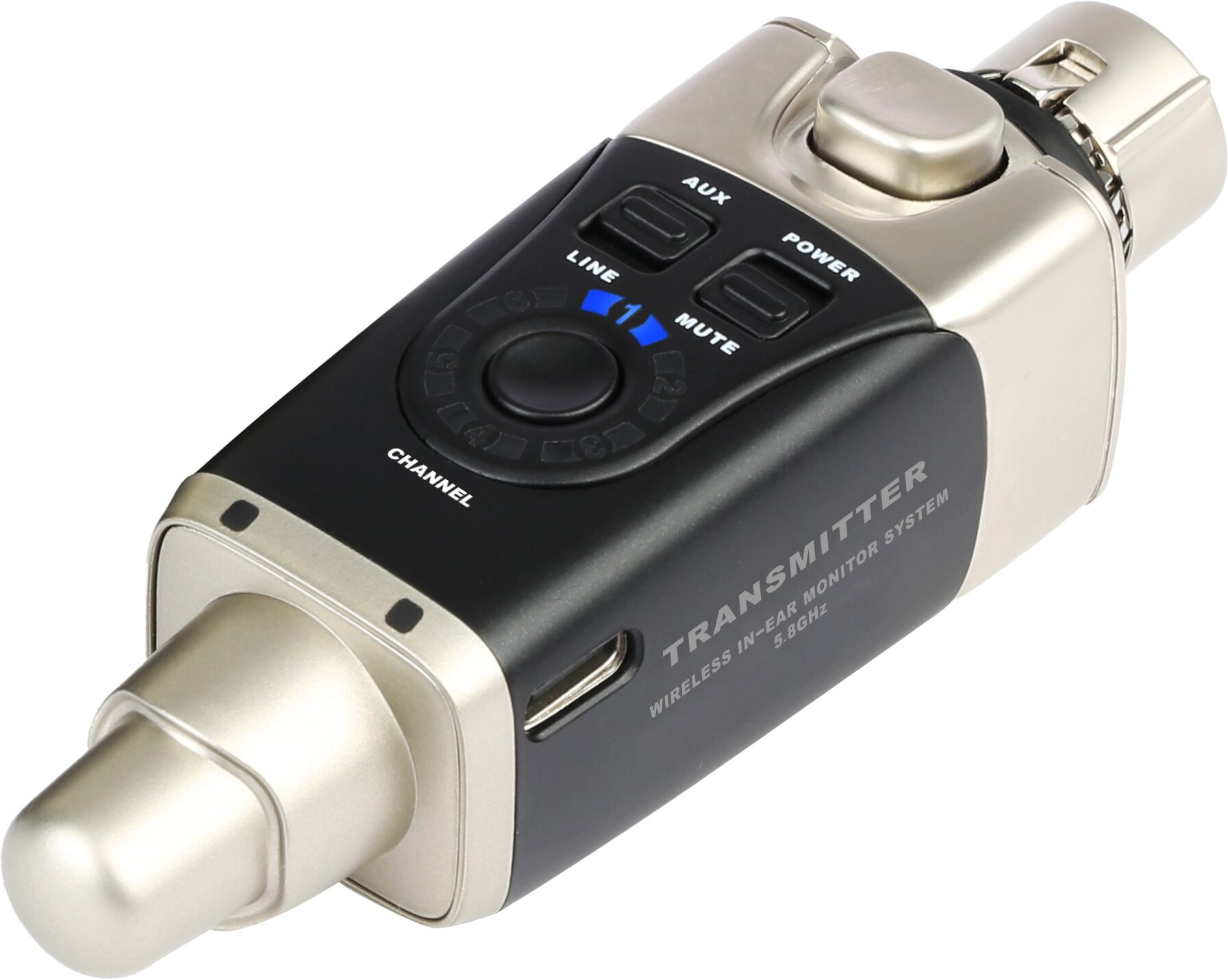

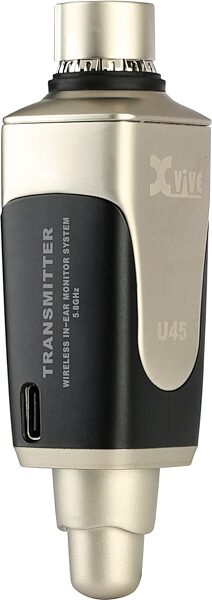

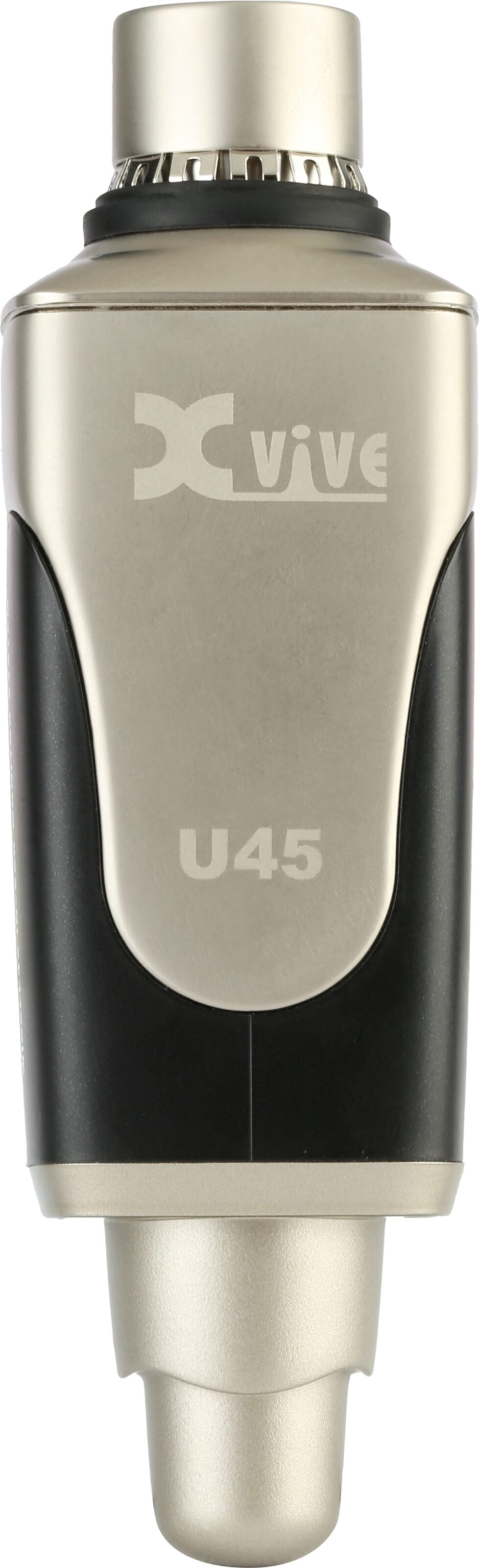

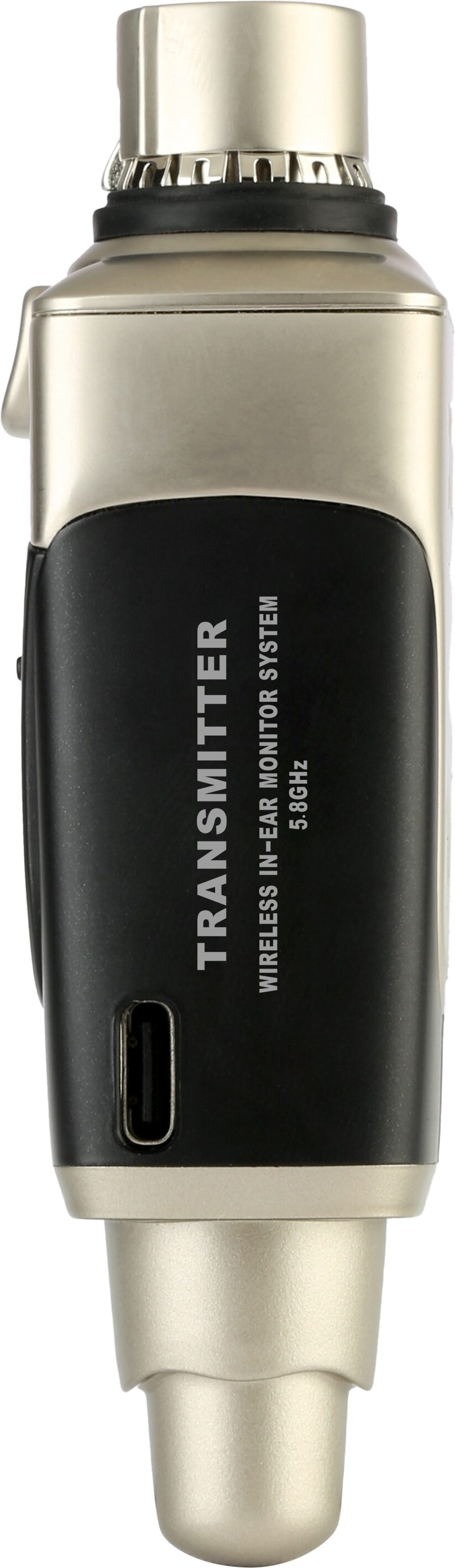

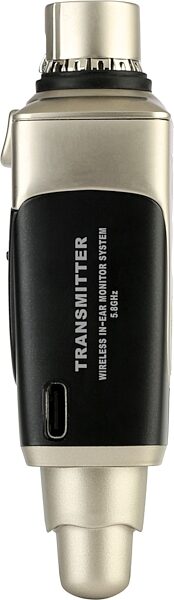

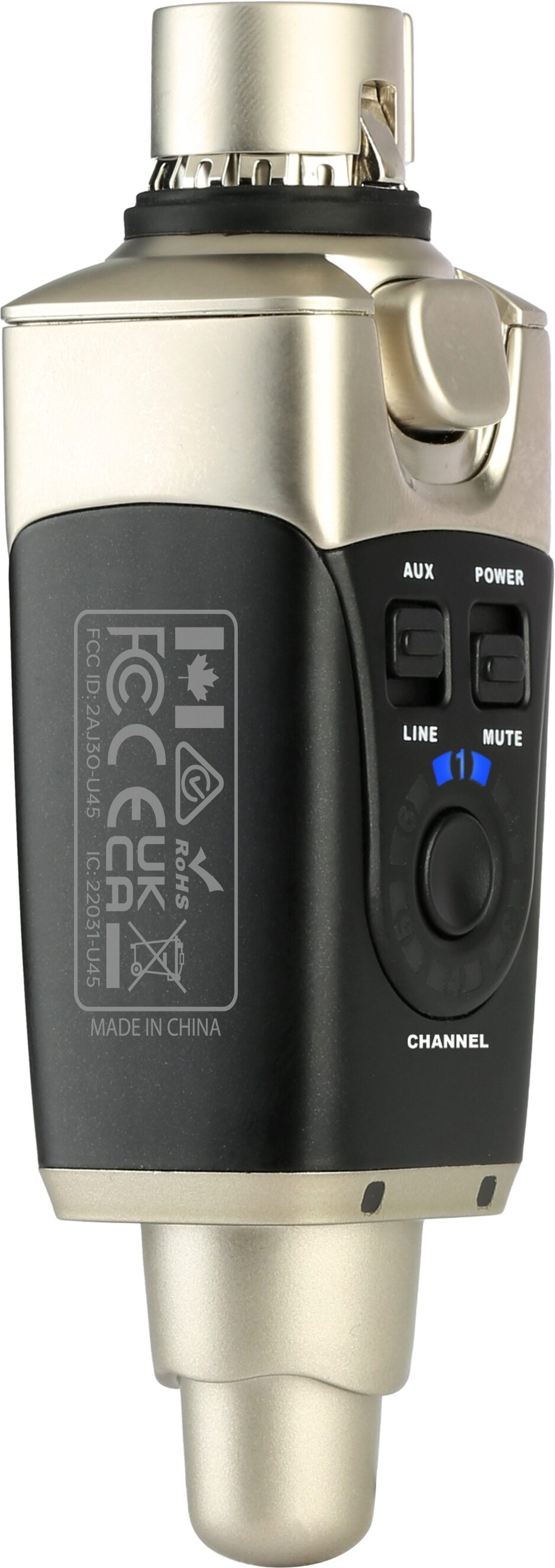

Xvive U45T 5.8GHz Wireless In-Ear Monitor System Transmitter

zZounds Gear Experts Say...

Build your 5.8 GHz wireless IEM system! Every Xvive U45T transmitter you add to your setup lets you send another personalized monitor mix to U45R receivers.

Overview

The Xvive U45 Transmitter for In-Ear Monitor Wireless System is a compact, reliable solution for musicians and performers needing high-quality wireless audio. Operating in the 5.8GHz band, it offers clear, interference-free transmission over long distances. The lightweight transmitter and receiver feature low latency, making it ideal for live performances, rehearsals, and wireless instrument monitoring. With excellent sound clarity and a wide frequency range, it suits both professional and hobbyist setups.

The U45 Transmitter for the In-Ear Monitor Wireless System delivers great-sounding audio to your favorite in-ear monitors or headphones. Enhance your stage performance by freeing yourself from the tangles and limitations of cables! The U45's plug-and-play design makes it incredibly portable and easy to use. The U45's top-quality components and durable metal chassis ensure reliable wireless performance at every show or session.

Features:

- One Xvive U45 Transmitter
- Best Applications: private rehearsal, live performance, recording, public speaking, videography and more
- 5.8 GHz True Diversity system
- Automatically scans the available wireless channels and selects the best one
- High-quality, ultra-compact wireless system for in-ear monitors
- Audiophile 24-bit / 48 kHz sound with less than 5 ms of latency
- Up to 6 U45 systems can be used in one area simultaneously
- Solid RF connection over a 100-foot range (actual range depends on RF signal absorption, reflection… read more and interference)
- Up to 110 dB signal-to-noise ratio provides clear, detailed audio at any volume
- Broad 20 Hz - 20 kHz frequency response
- Dynamic range of 110 dB
- 6 wireless channels
- 5 hours of battery life
- Provides smooth frequency response with any in-ear monitors or headphones
- Mono balanced XLR or mono unbalanced TS input
- Aux or Line Input Mode
- Scans for wireless status and selects the best channel

Specs

U45 Wireless In-Ear Monitor System
Tuning Bandwidth: 5.8 GHz
Working Range: Up to 100 ft actual range; depends on RF signal absorption, reflection and interference
Frequency Response: 20 Hz - 20 KHz (-3 dB)
Dynamic Range: 110 dB
Signal-to-Noise Ratio: 110 dB
RF Sensitivity: -88 dBm
Total Harmonic Distortion: 0.20%
RF Output Power: 25 mW E.I.R.P. max
Operating Temperature Range: 0*C to 45*C (battery characteristics may limit this range)
Channel Count: Six (up to 6 sets can be used in one area simultaneously)
Latency: Less Than 5 ms
High-Resolution Audio: 24-bit / 48 kHz
U45 Transmitter
Dimensions: 30 x 28 x 100 mm
Weight: 90 g
Housing: Molded Plastic and Cast Metal
Battery: 3.7V rechargeable Li-ion, 860 mAh
Impedance: Input: 220Ohm (1 KHz\0xFF09

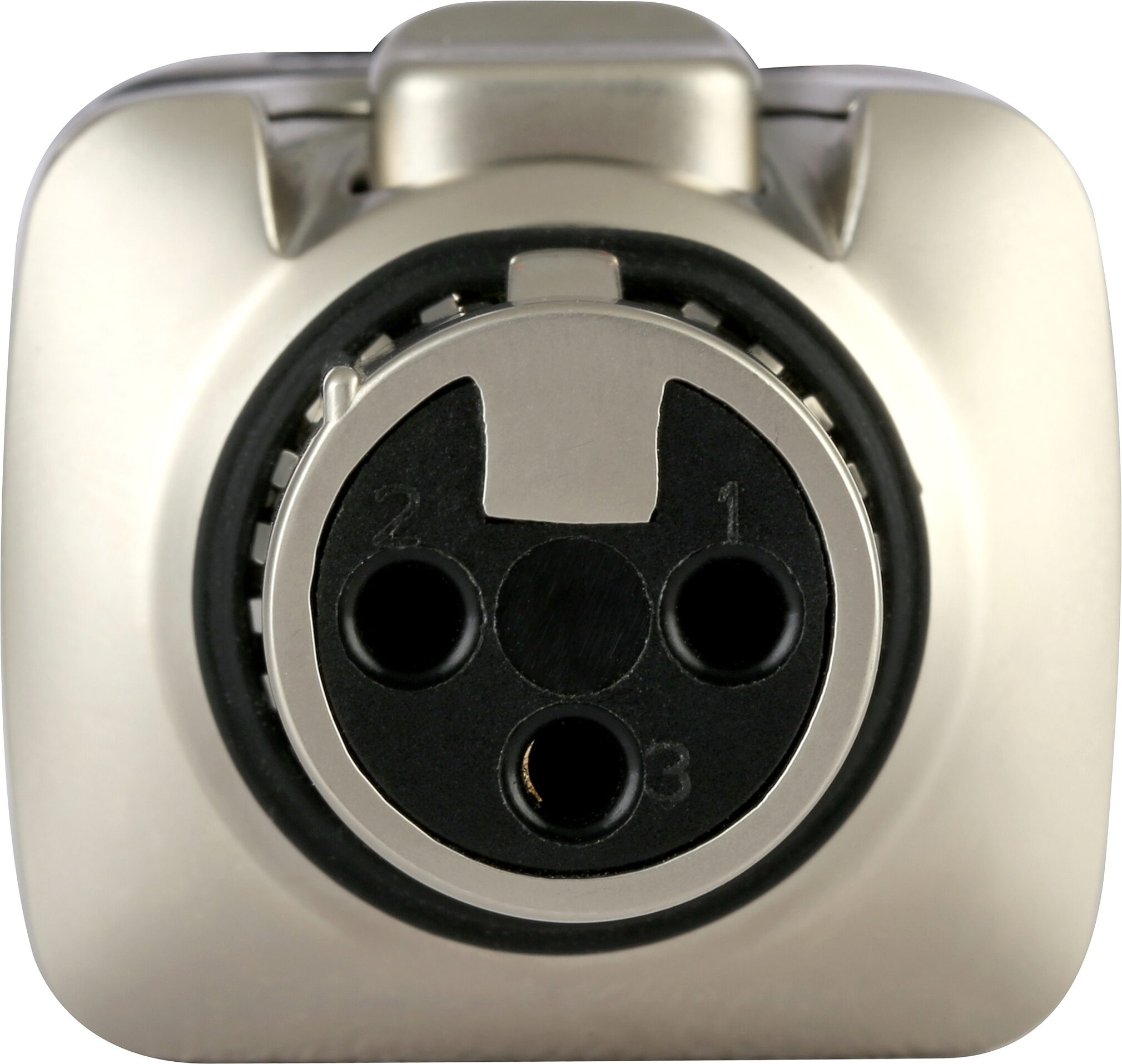

Audio Input Connector: Balanced XLR Male Input
Mode:
- Aux mode: -10 dBV | Max. +12.2 dBu
- Line mode: +4 dBu | Max. +22 dBu
Battery Life: Up to 5 hours
Antenna Impedance: 50Ohm
Antenna Type: 1/4 wave sleeve dipole, non-removable
Number of Antennas: 1

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.49 lbs; Shipping Dimensions: 18 x 16 x 10 in; Manufacturer Part Number (MPN): U45T

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
