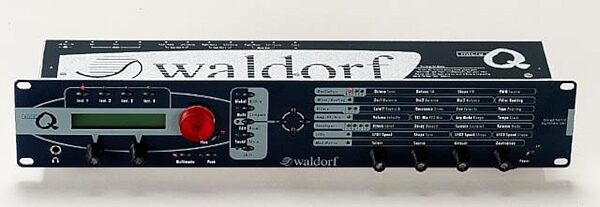

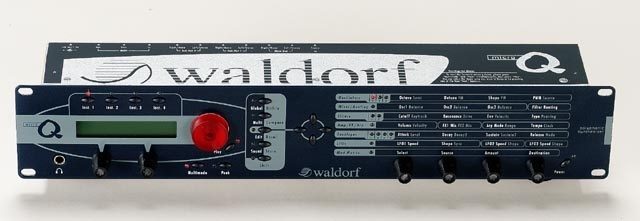

Waldorf MicroQ Lite Synth Module

Boost your music with up to 5 tasty oscillators, distinctive filters, unheared modulations and a sound you won't believe the price you'll get it for. 12 voices made of virtual analog waveforms or wavetables. ringmodulated, FM-ed or enriched with a pinch of Noise the sound gets processed by 2 independent, mixdown filling filters with 10 different filter types and slopes in well known Waldorf quality. You will be astonished about the sound you can get for this money.

Of course, the microQ lite can be upgraded to the full-blown [ microQ Rack ] and then also be equiped with the voice expansion.

Features:
12 voices upgradable to the full version of microQ

16 part multi-timbral

300 single programs

100 multi programs

20 drum maps

6 endless dials

16 buttons for editing

2 x 20 character display

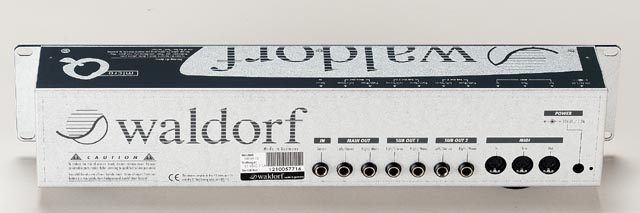

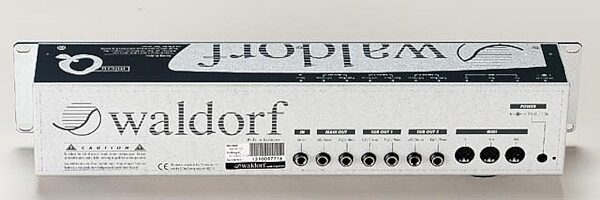

6 analog outputs (3 stereo outs)

2 analog inputs (1 stereo in)

MIDI In/Out/Thru

Color: classic blue

Per voice:
Up to 5 Oscillators per voice

Pulse with Pulse Width Modulation

Sawtooth

Triangle

Sine

2 wavetables with 128 waves each and suboscillator per alt-wave

Oscillator FM

Noise generator

Ring Modulator

Mixer with Balance, each signal source (oscillator, noise, ringmod, external audio material) can be balanced individually between filter 1 and filter 2

2 Filters (serial and parallel routing switchable), different types, all including FM and distortion:
Low Pass (12dB/24dB)
Band Pass (12dB/24dB)
High Pass (12dB/24dB)
Notch (12dB/24dB)
Comb Filter… read more (positive/negative feedback)

Modulation Matrix with 16 slots, freely routable

Pre-routed Modulation destinations, sources selectable

Modulation update frequency in audio range to allow the oscillators to be used as modulation sources

4 Modifiers

Arpeggiator with user pattern, including accents, timing information, swing, glide, chords and more

3 LFOs up to audio range

4 envelopes, enhanced ADSR configuration with loop and one shot function, bipolar

Different trigger modes for each envelope, poly, mono, dual, unisono, manual trigger etc.

2 individual high-quality effects per single program, up to 5 effects in total in Multimode

Effect Types:
Chorus
Flanger
Phaser
Distortion
Delay
5 FX
Vocoder with 25 bands
And lots lots more... read less
