TV Jones Power'Tron Guitar Pickup
No longer available at zZounds
zZounds Gear Experts Say...
If you like the twangy-yet-beefy tones of TV Jones Classics, yet need more output and midrange, check out the Power'Trons -- like a '50s PAF with more zing.
Overview
The TV Jones Power'Tron Guitar Pickup blends twang, fatness, sparkle and warmth.
The Power’Tron was born out of our desire to create a pickup with a stronger midrange presence and higher output than the TV Jones Classic. Wound with as much wire as a PAF-style humbucker.
- Bridge: Single treble notes are reproduced with a fuller tone, while bass notes twang out deep and clear. Overall, the tone is remarkably close t a 1950's PAF Humbucker, but blended with the zing and twang of a Filter'Tron – narrower bobbin aperture (than a humbucker) produces tighter bass, and more clarity.
- Neck: Standard bobbins over-wound with standard-gauge magnet wire. The resulting tone is slightly darker and hotter than a TV Classic. Like if a Gibson-style PAF Humbucker and a TV Classic had some kind of sonic love-child.
- Tone/Characteristic: A rounder top -end, and natural mid-range presence. Dynamic and boisterous when you dig in. Clean, compressed treble. Good string to string separation.
The Power’Tron was born out of our desire to create a pickup with a stronger midrange presence and higher output than the TV Jones Classic. Wound with as much wire as a PAF-style humbucker.
Features:
- Dual Coil Humbucking Filter'Tron- Bridge: Single treble notes are reproduced with a fuller tone, while bass notes twang out deep and clear. Overall, the tone is remarkably close t a 1950's PAF Humbucker, but blended with the zing and twang of a Filter'Tron – narrower bobbin aperture (than a humbucker) produces tighter bass, and more clarity.
- Neck: Standard bobbins over-wound with standard-gauge magnet wire. The resulting tone is slightly darker and hotter than a TV Classic. Like if a Gibson-style PAF Humbucker and a TV Classic had some kind of sonic love-child.
- Tone/Characteristic: A rounder top -end, and natural mid-range presence. Dynamic and boisterous when you dig in. Clean, compressed treble. Good string to string separation.
Specs

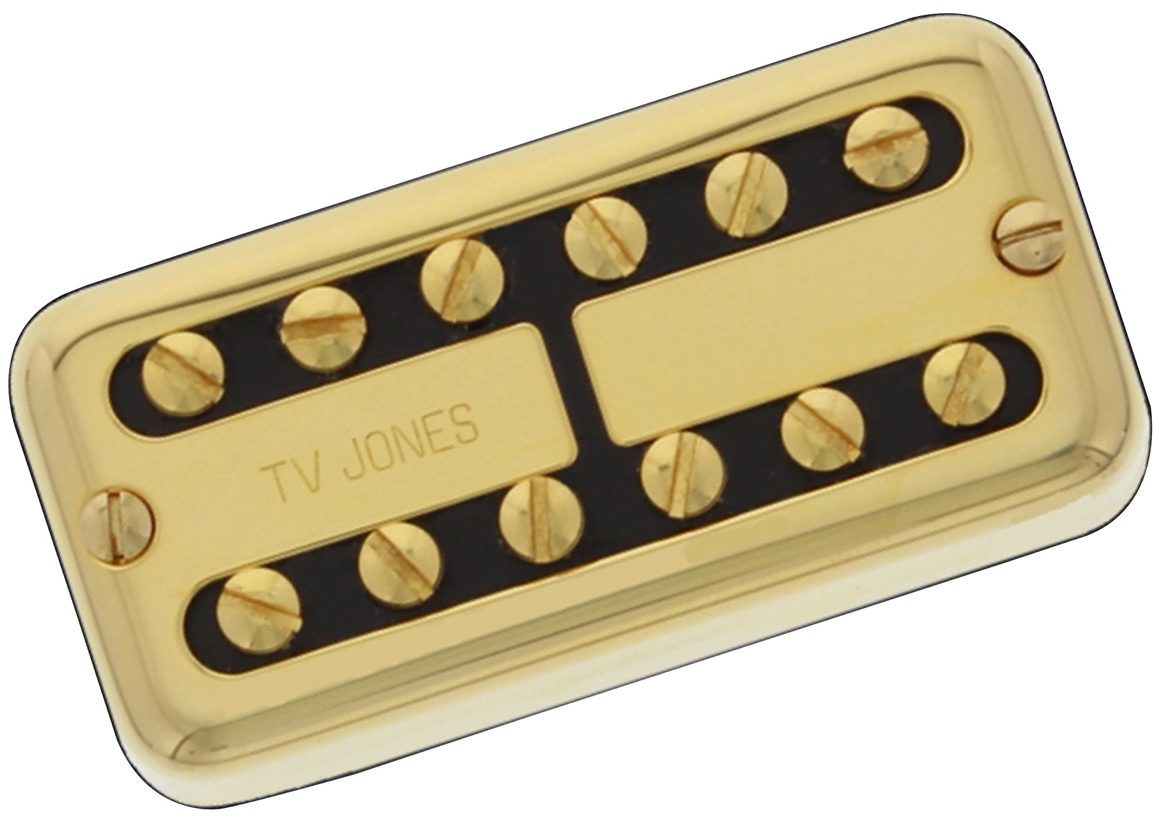

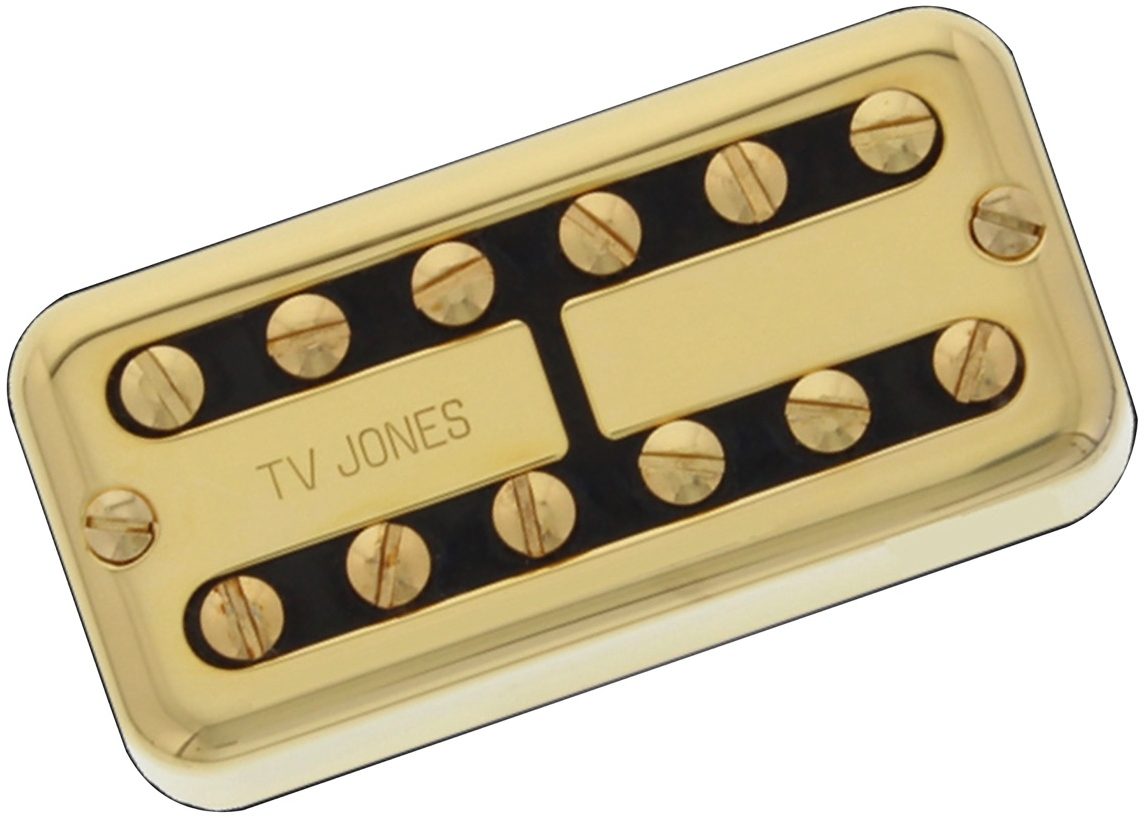

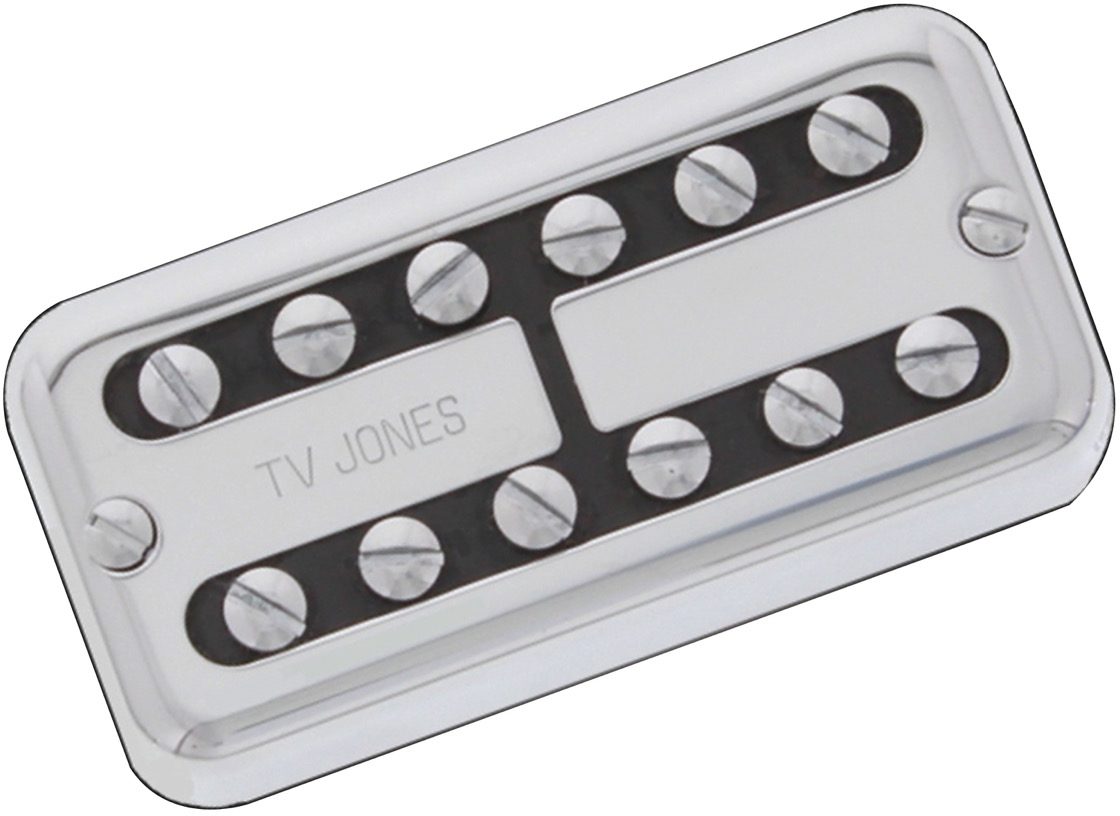

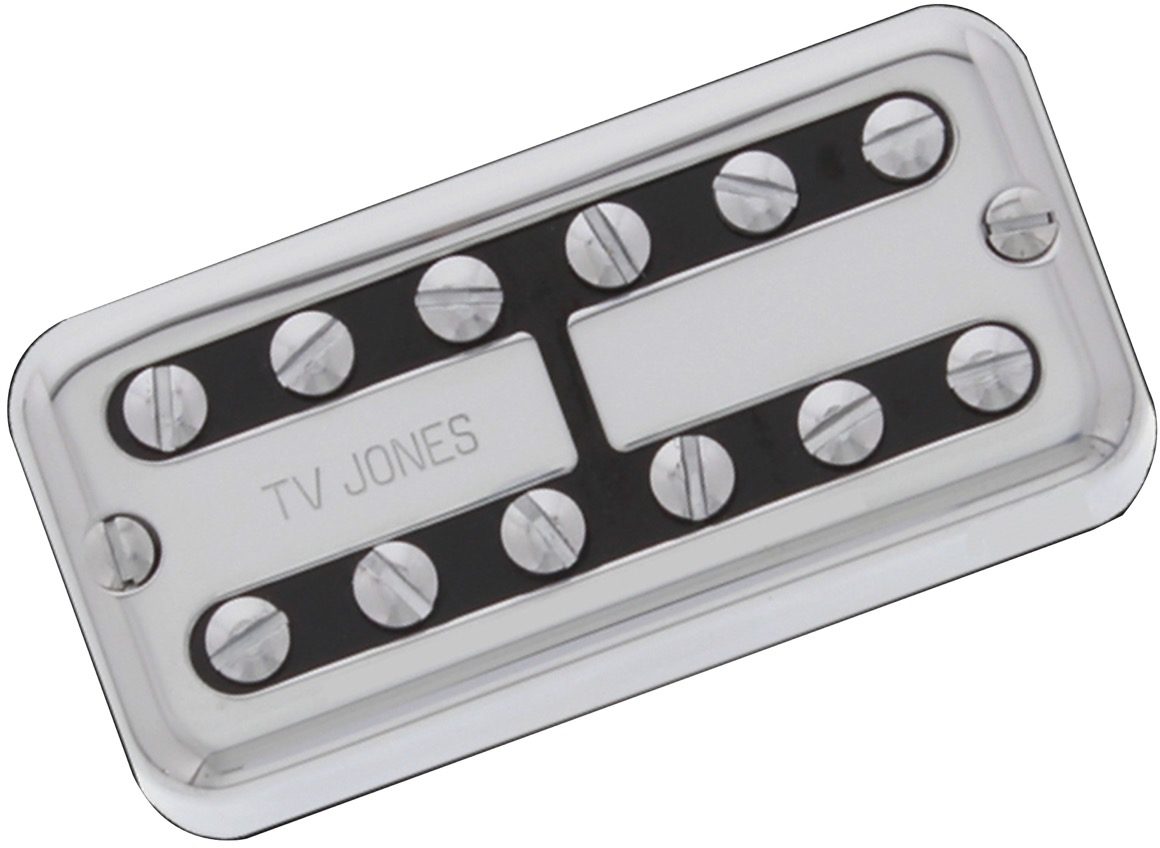

- Gold or Chrome Cover
- 4 Conductor Lead Wire
- Universal Mount Clip System (Gives the option of No Ears or English Mounting)
- Gold or Chrome Mounting Screws
- Bridge DC Resistance: 7.8K | Inductance: 4.75H
- Neck DC Resistance: 5.0K | Inductance:2.24H
Note: Shipped with 4 conductor wiring – ready for standard 2 conductor hook-up. Red and green wires are soldered and taped off for standard wiring - send red and green wires to ground for splitting coils. Also convenient for custom switching.
Example: where coils from other pickups are combined in series, or parallel.
- 4 Conductor Lead Wire
- Universal Mount Clip System (Gives the option of No Ears or English Mounting)
- Gold or Chrome Mounting Screws
- Bridge DC Resistance: 7.8K | Inductance: 4.75H
- Neck DC Resistance: 5.0K | Inductance:2.24H
Note: Shipped with 4 conductor wiring – ready for standard 2 conductor hook-up. Red and green wires are soldered and taped off for standard wiring - send red and green wires to ground for splitting coils. Also convenient for custom switching.
Example: where coils from other pickups are combined in series, or parallel.
