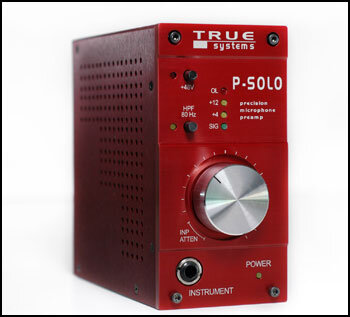

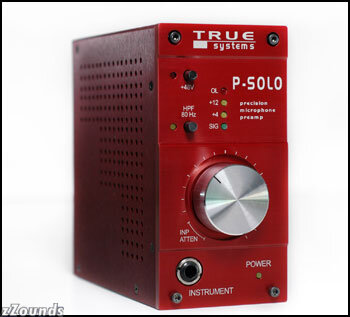

True Systems P-Solo Microphone Preamp

No longer available at zZounds

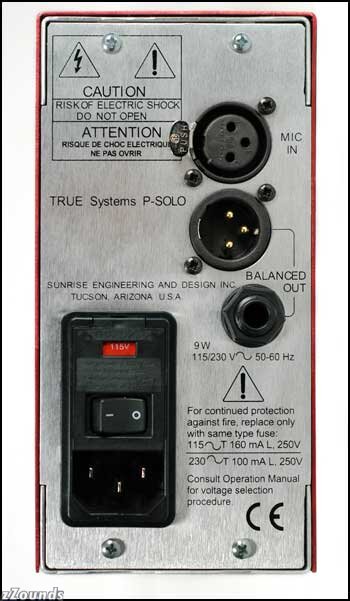

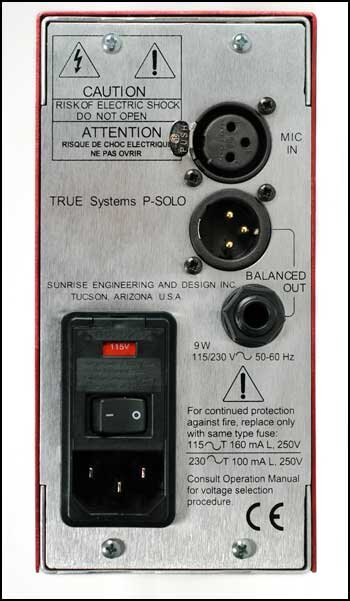

True Systems P-Solo Microphone Preamp, Rear

zZounds Gear Experts Say...

High Quality Mic Pre.

Overview

At the 119th AES Convention in NYC, TRUE Systems will introduce the P-SOLO, a single channel version of the acclaimed TRUE Systems family of microphone / instrument preamps. While sporting the same design and sound of the TRUE Systems Precision 8 and P2 Analog preamps, this new compact, single channel, desk-top version features:

Natural, musical, highly-detailed soundfield

Complete compatibility and superior results with any mics - condenser, dynamic, and ribbon

A totally balanced, dual servo, high dynamic range, transformerless design

Internal linear AC power supply for excellent transient response

High impedance instrument input

High-pass filter and 48v phantom power

Dual analog outputs

Four-level metering

Over-size volume control with selectable 10db input level attenuation

Compact, portable, solid desk-top case

Unlike many other mic preamps where the lower-cost versions come at a big cost to the sound, the P-SOLO is, in every regard, a TRUE Systems microphone preamp, offering the "high-end mic pre" quality at an affordable, entry-level price.

Specs

Gain (microphone): . +16 to +64 dB. Gain is +6dB with Input Attenuation activated.

Gain (direct input): -4 to +44 dB. Gain is -14dB with Input Attenuation activated.

Frequency Response (gain=40 dB): 1. 5 Hz to 500 kHz (+0/-3 dB)

Maximum Output Level: +31 dBu

Maximum Input Level: +25 dBu

Input Impedance (microphone): 5. 5 kOhms

Input Impedance (direct input): 2 Mohms

Noise (Rs=0 Ohms): -132 dB e. i. n.

Slew Rate: > 40 V/uS

CMRR (CMV=+10 dBu): 85 dB

THD (+26 dBu, 100 kOhm): 0. 0008%

Power Requirements: 115/230VAC, 50/60 Hz, 7 Watts

Knob extension: 0. 6 in. (15. 3 mm)

Weight: 5 lbs. (2. 3 kg)

Dimensions:

W=3. 0 in. (76. 2 mm)

D = 6. 0 in. (153 mm)

H = 6. 0 in. (253 mm)
