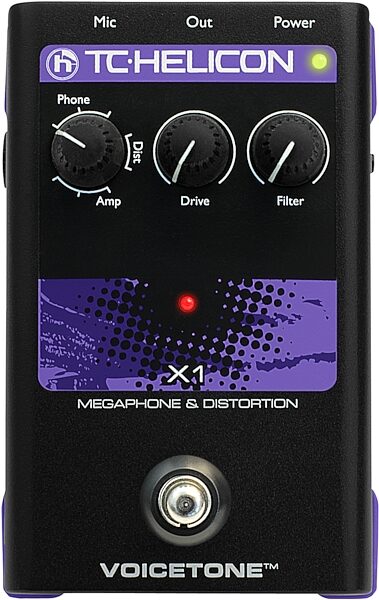

TC-Helicon VoiceTone X1 Megaphone and Distortion Vocal Effects Pedal

- Construction: Two part dies cast metal, Rubberized base
- Analog Inputs:
- Connectors, balanced Mic: XLR
- Mic Input Level @ 0 dBFS: -42dBu to +1dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
- Mic input SNR: >104 dB
- Output Impedance, Bal./Unbalanced: 200/100 Ohm
- Output Full Scale: +1 dBu
- Dynamic Range: >104 dB, 20 Hz to 20 kHz
- Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
- Control: USB for firmware and control, Mic Control using TC-Helicon MP-75
- Power Supply (Supplied): 12V .4A
- Power Consumption: 5.6W
- Safety: EMC - Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B, Safety - certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
- Operating Temperature: 32 to 122 degrees F (0 to 50 degrees C)
- Storage Temperature: -22 to 167 degrees F (-30 to 70 degrees C)
- Humidity: Max. 90 % non-condensing
- Included with VoiceTone X1:
- Region specific power supply
- USB cable
- User guide
- 1 year warranty parts and labor
- Dimensions (H x W x D): 5.4 x 3.5 x 2.3 in. (140 x 90 x 60 mm)
- Weight: 0.92 lb. (0.42 kg)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.5 lbs
Shipping Dimensions: 7 x 6 x 3 in
Manufacturer Part Number (MPN): 000-DE402-00010
(3 ratings)
Submitted October 6, 2011 by a customer from gmail.com
"you better know what you're doing with this pedals.... read the instructions and you'll be fine, but without them you're gonna s"
Verified Customer zZounds has verified that this reviewer made a purchase from us.
i'm not crazily exited about it... but i gotta play with it a few more days to figure out what sound i like, how to blend it with the band without my vocals not disappearing, how to avoid crazy feedback, and learn my setting for different kinds of stages and venues...
Sound
you can get great sounds with it, as long as you know what you're doing it... im still learning it...
Ease of Use
not so much... you gotta nail the settings between the mic input the effect volume and the feedback of the effect so when it's off people will hear you and when it's on you don't blow them away with your loudness... still learning it tho...
Quality
it looks bullet proof... sturdy, the bottom has this anti slide plastic... so you don't need to Velcro it to your pedal board...
Value
not that cheap tho... 130 bucks i paid...
The Wow Factor
as i am not the mains singer... but the bass player... i guess i could have waited on it
Musical Background:
active musician
Musical Style:
Rock/heavy/punk/power
6 of 6 people (100%) people found this review helpful. Did you?
