TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

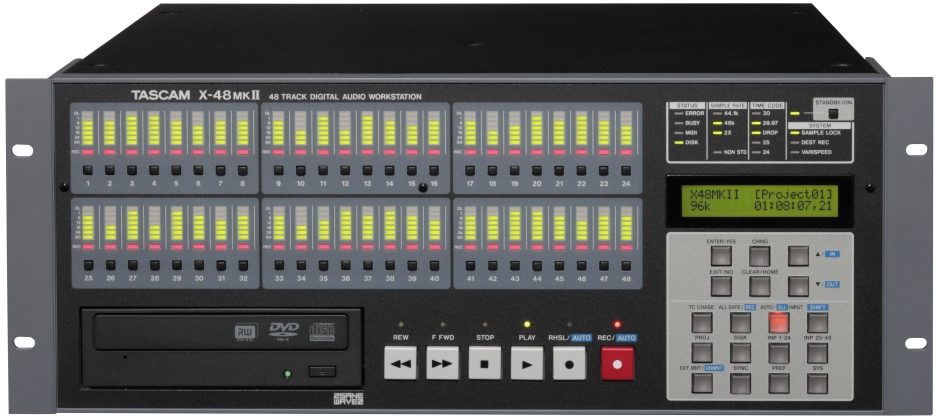

TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Main

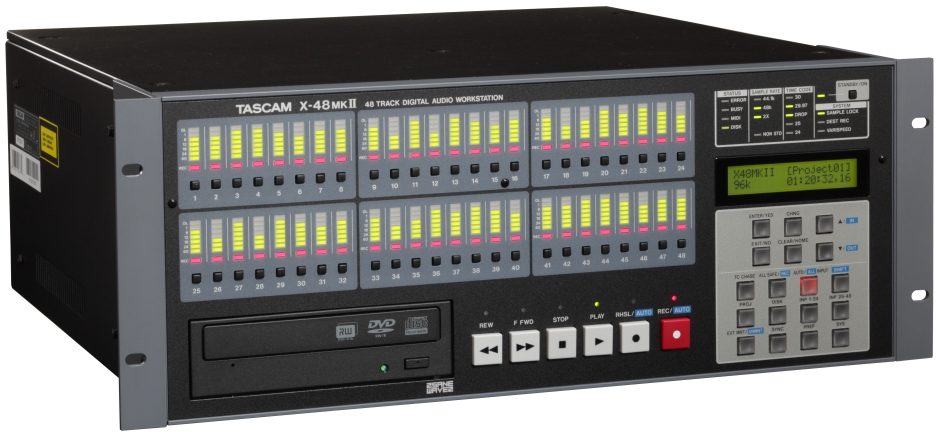

TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Left

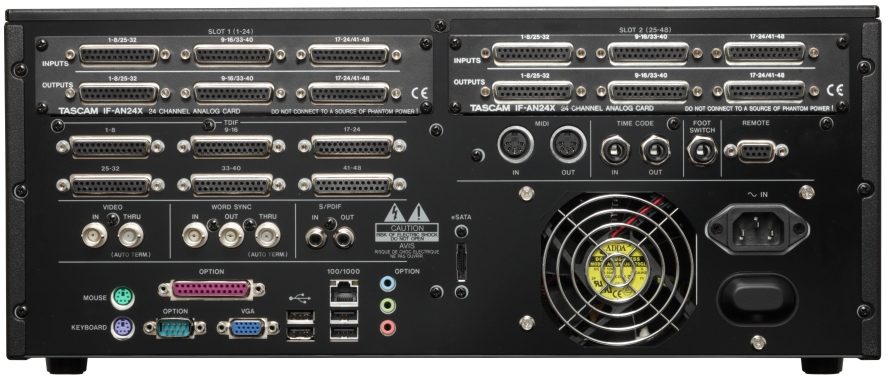

TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Rear

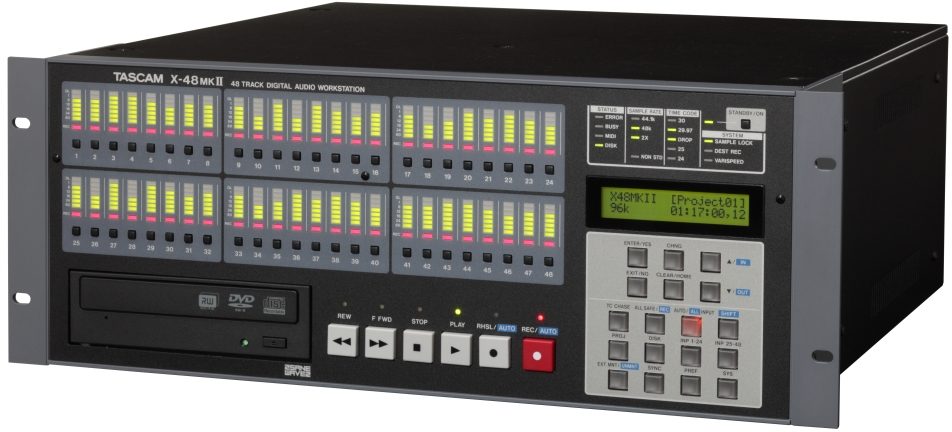

TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Right
TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Main TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Left TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Rear TASCAM X-48MKII Hybrid Disk Workstation Recorder, 48-Track, Right

TASCAM's new X-48mkII is the new and improved version of the original X-48, world's first standalone 48-track Hybrid Hard Disk Workstation co-developed with SaneWave. The TASCAM X-48mkII continues to integrate the best of both worlds: the stability and ease-of-use of a purpose-built hard disk recorder, with the GUI, editing and mixing features of a computer-based digital audio workstation. The TASCAM X-48mkII goes beyond mere standalone recorders with a built-in, automated 48-channel digital mixer and powerful editing functions. Plug in a VGA monitor, mouse and keyboard for editing, track naming and monitor mixing making it the ultimate multi-track solution for premium quality music, post and live recording applications.

It boasts up to 96kHz/24-bit recording across all 48 tracks. Its file compatibility and synchronization surpass even the TEC Award-winning MX-2424, with native Broadcast WAVE audio file support and AAF export for compatibility with workstations like Pro Tools, Nuendo and Logic. Support for eSATA hard drives and Gigabit Ethernet allows simple transfer between systems, making it the ultimate multi-track solution for high-quality music, post and live recording applications.

Yet the TASCAM X-48mkII goes beyond mere standalone recorders -- its built-in, automated 48-channel digital mixer, VGA display output, powerful editing functions and DVD+RW backup drive transform it into a complete integrated workstation.

Live Recording

The portability of the X-48mkII… read more makes it a natural choice for live event and house of worship recording. Its dedicated design gives you extra reliability for those occasions when there aren't any second takes.

The optional IF-AN24X analog input card offers 24 high-quality balanced analog inputs, and you can use two cards for 48-track/96kHz recording. AES/EBU and ADAT digital I/O cards are also available, and both the analog and digital I/O can be used simultaneously for monitoring.

The rear panel contains a eSATA connection for connecting more hard drives for extra storage. Since the TASCAM X-48mkII records Broadcast WAVE files, these recordings can immediately be brought into your favorite DAW for editing and mixing, or you can complete the project "inside the box" with the mixer built into the TASCAM X-48mkII. It also offers 60-channel automated mixing with powerful processing features, allowing you to monitor the show without an external mixer, and/or output a stereo mix to a CD or DVD recorder like our DV-RA1000HD.

Music Tracking

Working with the X-48mkII gives you the feel of recording to a purpose-built recorder, instead of an adapted computer workstation, for solid, reliable performance. With all of its synchronization and control options - like 9-pin control, MIDI control and SMPTE sync - it easily integrates with the rest of the equipment in your studio. When you just want to capture the music, not get bogged down in editing and setup, the X-48mkII helps you keep the session moving quickly to keep your artists creative.

The TASCAM X-48mkII handles 48 tracks of simultaneous 96kHz recording and it keeps up with every punch-in, no matter how fast. Its great-sounding analog converters and inexpensive DVD backup media make it the perfect replacement for aging 24-track recorders. You can record to its built-in 1TB hard drive or to eSATA drives for removable storage.

Once you've captured the performance, you can assemble the perfect take using its built-in editing interface. Just plug in a mouse, keyboard and VGA monitor to start editing, looping, or crossfading between takes. If you prefer working in another format, export your session as an AAF file to a workstation like Pro Tools. Audio tracks on the TASCAM X-48mkII are also recorded as standard time-stamped Broadcast WAVE files that can be imported into any workstation software, and you can even work in "tape mode" which creates one audio file per track to make file management between systems easy.

Live Presentation Playback

The TASCAM X-48mkII excels as a playback machine for theater, live performance and presentation applications. read less

• Media and Formats:
• Recording media: 1TB internal hard drive
• File system: NTFS
• File format : BWF (Broadcast Wave Format)
• Number of channels: 48 channels (44.1/48/88.2/96 kHz)
• Quantization rate: 16 bit, 24 bit, 32-bit floating point
• Sampling frequencies: 42.336k (44.1k x 24/25), 44.056k (44.1k-), 44.1k, 44.144k (44.1k+), 45.938k (44.1k x 25/24), 46.080k (48k x 24/25), 47.952k (48k-), 48k, 48.048k (48k+), 50k (48k x 25/24), 84.672k (88.2k x 24/25), 88.112k (88.2k?), 88.2k, 88.288k (88.2k+), 91.875k (88.2k x 25/24), 92.160k (96k x 24/25), 95.904k (96k-), 96k, 96.096k (96k+), 100k (96k . 25/24) Hz
• Note: + is 0.1% pull up, - is 0.1% pull down
• Clock references: Internal, Word in, Digital slot 1/2, SPDIF IN, TDIF Port 1
• Timecode frame: 23.976NDF, 24NDF, 24.975NDF, 25NDF, 29.97DF, 29.97NDF, 30DF, 30NDF
• Digital audio input/output:
• TDIF connector (x6):
• Connector: DB25 (Female) connector (mm screws)
• Format: Conforms to TDIF-1 standards
• Word length: 24 bit
• S/PDIF IN/OUT Connector:
• Connector: RCA connector
• Format : Conforms to TDIF-1 standards
• Control input/output:
• TIME CODE IN:
• Connector: 6.3 mm (1/4 in.) TRS standard jack (Tip: HOT, Ring: COLD, Sleeve: GND)
• Format: Conforms to SMPTE standards
• TIME CODE OUT:
• Connector : 6.3 mm (1/4 in.) TRS standard jack (Tip: HOT, Ring: COLD, Sleeve: GND)
• Format: Conforms to SMPTE standards
• WORD SYNC IN connector: BNC (Unbalanced), TTL level, 75 ohms termination (auto on/off selection)
• WORD SYNC OUT connector: BNC (Unbalanced), TTL level, 75ohms
• WORD SYNC THRU connector: BNC (Unbalanced), TTL level, 75 ohms
• MIDI IN:
• Connector: DIN 5 pin
• Format: Standard MIDI format
• MIDI OUT:
• Connector: DIN 5 pin
• Format: Standard MIDI format
• REMOTE connector: DE9 (Female, mm screws), Conforms to RS-422, Sony 9-pin serial protocol (P2)
• FOOT SW connector: 6.3 mm (1/4 in.) TS standard jack (Tip: HOT, Sleeve: GND)
• eSATA:
• Connector: eSATA (External Serial ATA) 7 pin (Female)
• Format: SATA2, 3Gb/s
• USB port (x4):
• Connector: A type, 4 pin
• Protocol: USB 2.0 HIGH speed (480 Mbps)
• 100/1000 connector: RJ45 LAN connector (100BASE-TX/1000BASE-TX Ethernet)
• VGA connector: Connector: DE15 (Female) VGA connector (inch screws)
• KEYBOARD connector: Mini DIN connector (PS/2)
• MOUSE connector: Mini DIN connector (PS/2)
• General:
• Power: AC100-240V, 50-60Hz
• Power Consumption: 49 watts
• Dimentions (W x H x D) : 19.02 x 7.24 x 17.28 in. (483 x 184 x 439 mm)
• Weight: 30.2 lbs. (13.7kg)
• Operating temperature: 41 - 95°F (5 - 35°C)
