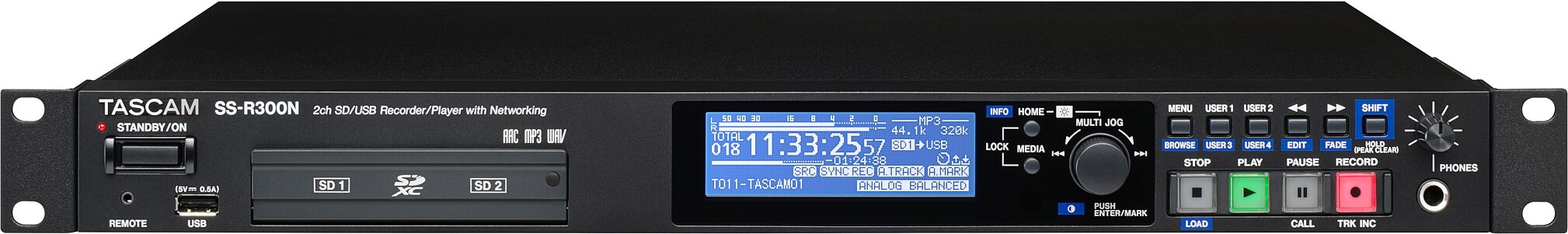

TASCAM SS-R300N Solid-State SD Audio Recorder

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for TASCAM SS-R300N Solid-State SD Audio Recorder, New, Main
open zoom image for TASCAM SS-R300N Solid-State SD Audio Recorder, New, main
open zoom image for TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back
open zoom image for TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back
open zoom image for TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back
TASCAM SS-R300N Solid-State SD Audio Recorder, New, Main TASCAM SS-R300N Solid-State SD Audio Recorder, New, main TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back TASCAM SS-R300N Solid-State SD Audio Recorder, New, Action Position Back
zZounds Gear Experts Say...
TASCAM's SS-R300N gives you rock-solid recording/playback on SD cards or USB sticks, with an Ethernet port for upload/download of audio files over a network.

The TASCAM SS-R300N solid-state SD audio recorder is a network-enabled recorder/player and the successor to the SS-R250N, combining the high reliability and flexibility required for professional applications. While inheriting and enhancing the wide range of recording and playback functions of the previous model, it further strengthens network operability and system integration through features such as secure file transfer and OSC support. The SS-R300N is suitable for a wide variety of professional audio systems, including those used in commercial and public facilities, halls and theaters, broadcast installations, and conference systems.

Supports High-Resolution Recording and Playback

Supports high-resolution recording and playback up to 96kHz/24-bit using SD cards and USB flash drives. Compatible with SDXC cards and USB flash drives up to 512GB, enabling flexible media operation for applications such as long-duration recording and playback of large-capacity content.

Efficient and Secure File Management Over a Network

Equipped with a LAN port, the SS-R300N supports uploading and downloading of recording and playback files via FTPS client and SFTP server/client functions. Files can be transferred securely and directly between the unit and a server, enabling efficient file management without removing the SD card. It also supports an auto-upload function that automatically transfers recorded data to a designated server.

Supports Diverse External Control Options and Seamless System Integration

… read more The SS-R300N is equipped with multiple external control interfaces, including Ethernet (RJ-45), RS-232C serial (D-sub 9-pin), and parallel (D-sub 25-pin) connections. It also supports the Open Sound Control (OSC) protocol which enables seamless integration with a wide range of devices, including DAWs, lighting systems, and video systems. In addition, compatibility with the previous SS-R250N and SS-CDR250N models is maintained, allowing smooth system upgrades while preserving existing media assets and operating environments.

Comprehensive I/O Connectivity for Professional Audio Systems

The SS-R300N is equipped with XLR balanced and RCA unbalanced analog I/O, as well as AES/EBU and S/PDIF digital I/O. It can be connected to a wide range of professional audio equipment, including mixers. Using the appropriate audio format, the SS-R300N allows for flexible integration into existing sound systems.

Seamless Integration into Dante-Enabled Systems

By installing the optional IF-DA2 interface card, the SS-R300N can be connected to Dante networked audio systems. It can be easily integrated into existing Dante environments, enabling flexible system design and deployment through the use of networked audio.

Offline Editing of Playlists and Timer Event Lists

With the dedicated TASCAM Playlist Editor software, playlists and timer event lists can be created and edited on a computer. The software also supports conversion of MP3 and AAC files to WAV format, as well as sample rate and bit depth conversion of WAV files, helping streamline content preparation and system setup before deployment.

Features:

- Supports high-resolution recording and playback up to 96kHz/24-bit (SD cards / USB flash drives)
- Upload/download of audio files over a network
- External control via Ethernet (RJ-45), serial (D-sub 9-pin), and parallel (D-sub 25-pin) interfaces
- Balanced analog I/O and AES/EBU digital I/O
- Dante compatibility (with optional IF-DA2 installed)
- Q-SYS plugin support
- Offline editing of playlists and event lists using TASCAM Playlist Editor
- CD playback via a compatible third-party external USB CD drive
- User-assignable functions for front-panel USER buttons
read less

Media Types:
SD card slot x 2, USB port x 1
Media Formats:
SD cards, SDHC cards, SDXC cards (up to 512GB), USB flash drives (up to 512GB)
Recording File Formats:
MP3: 44.1k / 48kHz, 64k / 128k / 192k / 256k / 320kbps; WAV: 44.1k / 48k / 96kHz, 16 / 24-bit
Playback File Formats:
CD-DA: 44.1kHz, 16-bit (when using an external CD drive); AAC: 44.1k / 48kHz, 32kbps to 320kbps, VBR (MPEG Extended HE-AAC (Audio stream), DRM not supported); MP3: 44.1k / 48kHz, 64k / 128k / 192k / 256k / 320kbps; WAV: 44.1k / 48k / 96kHz, 16 / 24-bit
Number of Channels:
2 channels (Stereo) / 1 channel (Monaural)
Analog Inputs (Unbalanced):
RCA pin jacks; nominal input level -10dBV; maximum input level +6dBV; input impedance 10 kohms or higher
Analog Inputs (Balanced):
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD); nominal input level +4dBu (Ref. Level: other than -9dBFS) / +6dBu (Ref. Level: -9dBFS); maximum input level (switchable) +15dBu (Ref. Level: -9dBFS) / +18dBu (Ref. Level: -14dBFS) / +20dBu (Ref. Level: -16dBFS) / +22dBu (Ref. Level: -18dBFS) / +24dBu (Ref. Level: -20dBFS); input impedance 10 kohms or higher
Analog Outputs (Unbalanced):
RCA pin jacks; nominal output level -10dBV; maximum output level +6dBV; output impedance 200 ohms
Analog Outputs (Balanced):
XLR-3-32 equivalent (1: GND, 2: HOT, 3: COLD); nominal output level +4dBu (Ref. Level: other than -9dBFS) / +6dBu (Ref. Level: -9dBFS); maximum output level (switchable) +15dBu (Ref. Level: -9dBFS) / +18dBu (Ref. Level: -14dBFS) / +20dBu (Ref. Level: -16dBFS) / +22dBu (Ref. Level: -18dBFS) / +24dBu (Ref. Level: -20dBFS); output impedance 100 ohms
Phones:
6.3mm (1/4") standard stereo jack; maximum output level 45mW + 45mW or higher (THD+N 0.1% or less, into 32 ohm loads)
Digital Input (AES/EBU):
XLR-3-31 equivalent; input impedance 110 ohms; format AES3-2003/IEC60958-4 (AES/EBU); sampling frequencies 44.1k / 48k / 96kHz (SRC ON: 32kHz to 192kHz)
Digital Input (S/PDIF):
RCA pin jack; format IEC60958-3; sampling frequencies 44.1k / 48k / 96kHz (SRC ON: 32kHz to 192kHz)
Digital Output (AES/EBU):
XLR-3-32 equivalent; output impedance 110 ohms; format AES3-2003/IEC60958-4 (AES/EBU); sampling frequencies 44.1k / 48k / 96kHz
Digital Output (S/PDIF):
RCA pin jack; format IEC60958-3
Remote:
2.5mm (3/32") TRS jack (for TASCAM RC-3F or RC-20, sold separately)
USB:
USB Type-A 4-pin; USB 2.0 High-Speed (480Mbps); host mode; power supply capacity DC 5V / 0.5A
CD Drive:
USB Type-C (compatible with screw locks); USB 2.0 High-Speed (480Mbps); host mode; power supply capacity DC 5V / 1.5A (USB Type-C Current 1.5A)
RS-232C:
D-sub 9-pin (female, inch-standard)
Parallel:
D-sub 25-pin (female, inch-standard); maximum input voltage +5.5V; high level minimum input voltage +2.31V; low level maximum input voltage +0.99V; output format open collector (10 ohm output impedance, 20V withstand voltage, 35mA maximum); low level maximum output voltage 0.5V (+5V power supply maximum supplied current 100mA)
Ethernet:
RJ45, 100BASE-TX
Supported Application Protocols:
Telnet, OSC (Open Sound Control), SNTP client, FTP server, FTP client, SFTP (SSH FTP) server, SFTP (SSH FTP) client, FTPS (FTP over SSL/TLS) client (Explicit mode, TLSv1.2/1.3)
Wireless Remote:
Infrared receiver for RC-10
Power:
AC 100-240V, 50/60Hz
Power Consumption:
29W (when using RC-SS150, IF-DA2)
Dimensions (W x H x D):
482.6 x 45 x 300.5mm (19 x 1.78 x 11.84 inches)
Weight:
3.1kg (6.84 lbs)
Operating Temperature:
5 to 35 degrees C
Operating Humidity:
25% to 85% RH (non-condensing at 32 degrees C)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 9.48 lbs
  • Shipping Dimensions: 22 x 17 x 6 in
  • Manufacturer Part Number (MPN): SS-R300N

For support or warranty questions, please contact the manufacturer:
Phone: 323-726-0303
Web: https://tascam.com/us/support/contact
