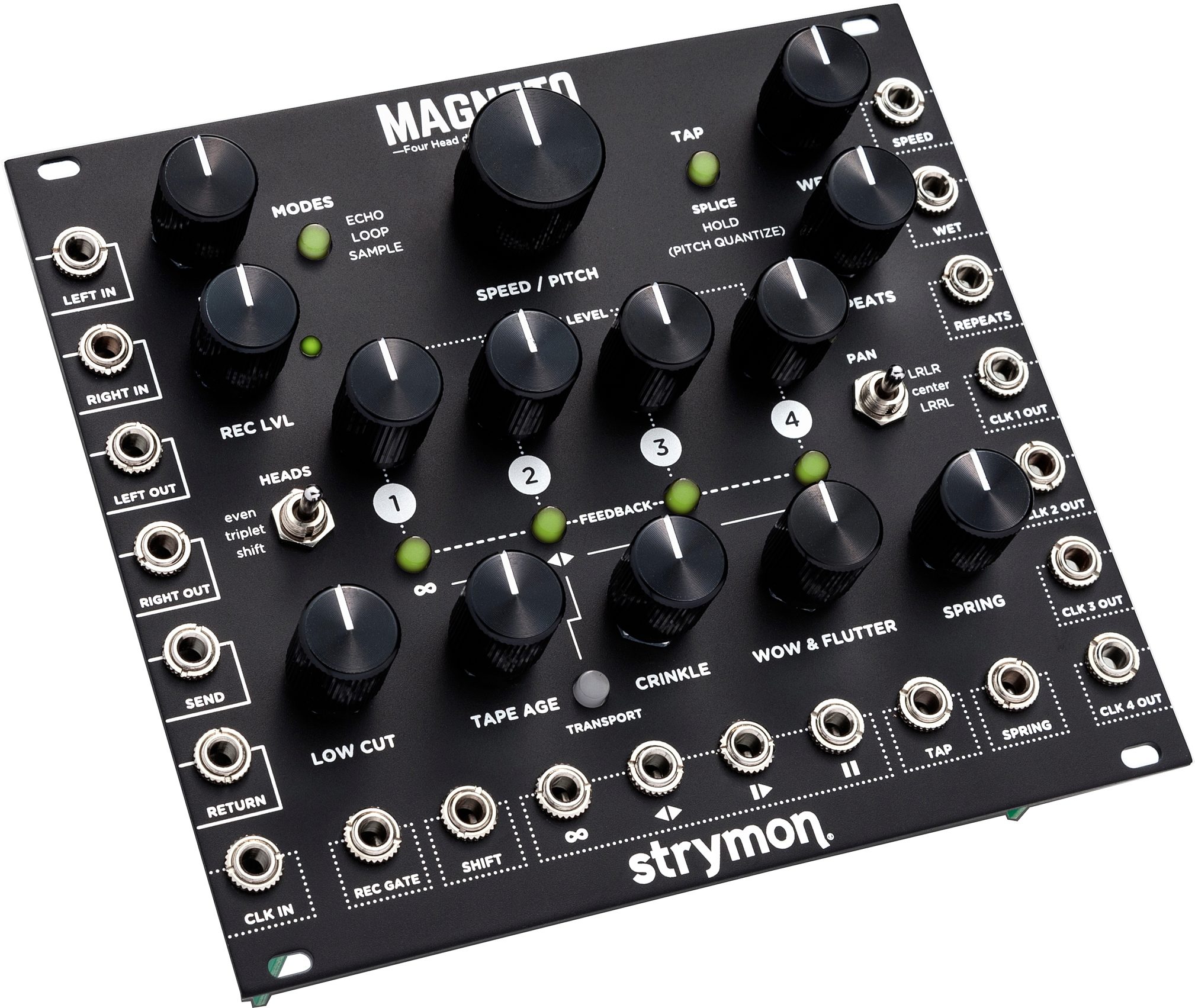

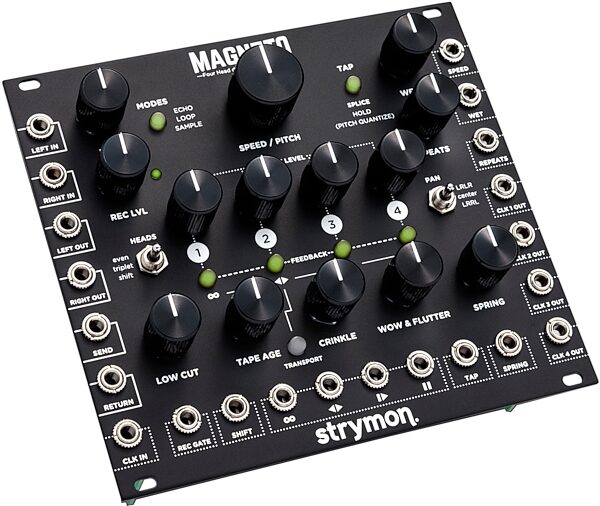

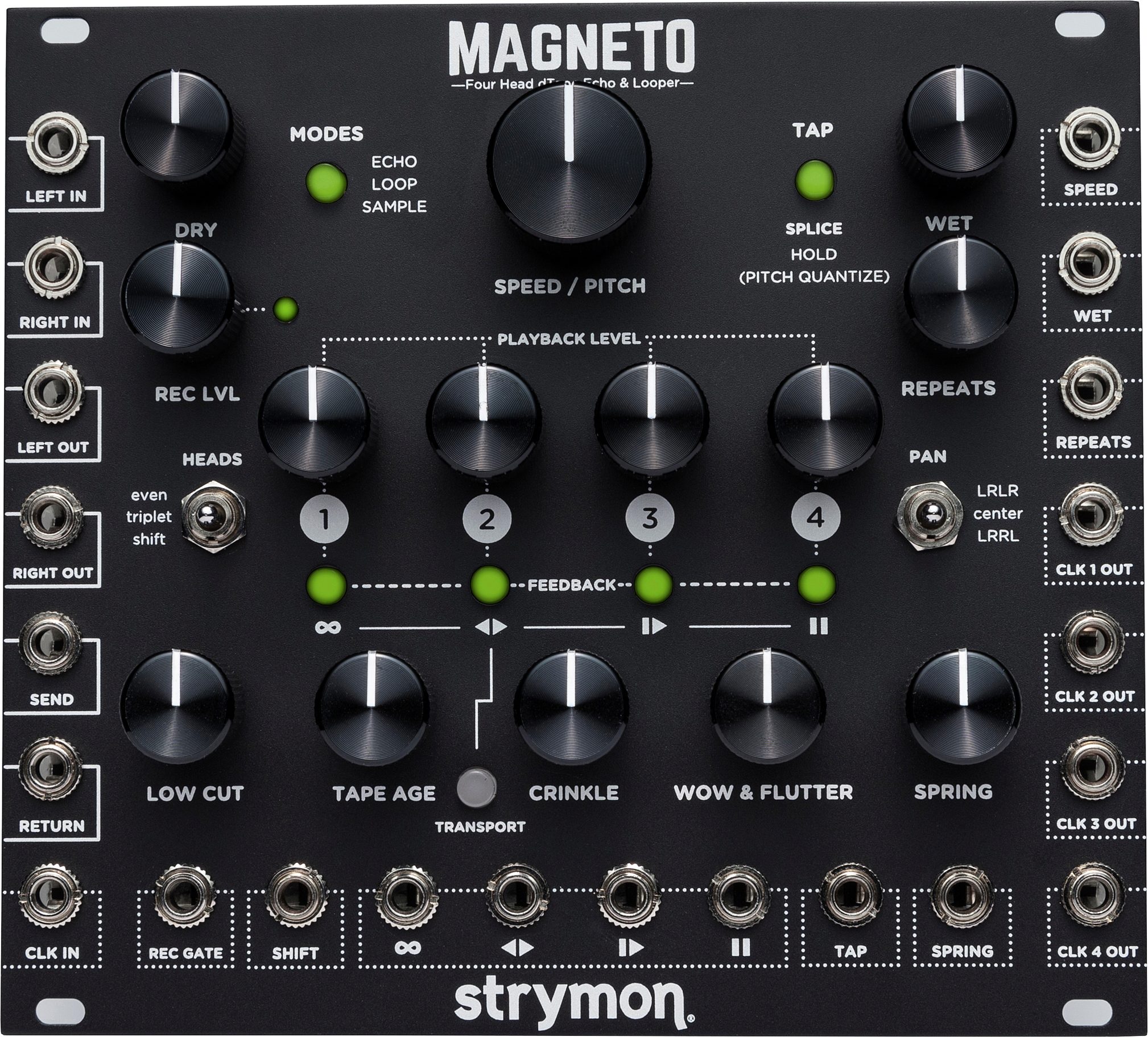

Strymon Magneto Four Head dTape Echo and Looper Module

zZounds Gear Experts Say...
Never underestimate the power of a good tape delay! This multi-function module from Strymon adds echo, looping, reverb, and more to your Eurorack rig.

Create expansive soundscapes and evolving, otherworldly tones. Add layers upon layers of harmonic and rhythmic complexity within an enveloping stereo field. Infuse your rack with vintage warmth and retro-futuristic soul.

Packed with powerful features while maintaining intuitive playability, Magneto is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.

Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.

Features:

- Tape-voiced delay machine with four playback heads and one record head
- Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems
- Three operational modes: Echo, Sound On Sound Looper, Phrase Sampler
- Varispeed algorithm with dynamic machine mechanics, 8:1 speed range
- Input record level for clean reproduction to warm, fat saturation
- Self-oscillating for tone generation
- Independent Spring Reverb
- Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter
- Transport controls (buttons and CV inputs) for real-time read more performance options
- Individual Playback Head Level controls
- Individual head Feedback assignment independent of playback level
- Three stereo head panning options, including user-defined custom panning
- Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Power:
+12V rail: 210mA
-12V rail: 210mA
+5V rail: 0mA
- Rack Width: 28hp
- Rack Depth: 41mm, 1.61"
- Sampling Rate: 96kHz
- Audio Input Impedance: 22 kOhm
- Maximum Audio Input Level: 20 Vpp
- Audio Output Impedance: 1 kOhm
- Maximum Audio Output Level: 20 Vpp
- Signal To Noise Ratio: 114dB typical
- Maximum Delay/Loop Time: 15 seconds at maximum Speed, two minutes at minimum Speed
- Minimum Delay Time: 200uS at maximum speed
- Clock In CV Range: 50ms - 15s
- TAP Button Range: 50ms - 15s
- TAP CV Range: 10ms - 15s

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 1.25 lbs
  • Shipping Dimensions: 9 x 8 x 4 in
  • Manufacturer Part Number (MPN): Z120-MGTO

For support or warranty questions, please contact the manufacturer:
Phone: (805) 468-8788, (800) 980-8160
Email: support@strymon.net
Web: https://www.strymon.net/contact/
