Shure UT Series Vocal Artist UHF Wireless Handheld System with Beta 58

No longer available at zZounds

zZounds Gear Experts Say...

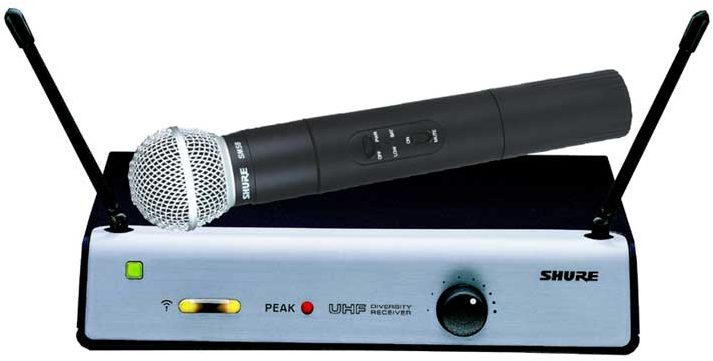

Includes: UT4 MARCAD Diversity Receiver, UT2/BETA58 Handheld Transmitter with BETA58 Supercardioid Microphone.

Overview

Finally, a high quality UHF wireless system that's highly affordable. From the innovative minds of Shure come the first affordable UHF systems that are as good as their name: the UT Series UHF Wireless Systems.

Includes: UT4 MARCAD Diversity Receiver, UT2/BETA58 Handheld Transmitter with BETA58 Supercardioid Microphone.

For the money, you'll find no better UHF wireless system. The UT Series gives you all the freedom and flexibility of our popular T Series VHF system, now in a UHF format. So you'll get a less crowded operating band for a clear, interference-free sound.

They've specifically designed 4 systems to fit every need. Each system features Shure's exclusive MARCAD(TM) Diversity receiver with intelligent circuitry. MARCAD delivers the best possible performance by combining audio signals from 2 independent receiver sections. So dropout and switching noise are eliminated, while operating range is dramatically improved.

Shure's "battery saver" technology provides up to 12 hours of battery life and operates in conjunction with 2 LED indicators; one for on/off and another to warn when battery life is low. A convenient mute switch delivers noiseless control of audio on/off functions, while Shure's noise squelch circuitry virtually eliminates noise bursts.

With a UT Series UHF Wireless System, you'll have the freedom to deliver your most professional performance every time.

The Vocal Artist UHF
If you're a vocalist who is serious about delivering energetic, great-sounding… read more performances, The Vocal Artist UHF is the system for you.

Now, for a limited time, choose the legendary quality of the Beta 58A(TM) supercardioid microphone to crown your UT handheld series transmitter, and see why the high frequency response and high output of the Beta 58A makes it a top choice worldwide.

UT2 Handheld Wireless Transmitter
What better way to ignite your performance than with a system featuring the world standard SM58 Or with the high-performance, highly affordable BG3.1, with it's neodymium magnet for extra high output. Each features a specially designed internal shock mount that minimizes the rumble caused by mic handling or stand vibration.

Note: For a limited time, Shure UT2 transmitters will be available with the Beta 58A supercardioid dynamic vocal microphone, world-renown for its excellent performance in live and professional sound reinforcement.

Features
Power/Off Switch

Power On Indicator

Low Battery Indicator

On/Mute Switch

Audio Gain Control

Battery Cover (unscrews for access to the 9V battery and gain control)

UT4 Wireless Receiver
The UT4 receiver may be used in numerous applications, and is designed to be easily stacked or rack-mounted for multiple system use.

Features
Power On Indicator

Diversity Signal Indicators

Audio Peak Indicator

Volume Control

Semi-Rigid Receiver Antennas

1/4 in. Phone Jack Audio Output Connector (Unbalanced High Z)

XLR Audio Output Connector (Balanced Low Z)

Mic/Line Slide Switch

Squelch Control

Power Input Connector

Power Cable Retainer

Specs

Includes: UT4 MARCAD Diversity Receiver, UT2/BETA58 Handheld Transmitter with BETA58 Supercardioid Microphone

RF Carrier Frequency Range:
Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used)

Operating Range: 100 m (approximately 300 ft) under typical conditions

Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB

Image Rejection: 75 dB typical

Spurious Rejection: 75 dB typical

System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical

Signal/Noise Ratio: 90 dB

Sensitivity: 110 dBm for 12 dB SINAD typical

Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV

Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): 80 dBV

Operating Temperature Range
-29 to 74 degrees C (20 to 165 degrees F) NOTE: Battery characteristics may limit this range

Battery Life
UT2: 12 hours with 9V alkaline battery (Duracell MN1604 recommended)

UT2
RF Output: 15 mW Typical

Dimensions (H x D):
UT2/58: 241 x 51 mm (9.49 x 2.01 in.)
UT2/Beta 58: 241.3 x 36.83 mm (9.5 x 1.45 in.)

Net Weight: 296 g (10.4 oz.)

Power Requirement:
9 V alkaline battery (Duracell MN1604 recommended)
9 V lithium ULTRALIFE battery optional

Nominal Current Drain: 40 mA

UT4
Maximum Output Levels:
XLR Line Level: +10 dBV, Mic Level: 22 dBV
1/4 in.: +4 dBV

Nominal Output Levels:
XLR: Line Level: 26 dBV, Mic Level: 62 dBV
1/4 in.: 32 dBV

Output Configuration: Active Balanced Unbalanced

Actual Impedance:
XLR: Line Level: 138 Ω, Mic Level: 500 Ω
1/4 in.: 1 k

Connector Pin Assignments:
XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
1/4 in.: Tip: hot, sleeve: ground

Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

Net Weight 419.6 g (14.8 oz.)

Power Requirements: 12-18 Vdc nominal, 200mA

Power Supply: 120 V or 230V AC adapter with 2.1 mm female plug

Voltage/Current/Phantom Power Protection: Yes
