Shure PGX Digital Handheld Wireless Microphone System with SM86

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

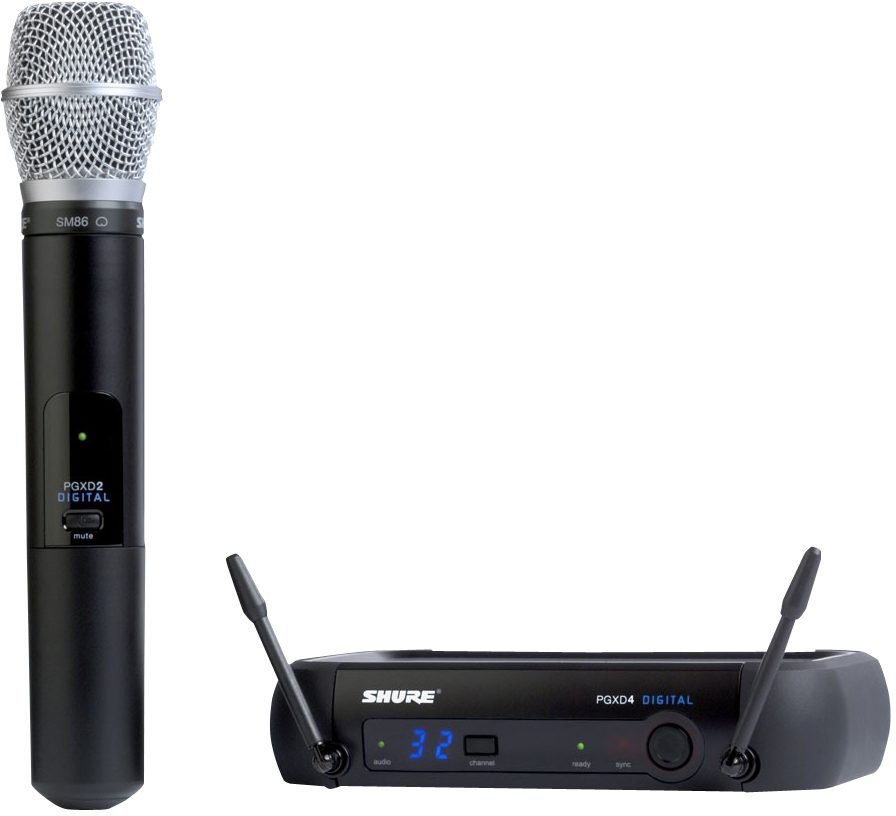

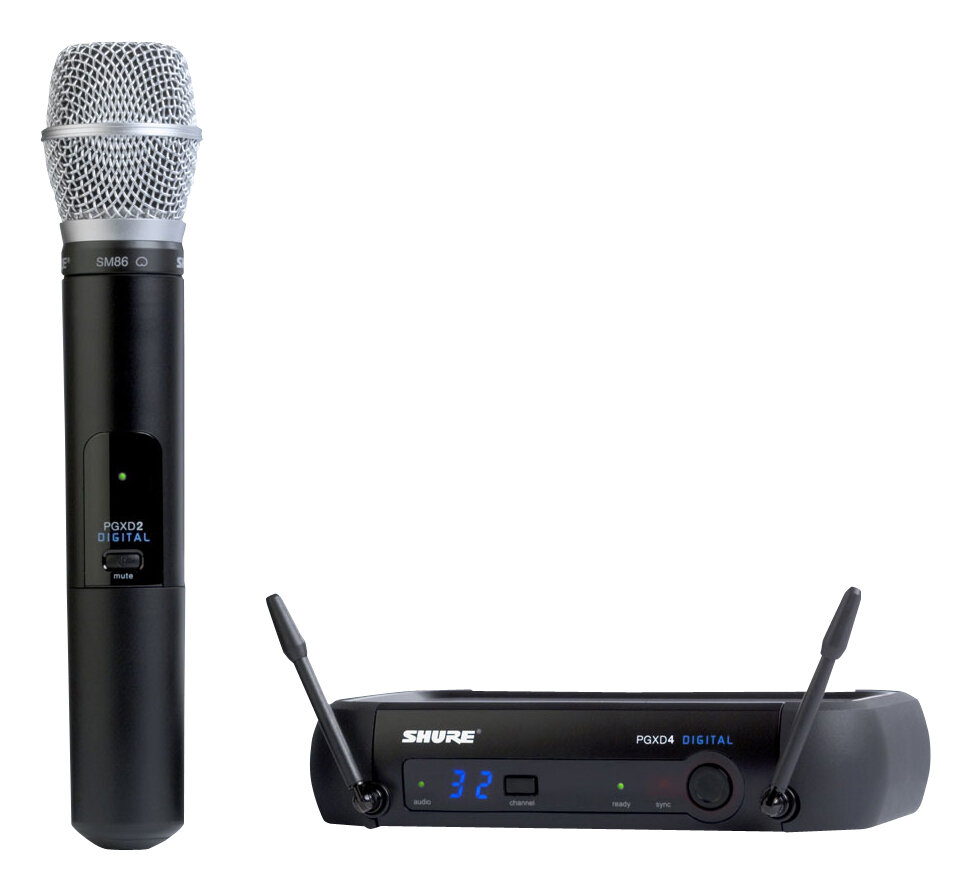

Shure PGX Digital Handheld Wireless Microphone System with SM86, Main

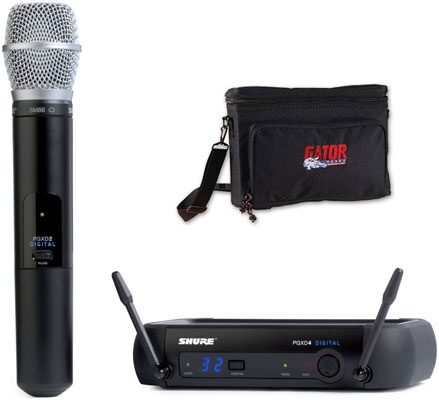

Shure PGX Digital Handheld Wireless Microphone System with SM86, With Gator Bag
Shure PGX Digital Handheld Wireless Microphone System with SM86, Main Shure PGX Digital Handheld Wireless Microphone System with SM86, With Gator Bag
zZounds Gear Experts Say...
Get clarity and mobility with this Shure wireless mic system. Designed for lead vocals, it includes a hi-frequency-response mic and 24-bit digital receiver.

The PGX Digital SM86 Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the SM86, a rugged cardioid condenser microphone with extended high frequency response for smooth reproduction of lead vocals.

Shure PGX Digital SM86 Microphone Features:

- Cardioid condenser microphone with extended high frequency response for smooth reproduction of lead vocals
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- Rugged construction for reliable performance show after show

Shure PGXD4 Wireless Receiver Features:

- 24-bit / 48 kHz digital technology for incredibly accurate sound
- Automatic frequency selection locates a clear channel instantly
- One-touch sync automatically syncs the transmitter and receiver
- Durable construction for reliable performance show after show
- True digital diversity delivers rock-solid wireless signal reliability
- Up to 5 systems can be used at once
- 1/4-inch and XLR audio outputs
- Included padded carrying case for portability and protection

Included in this system:
- PGXD4 wireless receiver
- SM86 microphone with PGXD2 handheld transmitter
- Padded carrying case
- Microphone clip

Shure PGXD4 Receiver:

- Housing: ABS
- Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
- - XLR connector (into 3000 Ohms load): -2.5 dBV
- - 1/4 inch connector (into 10000 Ohms load): +10 dBV
- Impedance: XLR: 50 Ohms, 1/4 inch: 50 Ohms
- Sensitivity: -102 dBm at 10-5 BER
- Image Rejection: > 70 dB, typical
- Audio Outputs: Balanced XLR; TRS 1/4 inch
- Audio LED: Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
- Dimensions (HxWxD): 1.6 x 7.125 x 4.1 inches (40 x 181 x 104 mm)
- Weight: 289 g (10.2 oz.)

For support or warranty questions, please contact the manufacturer:
Phone: 800-516-2525
Email: service@shure.com
User-Guide
