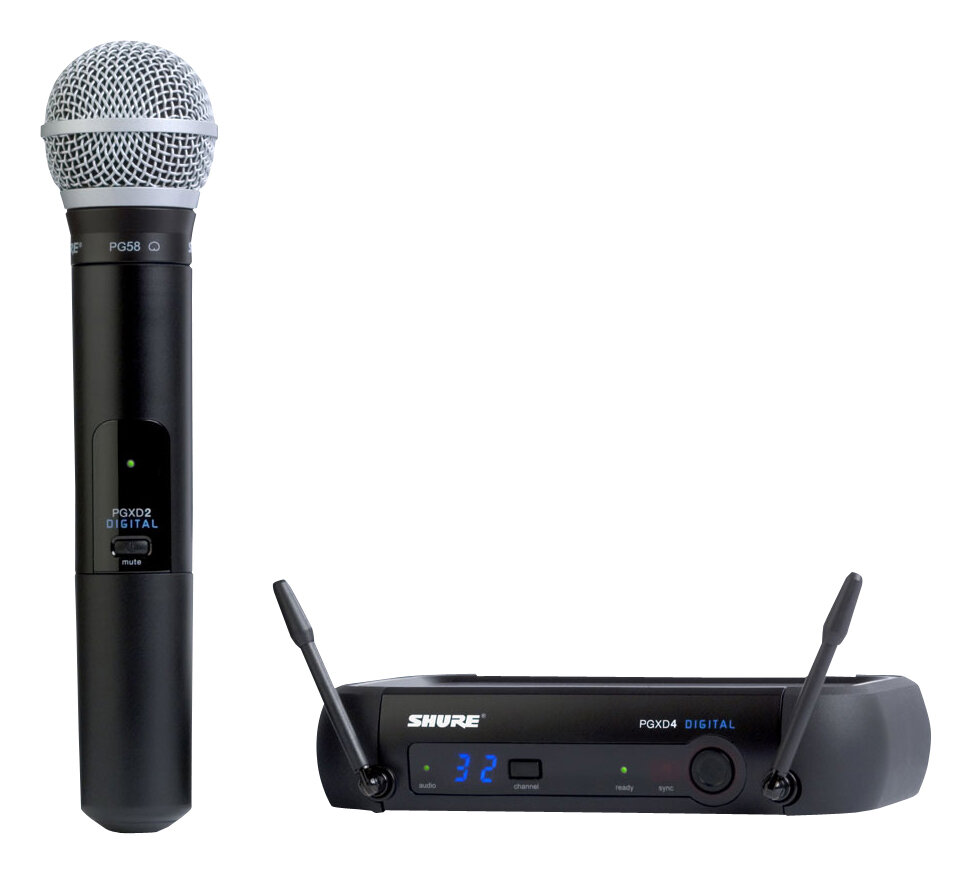

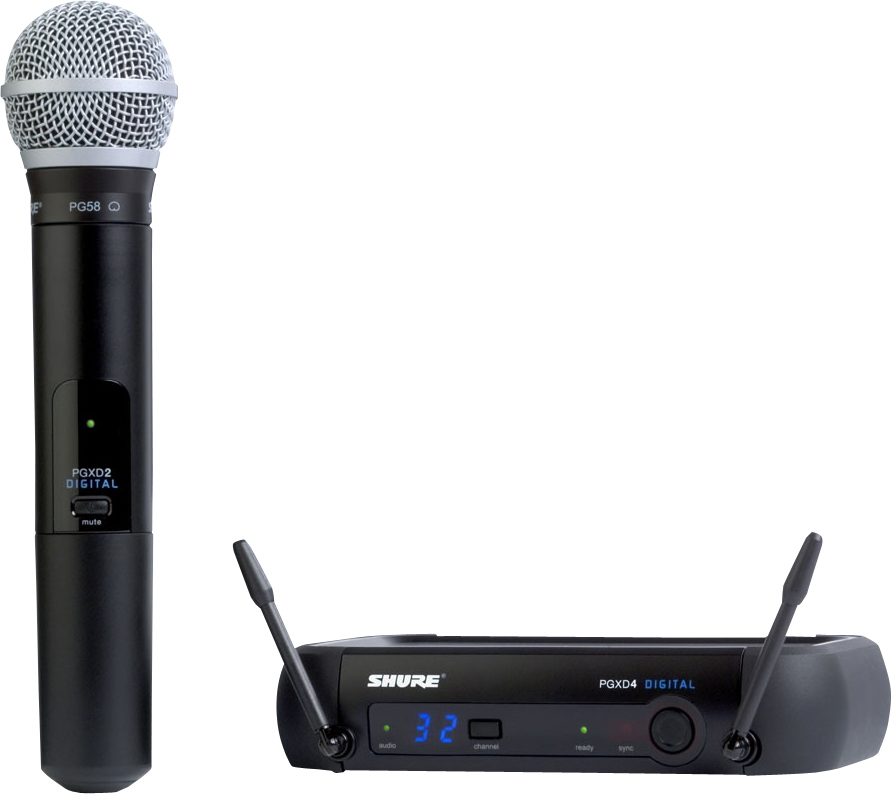

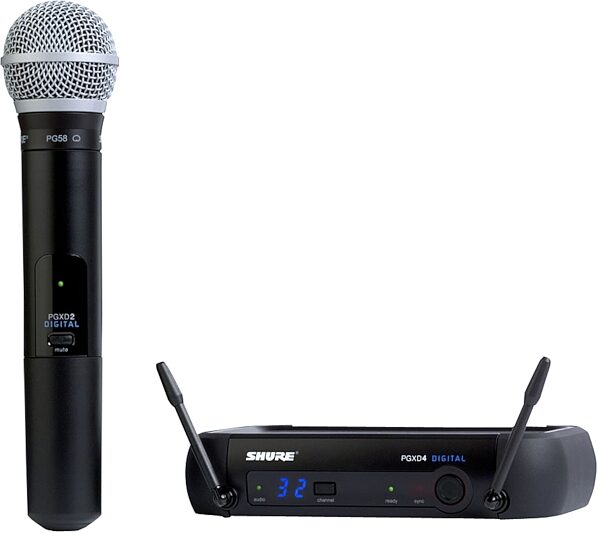

Shure PGX Digital Handheld Wireless Handheld Microphone System with PG58

Get the strength and quality of digital wireless with the Shure PGX. This system is packed with features, such as 1-touch sync and auto frequency selection.

Overview

The PGX Digital PG58 Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This Shure PGX system includes the PG58, a professional quality microphone ideal for lead and backup vocal performance applications.

Shure PG58 Microphone Features:

- Dynamic vocal microphone ideal for lead and backup vocal performance applications
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- Rugged construction for reliable performance show after show

Shure PGXD4 Wireless Receiver Features:

- 24-bit / 48 kHz digital technology for incredibly accurate sound
- Automatic frequency selection locates a clear channel instantly
- One-touch sync automatically syncs the transmitter and receiver
- True digital diversity for rock-solid wireless signal reliability
- Up to 5 systems can be used at once
- 1/4-inch and XLR audio outputs
- Included padded carrying case for portability and protection

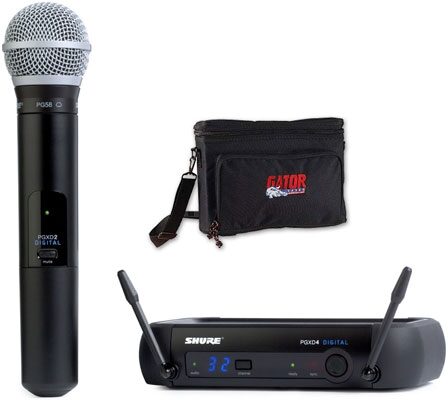

Included in this system:

- PGXD4 wireless receiver
- PG58 microphone with PGXD2 handheld transmitter
- Padded carrying case
- Microphone clip

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Shure PGXD4 Receiver:

- Housing: ABS
- Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
- - XLR connector (into 3000 Ohms load): -2.5 dBV
- - 1/4 inch connector (into 10000 Ohms load): +10 dBV
- Impedance: XLR: 50 Ohms, 1/4 inch: 50 Ohms
- Sensitivity: -102 dBm at 10-5 BER
- Image Rejection: > 70 dB, typical
- Audio Outputs: Balanced XLR; TRS 1/4 inch
- Audio LED: Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
- Dimensions (HxWxD): 1.6 x 7.125 x 4.1 inches (40 x 181 x 104 mm)
- Weight: 289 g (10.2 oz.)

Dimensions and Weight in Packaging
Group X8, Frequencies 902.00 - 928.00: Shipping Weight: 4 lbs; Shipping Dimensions: 18 x 13 x 4 in; Manufacturer Part Number (MPN): PGXD24/PG58-X8

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
