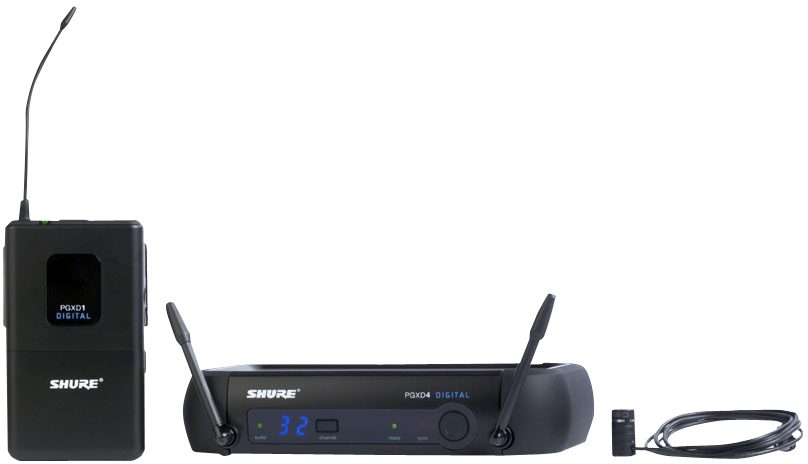

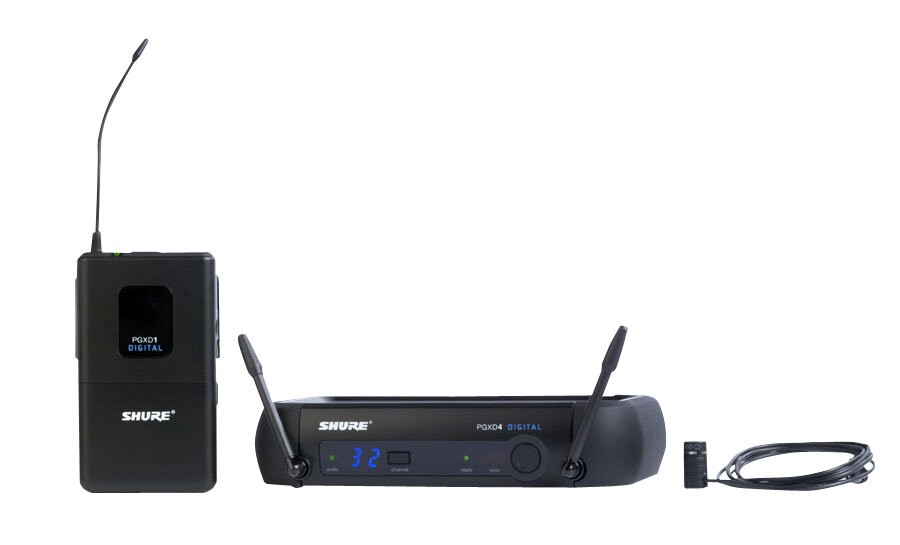

Shure PGXD14/85 Digital Lavalier Wireless Microphone System with WL85

Ditch the cables with this Shure wireless system. It features a condenser lavalier mic, 24-bit receiver, bodypack transmitter and 200-ft operating range.

Overview

The PGX Digital Lapel Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the WL85 cardioid condenser lavalier for general-purpose sound reinforcement applications requiring good rejection of ambient noise. Also includes tie clip and windscreen.

Shure PGX Digital WL85 Microphone Features:

- Cardioid condenser lavalier microphone for general purpose sound reinforcement
- Smooth extended frequency response with presence rise specially tailored for chest worn microphone operation
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- Rugged construction for reliable performance show after show
- Low profile bodypack, easily clips onto belts or clothing

Shure PGXD4 Wireless Receiver Features:

- 24-bit / 48 kHz digital technology for incredibly accurate sound
- Automatic frequency selection locates a clear channel instantly
- One-touch sync automatically syncs the transmitter and receiver
- True digital diversity for rock-solid wireless signal reliability
- Up to 10 compatible channels per frequency band
- 1/4-inch and XLR audio outputs
- Included padded carrying case for portability and protection

Included in the Box:
- PGXD4 wireless receiver
- PGXD1 bodypack transmitter
- WL85 lavalier microphone
- Tie clip
- Windscreen
- Padded carrying case

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Operating Range: 200 ft (60 m) line of sight (actual range depends on RF signal absorption, reflection and interference)
- RF Carrier Range: X8: 902 - 928 MHz (Americas)
- Audio Frequency Range: 20 - 20,000 Hz
- Transmitter RF Output Power: 10 mW (varies by region)

Audio Output Connector:
- XLR
- 1/4" (6.3 mm) unbalanced

Maximum Output Level:
- -2.5 dBV (XLR, mic level)
- +10 dBV (1/4 inch)

- Battery Life: Up to 10 hours
- Dynamic Range: 108 dB A-weighted
- System Distortion: < 0.02% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
- Operating Temperature Range: -18 degrees C (0 degrees F) - +50 degrees C (122 degrees F)
- Bodypack Batteries: 2 AA size alkaline or rechargeable
- PGXD4 Reciever Power: 12 - 18 V DC at 150 mA, supplied by external power supply

Dimensions and Weight in Packaging
Group X8, Frequencies 902.00 - 928.00: Shipping Weight: 4.75 lbs; Shipping Dimensions: 18 x 13 x 5 in; Manufacturer Part Number (MPN): SHU PGXD1485X8

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
