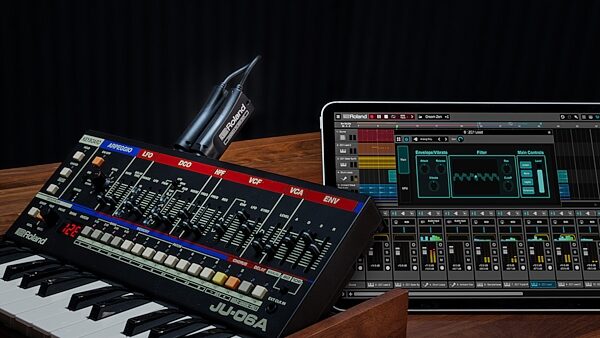

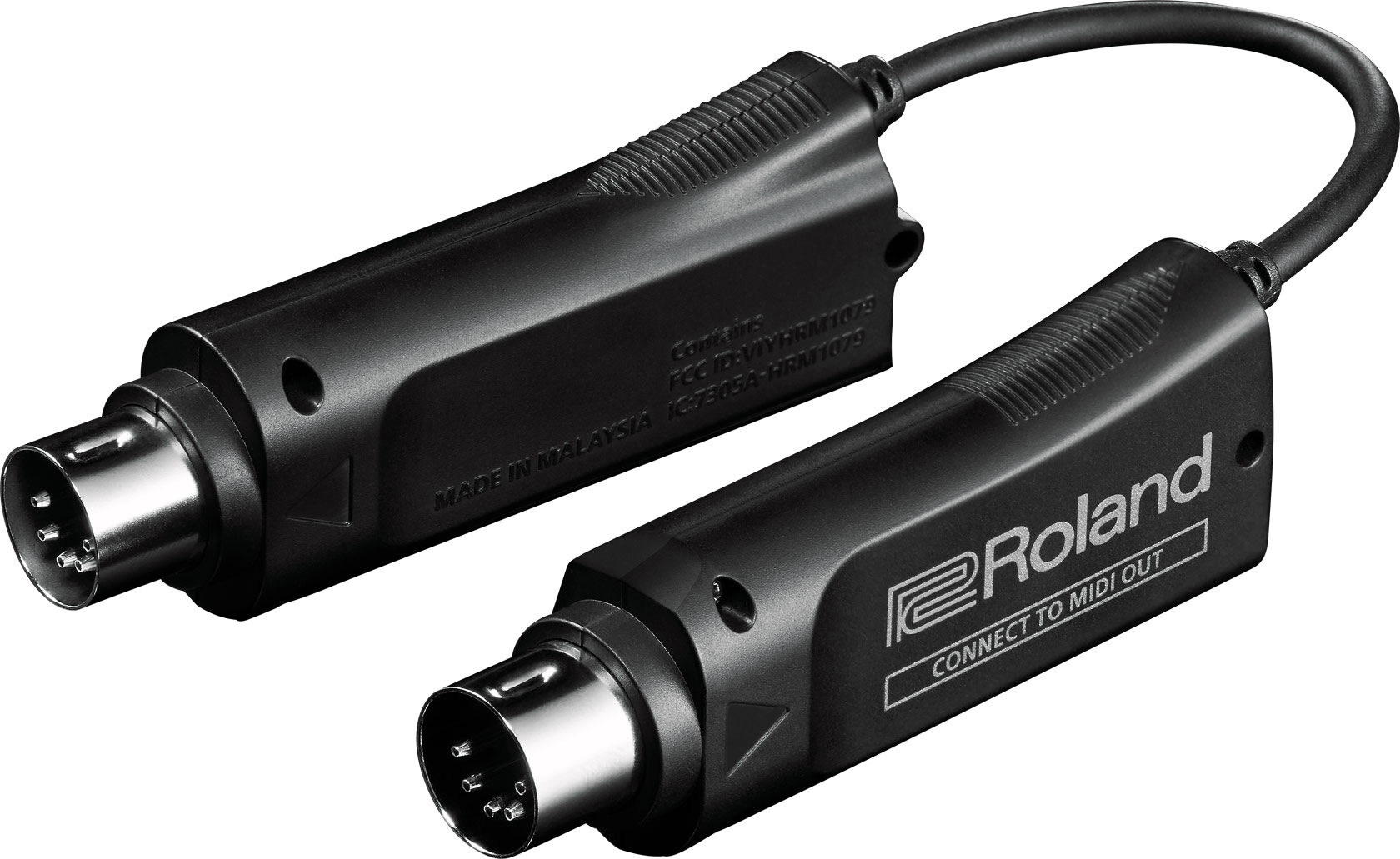

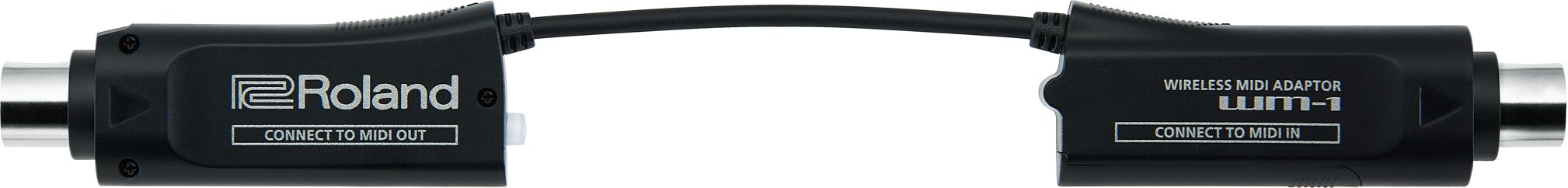

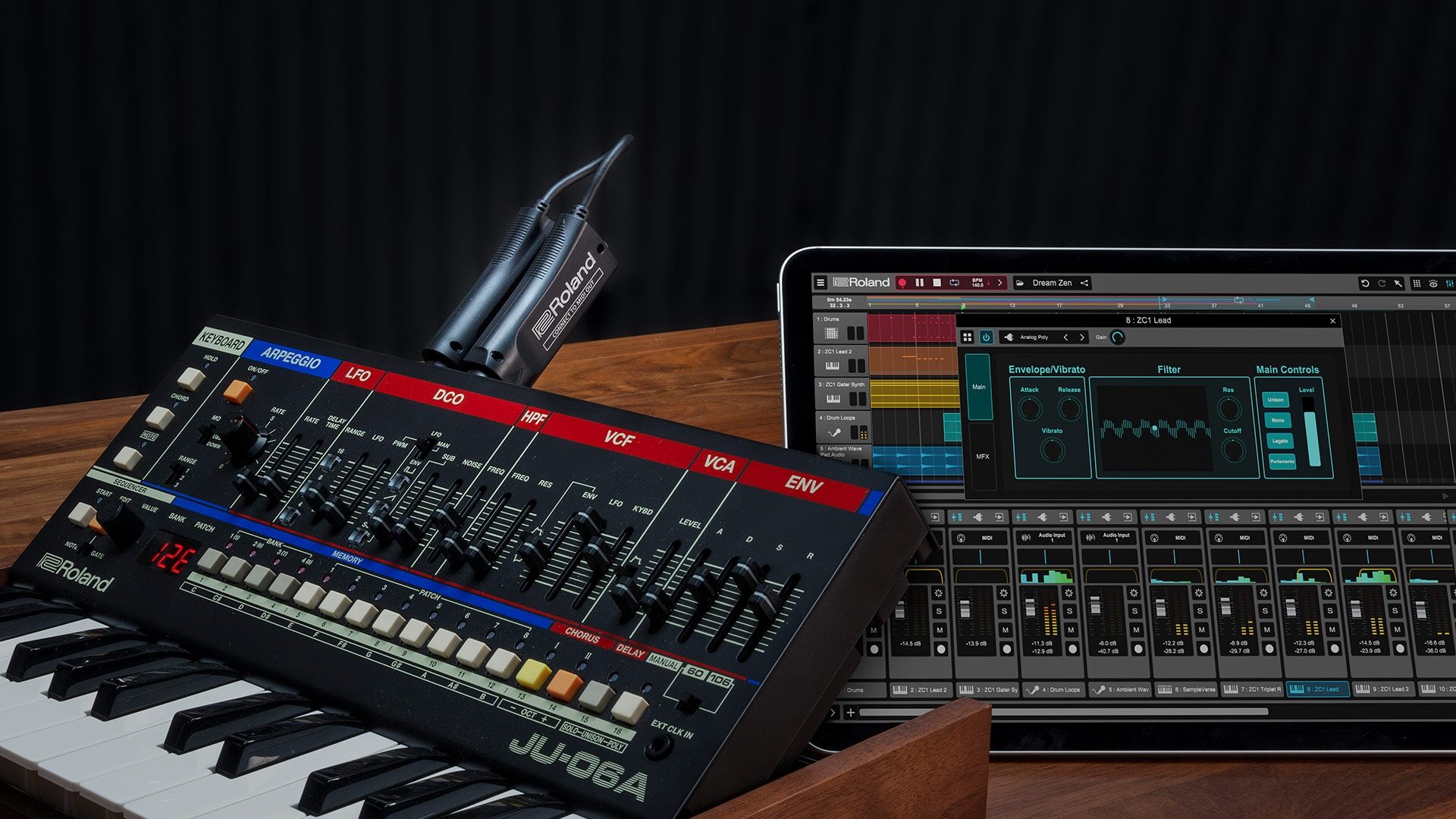

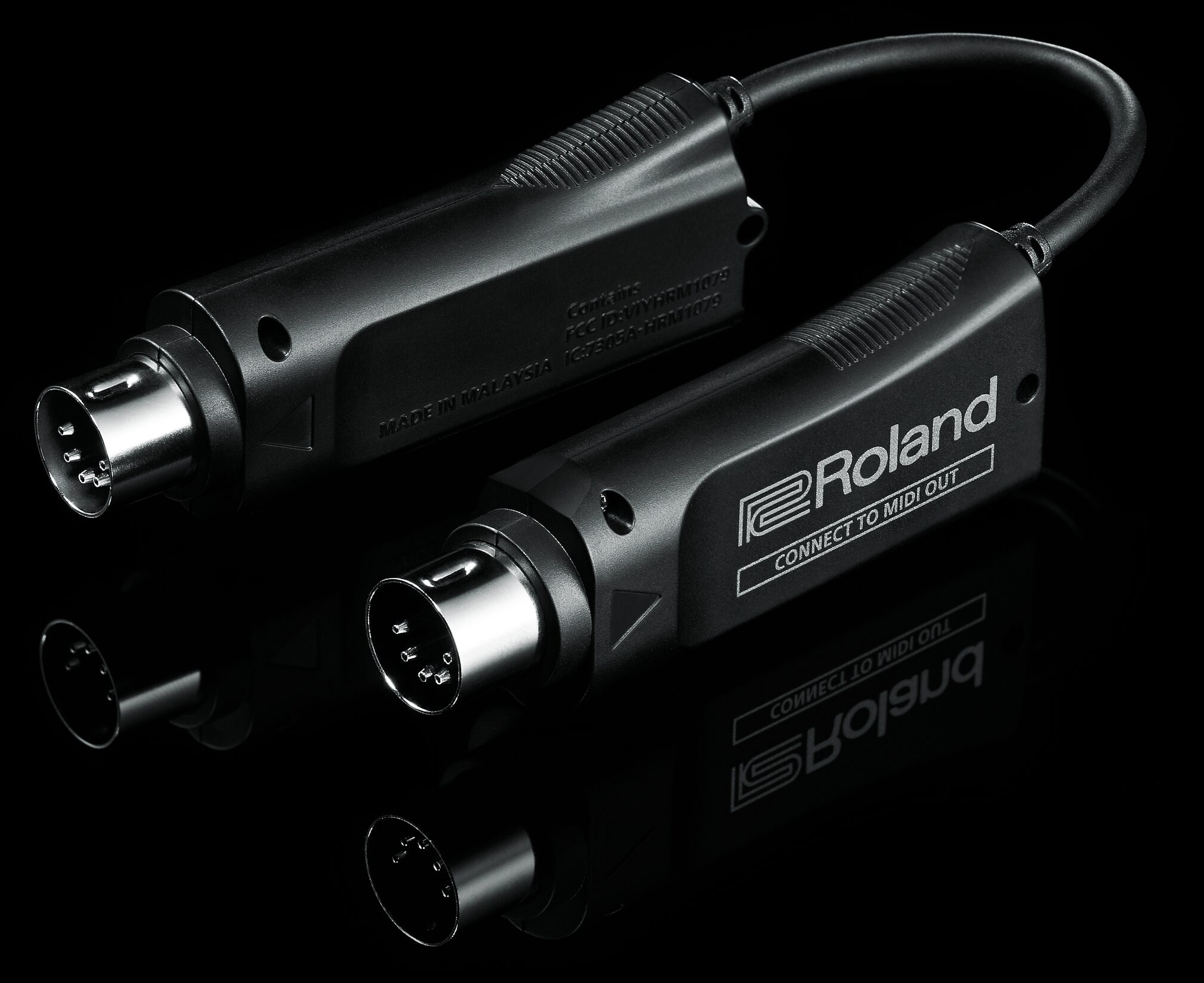

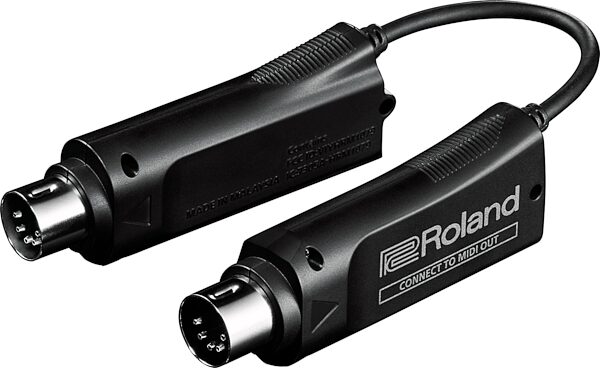

Roland WM-1 Wireless MIDI Adapter

Wireless Format: BLE and proprietary format
Wireless carrier frequency: 2.4 GHz
Transmission Range: 10 m (32 feet) line-of-sight (May vary due to local conditions)
Multiple connection: Up to three units can be connected to one master unit (STANDARD mode)
Latency: 7.5--15 ms (STANDARD mode) , 3 ms (FAST mode)
Connectors: MIDI connectors (IN, OUT)
Power Supply: Alkaline battery (AAA, LR03) x 1
Current Draw: 14 mA
Battery life for continuous use (differs depending on the conditions of use) : Alkaline battery (AAA, LR03): Approximately 60 hours

Control side:
- 79 (W) x 17 (D) x 29 (H) mm
- 3-1/8 (W) x 11/16 (D) x 1-3/16 (H) inches

Battery side:
- 80 (W) x 17 (D) x 29 (H) mm
- 3-3/16 (W) x 11/16 (D) x 1-3/16 (H) inches

Weight (including battery): 46 g / 2 oz

- Alkaline battery (AAA, LR03) x 1

Options (sold separately): WM-1D Wireless MIDI dongle
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.25 lbs
Shipping Dimensions: 7 x 5 x 1 in
Manufacturer Part Number (MPN): WM-1
